The following pages shall be devoted to the description of a process on Dry Collodion, which I believe to be at once simple and effective. The experiments connected with the perfection of this process have occupied my leisure time for the space of two years or more, and have been conducted with all the care of which I was master. The constant repetition of them enables me to say, that whoever will follow diligently the process step by step, as detailed in this Pamphlet, must succeed in producing pictures in every way such as could be required by the most exacting critic.
The process is simple, clean, and expeditious; and the resulting Negatives possess the exquisite softness of Albumen, the brilliancy of the wet Collodion, and the fine artistic texture of the Paper process.
To disarm criticism, and to make peace with my fellow labourers in the art, I wish it to be understood that I do not claim the use of Collodion, of Gelatine, of Metagelatine, or of any of the Chemicals used in the process—most of these have been employed by others in various ways; I merely reserve to myself the pleasure of placing in the hands of Photographers a definite and simple plan by which pictures may be taken on Dry Collodion.
CHARLES A. LONG.
June 20, 1857.
In issuing a second edition of the Dry Collodion process, I would take occasion to remark, that after some months' practical working, it has not been found necessary to make any material alteration in the process; success has usually attended the adoption of it, and in those cases where good pictures have not resulted, the failure has always been traced to the use of a Collodion not suited to the process.
I cannot allow this opportunity to pass, without thanking those gentlemen whose opinions possess weight in matters photographic, for the very candid manner in which they have tested the capabilities of my process, and for the very flattering testimony they have borne to its efficiency, simplicity, and certainty.
CHARLES A. LONG.
153, Fleet Street,
September 1857.
The process described in the following pages has now been in use for twelve months, and I have much satisfaction in stating that it has, in almost every instance where it has been adopted and carried out with care and attention, yielded results which leave scarcely anything to be desired.
The present Edition might more properly be termed a reprint, as the alterations in the text do not extend to more than a few matters of detail, which experience has shewn to be desirable, the principles of the process remaining undisturbed.
CHARLES A. LONG.
153, Fleet Street,
June 1858.
From the Athenæum.
We have not merely examined the description given by Mr. Long of his dry collodion process, but we have witnessed the results obtained by following carefully his directions. It appears to us that, by it, a collodion plate may be prepared at home, wrapped in paper, and packed in portmanteau; that we may journey to Rome or Venice, then place our plate in the camera obscura, and allow it for a few minutes to receive the luminous image; remove it in a dark room; re-pack it and trouble ourselves no more about it until our return to England; when, in the room in which it was prepared, we may witness the magic process of development, and rejoice that we have, without much labour, secured a picture of the Coliseum or of the Bridge of Sighs.
From the Journal of the Cambrian Archæological Association.
New Photographic Process.—Mr. Long, of the firm of Bland and Long, Opticians, Fleet Street, has recently put forth a valuable pamphlet, in the form of an essay on the dry collodion process. By means of this, plates prepared weeks beforehand may be exposed to objects, and then kept for weeks afterwards before they are developed, as he has proved it himself on the Continent. The advantage of this process to travellers, and especially to archæologists, is immense; because hitherto the main drawback upon photography has been the trouble and expense of carrying chemicals, tents, &c. &c., besides the camera, with its lenses, to the scene of operation. Now, however, it will be sufficient to carry merely the camera, with a suitable supply of plates prepared according to this process. The observer can then, by merely exposing his plates, with the proper precautions, bag any number of views per diem, and on his return home can develop them—or have them developed—at leisure. If this process succeeds, it will have the effect of splitting photography into two distinct branches—the æsthetic, and the practical. The former will fall to the share of the intelligent observer, the traveller, the man of taste, who will go and search for objects, combine them, or use them, under the most favourable æsthetic circumstances, and then will carry them home to be handed over to the man of practice. Once in his hands, nothing will remain but to manipulate the plates according to the rules of photographic science, by means of all the best appliances that a well fitted laboratory can furnish. One branch will feed the other. One will be the department of observation, of search, of taste, of beauty; the other will be that of calm scientific development, of improvement, of preservation. One man will be like the artist who paints; the other like the artist who engraves. One will be like the author, the man who writes; the other like the printer, the man who perpetuates. We recommend members to enquire carefully about this new process; because if it becomes firmly established, any archæologist moving about the Country may get views of churches, castles, cromlechs, meini-hirion, seals, &c. &c., usque ad satietatum—we had almost said ad nauseam; but that word can never be connected with archæology! The upshot of this is,—"Read Mr. Long's pamphlet, and set up a portable camera with his prepared plates, as we intend doing ourselves!"
From the Liverpool and Manchester Photographic Journal.
We must advise all who are interested in dry processes to obtain Mr. Long's clearly written pamphlet. (Leader, July 15th, 1857.)
Extract from Proceedings of Charlton Photographic Society, October 8th, 1857. Paper by Mr. Hooper,—On the results of his experience in the practice of several Preservative Processes.
I commenced experimenting on the process of Mr. Long. The success I have met with from the first has convinced me that that process will ere long be generally adopted: the plates being easily and quickly prepared, and keeping well, is a great advantage.
Extract from Letter from G. R. Smith, Esq., to the Editor of the London Photographic Journal, Sept 21, 1857.
My tour of a fortnight's duration having ended, I returned to London, and began developing (the dry plates). To my great delight, I found all Mr. Long had said in favour of his process fully realized. Picture after picture (I took twenty-eight) came out with great beauty, and so far as the process is concerned, I have not had a single failure.
Mr. Long's Dry Collodion Process.
Letter from Robert Hunt, Esq., F.R.S., to the Editor of the London Photographic Journal, October, 1857.
6, Green's Row, Chelsea.
Sir,—It is due to Mr. Long that I should state what my experience has been with his dry collodion plates, and I feel much satisfaction in doing so, being enabled fully to confirm all that Mr. Smith has said respecting the dry plates prepared as he has described (Photo. Journ. Sept. 21). On the 26th of August, Mr. Long, at my request, furnished me with some of his dry collodion plates. Absence from London, and the press of official engagements, prevented my trying any experiments with those plates until the 30th of September. Although the weather was very unfavourable, the result was superior to my expectations. On the 7th of October, at four in the afternoon, when the sky was covered with clouds and the weather stormy, I exposed a plate in the camera obscura for ten minutes to the dark brick building, Chelsea Hospital. I enclose you a positive print from the result of this experiment. When we remember that the sensitive plate had been kept by me for a period of forty-two days, and then exposed under very unfavourable circumstances, I think you will admit that the result is satisfactory. I should not content myself with this trial, but that I am again compelled to leave London for a long period, and I shall have no other opportunity of testing these plates for this year. I feel convinced that the traveller might with perfect safety use plates which have been prepared for a month, and thus relieve himself from much labour and frequent annoyance, by the use of Mr. Long's process.
Robert Hunt.
From the Illustrated London News, January 9, 1858.
It is but a few years since, when we heard with surprise, and some incredulity, that light could be made to delineate images of external objects upon chemically prepared tablets placed in the camera obscura,—now photography stares us in the face at every corner,—that which was wonderful has become familiar,—that which was mysterious is singularly common.
In cities, we see glass houses, on at least one roof in every street,—in villages, caravans, with Brown and Jones, photographers, are regularly found,—on the hills we discover the tent, and in the valleys the camera,—by the river-side there is the mysterious head hidden in the dark curtains of a dark box,—and upon the sea-shore the tripod-stand is securely fixed in the sands, [8] and a biped is evidently focusing for the next fine ocean wave,—the sketcher has fled to his own especial solitudes, and the photographer has usurped his place.
It has been said of the most recent photographic processes, as was well said of the octo-syllabic verse, that it possesses "unfortunate facilities." This is true in many respects of the positive collodion process, by which the myriads of sad reflections on humanity are perpetrated. Not so, however, is it with the negative process, by which alone we can multiply the beautiful things which the solar pencil traces with such fidelity. The labour attendant upon a photographic tour is great, and real enthusiasm alone carries the amateur forward. The camera obscura and the stand are a burden, and with the tent and chemical box, they become a real load. Then there is the uncertainty attendant upon the processes. We deal with the nicest chemical adjustments. The balance is arranged with caution for a certain set of conditions,—alter but one of these, and all goes wrong. We leave home in the morning, we work in the dark all day, and we return jaded at night, to find we have obtained—nothing.
Sensitive as the collodion process is, and charming as are the results, when all goes on successfully, it has not hitherto been a process which can be practised out of doors, without many extraordinary, expensive, and troublesome appliances.
It is, therefore, with very much satisfaction that we have watched the progress of the so-called "dry collodion processes." Nearly all the processes that have been published,—the "gelatine,"—the "oxymel,"—the "glycerine," and others,—have much that is excellent in them; but it appears to us that a dry collodion process devised by Mr. Long, of which he has recently published a description, is more simple and effective than any other. We have seen beautiful pictures obtained in Belgium upon plates prepared in England, and which plates were brought to this country again before the pictures were developed.
Any man may, previously to starting on his journey, prepare, or purchase prepared, a stock of glass plates. Armed with these and his camera, he may proceed to
or to that
and, resting on his way, he may adjust his camera and his plate, and in the few minutes which, under any circumstances, he would spend in observation, he secures a picture for future study,—a photograph to give him pleasure in the quiet of his home.
Mr. Long has published a little treatise, with which we head this article, and by following out the simple directions which he gives, all may succeed in obtaining the important desideratum,—a parcel of highly sensitive plates, which can be packed in paper and stowed away in a portmanteau, to be drawn out as occasion may require, to be returned again to the same package (without having any of the annoyances attendant upon a box of liquid chemicals), and a plate which can be kept with its dormant picture quite uninjured until the photographer, on his arrival home, at his perfect leisure, in his own operating room, can develop the photograph which he has obtained.
Such are the facilities offered by this improvement, that we may expect almost every traveller will avail himself of it, and thus secure for his own portfolio, and the portfolios of his friends, views of scenes hallowed by their historical association,—of ruins rendered sacred from the sacred memories which still wrap them in their shadows, as the mantling ivy clothes their crumbling walls.
Before describing in detail the manipulations of the process on Dry Collodion plates, it will be necessary to say a few words on the materials and apparatus to be employed, and also to give an account of the means of preparing the various solutions used in the process. First,
This being the principal material we have to use, we must exercise great care in the selection of a sample that possesses all the characteristics which fit it for a dry process. We must reject all samples that possess great tenacity and contractile power: the Collodion must not be too thick, and it must flow evenly over the plate, and not set in ridges. The best condition for the Iodized Collodion is that known as powdery, that is, being spread on the plate and partially dry, it cannot be removed as a film, but crumbles up on being pressed by the finger in its passage across the plate; in fact, such a condition as [10] would arise from using gun cotton prepared with acids at a high temperature.
The following formula will be found to answer most admirably:
| Gun Cotton | 60 | grains. |
| Absolute Alcohol | 5 | ounces. |
| Sulphuric Æther, sp. gr. ·730 | 15 | ounces. |
The cotton is to be shaken up with the mixture of alcohol and æther, and when dissolved, the bottle containing it must be stood aside, in order that any undissolved particles of cotton may subside. The clear liquid may then be decanted into a clean bottle for use.
It will be as well to test the quality of the Collodion thus prepared before coating any number of plates with it, for, although the above proportions are very excellent, some little latitude must be allowed for the different degrees of solubility of the various samples of cotton used from time to time. The film, when spread, on the glass plate and partially dry, should not be capable of being removed in the form of a skin, but should give before the finger and crumble up on its being rubbed across the plate.
Should any difficulty, however, occur, it would be better to obtain a sample of the Collodion made by an experienced hand, in order that a fair trial may be given to the process. If the Collodion be too contractile it will give rise to blisters in the film, and will wash off the plate during development.
The Iodizing Solution that I have found to give the best results in this process is made in the manner following:—
| Absolute Alcohol | 8 | ounces. |
| Iodide of Cadmium | 64 | grains. |
| Iodide of Ammonium | 64 | grains. |
The iodides are to be dissolved by agitation in the alcohol, and the resulting solution is to be carefully filtered, and preserved in a well stoppered bottle.
The Iodized Collodion consists of—
| Iodizing Solution | 2 drams | } | 1 ounce |
| Plain Collodion | 6 drams |
The Collodion should always be iodized at least twelve hours before it is required; this interval allows any insoluble matters either from the iodizing solution or from the Collodion itself to fall to the bottom, and enables the operator to pour off the clear solution into a perfectly clean bottle for use.
Next in importance to the Iodized Collodion comes
Some care is required in the preparation of this solution, in order that it may be clear and bright when finished, and not contain particles that would be deposited in its passage over the Collodion film when being used. The chief precaution to be observed is not to allow it to boil too rapidly, and not to conduct the operation over too fierce a fire; attention [12] to this will prevent many failures, and ensure a solution in every way suited for the process.
Take one ounce of the best transparent gelatine, and throw it into a pipkin in which has been previously placed one pint of distilled water; set this on a slow fire, or over a lamp, until the gelatine is completely melted; then weigh out half ounce of pure citric acid and dissolve it in two ounces of distilled water; add this to the solution of gelatine, stirring it during the addition with a glass rod. The solution in the pipkin is now to be gently boiled for about half an hour: remove it from the fire, and add sufficient distilled water to make up the bulk of liquid to one pint. When quite cold, the liquid in the pipkin is to be filtered through two thicknesses of pure white blotting paper into a bottle perfectly dry and clean. We now add to every pint of filtered preservative solution, two ounces of alcohol of the specific gravity of ·840.
The solution thus prepared is ready for use, and should be of a pale amber colour, without any signs of insoluble particles floating in it; should any appear after it has been prepared for some days, a second filtration will remove them, and render the liquid again bright and clear.
It will be found better to prepare this solution only in the quantity indicated above, unless the consumption be large, for, although it will keep good for a month or more, my experience points to the fact, that the [13] most successful results follow the use of Preservative Solution freshly prepared.
The bath for rendering the plates sensitive does not differ from that recommended for taking negatives with wet Collodion. The formula for its preparation may not be out of place, however, and may assist those whose knowledge of the matter is not perfect.
| Nitrate of Silver (fused) | 1¼ | ounces. |
| Distilled Water | 1 | pint. |
| Iodide of Cadmium | 3 | grains. |
Dissolve the nitrate of silver in half the water and then add the iodide of cadmium; thoroughly agitate the mixture for five or ten minutes, then add ½ ounce of alcohol, sp. gr. ·840, and fill up with the remaining half of the distilled water; further agitation, and subsequent filtration through two thicknesses of white bibulous paper, will put us in possession of a negative bath. The nitrate of silver being fused, and consequently, pure and neutral, and as it is essential to obtain clean pictures that the bath should be slightly acid in its reaction, we find it necessary to add 5 or 6 minims or drops of pure glacial acetic acid to a bath of 20 ounces, in order that the above condition may obtain.
Is very simple in its nature, being merely a saturated [14] solution of gallic acid in distilled water, to which has been added a small proportion of alcohol of sp. gr. ·840.
The exact formula is as follows:—
| Distilled Water | 1 | pint. |
| Alcohol sp. gr. ·840 | 1 | ounce. |
| Gallic Acid | ½ | ounce. |
The gallic acid will not be entirely dissolved, but that left at the bottom of the bottle will ensure the solution being saturated; it is better not to filter the developing solution until it is required for use, as it is preferable to allow it to stand over an excess of gallic acid, than for it to be withdrawn after a slight agitation with the crystals; it is a great error to suppose that we obtain a saturated solution of gallic acid by merely agitating the crystals with water for a few moments.
The developing solution prepared as above directed will keep good and in working order for some weeks, but when it becomes of a dark color, it would be safer to reject it and prepare a fresh quantity than to run the risk of a failure from an impure and imperfect developing agent.
For adding to the gallic acid during development, is composed of
| Fused Nitrate of Silver | 30 | grains. |
| Distilled Water | 1 | ounce. |
Consists of a solution of hyposulphite of soda in water, (filtered,) in the following proportion:—
| Hyposulphite of Soda in crystals | 8 | ounces. |
| Rain or Filtered Water | 1 | pint. |
The Apparatus, &c. required in the Dry Collodion process is of the most simple kind, and consist of the following items
Glass plates.
Pneumatic plate holders.

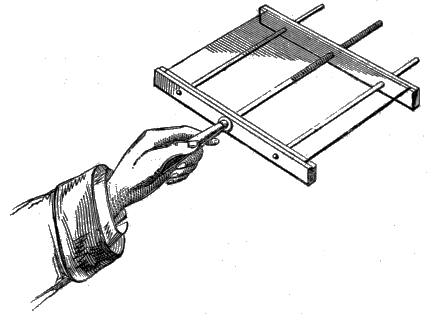

Plate holder, for cleaning the plates.
Glass or porcelain dishes.
Glass or gutta percha dipping bath and dipper.
Silver hook, for lifting plates.
Levelling stand.
Measures, 1, 2, and 4 ounce.
Glass funnels.
Wash leather.
Some clean cloths and broad camel's hair brush.
Cotton wool.
Bibulous paper.
[A] The Chemicals are—
Nitrate of silver (fused.)
Glacial acetic acid.
Iodized Collodion (dry.)
[16]Gelatine.
Citric Acid.
Alcohol.
Sulphuric æther.
Gallic acid.
Hyposulphite of soda.
Iodide of cadmium.
Benzoin varnish.
[A] The dry Collodion and the various solutions, ready for use, may be obtained of the Publishers.
In the above List we presume that the operator is in possession of a suitable camera and lens, and the usual adjuncts of camera tripod, &c. &c. These should all be of the best kind, otherwise it will be impossible to obtain good results.
THE MANIPULATION.
The process of obtaining a picture on Dry Collodion plates is in itself a most simple and easy matter, but there are one or two precautions that appear necessary to ensure success that cannot be lightly neglected. In the first place, it is absolutely certain, that if we want a clean and bright picture, we must have a plate perfectly free from all extraneous matters, such as soap, grease, &c. Various plans for cleaning the glass plate have been proposed, all more or less successful, but in most of them there is one great fault, namely, that of using a powder, as tripoli, rotten-stone, &c. to rub off the dirt with. Now we find that in [17] practice this will not answer, from the almost impossibility of getting rid of the floating particles of the powder when the plate is rendered slightly electrical by rubbing, and as each of these particles if it become enveloped in the Collodion film, would produce a spot on the finished picture, we find it necessary to search in another direction for a detergent for the glass plate to which this objection would not apply. One soon presents itself in the form of old waste Collodion—this spread on the glass plate and rubbed off again with cotton wool, makes the best and most perfect cleanser hitherto proposed, without any of the objections usually appended to other materials used for the same purpose.
The next precaution necessary to be observed is, that all the solutions should be perfectly bright and clear; they should be absolutely free from floating particles of any kind. This is essential, as it is impossible to obtain clean pictures without attention to it; the floating bodies in the solution settle on the plate, and form so many nuclei, around which, in the development of the picture, the silver is deposited in an opaque mass, forming spots and blemishes on the surface of the plate.
There is one precaution that cannot be dispensed with, and that is, to be sure that the chemicals employed are of absolute purity; without this, success is very problematical, and vexation and disgust the sure reward of its neglect.
The process may for convenience be divided into the following stages:—
1.—Cleaning the plate.
2.—Coating it with Collodion.
3.—Rendering the plate sensitive.
4.—Applying the Preservative solution.
5.—Exposure in the camera.
6.—Development of the picture.
7.—Fixing the developed image.
8.—Varnishing the finished negative.
The glass plate is first to be thoroughly washed with an abundance of water, and dried on clean cloths; it is then to be placed in the plate holder (Fig. 1), and have poured over its upper side a [19] small quantity of old Collodion. Now take a tuft of cotton wool and rub the Collodion all over the plate, giving the hand a circular motion at the time: keep rubbing until the Collodion is very nearly dry, then turn the plate in the holder and repeat the same treatment with the opposite side; then lean the plate thus treated against a wall, while another, or any number are put through this stage. When a sufficient number have been so far cleaned, the plate holder is to be carefully wiped, and the first plate—the edges of which have also been carefully wiped with a clean cloth—is to be replaced, and treated with a smart rubbing with a wash leather, the operator at intervals gently breathing on the plate. Both sides of the plate being cleaned in this way, it may be removed, after again wiping the edges carefully, to the plate box, to await the subsequent steps of the process. Plates cleaned in this manner should look perfectly transparent, and free from any marks of the cloth or leather, and when breathed upon should condense the moisture of the breath in one uniform degree over the whole surface. If patches of uneven condensation appear, a repetition of the process must be had recourse to.
The plate being clean, we proceed to the next step,
Lay a piece of clean blotting paper on the table, larger than the plate we are about to use; place the [20] clean plate on this, and then bring the pneumatic plate holder to bear on the centre of the glass, making sure that it has laid hold firmly. We then raise the plate with the left hand, and bring the surface upwards which was previously on the blotting paper; it will no doubt be found that small particles of dust have attached themselves to the plate, these must be removed by a broad and soft camel's hair brush, kept for this purpose only.

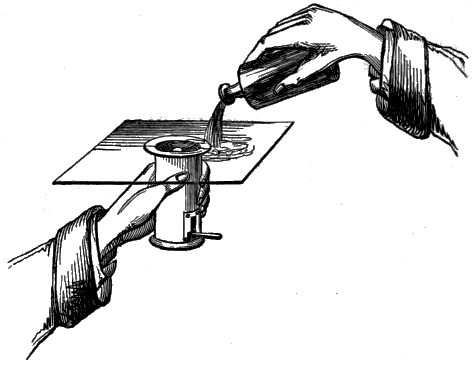

The Collodion is then to be poured on, as shown in the diagram (Fig. 2), and the superfluous quantity returned to the bottle from one of the corners of the plate. It does not matter which of the corners is used for this purpose, that which is most convenient [21] to the operator assuming the preference. If the Collodion should have a tendency to set in ridges across the plate, a rocking motion, while the delivery corner is in the mouth of the bottle, may be given to it, still keeping the plate in a vertical plane. This will restore the film to perfect evenness and freedom from irregularity of any sort. The plate should be held in the vertical position for a few moments before being placed on the dipper to undergo the next operation of
The plate being placed, coated side outwards, on the dipper, is to be plunged without hesitation into the nitrate of silver bath (Fig. 3). This must be done without stopping, otherwise a line across the plate will indicate, on development, the position of the plate in the bath at the time this stoppage took place; so that if we were to immerse the plate by a [22] series of jerks, we should have as a result, so many bands of unequal development in the finished picture; showing the importance of plunging the plate into the bath without any stoppage during its descent.
When the plate has rested for half a minute in the bath, it may be withdrawn, and quickly re-immersed. This washing must be continued at intervals, until the greasy appearance goes off, generally for the space of two minutes, when the plate is to be taken out of the bath and placed with its lower edge on a pad of blotting paper, in a position as shown in the cut (Fig. 4.) A fragment of blotting paper is then to be used to absorb the moisture from the back of the plate, and a pneumatic plate holder—which should only be used for this purpose—is applied to it to form a support while

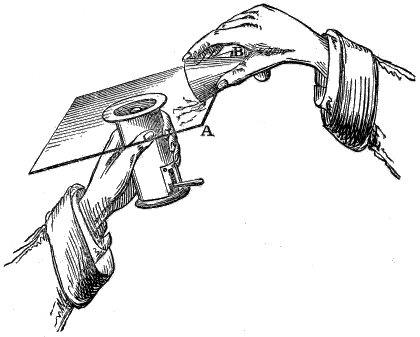

Taking the plate in the left hand by means of the pneumatic holder, incline it as shown in the diagram (Fig. 5); then having poured into a perfectly clean measure rather more of the preservative solution than is necessary to cover the plate twice,[B] pour half of it along the upper edge (A B) in such a manner, that a wave of the solution may flow uniformly from one end of the plate to the other; allow this to flow off into the waste pan or sink, and then bring the plate to the horizontal position, and pour on the remainder of the preservative solution, eight times at least, allowing [24] it to flow back into the measure from each corner in succession, in order that the whole plate may be brought uniformly under its influence. The plate is to be again placed on a piece of clean blotting paper (as shown at Fig. 4), and its back once more wiped with a fragment of blotting or papier Joseph, in order to remove any of the preservative solution that may have run from the surface to the underside in the previous operation. The plate thus preserved is to be reared on a piece of blotting paper with its face against the wall until dry, and is then to be stowed away in a plate box, perfectly light-tight to await the
[B] A plate, 9 inches by 7, takes about 1 ounce of solution.
Collodion plates preserved as above directed, will keep perfectly good and sensitive for 12 months at least; and from the appearance of the developed image on a plate that has been kept that time, I see at present no reason why, if preserved from the damp, they would not keep indefinitely. In my experiments, I have never found the least difference in sensitiveness, whether the plate be used within a few hours of the time of its preparation, or has been kept for months; until, however, we have had more experience in the matter, it would be safer not to rely on plates more than 12 months old.
The time of exposure in the camera, of course varies in this process, under the same circumstances as it does with the wet Collodion; but I have found as a general [25] rule, that it is better to give the plate a full exposure than to fall into the opposite extreme: that is to say, it is preferable to expose the plate sufficient time for the deepest shadows to make an impression than to close the dark slide at an earlier period, the mode of development allowing considerable latitude in this particular. With a 3-inch single lens, 16-inch focus, with a ½-inch stop, the usual time for a bright landscape will be about 5 minutes; this of course is merely an approximation to the time of exposure, the exact time can only be arrived at by experience. I do not think I can do better than follow the plan adopted in my "Practical Photography," of giving instances of under and over exposure, as a means of educating the tyro in the appearances that result from these conditions of the plate.
If the exposure has been of too short duration, the image will come out under the developing solution with difficulty; and after a continued immersion in it will only present the high lights, the deep shadows not being represented, or, if so, in so faint a manner as to be useless in the picture.
An over exposed plate, when treated with the developing solution, will almost immediately give indications of the picture; and in a few minutes, the whole of the picture, deep shadows and all, will come put in unnatural force; on looking through the picture thus produced, we shall observe a great flatness in it, there is a want of contrast between the [26] various parts, and although by continuing the development we might obtain a tolerably intense negative, the resulting picture would be flat, meagre, and unsatisfactory: on the contrary, a plate that has been exposed for the correct time, will comport itself very differently under development from the foregoing.
The sky and high lights will first appear, then the half tones, and lastly, the parts of the picture that were in deep shadow will show themselves; this effect should take place in about five minutes from the time of immersion in the developing bath: a picture that comes out sooner than this, is, as a general rule, over exposed; and one that is much after the five minutes before it makes its appearance, may be considered as under exposed.
We trust that the above instances may be of service in indicating the average time required for an exposure of the plate, but we must ask the reader not to take the figures given as actual values, but merely as very close approximations to the truth. We will imagine the plate to have been properly exposed, and proceed to
It is not necessary that the picture should be developed immediately after exposure in the camera; any time that is convenient to the operator may intervene between the processes, provided the aggregate [27] time before and after exposure does not exceed the limits of keeping power of the plate.
The development of the picture may be conducted in two ways, either by immersing the plate in baths or dishes, or by placing it on the levelling stand and treating it with the solutions, in their proper order, as detailed below. Each plan possesses certain advantages, but it is of little consequence which one is followed. Perhaps there is less danger of the film washing off if the plate be treated on the levelling stand, and on the other side with large plates it is more difficult to cover them evenly with the developing solution than it is simply to immerse them in a pan of solution. We say to the reader, try both ways, and make your own selection.
The plate upon being removed from the camera is placed face upwards in a porcelain or glass dish of a convenient size (not too large), and sufficient distilled water is to be poured over it to cover the surface thoroughly—this is for the purpose of softening the preservative solution, and must be allowed to remain on the plate for five minutes; the plate is then to be lifted in and out of the water by means of the silver hook. This done, remove the plate to a perfectly clean dish, and pour carefully over it the developing solution, composed of
| Saturated Solution of Gallic Acid (p. 10) | 8 | ounces. |
| Solution of Nitrate of Silver (p. 10) | 2 | drams. |
| THOROUGHLY MIXED. | ||
In a few minutes the picture will begin to make its appearance, and will gradually unfold its details under the influence of the developer, until the whole of them are apparent; on raising the plate, however, when this stage of development is reached, and viewing it by transmitted light, the picture will appear weak and poor; we must now remove the plate from the bath, and add 2 drams more of the nitrate silver solution, and having thoroughly mixed it with the gallic acid already in the dish, we return the partially developed plate, which in the course of a few minutes will have acquired a great amount of intensity,—the exact degree can be regulated by the time of immersion: when the picture appears sufficiently intense, it is to be removed from the developing dish, and a gentle stream of water is poured over it, in order to remove any adhering developing solution, and stop all further reducing action on it.
During the whole time of the development, the gallic acid should remain quite clear; it will become slightly discoloured before the end of the development, but it ought not at any time to become muddy, or it will deposit a sort of sandy sediment on the surface of the plate, which cannot be removed by subsequent washing.
The usual time occupied in the development of a successful picture is from 20 to 30 minutes, it might be developed much quicker by using pyrogallic acid, but at present I give the preference to the [29] developer I have described, as I believe it to be more certain, and more under the control of the operator than the pyrogallic acid; and further, as it is not necessary to watch the development all the time it is going on, there can be very little saving of time in the more rapid method of bringing out the latent picture.
The picture being washed free from the adhering developing solution, is to be placed on the levelling stand, and subjected to the seventh part of the process—
This is accomplished by pouring over the surface of the plate sufficient solution of hyposulphite of soda (p. 15) to thoroughly cover it, this will dissolve out the unaltered iodide of silver, and give us a clear and bright picture, in which the deep shadows should be as transparent as the glass itself, and the high lights as dense as a piece of metal, the intermediate tones assuming their proper positions according to the intensity of the light that was concerned in their formation.
When the whole of the yellow iodide of silver is removed, the fixing solution may be thrown off, and the plate must be treated with an abundance of water; too much cannot well be given at this stage, as the hyposulphite adheres with great tenacity to the plate, [30] even after a good washing. The back of the plate must be washed as well as the front, for I have found that a neglect of this precaution has ruined many a fine negative; the hyposulphite remaining at the back finding its way by capillary attraction to the surface, and once there, its destructive qualities are sure, sooner or later, to render themselves evident.
The picture being thoroughly washed, and either dried spontaneously or by the fire, has only to be covered with a film of varnish. And now comes the last operation, of
Benzoin varnish is the best coating that can be given to a Collodion negative. It resists the action of pieces of grit; it does not crack; and, above all, it does not, like amber varnish, split off the picture on the slightest friction.
The application of this varnish is a very simple matter. The negative is to be again placed on a pneumatic plate holder, and the varnish is to be poured on to the surface in precisely the same manner as the Collodion was at the commencement of the process, the superfluous quantity being returned to the bottle: in a few moments the varnish will be quite dry and hard, and the plate may be handled with perfect safety.
I may mention, as a precaution, in varnishing the plate, that it is better to perform that operation in a still atmosphere; as the solvent of the gum being chloroform and very volatile, if it were conducted in a current of air, there might be some difficulty in obtaining an even coating to the picture.
In concluding this description of a process, which is at once simple and certain, I would ask the patient attention of those who may do me the honor of repeating my experiments. I have endeavoured to render the details of the process as intelligible as possible, and if I have succeeded in advancing the art of Photography only one step by so doing, I consider that it is an ample return for hours and days spent in anxious thought and laborious experiment.
FINIS.
SPECIAL LIST OF REQUISITES
FOR THE
DRY COLLODION PROCESS,
SUPPLIED BY
Messrs, BLAND & LONG,
Opticians, & Photographic Instrument Makers
TO THE QUEEN,
153, FLEET STREET, LONDON.
BLAND & LONG'S
IODIZED DRY COLLODION.
This preparation will keep for an indefinite period, and can be exported to any climate, without risk of deterioration.
Half-pints, 10s.; Pints, 18s.
BLAND & LONG'S
PRESERVATIVE SOLUTION,>
READY FOR USE.—1s. per pint.
BLAND & LONG'S
BENZOIN VARNISH,
FOR PROTECTING THE FINISHED NEGATIVE.
1s. per oz.
This varnish does not require the plate to be warmed; but dries instantly, leaving a perfectly hard transparent coating on the picture.
NITRATE OF SILVER BATH,
FOR BLAND & LONG'S DRY COLLODION,
Ready for immediate use.—7s. 6d. per pint.
PURE CHEMICALS.
| s. | d. | ||
| Fused Nitrate of Silver, absolutely pure | 4 | 6 | per oz. |
| Glacial Acetic Acid | 1 | 0 | " |
| Pure Gelatine | 0 | 6 | " |
| Pure Citric Acid | 0 | 6 | " |
| Gallic Acid, pure | 1 | 6 | " |
| Iodide of Cadmium | 3 | 0 | " |
| Hyposulphite of Soda | 1 | 0 | per lb. |
| Pure Sulphuric Æther | 0 | 6 | per oz. |
| Absolute Alcohol | 0 | 6 | " |
FOR THE PRICES OF APPARATUS
SEE
BLAND & LONG'S
Illustrated Catalogue of Photographic Apparatus
Sent free by post, on application.
SENSITIVE
DRY COLLODION PLATES,
READY FOR EXPOSURE IN THE CAMERA.
(LONG'S PROCESS.)
Messrs. Bland & Long are now prepared to supply these plates, carefully secured in sealed cases, with full directions for exposure and development, of all sizes and in any quantity, at the following prices:—
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LARGER OR OTHER SIZES TO ORDER.
The advantages of a certain and simple Dry Collodion Process are so obvious to those who have practised Photography in the open air, that we feel it is merely necessary to introduce the above list to their notice with as few remarks as possible.
We would, however, mention a few particulars connected with the process for the information of those who have not hitherto practised the Dry Collodion process, as detailed by Mr. Long.
The plates as prepared for sale, are hermetically sealed in an envelope perfectly impervious to air and moisture, they can therefore be exported to any climate without risk of deterioration.
Plates prepared by Mr. Long's process will keep sensitive for almost an indefinite period, and can be developed at any time without regard to the date of exposure; this, it will be seen, is of immense advantage to the tourist, as he can delay the development of the whole of his plates until his return.
To those Photographers whose inclinations or want of leisure will not admit of their carrying through the first preparation of the plate, these Dry Sensitive Plates will be found invaluable, enabling their whole energy to be directed to the more careful selection of subject.
The plates being dry, there is no danger of dust settling on their surfaces; this point will be appreciated by every Photographer.
The development of the pictures can be conducted in any room whence the light can be excluded—as the process is simple and clean—three dishes being the only requisites in point of apparatus.
To Officers, Engineers, and Architects, these Dry Plates offer a desideratum of no small value, as they are always ready for use, occupy very little room in travelling, and can be used under circumstances which would preclude the adoption of any process that had to be carried out on the spot.
BLAND & LONG,
Photographic Instrument Makers to the Queen
153, FLEET STREET, LONDON.
THE
DRY COLLODION PROCESSES.
Messrs. BLAND & LONG have invented the following
simple means of
CHANGING THE DRY COLLODION PLATES
while working in the fields. The plan has been in use
for some time, and answers perfectly.
Price according to size.
Adapted to Stereoscopic Camera, 15s.
DESCRIPTION AND DIRECTIONS FOR USE.
No matter what process we employ to retain the sensitiveness of our plates, it is most objectionable that the glasses should be made to slide by their gravity from the plate-box to the slide; for if we employ either honey, glycerine, or oxymel as preservative agents, the chances are considerably in favor of an amount of dust settling on the surface, the dust being in a great part formed by the attrition of the roughened edges of the plate against the plate-box. Another inconvenience attending the use of a box when the plate has to slide, is the danger that exists under that arrangement of ripping the film from the edges of the plate by the friction against the groove in the box which holds it. These may appear very trivial matters, but they are nevertheless great drawbacks to successful operations.
We may mention that the plan we are about to describe is equally applicable to all Cameras of moderate size. We will, however, take our description from the form of apparatus adapted to a double lens Stereoscopic Camera.

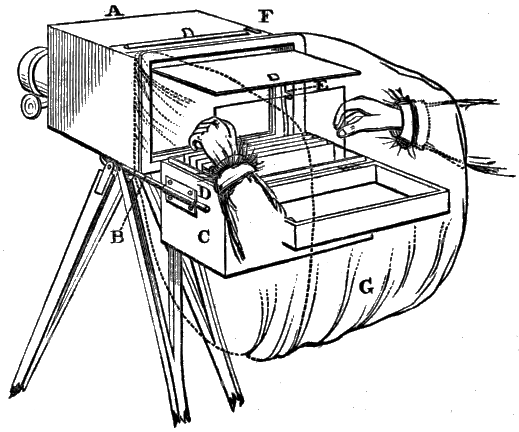

The Camera (A) is furnished at its back with two wires (B). On these wires slides the plate-box (C), which has previously been fitted at its sides with two sockets (D). Just inside the back of the Camera box is a spring (E), and on the top of the Camera is a button (F), which secures the dark slide in its place.
We now slide the box of prepared plates (C) on to the wires (B), the lid of the box opening from the Camera; we [38] then stretch over the whole affair, the black light proof covering (G); this completes the arrangement, and now for the mode of operating.
The opaque covering is furnished at its side with two elastic rings. Into these thrust the hands, so that the rings may firmly encompass the wrist. Then open the plate-box, and throw the lid quite back. Next unbutton the door of the dark slide, and raise it until the spring (E) flies underneath it, and retains it in a horizontal position. This we will presume to be done with the right hand; the left hand being engaged as soon as the door is opened, in holding the plate that is already in the back in its place. The right hand being now at liberty, comes to the assistance of the left, and the plate that has undergone exposure is safely transferred to the vacant groove in the plate-box. This accomplished, the next plate is to be placed in the back, and the same operations gone through in the inverse order, the left holding the plate in its place, while the right releases the door from the influence of the spring (E), and re-buttons it, leaving the plate quite safe in the dark slide.
When we require to focus for a fresh picture, it is only necessary to remove the dark covering from that part of the Camera where the ground glass is placed. The picture can be seen without removing the plate-box or the whole of the covering.
It is obvious that there is no limit to the number of glasses that can be taken to the field of operations. In this way, several boxes holding a dozen each, can be strapped together and placed on the Camera, one by one, as occasion or opportunity may direct.
H. Silverlock, Printer, Doctors' Commons.
PRACTICAL PHOTOGRAPHY,
ON GLASS AND PAPER,
A Manual,
CONTAINING SIMPLE DIRECTIONS FOR THE PRODUCTION OF
PORTRAITS, VIEWS, &c. BY THE AGENCY OF LIGHT,
INCLUDING THE
Collodion, Albumen, Calotype, Waxed Paper, and Positive Paper Processes.
By CHARLES A LONG.
Fourth Edition, price 1s.; per Post, 1s. 2d.
ILLUSTRATED PHOTOGRAPHIC CATALOGUE,
FREE BY POST.
SPECTACLES:
WHEN TO WEAR AND HOW TO USE THEM.
ADDRESSED TO
THOSE WHO VALUE THEIR SIGHT.
By CHARLES A. LONG,
THIRD EDITION. POST FREE, SIXPENCE.
ALSO,
A DESCRIPTIVE AND GENERAL CATALOGUE
OF
SCIENTIFIC & EDUCATIONAL INSTRUMENTS
AND
CHEMICAL PREPARATIONS,
Manufactured and Sold by BLAND & LONG,
OPTICIANS, PHILOSOPHICAL, PHOTOGRAPHICAL, AND CHEMICAL INSTRUMENT MAKERS,
AND OPERATIVE CHEMISTS.
Free by Post.
PUBLISHED BY BLAND & LONG, Opticians,
Philosophical and Photographical Instrument Makers to the Queen,
163, FLEET STREET.
Transcriber Note
Minor typos corrected. Images moved to prevent splitting paragraphs.
End of Project Gutenberg's The Dry Collodion Process, by Charles Long
*** END OF THIS PROJECT GUTENBERG EBOOK THE DRY COLLODION PROCESS ***
***** This file should be named 63814-h.htm or 63814-h.zip *****
This and all associated files of various formats will be found in:
http://www.gutenberg.org/6/3/8/1/63814/
Produced by Tom Cosmas from images kindly made available
from The Internet Archive. All materials are placed in the
Public Domain.
Updated editions will replace the previous one--the old editions will
be renamed.
Creating the works from print editions not protected by U.S. copyright
law means that no one owns a United States copyright in these works,
so the Foundation (and you!) can copy and distribute it in the United
States without permission and without paying copyright
royalties. Special rules, set forth in the General Terms of Use part
of this license, apply to copying and distributing Project
Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm
concept and trademark. Project Gutenberg is a registered trademark,
and may not be used if you charge for the eBooks, unless you receive
specific permission. If you do not charge anything for copies of this
eBook, complying with the rules is very easy. You may use this eBook
for nearly any purpose such as creation of derivative works, reports,
performances and research. They may be modified and printed and given
away--you may do practically ANYTHING in the United States with eBooks
not protected by U.S. copyright law. Redistribution is subject to the
trademark license, especially commercial redistribution.
START: FULL LICENSE
THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK
To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full
Project Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.
Section 1. General Terms of Use and Redistributing Project
Gutenberg-tm electronic works
1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or
destroy all copies of Project Gutenberg-tm electronic works in your
possession. If you paid a fee for obtaining a copy of or access to a
Project Gutenberg-tm electronic work and you do not agree to be bound
by the terms of this agreement, you may obtain a refund from the
person or entity to whom you paid the fee as set forth in paragraph
1.E.8.
1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this
agreement and help preserve free future access to Project Gutenberg-tm
electronic works. See paragraph 1.E below.
1.C. The Project Gutenberg Literary Archive Foundation ("the
Foundation" or PGLAF), owns a compilation copyright in the collection
of Project Gutenberg-tm electronic works. Nearly all the individual
works in the collection are in the public domain in the United
States. If an individual work is unprotected by copyright law in the
United States and you are located in the United States, we do not
claim a right to prevent you from copying, distributing, performing,
displaying or creating derivative works based on the work as long as
all references to Project Gutenberg are removed. Of course, we hope
that you will support the Project Gutenberg-tm mission of promoting
free access to electronic works by freely sharing Project Gutenberg-tm
works in compliance with the terms of this agreement for keeping the
Project Gutenberg-tm name associated with the work. You can easily
comply with the terms of this agreement by keeping this work in the
same format with its attached full Project Gutenberg-tm License when
you share it without charge with others.
1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are
in a constant state of change. If you are outside the United States,
check the laws of your country in addition to the terms of this
agreement before downloading, copying, displaying, performing,
distributing or creating derivative works based on this work or any
other Project Gutenberg-tm work. The Foundation makes no
representations concerning the copyright status of any work in any
country outside the United States.
1.E. Unless you have removed all references to Project Gutenberg:
1.E.1. The following sentence, with active links to, or other
immediate access to, the full Project Gutenberg-tm License must appear
prominently whenever any copy of a Project Gutenberg-tm work (any work
on which the phrase "Project Gutenberg" appears, or with which the
phrase "Project Gutenberg" is associated) is accessed, displayed,
performed, viewed, copied or distributed:
This eBook is for the use of anyone anywhere in the United States and
most other parts of the world at no cost and with almost no
restrictions whatsoever. You may copy it, give it away or re-use it
under the terms of the Project Gutenberg License included with this
eBook or online at www.gutenberg.org. If you are not located in the
United States, you'll have to check the laws of the country where you
are located before using this ebook.
1.E.2. If an individual Project Gutenberg-tm electronic work is
derived from texts not protected by U.S. copyright law (does not
contain a notice indicating that it is posted with permission of the
copyright holder), the work can be copied and distributed to anyone in
the United States without paying any fees or charges. If you are
redistributing or providing access to a work with the phrase "Project
Gutenberg" associated with or appearing on the work, you must comply
either with the requirements of paragraphs 1.E.1 through 1.E.7 or
obtain permission for the use of the work and the Project Gutenberg-tm
trademark as set forth in paragraphs 1.E.8 or 1.E.9.
1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any
additional terms imposed by the copyright holder. Additional terms
will be linked to the Project Gutenberg-tm License for all works
posted with the permission of the copyright holder found at the
beginning of this work.
1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.
1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.
1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including
any word processing or hypertext form. However, if you provide access
to or distribute copies of a Project Gutenberg-tm work in a format
other than "Plain Vanilla ASCII" or other format used in the official
version posted on the official Project Gutenberg-tm web site
(www.gutenberg.org), you must, at no additional cost, fee or expense
to the user, provide a copy, a means of exporting a copy, or a means
of obtaining a copy upon request, of the work in its original "Plain
Vanilla ASCII" or other form. Any alternate format must include the
full Project Gutenberg-tm License as specified in paragraph 1.E.1.
1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.
1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works
provided that
* You pay a royalty fee of 20% of the gross profits you derive from
the use of Project Gutenberg-tm works calculated using the method
you already use to calculate your applicable taxes. The fee is owed
to the owner of the Project Gutenberg-tm trademark, but he has
agreed to donate royalties under this paragraph to the Project
Gutenberg Literary Archive Foundation. Royalty payments must be paid
within 60 days following each date on which you prepare (or are
legally required to prepare) your periodic tax returns. Royalty
payments should be clearly marked as such and sent to the Project
Gutenberg Literary Archive Foundation at the address specified in
Section 4, "Information about donations to the Project Gutenberg
Literary Archive Foundation."
* You provide a full refund of any money paid by a user who notifies
you in writing (or by e-mail) within 30 days of receipt that s/he
does not agree to the terms of the full Project Gutenberg-tm
License. You must require such a user to return or destroy all
copies of the works possessed in a physical medium and discontinue
all use of and all access to other copies of Project Gutenberg-tm
works.
* You provide, in accordance with paragraph 1.F.3, a full refund of
any money paid for a work or a replacement copy, if a defect in the
electronic work is discovered and reported to you within 90 days of
receipt of the work.
* You comply with all other terms of this agreement for free
distribution of Project Gutenberg-tm works.
1.E.9. If you wish to charge a fee or distribute a Project
Gutenberg-tm electronic work or group of works on different terms than
are set forth in this agreement, you must obtain permission in writing
from both the Project Gutenberg Literary Archive Foundation and The
Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm
trademark. Contact the Foundation as set forth in Section 3 below.
1.F.
1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
works not protected by U.S. copyright law in creating the Project
Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm
electronic works, and the medium on which they may be stored, may
contain "Defects," such as, but not limited to, incomplete, inaccurate
or corrupt data, transcription errors, a copyright or other
intellectual property infringement, a defective or damaged disk or
other medium, a computer virus, or computer codes that damage or
cannot be read by your equipment.
1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.
1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium
with your written explanation. The person or entity that provided you
with the defective work may elect to provide a replacement copy in
lieu of a refund. If you received the work electronically, the person
or entity providing it to you may choose to give you a second
opportunity to receive the work electronically in lieu of a refund. If
the second copy is also defective, you may demand a refund in writing
without further opportunities to fix the problem.
1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO
OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.
1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of
damages. If any disclaimer or limitation set forth in this agreement
violates the law of the state applicable to this agreement, the
agreement shall be interpreted to make the maximum disclaimer or
limitation permitted by the applicable state law. The invalidity or
unenforceability of any provision of this agreement shall not void the
remaining provisions.
1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in
accordance with this agreement, and any volunteers associated with the
production, promotion and distribution of Project Gutenberg-tm
electronic works, harmless from all liability, costs and expenses,
including legal fees, that arise directly or indirectly from any of
the following which you do or cause to occur: (a) distribution of this
or any Project Gutenberg-tm work, (b) alteration, modification, or
additions or deletions to any Project Gutenberg-tm work, and (c) any
Defect you cause.
Section 2. Information about the Mission of Project Gutenberg-tm
Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of
computers including obsolete, old, middle-aged and new computers. It
exists because of the efforts of hundreds of volunteers and donations
from people in all walks of life.
Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future
generations. To learn more about the Project Gutenberg Literary
Archive Foundation and how your efforts and donations can help, see
Sections 3 and 4 and the Foundation information page at
www.gutenberg.org
Section 3. Information about the Project Gutenberg Literary Archive Foundation
The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg Literary
Archive Foundation are tax deductible to the full extent permitted by
U.S. federal laws and your state's laws.
The Foundation's principal office is in Fairbanks, Alaska, with the
mailing address: PO Box 750175, Fairbanks, AK 99775, but its
volunteers and employees are scattered throughout numerous
locations. Its business office is located at 809 North 1500 West, Salt
Lake City, UT 84116, (801) 596-1887. Email contact links and up to
date contact information can be found at the Foundation's web site and
official page at www.gutenberg.org/contact
For additional contact information:
Dr. Gregory B. Newby
Chief Executive and Director
[email protected]
Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation
Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.
The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To SEND
DONATIONS or determine the status of compliance for any particular
state visit www.gutenberg.org/donate
While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.
International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.
Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations. To
donate, please visit: www.gutenberg.org/donate
Section 5. General Information About Project Gutenberg-tm electronic works.
Professor Michael S. Hart was the originator of the Project
Gutenberg-tm concept of a library of electronic works that could be
freely shared with anyone. For forty years, he produced and
distributed Project Gutenberg-tm eBooks with only a loose network of
volunteer support.
Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as not protected by copyright in
the U.S. unless a copyright notice is included. Thus, we do not
necessarily keep eBooks in compliance with any particular paper
edition.
Most people start at our Web site which has the main PG search
facility: www.gutenberg.org
This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
