« i »

« ii »

REEVE, BENHAM, AND REEVE,
PRINTERS AND PUBLISHERS OF SCIENTIFIC WORKS,
KING WILLIAM STREET, STRAND.

Painted by J. J. Masquerier.

Engraved by Samuel Stepney.

GIDEON ALGERNON MANTELL, L.L.D. F.R.S
Vice-President of the Geological Society &c. &c.

« iii »

THOUGHTS
ON A
PEBBLE,
OR,
A FIRST LESSON IN GEOLOGY.

BY THE AUTHOR OF "THE WONDERS OF GEOLOGY."

The Nautilus and the Ammonite. Vide, p. 57.

"There is no picking up a pebble by the brook-side, without finding all nature in connexion with it."

Contemplations of Nature.

EIGHTH EDITION; WITH THIRTY-TWO ILLUSTRATIONS.

LONDON:

REEVE, BENHAM, AND REEVE, KING WILLIAM STREET, STRAND.

1849.

  « iv »

  « v »

TO

MY SON,

Reginald Nebille Mantell, C.E.,

THESE

"THOUGHTS ON A PEBBLE"

ARE MOST AFFECTIONATELY

INSCRIBED.

LONDON,
19, CHESTER SQUARE, PIMLICO.
1849.

« vi »

"Every grain of sand is an immensity—every leaf a world—every insect an assemblage of incomprehensible effects in which reflection is lost."

Lavater.

"To the natural philosopher there is no natural object that is unimportant or trifling. From the least of Nature's works he may learn the greatest lessons. The fall of an apple to the ground may raise his thoughts to the laws which govern the revolutions of the planets in their orbits; or the situation of a pebble may afford him evidence of the state of the globe he inhabits, myriads of ages before his species became its denizens."

Sir J. F. W. Herschel.

« vii »

TO THE READER.

Deeply impressed with the conviction that it is of the highest importance the young and inquiring mind should have a correct idea of natural phenomena—that it should not be left to its own unaided efforts to unravel the mysteries of the beautiful world in which this first state of being is destined to be passed—or have its curiosity stifled or misled by unsatisfactory or erroneous conjectures—I have endeavoured in this little work to explain in a simple and attractive guise, some of the grand truths relating to the ancient physical history of our planet, which modern geology has established.

The favourable reception of these desultory "Thoughts" which were originally penned for the amusement and « viii » instruction of an intelligent boy, is a gratifying proof that the attempt has not been unsuccessful; and I would fain indulge the hope, that this "First Lesson in Geology" may still be productive of good, by exciting in some youthful minds a desire for the acquisition of natural knowledge; and inculcating the important truth, that He who formed the Universe has created nothing in vain; that His works all harmonize to blessings unbounded by the mightiest or most minute of His creatures; and that the more our knowledge is increased, and our powers of observation are enlarged, the more exalted will be our conception of His wondrous works.

Chester Square,
     Pimlico.

« ix »

CONTENTS.

« xi »

LIGNOGRAPHS.

« xiv »

LITHOGRAPHS.

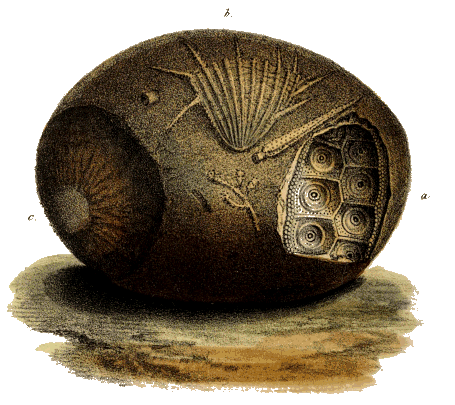

Plate I.

"THE PEBBLE"

Page 5

---

« 5 »

THOUGHTS

ON A

PEBBLE.

"Honoured, therefore, be thou, thou small pebble, lying in the lane; and whenever any one looks at thee, may he think of the beautiful and noble world he lives in, and all of which it is capable."

Leigh Hunt's London Journal, p. 10.

PART I.

---

Well might our immortal Shakspeare talk of "Sermons in stones;" and Lavater exclaim, that "Every grain of sand is an immensity" and the author of 'Contemplations of Nature' remark, that "there is no picking up a pebble by the brook-side without finding all nature in connexion with it."

« 6 »

I shall confine my remarks to a flint pebble, as being the kind of stone familiar to every one. The pebble I hold in my hand was picked up in the bed of the torrent which is dashing down the side of yonder hill, and winding its way through that beautiful valley, and over those

Huge rocks and mounds confus'dly hurl'd.
The fragments of an earlier world,

which partially filling up the chasm, and obstructing the course of the rushing waters, give rise to those gentle murmurings that are so inexpressibly soothing and delightful to the soul.

ORIGIN OF THE PEBBLE.

Upon examining this stone I discover that it is but the fragment of a much larger mass, and has evidently been transported from a distance, for its surface is smooth and rounded, the « 7 » angles having been worn away by friction against other pebbles, produced by the agency of running water. I trace the stream to its source, half way up the hill, and find that it gushes out from a bed of gravel lying on a stratum of clay, which forms the eminence where I am standing, and is nearly 300 feet above the level of the British Channel. From this accumulation of water-worn materials the pebble must have been removed by the torrent, and carried down to the spot where it first attracted our notice; but we are still very far from having ascertained its origin. The bed of stones on the summit of this hill is clearly but a heap of transported gravel—an ancient sea-beach or shingle—formed of chalk-flints, that at some remote period were detached from their [Pg 8] parent rock, and broken, rolled, and thrown together, by the action of the waves. We are certain of this because we know that flints cannot grow;[A] that they were originally formed in the hollows or fissures of other stones; and upon inspecting the pebble more attentively, we perceive, not only that such was the case, but also that it has been moulded in Chalk, for it contains « 9 » the remains of certain species of extinct shells and corals, which are found exclusively in that « 10 » rock. Here then a remarkable phenomenon presents itself for our consideration; this flint, now so hard and unyielding, must once have been in a soft or fluid state, for the delicate markings of the case and spine of an Echinus, or Sea-Urchin, are deeply impressed on its surface;[B] and a fragile shell with its spines, is partially imbedded in its substance.[C] Nay more, upon breaking off one end of the pebble,[D] we find that a sponge, or some analogous marine zoophyte, is entirely enveloped by the flint; and also that there are here and there portions of minute corals, and scales of fishes. What a "Medal of Creation" is here—what a page of nature's volume to interpret—what interesting reflections crowd upon the mind!

[A] "Flints cannot grow."—Here I would digress for a moment to notice an opinion so generally prevalent, that perhaps some of my young readers will not be prepared at once to answer the question—Do stones grow? The farmer who annually ploughs the same land, and observes a fresh crop of stones every season, will probably reply in the affirmative; and the general observer who has for successive years noticed his gardens and plantations strewn with stones, notwithstanding their frequent removal, may possibly entertain the same opinion; but a little reflection will show that stones cannot be said to grow or increase, in the proper acceptation of the term. Animals and plants grow, because they are provided with vessels and organs by winch they are capable of taking up particles of matter and converting them into their own substance; but an inorganic body can only increase in bulk by the addition of some extraneous material; hence stones may become incrusted, or they may be cemented together and form a solid conglomerate, but they possess no inherent power by which they can increase either in size or number—they cannot grow.

[B] Plate I, a.

[C] Plate I, b.

[D] Plate I, c.

FOSSIL ECHINUS WITH SPINES.

Lign. 2:—Fossil Turban Echinus, with its spines; in limestone.
(See 'Medals of Creation', p. 340.)

« 11 »

FOSSIL SHELLS IN CHALK.

Lign. 3:—Shell with spines, imbedded in Chalk; from Lewes.
(See 'Medals of Creation,' 1 p. 390.)

To avoid confusion, we will reverse the order of our inquiry, and first contemplate the formation of the flint in its native rock. The Chalk, that beautiful white stone, which (as an American friend, who saw it for the first time, observed), is so like an artificial production, abounds in « 12 » marine shells and corals, and in the remains of fishes, crabs, lobsters, and reptiles, all of which differ essentially from living species; although a few of the corals and shells resemble, in some particulars, certain kinds that inhabit the seas of hot climates. These remains are found in so perfect a state—the shells with all their spines and delicate processes (Lign. 3), and the fishes with their teeth (Lign. 4), scales, and fins, entire—that no doubt can be entertained of the animals having been surrounded by the chalk while living in their native sea, and that many of them were entombed in their stony sepulchres suddenly, when the rock was in the state of mud, or like liquid plaster of Paris.[E]

[E] See Note I. Shells in the Chalk.

Lign. 4:—Fossil teeth of Fishes of the Shark family, in Chalk; from Lewes.
(See 'Medals of Creation.' p. 625.)

« 13 »

SHELLS AND FISHES IN CHALK.

But besides the fossils which are obvious to the unassisted eye, the Chalk teems with myriads of minute forms that may readily be detected with a lens of moderate power; and even when these have been extracted, the residue, which « 14 » appears to be merely white calcareous earth, is found, when examined under the microscope, to consist almost wholly of bodies yet more infinitesimal—of perfect shells and corals, so minute, that a cubic inch of chalk may contain upwards of a million of these organic remains (see Lign. 5)!

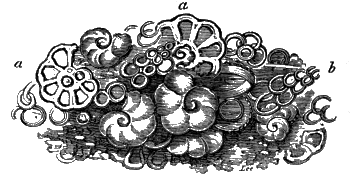

Lign. 5:—A few grains of Chalk-dust highly magnified, and shown to consist of shells, &c.

a, a, Shells called Rotalia.

b, ——————- Textularia.

(See 'Medals of Creation,' p. 232.)

The Chalk is stratified—that is, divided into « 15 » strata or layers—as if a certain quantity of mud had sunk to the bottom of the sea, and enveloped the shells, corals, &c., which fell in its way, and had become somewhat solid before another layer was deposited upon it.

The mineral substance termed silex or flint, is variously distributed in the chalk. It most commonly occurs in the state of nodules of an irregular or spheroidal, globular figure, which are arranged in rows parallel and alternating with, the cretaceous strata; it is likewise disposed in continuous thin layers, which are spread over considerable areas; and it often forms horizontal, vertical, and oblique veins, that fill up the fissures and interstices of the chalk. The siliceous nodules frequently enclose corals, shells, sponges, « 16 » and other organic remains, as in the pebble before us; and in many instances these fossils are found partly imbedded in the chalk and partly invested with flint. But though flints contain in abundance relics of the same species of marine animals as the chalk, they are not like that rock composed of an aggregation of fossil remains; on the contrary, the siliceous earth, which is their constituent substance, was evidently once in a state of complete solution in water, and precipitated into the chalk before the latter was consolidated, the organic bodies serving as nuclei or centres around which the silex concreted; for the deposition of the flint, like that of the chalk, appears to have taken place periodically.[F]

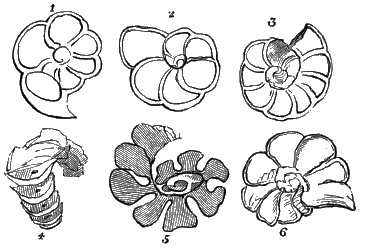

Lign. 6:—Minute fossil shells from Flint and Chalk, very highly magnified, and seen by transmitted light.

1, 2, 3, 6, Rotaliæ;

4, Portion of a Nautilus;

5, Rotalia composed of flint.

(See 'Medals of Creation,' p. 232.)

« 17 »

The composition of the Chalk, and the prevalence throughout that rock of the relics of animals that can only live in salt-water, prove incontestably that the chalk and flint were deposited in the sea; and that our beautiful South « 18 » Downs, now so smooth and verdant, and supporting thousands of flocks and herds, and the rich plains and fertile valleys spread around their flanks, were once the bed of an ocean. It is also evident not only that such must have been the case, but also that the Chalk was deposited in the basin of a very deep sea—in the profound abyss of an ocean as vast as the Atlantic.

From the absence of gravel, shingle, and sea-beach, it is certain that the white chalk-strata were formed at a great distance from sea-shores and cliffs; and this inference is confirmed by the swarms of shells termed Ammonites and Nautili, which we know from their peculiar structure were, like the recent pearly Nautilus, inhabitants of deep waters only. For these are chambered « 19 » shells; that is, are divided internally by thin transverse shelly septa or plates, into numerous cells; the body of the animal occupied only the outer compartment, but was connected with the entire series of chambers by a tube or siphuncle, which passed through each partition. This mechanism constituted an apparatus which contributed to the buoyancy of these animals when afloat on the waves; for the Ammonites and Nautili were able to swim on the surface, or sink to the depths of the ocean at pleasure.

Byron, The Island.

Lign. 7:—Ammonite from Whitby.

The Ammonites, so called from the supposed resemblance of their shells to the fabled horn of Jupiter Ammon, are only known in a fossil state; but they must have swarmed in the ancient seas, for several hundred species have been discovered in the Chalk and antecedent strata, though none « 21 » have been found in any deposits of more recent formation; at the termination of the chalk epoch the whole race, therefore, appears to have perished. The Ammonites are commonly termed snake-stones, from the origin ascribed to them by local legends; those of Whitby are well known (see Lign. 7).[G]

Scott's Marmion.

« 22 »

Lign. 8:—Nautilus from the Chalk, near Lewes, (one-eighth the natural size.)

The Nautili were the contemporaries of the Ammonites, and many kinds are found associated with those shells, in strata far more ancient than the Chalk; and several species of both genera, as we have previously shown, were inhabitants of the cretaceous ocean. When the Ammonites became extinct, the Nautili continued to flourish, and numerous examples occur in the strata that were deposited during the vast period which intervened between the close of the Chalk formation, « 23 » and the dawn of the existing condition of the earth's surface. At the present time two or three kinds only are known in a living state, and these are restricted to the seas of tropical climes, and so seldom approach the shores, that but few specimens of the animals that inhabit the shells have been obtained.

The Nautilus, therefore, is one of those types of animal organization that have survived all the physical revolutions to which the surface of the earth was subjected during the innumerable ages that preceded the creation of the human race.[H] This remarkable fact is portrayed with much force and beauty by Mrs. Howitt, in the following stanzas:

TO THE NAUTILUS.

« 25 »

We have thus acquired satisfactory proof that the flint of which our pebble is composed, was once fluid in an ocean teeming with beings, of genera and species unknown in a living state, and that it consolidated and became imbedded in the chalk, which was then being deposited at the bottom of the sea; hence the shells, corals, and other organic remains, which we now find attached to its surface, and enclosed in its substance. Thus much for the origin of the pebble; let us next inquire by what means it was dislodged from its rocky sepulchre, cast up from the depths of the ocean, and transported to the summit of the hill whence it was dislodged by yonder torrent. If we stroll along the sea-shore, and observe the changes which are there going « 26 » on, we shall obtain an answer to these questions; for

Byron.

The incessant dashing of the waves against the base of the chalk-cliffs, undermines the strata, and huge masses of rock are constantly giving way and falling into the waters. The chalk then becomes softened and disintegrated, and is quickly reduced to the state of mud, and transported to the tranquil depths of the ocean, where it subsides and forms new deposits; but the flints thus detached, are broken and rolled by attrition into the state of boulders, pebbles, and gravel, and ultimately of sand.

« 27 »

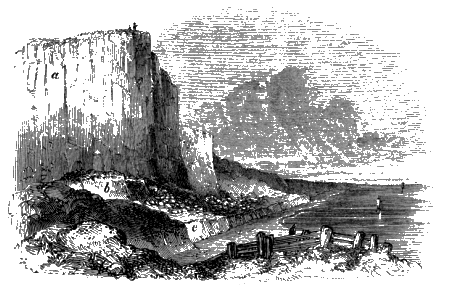

Lign. 9:—View of Brighton Cliffs; looking eastward from Kemp Town.[I]

a. Cliff's composed of chalk rubble.

b. Ancient elevated sea-beach.

c. Chalk forming the base of the Cliffs.

[I] Note V. Brighton Cliffs.

Now we must bear in mind, that had the chalk remained at the bottom of the deep sea in which it was originally deposited, it would not have been exposed to these destructive operations. It is therefore manifest, that at some very distant « 28 » period of the earth's physical history, the bed of the Chalk-ocean was broken up, extensive areas were protruded above the waters, lines of sea-cliffs were formed, and boulders, sand, and shingle accumulated at their base. Subsequent elevations of the land took place, and finally, the sea-beach was raised to its present situation, which is several hundred feet above the level of the sea!

Every part of the earth's surface presents unequivocal proofs that the elevation of the bed of the ocean in some places, and the subsidence of the dry land in others, have been, and are still, going on; and that, in truth, the continual changes in the relative position of the land and water, are the effects of laws which the « 29 » Divine Author of the Universe has impressed on matter, and thus rendered it capable of perpetual renovation:—

Beattie.

Our noble poet, Lord Byron, in his sublime apostrophe to the Sea, has most eloquently enunciated the startling fact revealed by modern geological researches,—namely, that if the character of immutability be attributable to anything on the surface of our planet, it is to the ocean and not to the land!—

« 30 »

« 31 »

Childe Harold. Canto IV.

I will conclude this "first lesson" with the following beautiful remark of an eminent living philosopher:[J]—"To discover order and intelligence, in scenes of apparent wildness and confusion, is the pleasing task of the geological inquirer; who recognises, in the changes which are continually taking place on the surface of the globe, a series of necessary operations, by which « 32 » the harmony, beauty, and integrity of the Universe are maintained and perpetuated; and which must be regarded, not as symptoms of frailty or decay, but as wise provisions of the Supreme Cause, to ensure that circle of changes, so essential to animal and vegetable existence."

« 33 »

MORE THOUGHTS
ON A
PEBBLE.

"Not a mote in the beam, not an herb on the mountain, not a pebble on the shore, not a seed far-blown into the wilderness, but contributes to the lore that seeks in all the true principle of life—the beautiful—the joyous—the immortal."

Sir E. Bulwer Lytton's Zanoni.

PART II.

More thoughts on a pebble!—is not the subject exhausted? have not all the hieroglyphics impressed on the flint been interpreted?—can Science, like the fabled wand of the magician, call forth from the stone and from the rock their hidden lore, and reveal the secrets they have « 34 » so long enshrined?—Gentle Reader! but one page of the eventful history of the pebble has been deciphered; I proceed to transcribe this natural record of the past, explain its mysterious characters, and present to thy notice the marvels they disclose.

Our previous examination of the specimen showed that the flint had once been in a fluid state, and had consolidated in a sea inhabited by shells, echini, fishes, corals, sponges, and other zoophytes; and the appearance of the fractured end (Plate I, c), indicated that some organic body had formed the nucleus of the pebble, and that traces of the structure of the original still remained. To ascertain if this inference is correct, it will be necessary to divide the stone « 35 » in a longitudinal direction—but I will first strike off a small fragment, and examine it by the aid of a microscope.

Lign. 10:—Fossil animalcules (Xanthidia) in Flint.

By a sharp blow of a hammer, a very thin and minute portion of the flint has been detached (see Lign. 10, fig. 1); it is translucent, and when held between the eye and a strong light, appears « 36 » like a slice of horn; and a few extremely minute specks may with difficulty be detected. Under the microscope, five of these almost invisible points are well defined, and present a radiated appearance (see fig. 3); but I will substitute a higher power, and lo! they are seen to be distinct globular or spherical bodies beset with spines (fig. 3); and with a still more powerful lens, one which magnifies many hundred times, their nature is completely displayed. The whole five possess this general character—a central globular case or shell, from which radiate tubes or hollow spines, that terminate in fringed or divided extremities (figs. 4, 5, 6); but these bodies differ from each other in the relative proportions of the shell and spines, and in « 37 » the number, shape, and length of the tubular appendages. The group, in short, is separable into three distinct species, of the same kind of fossil remains; and several other varieties occur in the chalk and flint. .

Lign. 11:—Xanthidium palmatum in flint: highly magnified.

But what are these bodies?—They are the durable cases of animalcules, many species of « 38 » which swarm in our seas, and are so minute, that thousands may be contained in a drop of water! In a living state, the case is flexible and filled with a granular jelly, which is the soft body of the animalcule, and the tubes and the outer surface are invested with a similar substance. After death the soft parts dissolve; but the case and its spines often remain unchanged.

In another magnified portion of the pebble, a specimen of the microscopic discoidal shells which we have already seen compose the greater part of the white chalk (Lign. 5, p. 14), is beautifully displayed when viewed by transmitted light, under a highly magnifying power (Lign. 12).[K] Our investigation has thus shown, that a great part « 39 » of the pebble is actually composed of the aggregated fossil remains of animalcules, so minute as to elude our unassisted vision, but which the magic power of the microscope reveals to us, preserved, like flies in amber, in all their original sharpness of outline and delicacy of structure.

Lign. 12:—Rotalia in flint: highly magnified.

On another fragment of this stone two « 40 » glittering specks, not larger than a pin's head, are discernible (Lign. 9): these with a magnifier of moderate power, are seen at a glance to be scales of fishes. But they differ from each other; both have the surface smooth, and without enamel: in the one the margin or edge is simple (fig. 3); in the other, it is divided like the teeth of a comb (fig. 2);—trifling as this difference may appear, it is sufficient to enable the naturalist to determine that the fishes which furnished these scales belonged to two distinct orders, of which the Salmon and the Mullet are living examples.

Lign. 13:—Scales of Fishes in flint.

Fig.	1.—	A fragment of the pebble with the scales of the natural size.
	2.—	One of the Scales (of a species of Beryx) highly magnified.
	3.—	The other Scale (of a species of Salmo).

Plate II.

Longitudinal section of the Pebble.

Page 41.

« 41 »

SECTION OF THE PEBBLE.

Plate II

We will now avail ourselves of the assistance of the lapidary, and divide the pebble in a longitudinal direction;—what a beautiful and interesting section is thus obtained! The markings observable on the fractured portion of the stone (see Plate I, c), are thus shown to have originated, as we surmised, from some organic body, « 42 » which the flint, when fluid, had penetrated and enveloped. The enclosed fossil was obviously one of those soft marine zoophytes, allied to the Actiniæ or Sea-Anemones, which are of a globular, spherical, or inversely conical shape, and consist of a tough, jelly-like substance, permeated with tubes, disposed in a radiated manner around a central cavity, or digestive sac; a structure admitting of that constant supply and circulation of sea-water, which the economy of these curious forms of animal existence requires.

The surface exposed by the division of the pebble, is an oblique vertical section of the petrified zoophyte. It shows a central canal filled with bluish-grey flint (Plate II, c), in a mass traversed by tubes or channels, which possess « 43 » considerable beauty and variety of colour from an impregnation of iron.[L] A transverse section (see Lign. 14. fig. 1) would, of course, have a central spot, with rays proceeding thence to the circumference, as in the oblique fracture (Plate I, c).[M]

The form of the original zoophyte when living, must have been that of an inverted cone or funnel, (hence the scientific name Choanite or funnel-like,) with a long cylindrical digestive cavity in the centre, from which tubes ramified through « 44 » every part of the mass. It was attached to a rock, stone, or shell, by root-like fibres which spread out from its base; and its soft body was strengthened, as is the case in many sponges and animals of a similar nature, by numerous siliceous spines or spicula, which are often found in the flint and chalk (see Lign. 10. fig. 5).[N]

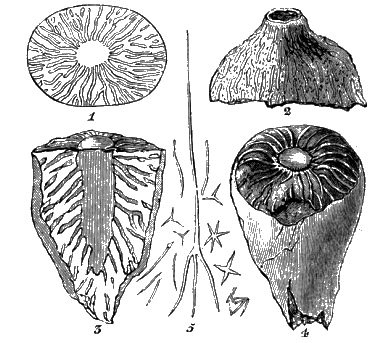

Lign. 14:—Choanites Konigi: from the Chalk.

Fig.	1.—	A transverse section.
	2.—	Upper portion of the body.
	3.—	Vertical section, like the pebble, Pl. II. p. 41.
	4.—	A flint, enclosing a Choanite, which is exposed on the upper surface.
	5.—	Various forms of siliceous spines of Choanites and other analogous bodies; magnified slightly.

(See 'Medals of Creation,' p. 264.)

« 45 »

The Choanites must have swarmed in the Chalk ocean, for in some of the strata almost every flint exhibits traces of these zoophytes.[O]

Lign. 15:—Branch of Coral on the Pebble.

Fig.	1.—	A portion magnified.
	2.—	A fragment represented as when alive. a, a, Two polypes collapsed. b, b, Two polypes with their tentacula extended.

One more character inscribed on the pebble remains to be interpreted; it is the minute branch of coral partially imbedded in the flint.[P] The surface of this coral, when seen with a powerful lens, is found to be studded with small pores or cells. In a recent state, each cell was inhabited by a living polype or animalcule, which, though permanently united at its base to the « 47 » general mass, had an independent existence, and possessed sensation and voluntary motion; expanding its thread-like feelers or tentacula to catch its prey, and withdrawing, at will, into its little cell.[Q]

Lign. 16:—A Coral-polype preserved in flint: magnified 500 diameters.

« 48 »

From these investigations, we learn that the Pebble, which has formed the subject of our contemplation, had its origin in a living zoophyte that was growing on a rock, in a sea whose boundaries have long since been swept away; that corals, shells, and echini inhabited the bottom of the deep; and that fishes related to existing families, sported in the waters of that ancient ocean. In fine, we have presented to us the scene so exquisitely described by the American poet:—

THE CORAL GROVE.

Percival.

« 50 »

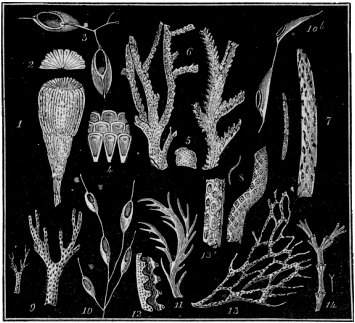

Lign. 17:—Minute Corals from the Chalk;[R] highly magnified.

[R] Note IX. Minute corals from the Chalk.

Our previous examination of the pebble had prepared us for these results; but the microscope, that mighty talisman of wisdom, has shown us, that even those infinitesimal creatures « 51 » to whom a drop of water is an unbounded ocean—those living atoms of that world of being which is for ever concealed from the uninstructed mind—the inhabitants of that universe beneath us, which the eye of science can alone penetrate, existed in ages incalculably remote, and were, like their gigantic contemporaries, the living instruments by which a large proportion of the solid materials of the surface of our planet was elaborated; their imperishable siliceous and calcareous skeletons, constituting no inconsiderable amount of the crust of the earth.[S]

Fossil animalcules and corals similar to those « 52 » we have discovered in the pebble and in the chalk, and hundreds of other genera and species equally minute, occur in such prodigious numbers, as to warrant the conclusion, that this class of animal existence has contributed more largely than any other, to the formation of the sedimentary strata.

Not only the Chalk hills, but whole mountain-ranges formed of other deposits of great thickness and extent, are found to consist almost entirely of similar remains. In the state of rock, of sand, of clay, of marl—in the coarsest limestone, and in the purest crystal, the petrified skeletons of animalcules alike abound. The town of Richmond, in Virginia, is built on a bed of stone twenty feet thick, which is wholly composed of the fossil « 53 » skeletons of different kinds of marine animalcules. The polishing slate of Bilin, in Germany, is wholly made up of the siliceous shields of similar beings, disposed in layers without any connecting medium; and these belong to species so minute, and are so closely compressed together, that in a cubic inch of the stone, weighing but two hundred and twenty grains, there are the remains of forty-one thousand millions of animalcules![T]

Lign. 18:—Animalcules from the Richmond earth: very highly magnified

Here we must bring our "Thoughts on a Pebble" to a close; but not without adverting to the pure and elevating gratification which investigations of this nature afford, and the beneficial influence they exert upon the mind and character. In circumstances where the uninstructed and incurious eye can perceive neither novelty nor beauty, he who is imbued with a taste for natural science will everywhere discover « 55 » an inexhaustible mine of pleasure and instruction, and new and stupendous proofs of the power and goodness of the Eternal! For every rock in the desert, every boulder on the plain, every pebble by the brook-side, every grain of sand on the sea-shore, is fraught with lessons of wisdom to the mind which is fitted to receive and comprehend their sublime import.

Amidst the turmoil of the world and the dreary intercourse of common life, we possess in these pursuits a never-failing source of delight, of which nothing can deprive us—an oasis in the desert, to which we may escape, and find a home « 56 » "wherever the intellect can pierce, and the spirit can breathe the air."[V] For like the plant which the Prophet threw into the waters of Marah,[W] that changed the bitterness of the wave into sweetness, a branch from the tree of knowledge thrown into the turbid stream of life, purifies its waters, and imparts to them a healing virtue, which sheds a hallowing and refreshing influence over the soul!

« 57 »

THE
NAUTILUS and the AMMONITE.

(See Page 22.)

FROM SKETCHES IN PROSE AND VERSE,

By the late G. F. Richardson, Esq.

« 58 »

« 59 »

« 60 »

Geology, in the magnitude and sublimity of the objects of which it treats, ranks next to Astronomy in the scale of the sciences.

Sir J. F. W. Herschel.

« 61 »

SUPPLEMENTARY NOTES.

Note I. Page 13. Shells in Chalk.

The shells of mollusca, in consequence of their durability, are the most abundant fossils in the sedimentary strata;[X] entire layers of marble and other limestone, of great thickness and extent, are wholly composed of an aggregation of a few species or genera: in some instances of fresh-water snails—as, for example, the Sussex and Purbeck marbles;[Y] in others, of marine bivalves and univalves, as the oyster-conglomerate of Bromley, and the shelly limestones of Portland, Dorsetshire, &c.

The cretaceous strata contain many hundred species of bivalves and univalves, by far the greater part of which « 62 » belong to extinct genera; and the species, with but four or five exceptions, are unknown in more recent deposits. In loose sandy strata, fossil shells are oftentimes beautifully preserved, and may be obtained in as perfect a condition as if gathered from the sands on the sea-shores: such is the state of the specimens which abound in the sandy clays near Barton in Hampshire, and in the "Crag" of Essex and Suffolk. In certain beds of clay, shells are also found entire; sometimes retaining the epidermis, and the cartilaginous ligament of the hinge. The bivalves in the white chalk are generally perfect; but the univalves, probably from the more delicate structure of the originals, seldom retain any vestiges of the shell, excepting portions of the internal nacreous coat adhering to the chalk casts, which have been moulded in the interior of the shells.

« 63 »

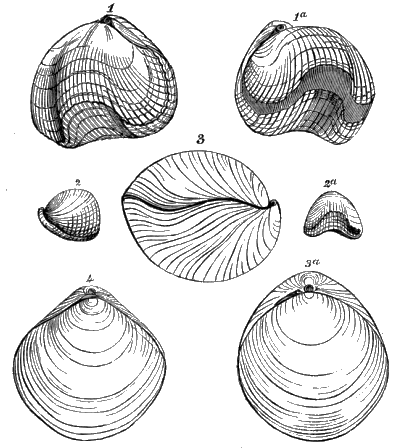

Lign. 19:—Bivalve shells (Terebratulæ) from Chalk (natural size).
1, 2. Plicated species. 1. T. octoplicata. 2. T. subplicata.
3, 4. Smooth species. 3. T. semiglobosa. 4. T. subrotunda.

In some of the cretaceous strata several extinct species of Oyster, Scallop, Arca, Tellina, and other well-known marine bivalves abound; and with them are associated many genera of which no living species have been observed. Among the bivalves that prevail in the English chalk, are three or four kinds of Terebratulæ: which are small, elegant, subglobular shells, belonging to a family « 64 » of which nearly 500 species, referable to several genera, have been obtained from the British strata.[Z] Certain genera are restricted to the most ancient sedimentary rocks, in which they occur in almost incredible numbers; others have a wider range and are met with in the later secondary deposits; while a few are found in the newest beds, and have living representative species in the seas of warm climates. From the immense antiquity of their lineage, these Terebratulæ have been humourously termed the "fossil aristocracy." Some of the most common chalk species are figured of the natural size in Lign. 19. When living the animal was attached to a rock or other body by means of a byssus or peduncle, exserted through the aperture in the beak or curved extremity of the largest valve.[AA] The shells of the smooth Terebratulæ are full of minute holes or perforations, which may readily be distinguished with a lens of moderate power.

Lign. 20:—Oyster from the Chalk, near Brighton (natural size).

Occasionally the soft body of the mollusk completely silicified—that is, transmuted into flint—is found in its natural position in the shell. A beautiful example of this kind is represented in Lign. 20. It is an extinct species of oyster: both valves were entire when I removed « 66 » the chalk and cleared the specimen; part of one valve has been broken away to expose the petrified body of the animal. I have seen a Trigonia[AB] from the oolite of Tisbury in Wiltshire, in which the entire body of the mollusk was transformed into flint, and the branchiæ or lamellated gills were beautifully defined, though converted into semi-transparent chalcedony.

Note II. Page 17. Wood in Flint.

I would remind the reader that the white chalk, together with the various strata of sand, clay, and limestone, comprising the cretaceous formation of England, must be regarded as an ancient ocean-bed; in other words, an accumulation of earthy sediments, formed in the profound depths of the sea, in periods of long duration and of incalculable antiquity, and more or less consolidated « 67 » by subsequent chemical and mechanical agency. These deposits are made up of organic and inorganic materials: the former consist of the debris of the cliffs and shores which encompassed the ancient ocean, of the spoils of the land brought into the waters by floods and rivers, and of mineral matter thrown down from chemical solutions. The organic substances are the durable remains of the animals and plants which lived and died in the sea, and of terrestrial and fluviatile species that were transported from islands or continents by rivers and their tributaries. The whole constitutes such an assemblage of strata as would probably be presented to observation, if a mass of the bed of the Atlantic 2,000 feet in thickness, were elevated above the waters, and became dry land; the only essential difference would be in the generic and specific characters of the imbedded animal and vegetable remains.

The vestiges of terrestrial and fluviatile animals and plants found in the chalk are comparatively but few: I have collected from Kent and Sussex, bones of gigantic land lizards, (the Iguanodon), of flying reptiles, (Pterodactyles), and of fresh-water Turtles, and water-worn fragments « 68 » of stems of coniferous trees allied to the Araucaria or Norfolk Island Pine; fruits or aments of coniferse; and stems and foliage of plants related to the Cycas and Zamia.

Lign. 21:—Fragment of coniferous wood in flint.

A fragment of silicified wood imbedded in a flint, is represented in Lign. 21. It was obtained from a wall in Lewes Priory in Sussex; and though it has been exposed to the atmosphere seven or eight centuries, still exhibits the characteristic internal structure.

« 69 »

Note III. Page 20. Whitby Ammonites.>

Lign. 22:—Ammonites from the cretaceous formation.

1.	Ammonites varians, from Hamsey.
2.	A. Dufresnoyi: 2a, part of the same.
3.	A. lautus: 3a, keel and septum of the same.

The Ammonites differ from the Nautili in having the margins of the septa or internal shelly partitions (which « 70 » in the latter are smooth), foliated or wrinkled; and the siphunculus or tube placed along the back of the shell, whereas in the Nautilus it is central. The sides of the shell in the Ammonites are very generally more or less ornamented with arched elevations and depressions, and studded with spines and tubercles, as in the specimens above figured.

There are several kinds of Ammonites found in the Lias at Whitby and other places in Yorkshire; the most common species is figured in Lign. 7. p. 20; the dark colour of this fossil is produced by the argillaceous stone with which it is now filled. The internal structure of these Ammonites is generally well preserved, the chambers being lined with spar or other mineral matter; transverse polished sections are often very beautiful from the several cells being occupied by variously coloured marble, susceptible of a high polish. (Pl. III.) In some examples the entire shell is transmuted into brilliant pyrites (sulphuret of iron), and the chambers are filled with white spar; a specimen of this kind in my possession, collected by Lady Murchison, is the most elegant fossil imaginable.

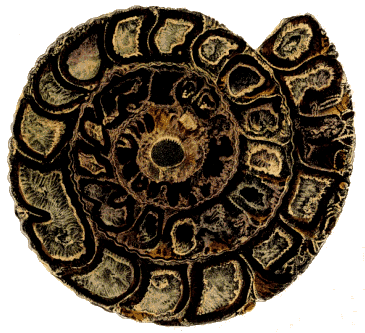

Plate III.

Polished section of an Ammonite.

Page 70.

« 71 »

It is not unusual for the visitors at Whitby to inquire of the collectors how it is that the head of the animal is never found? and the crafty dealers, willing to accommodate the taste of their customers, carve the extremity of an Ammonite into the semblance of a serpent's head, and affix two red eyes; thus producing a veritable proof of the truth of the legend of St. Hilda! My young readers will not be duped by this trick-of-trade, if they reflect but a moment on the real nature of a fossil Ammonite: they will remember that it is a shell which, when empty, became filled with what was then soft mud, but is now stone; in like manner as if liquid plaster of Paris were poured into an empty snail-shell and consolidated.

In some parts of Somersetshire, a beautiful marble composed of an aggregation of two or three small species of Ammonites, is used for sideboards and other ornamental purposes: the polished slabs are diversified by the numerous sections of the shells.

Some of the clays of the Lias abound in a species of Ammonite of extraordinary beauty from the iridescent lustre of the pearly coat of the shell: a slab of stone from « 72 » Watchett, on which a hundred or more Ammonites of this kind are displayed, may be seen in the British Museum.

Note IV. Page 23. Fossil Nautili.

The beauty, elegant form, and remarkable internal structure of the shell of the Nautilus, have rendered it in all ages an object of curiosity and admiration: yet an accurate knowledge of the organization of the animal to which it belongs, has but recently been obtained. The Nautili may be regarded as Cuttle-fish or Sepiæ, inhabiting shells furnished with an apparatus to impart buoyancy, and enable the animals to swim on the surface, or sink to the profound depths of the ocean. A few explanatory remarks on the nature of the recent Sepia may be necessary to render the subject intelligible to the unscientific reader.

The Sepia or Cuttle-fish of our seas is of an oblong form, and composed of a soft substance covered with a tough integument or skin: it varies from a few inches to a foot or more in length. The mouth is placed in the « 73 » centre of one extremity of the body, and has a pair of powerful, curved, horny mandibles, much resembling the beaks of a parrot: it is surrounded by eight long arms like the rays of a star-fish, and these are beset with rows of little cups which act as suckers, and enable the animal to secure its prey, and attach itself with great firmness to any object.[AC] It has a distinct head, with two eyes as perfect as in the vertebrated animals, and complicated organs of hearing: and below the head there is a tube or funnel which acts as a locomotive instrument, and propels the animal backwards by the forcible ejection of the water which has served the purpose of respiration, and can be thrown out with considerable force by the contraction of the body. The soft parts are supported by a large internal bone or osselet of a very curious structure, which, when dried and reduced to powder, forms the substance used by scriveners, termed pounce. These naked mollusca also possess a membranous bag or sac, containing a dark-coloured « 74 » fluid resembling ink in appearance, which they eject into the surrounding water upon the approach of danger, and by the obscurity thus induced foil the pursuit of their enemies. This fluid, when inspissated, forms the base of the colour termed sepia by artists.

The body of the Nautilus resembles in its essential characters that of the Cuttle-fish, and occupies the large outer receptacle of the shell; maintaining a connection with the inner compartments by means of the membranous siphunculus or tube, which is only partially invested with shell. The internal chambers are air-cells, and the animal can fill the siphunculus with fluid, or exhaust it at will; the difference thus effected in its specific gravity enables it to rise to the surface or sink to the bottom with facility. Now if' we imagine a Cuttle-fish placed in the outer chamber of a Nautilus-shell, and provided with a siphuncule, but having neither ink-bag nor osselet—these organs being unnecessary to an animal possessing a chambered shell—we shall have a general idea of the nature of the recent species.

The Nautilus is essentially an inhabitant of deep water: « 75 » it creeps along the ground at the bottom of the sea, with its shell upwards like the snail; and by means of its arms can proceed with considerable speed.[AD]

A large and splendid species of fossil Nautilus is not uncommon in the London Clay of the Isle of Sheppey, Sussex, and Hampshire. The chambers are often lined with spar or other brilliant mineral matter; and polished sections, like those of the Ammonites, admirably display the internal structure.[AE]

Note V. Page 27. Brighton Cliffs.

The stranger who approaches Brighton by the railroads through deep tunnels and cuttings in the chalk, and perceives the town spread over the plain and on the sides of a valley of the South Downs, will naturally expect to find the sea-shore bounded by chalk-cliffs. But a wall of « 76 » admirable construction, extends from the Steyne to beyond Kemptown, and effectually conceals from view the materials that compose the site of that part of Brighton; a ramble along the shore to Rottingdean is therefore necessary to reveal to the inquiring observer, the nature of the strata that flank the southern border of the Downs.

The sketch given in page 27, represents the appearance of part of the coast to the east of Kemptown. The base of the cliff to the height of a few feet, is seen to consist of the white chalk with its usual layers of flint nodules, forming a low wall or terrace, which slopes seaward, and extends far into the British channel—probably to the opposite coast of France: at low-water a considerable expanse of modern shingle and sand is spread over, and in a great measure conceals, the chalk, at a few yards distance from the cliff. Upon the terrace of chalk, at the height of from ten to fifteen feet above the modern beach, there is a bed of pebbles and sand, containing also a considerable number of boulders of granite, porphyry, and other crystalline rocks foreign to the south-east of England: in fact, a sea-beach, which « 77 » must have been formed at some remote period, in the same manner as the modern shingle. Upon this ancient beach are strata of loam, and chalk-rubble, with flints partially water-worn, and boulders of sandstone, breccia, granite, &c., constituting the upper sixty or eighty feet of the cliff. In these beds, and also in the ancient shingle, many teeth and bones of mammoths (extinct species of elephant), horse, deer, oxen, and other ruminants, and bones of whales, have been discovered.[AF]

A few hundred yards beyond Kemptown the inroads of the sea have destroyed all vestiges of the strata above described, and the cliffs consist of a perpendicular wall of chalk; if we extend our walk to Rottingdean, we shall perceive here and there isolated patches of the ancient shingle, and of the calcareous strata containing elephants' bones.

The appearances described demonstrate the following changes in this part of the Sussex coast. Firstly, the chalk terrace (Lign. 9, c; p. 27) on which the ancient shingle (b) rests, was on a level with the sea for a long period; for this beach must have been accumulated, like « 78 » the modern, by the action of the waves on the then existing chalk cliffs. But there must also have been some cause not now in operation, by which pebbles, and boulders of granite and other rocks foreign to this coast, with bones of extinct mammalia, &c., were thrown up on the strand, and imbedded in the beach then in progress of formation. These materials were probably brought from some distant part of the then continental shores by floating ice: an agency by which delicate bones and shells may be transported and deposited without injury amidst pebbles and boulders.

Secondly. The whole line of coast with the ancient shingle must have subsided to such a depth as to admit of the deposition of the calcareous materials forming the "Elephant bed;" and from the absence of beach and shingle in these strata, it may be inferred that this deposition took place in tranquil water: possibly at that period this part of the Sussex coast formed a sheltered bay.

Lastly. The land was elevated to its present level, and the formation of the modern sea-beach and cliffs commenced.[AG]

Note VI. Page 38. Rotaliæ in Chalk and Flint.

The shells called Rotaliæ (see Lign. 5 and 6, p. 14 and 16) belong to a group of marine animals of very simple organization, and which present great variety in the form and markings of their testaceous coverings; but they all agree in having the sides of the shell pierced by numerous holes or foramina; whence the scientific term of the Order, Foraminifera, is derived: these openings are for the egress of delicate filaments, which appear to be organs of progression and respiration.

The Foraminifera are, with but few exceptions, exceedingly minute; in an ounce of sea-sand, between three and four millions have been detected. The body of these animalcules consists of uniform granules enclosed in a skin or integument, having one or more digestive sacs or cavities; these creatures appear, in fact, to be mere polypes, protected by testaceous coverings. Some have but a single cell; others have many, disposed in a conical or cylindrical form; many kinds, of which the Rotaliæ are « 80 » examples, are discoidal involutes, and divided internally by septa into distinct chambers:[AH] they resemble in this respect the shell of the Nautilus, but are readily distinguished by the perforations.

All the various kinds of Foraminifera swarm in the present seas, and were not less numerous in the ancient ocean. We have seen that the white chalk almost wholly consists of a few genera of these animalcules; and in many strata of sand they are so abundant, that a cubic inch of the mass contains upwards of sixty thousand. In the Rotalia, the body is entirely enclosed within the shell, and occupies all the cells; and long, soft, tentacula are sent off through the foramina. The shell, therefore, though resembling in form that of the Nautilus, is essentially different; for in the latter, the outer chamber only is occupied by the body of the animal, the internal ones being successively quitted empty dwellings; whereas, in the Rotaliæ and analogous Polythalamia,[AI] all the cells are contemporaneously filled by the soft parts of the animalcule.

When the shell is removed, which is readily effected by immersion in diluted hydrochloric acid, the body is exposed, and found to consist of a series of lobes or sacs, united by a tube corresponding somewhat in its position with the siphuncle of the Nautilus, but which is the digestive canal. The body of a recent animalcule of this kind, deprived of the shell, is figured in Lign. 23.

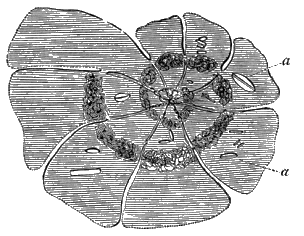

Lign. 23:—The body of a recent animalcule allied to the Rotalia, deprived of its shell; highly magnified.

« 82 »

Not only the characters of fossil shells of such infinite minuteness can be revealed by the microscope, but even the soft parts of the animalcules which inhabited them; for these are occasionally preserved, and may be demonstrated with as much distinctness as the recent examples.[AJ] In flint the soft parts of Rotaliæ, Textulariæ, &c., are abundant, and may be seen, with but little preparation, like insects in amber: the specimen figured in Lign. 12, p. 39, shews the body of a Rotalia well defined; the only preparation this atom of flint has undergone, is immersion in Canada balsam. To detect such delicate structures in chalk requires, however, some experience in microscopic manipulation, as the calcareous matter must be dissolved in hydrochloric acid, and the animal substance separated from the residuum.[AK]

Note VII. Page 43. Isle of Wight Pebbles.

The nodules and veins of flint that are so abundant in « 83 » the upper chalk, have probably been produced by the agency of heated waters and vapours; the perfect fluidity of the siliceous matter before its consolidation is proved, not only by the sharp moulds and impressions of shells and other organisms retained by the flints, but also by the presence of numerous remains in the substance of the nodules, and the silicified condition of the sponges and other zoophytes which abound in the cretaceous strata.

Now although silex, or the earth of flint, is but sparingly soluble in water of the ordinary temperature, its solution readily takes places in vapour heated a little above that of fused cast iron, as has been proved by direct experiment;[AL] and similar effects are being produced at the present moment by natural causes. The siliceous deposits thrown down by the intermittent boiling fountains, called the Geysers, in Iceland, are well known;[AM] and in New Zealand this phenomenon is exhibited on a still grander scale. From the crater of the volcanic mountain of Tongariro,[AN] which is several thousand feet above the level of the sea, « 84 » jets of vapour and streams of boiling water highly charged with silex, are continually issuing forth, and dashing down the flanks of the volcano in cascades and torrents, empty themselves into the lakes at its base. As the water cools, siliceous sinter is deposited in vast sheets, and incrustations of flint form around the extraneous substances lying in the course of the thermal streams. Silex is also precipitated by the boiling waters in stalagmitic concretions, and in nodules resembling in colour and solidity the flints of the English chalk. The complete impregnation and silicification of organized bodies is attributable to an agency of this kind; and although the origin of the siliceous waters that deposited the nodules and veins of flint in the chalk is still involved in obscurity, the mode in which the latter were formed is satisfactorily elucidated.

« 85 »

Lign. 24:—Zoophytes in Chalk and Flint.
1. A minute coral from chalk and flint; the lower figure is of the natural size. 2. Branch of a sponge in flint. 3. Pebble enclosing a zoophyte.

Of the perfect transmutation into flint of the most delicate organic structures, the pebbles strewn along the sea-shore of the south coast of England, afford a beautiful illustration; those from the Isle of Wight are especially celebrated for their rich and varied colours. The most common and interesting are those which exhibit sections of Choanites, as in the specimen which suggested the reflections embodied in these pages. Other allied forms are scarcely less beautiful; the petrified zoophytes called Siphonia, which, when living, consisted of a soft mass traversed by tubes, for the free ingress and egress of the water, often display the internal structure of the original: « 86 » as in the polished transverse section figured above, Lign. 24, fig. 3. Other bodies of this class occur in the flint, and present interesting examples of the zoophytes of the chalk ocean.

But many of the Isle of Wight pebbles exhibit no traces of animal structure, yet are valuable and instructive as mineralogical specimens: such are the clear and transparent pebbles with bands and veins of quartz and chalcedony. Some specimens are as pellucid as rock-crystal; others are of a bright yellow, amber, dark-brown, and bluish-black colour, and are often mottled with dendritical or arborescent manganese. (Plate IV.) The moss agates, as they are called by the lapidaries, are silicified sponges. Small pebbles of pure transparent rock-crystal are often found among the shingle in Compton and Sandown bays, and have probably been washed out of the wealden strata; for similar stones occur in the Tilgate grit, and at Tunbridge Wells: in the latter place, they are cut and polished for rings, brooches, &c.

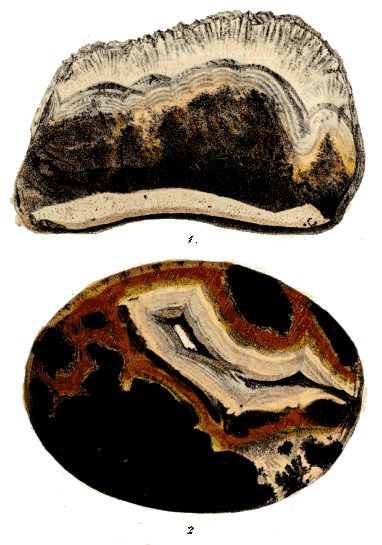

Plate IV.

Polished sections of Pebbles.

Page 86.

« 87 »

On the shores of the Isle of Wight, pebbles of jasper, resembling those from Egypt, and of banded quartz, with arborescent markings, or with zones of rich brown, are also met with; these do not appear to have originated from the chalk strata.

Pebbles of silicified wood have been collected in Sandown bay by Mr. Fowlstone; and water-worn boulders and pebbles of petrified wood, bones, &c., are common in Brook bay; rolled masses of the fresh-water shelly limestones (Sussex and Purbeck marbles) are also abundant in the same localities.[AO]

Note VIII. Page 45. Zoophytes of the Chalk.

Zoophytes, especially sponges, occur in such prodigious numbers in some of the chalk strata, that the nucleus of almost every flint nodule is an organic body. In many instances the silex has completely permeated the animal substance, as in the pebbles before described; but sometimes the sponge is a white calcareous mass, occupying a hollow in the flint: a branched specimen of this kind, « 88 » exposed on breaking a small nodule, is represented at Lign. 24, fig. 2.

In describing sponge as an animal substance, it may be necessary to explain that the sponge in ordinary use is the flexible skeleton of a living zoophyte, and was originally invested with a gelatinous or slimy matter, which lined all the pores and channels. When alive in the water, currents constantly enter the outer pores, traverse all the internal inosculating canals, and issue from the larger orifices which often project above the surface in perforated papillæ. By the circulation of the sea-water through the porous structure, the nutrition of the animated mass is effected; and the modifications observable in the number, size, form, and arrangement of the pores, canals, and apertures, in the different kinds of this type of organization, are subservient to this especial function.

But associated with the true Poriferæ or sponges, are numerous zoophytes which resemble them in form, but are of an entirely distinct nature; for they are the fossilized remains of Polyparia, that is, of the frame-work of an aggregation of polypes, each individual of which had « 89 » an independent existence, although the whole were united by one common living integument, like the Alcyonium, or dead-men's fingers, of our coasts.[AP]

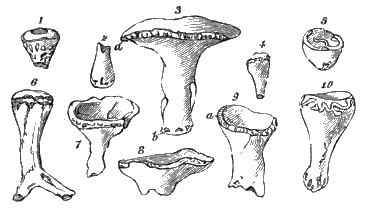

Lign. 25:—Flints deriving their forms from the zoophytes they enclose.

Among the flints whose forms depend on the organic bodies they enclose, are some which bear so close a resemblance in shape to Fungi, that they are provincially called in Sussex "petrified mushrooms;" several of them are figured above (Lign. 25). In these fossils there are openings at the base, and a groove on the margin of the upper part, in which the structure of the enclosed body is generally « 90 » more or less distinctly seen; and upon breaking one of these bodies, a section of a funnel-shaped zoophyte is obtained. The origin of these flints will be understood by reference to the four interesting specimens here delineated, one-sixth of the natural size in linear dimensions.

Lign. 26:—Ventriculites from the Chalk, Lewes.

1.	A perfect specimen in Chalk, shewing the external net-like surface.
2.	An expanded specimen, displaying the inner surface studded with cells.
3.	A Ventriculite with the lower part enveloped in Flint.
4.	Part of a Ventriculite; the base invested with Flint: the root-like fibres are seen at a.

« 91 »

This zoophyte, to which the name of Ventriculite has been given to denote its usual shape, was a hollow inverted cone, terminating at the base in a point, whence radicles or root-like processes were sent off, by which the animal was firmly attached to the rock. The outer integument was disposed in meshes like a net (see Lign. 26, fig. 1), and the inner surface was beset with regular circular openings, the orifices of tubular cells (fig. 2); each of which was probably occupied by a polype. The substance of the Polyparium, or general support of this family of animalcules, which alone occurs in a fossil state, appears to have been analogous to that of the soft Alcyonia, and to have possessed a common irritability; the entire mass contracting and expanding, as is the case in many recent zoophytes.[AQ]

The flints, figs. 3, 7, 8, 9, Lign. 25, were evidently formed in the manner exemplified in fig. 3, Lign. 26; figs. 2, 4, 6, are illustrated by fig. 4, Lign. 26; for the chalk « 92 » specimens, Lign. 26, shew that all these flints have been moulded around Ventriculites, and that their diversity of figure has arisen from the quantity of silex that happened to permeate the substance of the zoophyte; if but a small portion, flint like figs. 2 and 4, were the result; if the quantity were considerable, the larger fungiform examples were produced.

Note IX. Page 50. Minute Corals from Chalk.

Some layers of chalk are composed of an aggregation of many kinds of delicate corals, the interstices being filled up with Rotaliæ and other foraminiferous shells. In the cliffs near Dover there are several beds of this nature, well known to collectors for the profusion of exquisite specimens they yield to the experienced investigator. Lign. 17, p. 50, represents several varieties from different localities; the small figures shew the natural size, and the enlarged ones their appearance when magnified. Attached to the surface of shells, and sometimes standing erect in crannies of flint nodules, beautiful corals may often be « 93 » detected by the aid of a lens of moderate power. By brushing chalk in water, and examining the deposit, delicate fossils of this kind may also be obtained.[AR]

From the close analogy of the fossil corals to existing forms, it would not be difficult to give restored figures of the originals. Every little branch might be represented fraught with living polypes: in some cells the agile inmates might be shown with the mouth expanded, and the tentacula in rapid motion; in others withdrawn into their stony recesses, and devouring the infinitesimal atoms that constitute their food: even their varied hues might be introduced, and thus a vivid picture be presented of the microscopic beings which peopled the waters of the ancient chalk ocean.

That the Corals, which from their elegance and beauty are preserved in almost every cabinet, have been fabricated—or, in other words, built up—by polypes, in the same manner as the honey-comb of the bee and wasp, is so prevalent yet erroneous an opinion, that I am induced « 94 » to point out its fallacy, by giving a brief account of the formation of these substances. The three recent specimens represented in Lign. 27 will serve to illustrate my remarks.

Lign. 27:—Recent Corals.

1.	Oculina ramea.
2.	Madrepora muricata.
3.	Isis hippuris.

The coral, fig. 1, was an internal axis or skeleton, deposited by the soft fleshy integument with which, when living, it was wholly invested; in the same manner as are the bones of animals, by the special membrane (periosteum)« 95 » that secretes them. This integument lined every cell, and the polypes were permanently united to it. When the live coral is taken out of the water, the animalcules shrink up and quickly perish; their soft parts and the external investing substance putrefy, and the stony axis beset with the radiated cells alone remains.

In the example of Oculina ramea, or May-blossom Coral, fig. 1, from the Mediterranean, the cells are large and distinct; in the Madrepore from the West Indies, fig. 2, they are small and very closely aggregated.

The specimen of Isis (fig. 3) belongs to a group of coral-zoophytes in which the polype-cells consist of a substance that is durable, but not so hard as coral, and invests an axis composed of a tough flexible material, which is exposed at the base of fig 3, by the removal of the external or cortical part in which the polypes were situated. The Gorgonia, or Venus's fan, has a similar structure and composition.[AS]

In the Red Coral, so largely employed in the manufacture of beads, brooches, and other ornaments, not only « 96 » the animalcules, but also their receptacles, are composed of a soft perishable substance. When alive, the polypes, as well as the investing fleshy integument, are of a delicate bluish tint; the internal calcareous axis alone possesses the peculiar red colour. Upon being taken out of the sea, vitality quickly ceases, the soft parts decompose, and the beautiful crimson stone commonly known as the true coral, is obtained free from all traces of the soft mass by which it was secreted. Although an actual investigation of the facts described can only be instituted near the seas of warm climates, yet our coasts abound in certain coral-zoophytes in which similar phenomena may readily be observed. Most persons in their rambles by the sea-side must have noticed on the fuci, algæ, shells, pebbles, &c., patches of a white earthy substance, which when closely examined resemble delicate lace-work. These apparently calcareous incrustations are clusters of the zoophytes termed the Flustra, or sea-mat.[AT] When removed from the water, this aggregation of polypes seems coated over with a glossy film or varnish; and with a « 97 » lens of moderate power the surface is seen to be full of pores, disposed with much regularity. If viewed under the microscope while immersed in sea-water, a very different appearance is presented. Every pore is found to be the opening of a cell whence issues a tube fringed with several long feelers or arms; these expand, then suddenly contract and withdraw into the cell, and again issue forth; the whole surface of the Flustra being covered with these hydra-like animalcules. The Flustra, therefore, like the corals, constitutes an assemblage of polypes, each individual being permanently fixed in a durable cell, and the whole attached to a common integument by which the calcareous frame-work was secreted and maintained.[AU]

Note X. Page 53. Infusorial earth from Richmond in Virginia.

The greatest natural operations are produced by the most simple and apparently inadequate agents: for as the « 98 » illustrious Galileo emphatically remarked, "La nature fait beaucoup avec peu, et ses opérations sont toutes également merveilleuses." The profound thinker Hobbes, in the same spirit observes, "The majesty of God appeareth no less in small things than in great, and as it exceedeth human sense in the immensity of the universe, so also doth it in the smallness of the parts thereof." This sublime truth is strongly impressed on the mind of the geological inquirer, who perceives that whole countries and mountain ranges of great elevation and extent, are wholly composed of the aggregated remains of beings of such infinite minuteness that but for the powerful optical instruments of modern times, their presence would never have been suspected.

A few years only have elapsed since the sagacious Ehrenberg first drew attention to this subject, and pointed out the proper method of investigation;[AV] and so rapid has been the progress of discovery in this department of science, that infusorial deposits, as these beds of « 99 » fossil animalcules are designated, have been detected in every quarter of the globe. A fact equally unexpected and remarkable has also been established, namely, that at the present moment similar minute living agents are largely contributing to the increase of the solid materials of the crust of our planet.

The infusorial earth of Virginia, alluded to in the text, is a yellowish siliceous clay, forming a deposit from twelve to fifteen feet in thickness, upon which the towns of Richmond and Petersburgh are built. The surface of the country over which it extends is characterized by a scanty vegetation, owing to the siliceous nature of the soil dependent on the minute organisms of which it almost entirely consists. When a few grains of this earth are properly prepared for microscopic examination, immense numbers of the shields or cases of animalcules are visible under a magnifying power of 300 diameters; in fact, the merest stain left by the evaporation of water in which some of the marl has been mixed, teems with these fossil remains.[AW]

These organisms are of exquisite structure, and comprise many species and genera. The most beautiful and abundant are the circular shields, termed Coscinodisci (sieve-like disks), which are elegant saucer-shaped cases, elaborately ornamented with hexagonal apertures disposed in curves, somewhat resembling the engine-turned sculpturing of a watch; these shells are from 1/1000 to 1/100 of an inch in diameter. A segment of one of these disks, highly magnified, is represented in Lign. 18, fig. 2. The body of the living animalcule was protected and enclosed by a pair of these concave shells, the perforations admitting of the exsertion of filaments or tentacula. This species of Coscinodiscus abounds in the present seas, and constitutes no inconsiderable proportion of the food of Pectens and other testaceous mollusca.[AX]

All the animalcules found in the Richmond earth are marine, and most of them belong to genera, and many to « 101 » existing species; although the position of the American strata proves that they are referable to a period of immense antiquity.

In Germany, beds of a white infusorial earth, resembling magnesia in appearance, and termed Bergh-mehl, or fossil farina, occur at Bilin, and several other places: at San Fiora in Tuscany, near Egra in Bohemia, in the Bermudas, Barbadoes, &c., similar deposits have been discovered; all being composed of the shields of various kinds of animalcules. But I must not extend these remarks, and will only add a few observations on the infusorial earth of Barbadoes, which has but recently been brought under the notice of geologists by Sir Robert Schomburgk, and is especially interesting for the exquisite beauty and variety of its organisms, and the circumstances under which the deposit occurs.

Barbadoes, an island of the West Indies, is about twelve miles in length from north to south, and consists of coral reefs, capped in one district by tertiary sandstones and limestones, which attain a height of 1200 feet above the sea. Over the rest of the island, coral reefs « 102 » form the entire surface, which is divided by vertical walls of coral, some of them nearly 200 feet high, into six terraces, indicating as many periods of upheaval. In the lowest reef, Indian hatchets have been found twenty feet above high water mark; shewing that the last movement, at least, took place within the human period. The tertiary strata are more or less inclined, and in many places vertical, and contorted. Strata of marl, several hundred feet thick, predominate; and there are beds of bituminous coal, sandstone, clays, and ferruginous sands. Arenaceous limestone containing teeth of sharks, spines of echini, and shells, forms the summit of a hill nearly 1,000 feet high. The white marls abound in 300 species of the most beautiful siliceous infusoria; many are peculiar, others the same as occur in the Richmond earth, and some belong to recent species.[AY]

THE END.

« 103 »

WORKS BY THE SAME AUTHOR.

In 2 Vols, foolscap 8vo, cloth, lettered, with numerous Illustrations and Coloured Plates, price 18s. the Sixth Edition of

THE WONDERS OF GEOLOGY;

OR,
A FAMILIAR EXPOSITION OF GEOLOGICAL PHENOMENA.
By GIDEON ALGERNON MANTELL, Esq., LL.D., F.R.S,
Vice-President of the Geological Society of London.

"Dr. Mantell's Wonders of Geology will continue to be a favourite work equally in the Geological schools, in the private study, and in the family circle. It may be read and understood by any intelligent and educated individual; its exact science, sound logic, and dignity of style ensure its acceptance with the learned; its elegance, beauty, and perspicuity, with the polite and refined; and its comprehensive brevity, with the student of the elements of Geology. It realizes, indeed, our beau-ideal of a familiar yet dignified philosophical style: being alike condensed and luminous, possessing a graceful flowing eloquence, and rising as the subject may require, into the sublime as well as the beautiful. We are not aware of the existence of any work, on any department of science, which has higher claims at once to a place in the library of the philosopher, and on the table of a refined family."—Review of the American Edition of the Wonders of Geology. American Journal of Science.

"Dr. Mantell's eloquent and delightful work, the Wonders of Geology."—Sir E. B. Lytton.

« 104 »

In 2 vols. foolscap 8vo, cloth, lettered, with Coloured Plates, and several hundred Figures of Fossil Remains, price One Guinea.

THE MEDALS OF CREATION;

OR,

FIRST LESSONS IN GEOLOGY, AND IN THE STUDY OF ORGANIC REMAINS.

These volumes comprise a Popular Introduction to the study of Organic remains, and a general view of Fossil Botany and Zoology.

Geological Excursions to some of the most interesting places in England are described, in illustration of the method of observing and investigating Geological Phenomena, and of collecting Organic Remains.

Ample instructions are given for the development and arrangement of Fossil Vegetables, Corals, Shells, Bones, Teeth, &c.: and practical directions for the microscopical examination of rocks composed of Fossil Infusoria, and the intimate structure of mineralized Plants, Teeth, &c. In fine, these volumes are offered as a popular guide and hand-hook for the Student and Amateur Collector of Fossil Remains, and the Reader who may desire a general acquaintance with a science replete with objects of the highest interest; and for the Tourist who may wish, in the course of his travels, to employ profitably and agreeably a leisure hour, in the various districts he may visit. Such a work has long been required; and the present will be found to comprise all that can reasonably be expected in two pocket volumes. The plates are alike beautiful and faithful representations of the originals.

« 105 »

In one volume square 8vo, with 12 coloured plates; price 10s.

THOUGHTS ON ANIMALCULES;

OR,

A GLIMPSE OF THE INVISIBLE WORLD REVEALED BY THE MICROSCOPE.

In one volume 8vo, with numerous plates, sections, coloured geological maps, &c.; price 12s.

GEOLOGICAL EXCURSIONS ROUND THE
ISLE OF WIGHT

OR,

ALONG THE ADJACENT COASTS OF HAMPSHIRE AND DORSETSHIRE.

Illustrative of the most interesting geological phenomena and organic remains.

This work is a popular guide to the geology of the "beautiful Island," pointing out and explaining the most remarkable localities and the fossils with which they abound; not only of the Isle of Wight, but also of the Isles of Purbeck and Portland.

« 106 »

In one volume, with plates; price 5s.

A DAY'S RAMBLE IN AND ABOUT THE
ANCIENT TOWN OF LEWES;

ILLUSTRATIVE OF THE OBJECTS OF HISTORICAL, GEOLOGICAL, AND
ANTIQUARIAN INTEREST OF THE TOWN AND NEIGHBOURHOOD.

Preparing for Publication.

THE PHENOMENA OF THE NERVOUS SYSTEM;

OR,

A FAMILIAR EXPOSITION OF THE NATURE AND FUNCTIONS OF THE NERVES:

Being the substance of a course of popular Lectures.

In one volume, with numerous illustrations.

« 107 »

August, 1850.

LIST OF WORKS

PRINCIPALLY ON

NATURAL AND PHYSICAL SCIENCE,

PUBLISHED BY

REEVE AND BENHAM,

5, HENRIETTA STREET, COVENT GARDEN.

1.

POPULAR FIELD BOTANY;

COMPRISING

A familiar and technical description of the Plants most common to the British
Isles, adapted to the study of either the Artificial or Natural System.

By AGNES CATLOW.

Second Edition.

Arranged in twelve chapters, each being the Botanical lesson for the month.

⁂ In one vol. royal 16mo, with twenty plates of figures. Price 7s. plain; 10s. 6d. coloured.

« 108 »

⁂ One vol. demy 8vo. Price 12s.

⁂ One vol. crown 8vo, with 16 illustrations. Price 16s. elegantly bound in fancy cloth. Coloured and bound extra, gilt, 21s.

⁂ One vol. crown 8vo, with 36 illustrations. Price 16s. elegantly bound in fancy cloth. Coloured and bound extra, gilt, 21s.

« 109 »

10.

POPULAR HISTORY

OF

BRITISH SEA-WEEDS;

Comprising a familiar and technical description of the Sea-weeds
of the British Isles.

By the Rev. DAVID LANDSBOROUGH, A.L.S.,
Member of the Wernerian Society of Edinburgh.

⁂ In one vol. royal 16mo, with twenty-two plates of figures by Fitch. Price 10s. 6d. coloured.

« 110 »

« 111 »

20.

POPULAR BRITISH ORNITHOLOGY;

COMPRISING

A familiar and technical description of the Birds of the British Isles.

By P. H. GOSSE,

Author of 'The Ocean,' 'The Birds of Jamaica,' &c.

In twelve chapters, each being the Ornithological lesson for the month.

⁂ In one vol. royal 16mo, with twenty plates of figures. Price 7s. plain; 10s. 6d. coloured.

« 112 »

« 113 »

31.

POPULAR

BRITISH ENTOMOLOGY;

COMPRISING

A familiar and technical description of the Insects most common
to the British Isles.

By MARIA E. CATLOW.

In twelve chapters, each being the Entomological lesson for the month.

⁂ In one vol. royal 16mo, with sixteen plates of figures. Price 7s. plain; 10s. 6d. coloured.

« 114 »

Serials.

LONDON:

REEVE and BENHAM, HENRIETTA STREET, COVENT GARDEN.

End of Project Gutenberg's Thoughts on a Pebble, by Gideon Algernon Mantell

*** END OF THIS PROJECT GUTENBERG EBOOK THOUGHTS ON A PEBBLE ***

***** This file should be named 62871-h.htm or 62871-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/6/2/8/7/62871/

Produced by Tom Cosmas from materials made freely available
on The Internet Archive. All derived products are placed
in the Public Domain.


Updated editions will replace the previous one--the old editions will
be renamed.

Creating the works from print editions not protected by U.S. copyright
law means that no one owns a United States copyright in these works,
so the Foundation (and you!) can copy and distribute it in the United
States without permission and without paying copyright
royalties. Special rules, set forth in the General Terms of Use part
of this license, apply to copying and distributing Project
Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm
concept and trademark. Project Gutenberg is a registered trademark,
and may not be used if you charge for the eBooks, unless you receive
specific permission. If you do not charge anything for copies of this
eBook, complying with the rules is very easy. You may use this eBook
for nearly any purpose such as creation of derivative works, reports,
performances and research. They may be modified and printed and given
away--you may do practically ANYTHING in the United States with eBooks
not protected by U.S. copyright law. Redistribution is subject to the
trademark license, especially commercial redistribution.

START: FULL LICENSE

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full
Project Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.

Section 1. General Terms of Use and Redistributing Project
Gutenberg-tm electronic works

1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or
destroy all copies of Project Gutenberg-tm electronic works in your
possession. If you paid a fee for obtaining a copy of or access to a
Project Gutenberg-tm electronic work and you do not agree to be bound
by the terms of this agreement, you may obtain a refund from the
person or entity to whom you paid the fee as set forth in paragraph
1.E.8.

1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this
agreement and help preserve free future access to Project Gutenberg-tm
electronic works. See paragraph 1.E below.

1.C. The Project Gutenberg Literary Archive Foundation ("the
Foundation" or PGLAF), owns a compilation copyright in the collection
of Project Gutenberg-tm electronic works. Nearly all the individual
works in the collection are in the public domain in the United
States. If an individual work is unprotected by copyright law in the
United States and you are located in the United States, we do not
claim a right to prevent you from copying, distributing, performing,
displaying or creating derivative works based on the work as long as
all references to Project Gutenberg are removed. Of course, we hope
that you will support the Project Gutenberg-tm mission of promoting
free access to electronic works by freely sharing Project Gutenberg-tm
works in compliance with the terms of this agreement for keeping the
Project Gutenberg-tm name associated with the work. You can easily
comply with the terms of this agreement by keeping this work in the
same format with its attached full Project Gutenberg-tm License when
you share it without charge with others.

1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are
in a constant state of change. If you are outside the United States,
check the laws of your country in addition to the terms of this
agreement before downloading, copying, displaying, performing,
distributing or creating derivative works based on this work or any
other Project Gutenberg-tm work. The Foundation makes no
representations concerning the copyright status of any work in any
country outside the United States.

1.E. Unless you have removed all references to Project Gutenberg:

1.E.1. The following sentence, with active links to, or other
immediate access to, the full Project Gutenberg-tm License must appear
prominently whenever any copy of a Project Gutenberg-tm work (any work
on which the phrase "Project Gutenberg" appears, or with which the
phrase "Project Gutenberg" is associated) is accessed, displayed,
performed, viewed, copied or distributed:

  This eBook is for the use of anyone anywhere in the United States and
  most other parts of the world at no cost and with almost no
  restrictions whatsoever. You may copy it, give it away or re-use it
  under the terms of the Project Gutenberg License included with this
  eBook or online at www.gutenberg.org. If you are not located in the
  United States, you'll have to check the laws of the country where you
  are located before using this ebook.

1.E.2. If an individual Project Gutenberg-tm electronic work is
derived from texts not protected by U.S. copyright law (does not
contain a notice indicating that it is posted with permission of the
copyright holder), the work can be copied and distributed to anyone in
the United States without paying any fees or charges. If you are
redistributing or providing access to a work with the phrase "Project
Gutenberg" associated with or appearing on the work, you must comply
either with the requirements of paragraphs 1.E.1 through 1.E.7 or
obtain permission for the use of the work and the Project Gutenberg-tm
trademark as set forth in paragraphs 1.E.8 or 1.E.9.

1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any
additional terms imposed by the copyright holder. Additional terms
will be linked to the Project Gutenberg-tm License for all works
posted with the permission of the copyright holder found at the
beginning of this work.

1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including
any word processing or hypertext form. However, if you provide access
to or distribute copies of a Project Gutenberg-tm work in a format
other than "Plain Vanilla ASCII" or other format used in the official
version posted on the official Project Gutenberg-tm web site
(www.gutenberg.org), you must, at no additional cost, fee or expense
to the user, provide a copy, a means of exporting a copy, or a means
of obtaining a copy upon request, of the work in its original "Plain
Vanilla ASCII" or other form. Any alternate format must include the
full Project Gutenberg-tm License as specified in paragraph 1.E.1.

1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works
provided that

* You pay a royalty fee of 20% of the gross profits you derive from
  the use of Project Gutenberg-tm works calculated using the method
  you already use to calculate your applicable taxes. The fee is owed
  to the owner of the Project Gutenberg-tm trademark, but he has
  agreed to donate royalties under this paragraph to the Project
  Gutenberg Literary Archive Foundation. Royalty payments must be paid
  within 60 days following each date on which you prepare (or are
  legally required to prepare) your periodic tax returns. Royalty
  payments should be clearly marked as such and sent to the Project
  Gutenberg Literary Archive Foundation at the address specified in
  Section 4, "Information about donations to the Project Gutenberg
  Literary Archive Foundation."

* You provide a full refund of any money paid by a user who notifies
  you in writing (or by e-mail) within 30 days of receipt that s/he
  does not agree to the terms of the full Project Gutenberg-tm
  License. You must require such a user to return or destroy all
  copies of the works possessed in a physical medium and discontinue
  all use of and all access to other copies of Project Gutenberg-tm
  works.

* You provide, in accordance with paragraph 1.F.3, a full refund of
  any money paid for a work or a replacement copy, if a defect in the
  electronic work is discovered and reported to you within 90 days of
  receipt of the work.

* You comply with all other terms of this agreement for free
  distribution of Project Gutenberg-tm works.

1.E.9. If you wish to charge a fee or distribute a Project
Gutenberg-tm electronic work or group of works on different terms than
are set forth in this agreement, you must obtain permission in writing
from both the Project Gutenberg Literary Archive Foundation and The
Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm
trademark. Contact the Foundation as set forth in Section 3 below.

1.F.

1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
works not protected by U.S. copyright law in creating the Project
Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm
electronic works, and the medium on which they may be stored, may
contain "Defects," such as, but not limited to, incomplete, inaccurate
or corrupt data, transcription errors, a copyright or other
intellectual property infringement, a defective or damaged disk or
other medium, a computer virus, or computer codes that damage or
cannot be read by your equipment.

1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium
with your written explanation. The person or entity that provided you
with the defective work may elect to provide a replacement copy in
lieu of a refund. If you received the work electronically, the person
or entity providing it to you may choose to give you a second
opportunity to receive the work electronically in lieu of a refund. If
the second copy is also defective, you may demand a refund in writing
without further opportunities to fix the problem.

1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO
OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.

1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of
damages. If any disclaimer or limitation set forth in this agreement
violates the law of the state applicable to this agreement, the
agreement shall be interpreted to make the maximum disclaimer or
limitation permitted by the applicable state law. The invalidity or
unenforceability of any provision of this agreement shall not void the
remaining provisions.

1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in
accordance with this agreement, and any volunteers associated with the
production, promotion and distribution of Project Gutenberg-tm
electronic works, harmless from all liability, costs and expenses,
including legal fees, that arise directly or indirectly from any of
the following which you do or cause to occur: (a) distribution of this
or any Project Gutenberg-tm work, (b) alteration, modification, or
additions or deletions to any Project Gutenberg-tm work, and (c) any
Defect you cause.

Section 2. Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of
computers including obsolete, old, middle-aged and new computers. It
exists because of the efforts of hundreds of volunteers and donations
from people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future
generations. To learn more about the Project Gutenberg Literary
Archive Foundation and how your efforts and donations can help, see
Sections 3 and 4 and the Foundation information page at
www.gutenberg.org Section 3. Information about the Project Gutenberg
Literary Archive Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg Literary
Archive Foundation are tax deductible to the full extent permitted by
U.S. federal laws and your state's laws.

The Foundation's principal office is in Fairbanks, Alaska, with the
mailing address: PO Box 750175, Fairbanks, AK 99775, but its
volunteers and employees are scattered throughout numerous
locations. Its business office is located at 809 North 1500 West, Salt
Lake City, UT 84116, (801) 596-1887. Email contact links and up to
date contact information can be found at the Foundation's web site and
official page at www.gutenberg.org/contact

For additional contact information:

    Dr. Gregory B. Newby
    Chief Executive and Director
    [email protected]

Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To SEND
DONATIONS or determine the status of compliance for any particular
state visit www.gutenberg.org/donate

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations. To
donate, please visit: www.gutenberg.org/donate

Section 5. General Information About Project Gutenberg-tm electronic works.

Professor Michael S. Hart was the originator of the Project
Gutenberg-tm concept of a library of electronic works that could be
freely shared with anyone. For forty years, he produced and
distributed Project Gutenberg-tm eBooks with only a loose network of
volunteer support.

Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as not protected by copyright in
the U.S. unless a copyright notice is included. Thus, we do not
necessarily keep eBooks in compliance with any particular paper
edition.

Most people start at our Web site which has the main PG search
facility: www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
