The Geology of D.A.R. State Park, Mt. Philo State Forest Park, Sand Bar State Park

THE GEOLOGY OF
D.A.R. STATE PARK

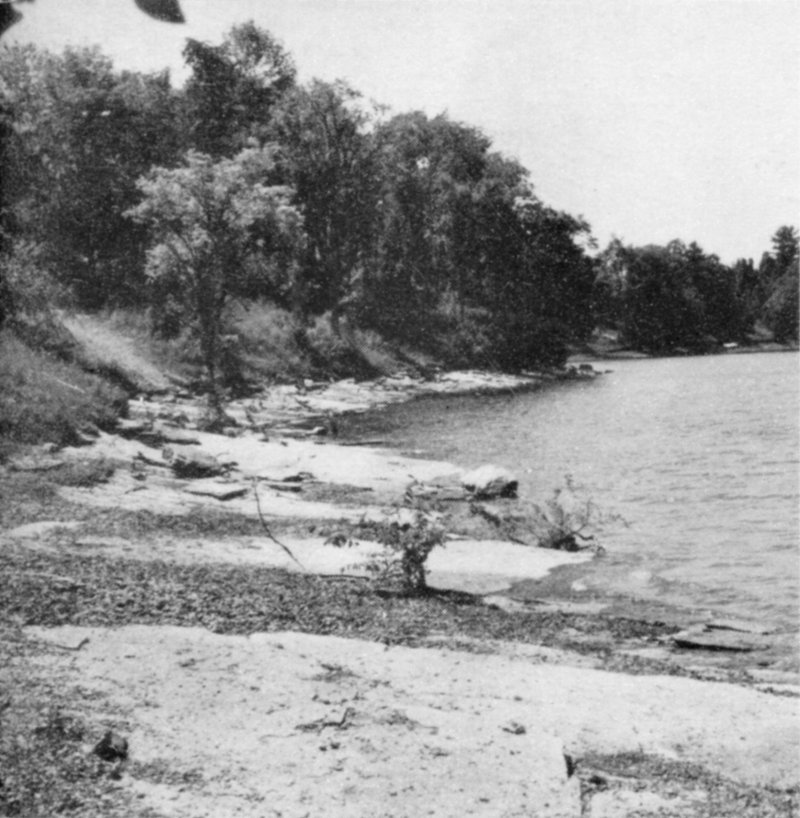

Shoreline at D.A.R. State Park looking south.

MT. PHILO STATE FOREST PARK

Panoramic view from west overlook on Mt. Philo. Adirondack Mountains in background. Lake Champlain and Champlain Lowlands in foreground.

SAND BAR STATE PARK

Sand Bar State Park on flat surface of Lamoille River delta. A part of extensive picnic area looking northwest.

THE GEOLOGY OF
D.A.R. STATE PARK
MT. PHILO STATE FOREST PARK
SAND BAR STATE PARK

By
HARRY W. DODGE, JR.

VERMONT GEOLOGICAL SURVEY
CHARLES G. DOLL, State Geologist

DEPARTMENT OF FORESTS AND PARKS
ROBERT B. WILLIAMS, Commissioner

DEPARTMENT OF WATER RESOURCES
Montpelier, Vermont

1969

3

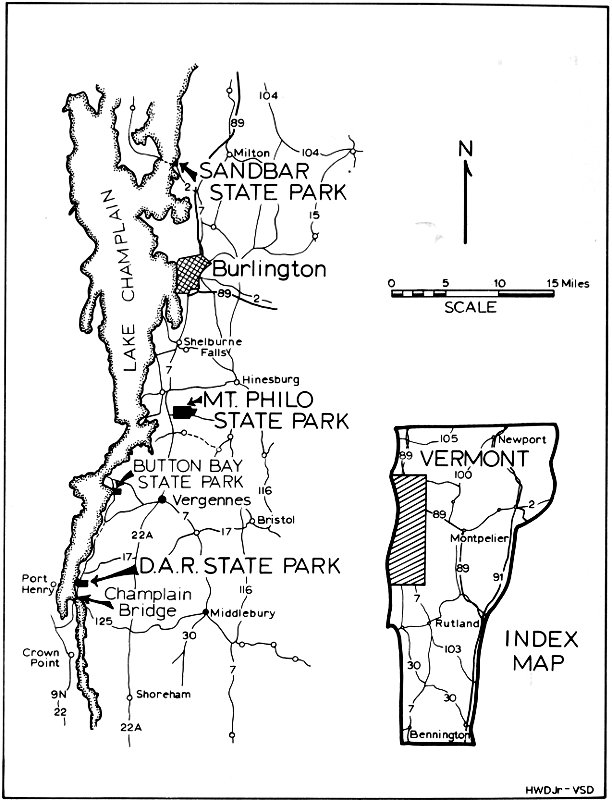

Fig. 1. Index Map.

SANDBAR STATE PARK
MT. PHILO STATE PARK
BUTTON BAY STATE PARK
D.A.R. STATE PARK
LAKE CHAMPLAIN
Milton
Burlington
Shelburne Falls
Hinesburg
Vergennes
Bristol
Port Henry
Champlain Bridge
Middlebury
Crown Point
Shoreham
INDEX MAP
4

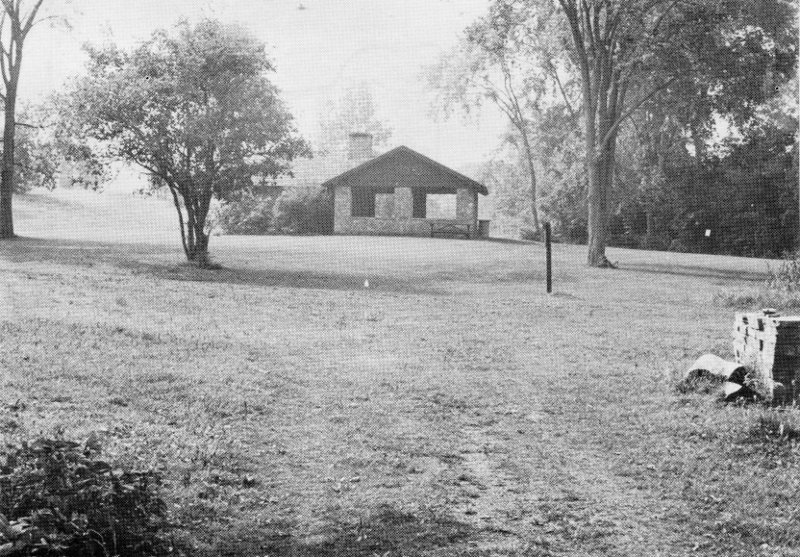

Fig. 1a. Surface of marine terrace at D.A.R. State Park. Immediately to the left of shelter the land rises to a second terrace.

5

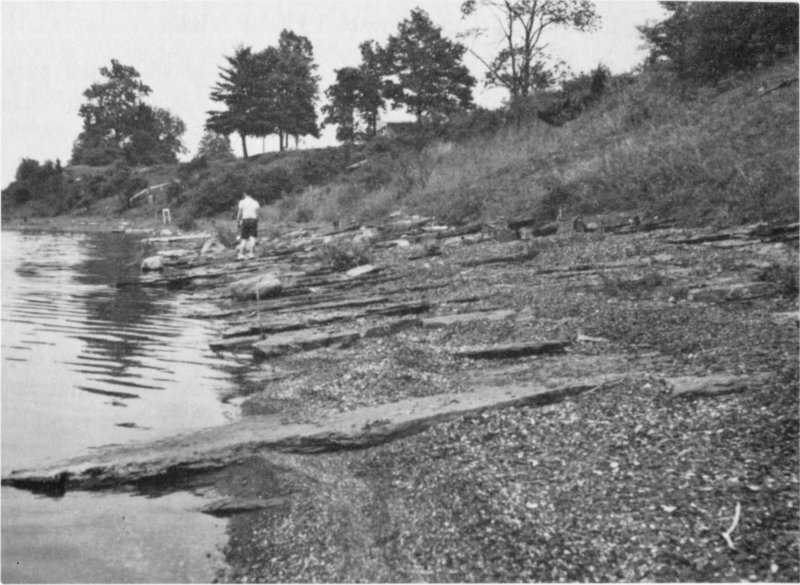

Fig. 2. View northwest along park beach. Illustrates dip of rocks toward northwest; strike, northeast.

THE GEOLOGY OF D.A.R. STATE PARK

INTRODUCTION

D.A.R. State Park is located in western Vermont on State Highway 17, approximately 1 mile north of Lake Champlain (toll) Bridge (see map, Fig. 1). The park, which fronts on Lake Champlain, contains undeveloped acres on the east side of the Highway. Tenting, leanto camping, picnicking and swimming are adequately provided for during the summer months.

This park, more than most others, not only awakens the visitor’s curiosity about the past history of the Earth, but satisfies it. The story of an ancient sea and the life which existed in it can be read from the rocks exposed in D.A.R. State Park. You can read this story for yourselves. This Pamphlet is designed as an aid to a more complete understanding of the observations which you make. “Reading the rock record” is not difficult, but the geologist does have the advantage of possessing a certain trained scientific approach to these problems. This method of approach, the “tools of the trade,” will now be passed on to you.

6

THE GEOLOGY OF THE PARK

The park beach is the ideal place to study the rocks of the park, for here the rocks are best exposed and can be easily examined at close range. The attitude of the rock layers can be seen on a walk down the ramp. By attitude is meant their relationship to an imaginary horizontal plane, which for our purposes is the level of the lake. Are the rock layers parallel to the surface of Lake Champlain or do they slant or dip into it? If the layers were parallel to the surface they would not “dip.” The dip of the park strata (layers) is seen in Figure 2. Dip is expressed in the number of degrees down from the horizontal and here the dip is toward the west and is measured to be between 8 and 11 degrees. The dip is always measured perpendicular to an imaginary horizontal line on a rock layer called a “strike line.” The average “strike,” or compass direction of the “strike line” is 22 degrees east of north.[1]

Sedimentary rocks[2] crop out on the park beach. These were originally lime mud resting on the sea bottom. Under continued pressure from the overlying sediments resulting from continued deposition and burial, the muds were slowly compacted and cemented into the hard limestones and limy shales which we see today. The many layers of rock were then tilted. Tilted layers tell the geologist of giant earth movements which took place since their formation. The story of these movements will be developed later in this pamphlet.

As you look at the tilted rock layers from the ramp, can you tell which layers are the oldest, that is, those first deposited as lime muds on the sea bottom? A basic geologic law, the Law of Superposition, states that if a series of sedimentary layers have not been overturned, the oldest is on the bottom and the youngest on top. Assuming that the layers which you are looking at have not been overturned, those on your left (south) are the oldest and those on your right (north) the youngest. Looking at Figure 2, taken from the ramp-bottom toward the north, the layers in the foreground are older than those in the distance. Let us take a close look at the individual layers of rock and delve deeper into the story that they have to tell.

7

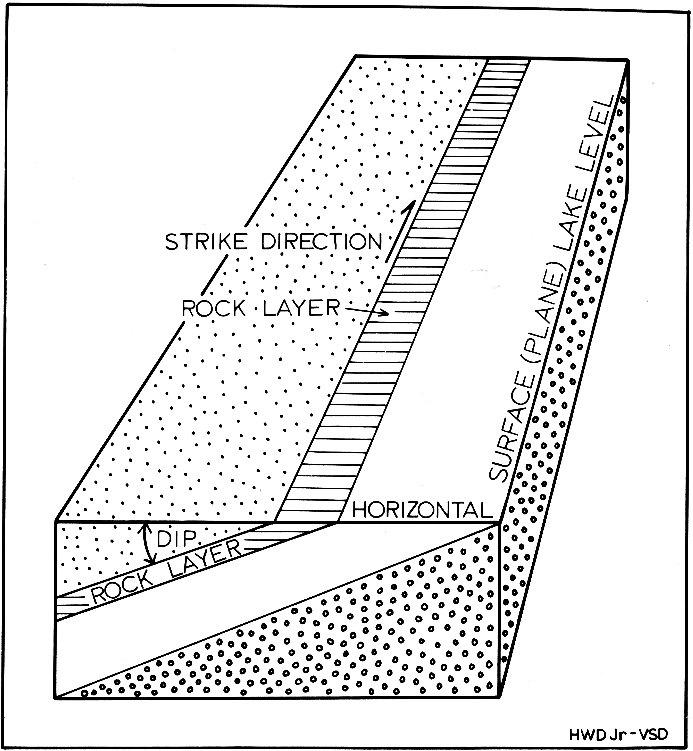

Fig. 3. Block diagram illustrating dip and strike.

STRIKE DIRECTION
ROCK LAYER
SURFACE (PLANE) LAKE LEVEL
HORIZONTAL
DIP
ROCK LAYER

Search the top of a few layers and you will notice many shell and other animal impressions. Do they represent animals which lived hundreds of millions of years ago or were they washed onto these rocks from present-day Lake Champlain? If you try to make a collection of the shell impressions you will see that they are a part of the rock and therefore must represent remains of animals that were buried in the 8 ancient lime muds. These preserved remains[3] are called fossils. The geologist who specializes in the study of fossils is called a paleontologist. You may ask, “What can fossils tell me about the past?” In the first place, fossils tell us at what time in the past the sediments in which they are found were deposited. In this way, the relative age[4] of the rock layers found in the Park can be learned. Secondly, the environment or surroundings in which these ancient sediments were deposited can be reconstructed from the types of fossils contained within them. Certain animals living today are quite similar to those in the Park rocks and their environment in today’s sea can be used to reconstruct the environment of animals which lived in the past. The characteristics of the rocks and their relation to adjacent rocks are considered in any reconstruction of past environment. In the third place, the study of fossils is a mainstay of the theory of evolution. That is to say, changes in fossil forms collected from groups of successively younger rock layers document the theory that life has evolved little by little since its first appearance on Earth. Finally, it should be mentioned that some animals found as fossils are not living today and have not lived, to the best of our knowledge, for millions of years. Why did these forms of life die out? What set of circumstances led to their extinction? The answers to these questions are not easy to find and they are highly speculative.

9

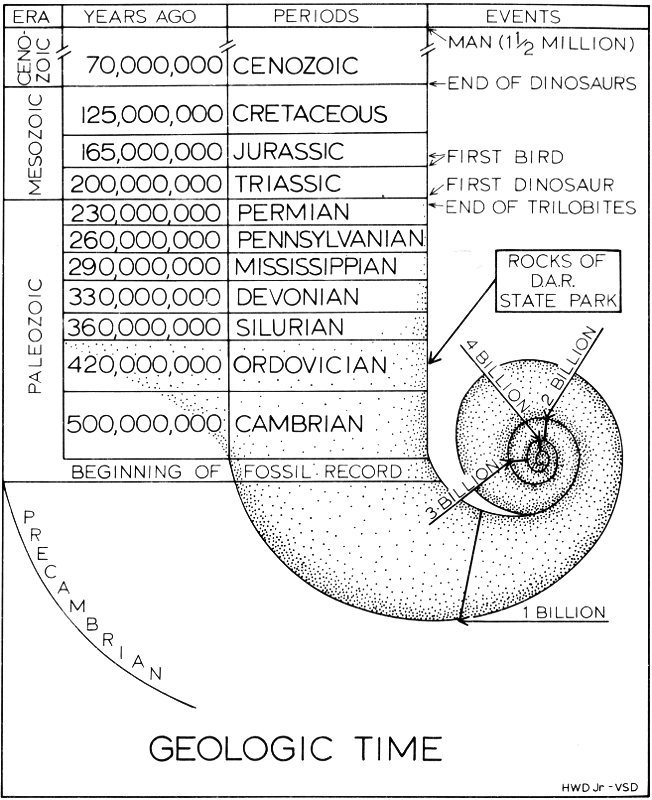

Fig. 4. Standard Geologic Time Scale.

GEOLOGIC TIME
ERA YEARS AGO PERIODS EVENTS
CENOZOIC 70,000,000 CENOZOIC MAN (1½ MILLION)
MESOZOIC 125,000,000 CRETACEOUS END OF DINOSAURS
165,000,000 JURASSIC FIRST BIRD
200,000,000 TRIASSIC FIRST DINOSAUR
PALEOZOIC 230,000,000 PERMIAN END OF TRILOBITES
260,000,000 PENNSYLVANIAN
290,000,000 MISSISSIPPIAN
330,000,000 DEVONIAN
360,000,000 SILURIAN
420,000,000 ORDOVICIAN ROCKS OF D.A.R. STATE PARK
500,000,000 CAMBRIAN
BEGINNING OF FOSSIL RECORD
1 BILLION
2 BILLION
3 BILLION
4 BILLION
PRECAMBRIAN

THE FOSSILS

Many groups of invertebrates are represented in the fossils of D.A.R. State Park. Plate 1 will help you to identify these fossils. The name, phylum (major group) and age of each fossil are provided in the explanation of the plate. The following paragraphs describe each phylum represented in the Park rocks.

10

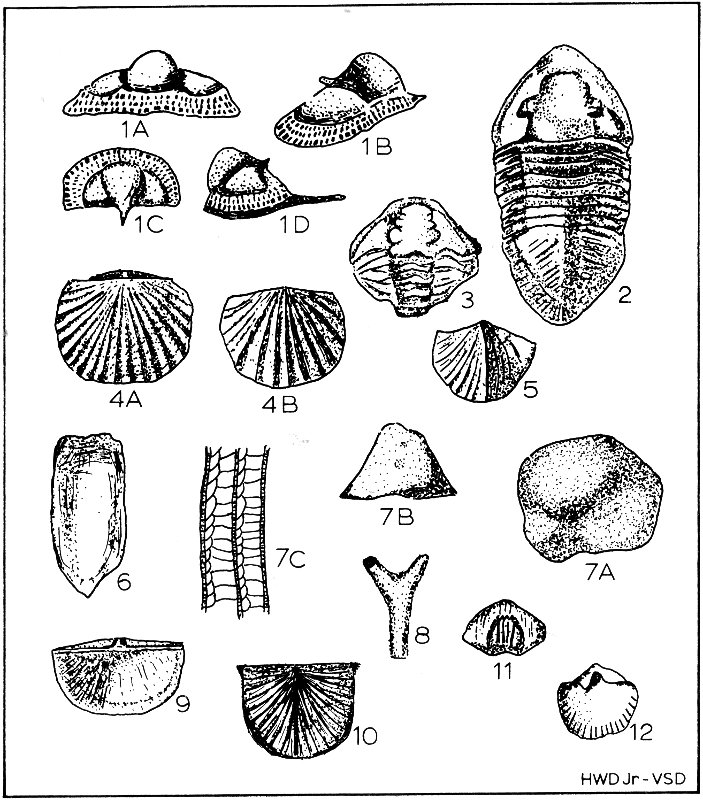

Plate 1. Typical fossils found in the Glens Falls Limestone.

Arthropods. D.A.R. State Park rocks contain trilobites with the following imposing names: Cryptolithus tesselatus (crip-toe-LITH-us tessell-AH-tus[5]), Isotelus gigas (ice-so-TELL-us GIG-us) and Flexicalymene senaria (flex-eye-cal-ah-Mean-ee sen-AREA). These fossils are figured on Plate 1, 1-A, B, C, D; 2; 3. Within the Park Cryptolithus tesselatus is very common wherever fossils occur. Generally only the cephalon or head portion of this trilobite is preserved. The cephalon is 11 easily recognized by three concentric rows of pits arranged around the brim. Cryptolithus is an excellent index fossil[6] for the Park rocks. The arthropod phylum is characterized by animals with jointed legs, segmented bodies and a jointed outer armour of chitin.[7] For examples, the crabs, lobsters, spiders, scorpions and insects are arthropods. Trilobites appear early in the fossil record but they did not survive beyond the Paleozoic Era.

Explanation for Plate 1
(all drawings are X1 unless otherwise indicated)

1-A. Cryptolithus tesselatus, Arthropod (Trilobite), Middle Ordovician (Trenton Stage). Front view of the Cephalon or head. (X2)

1-B. Cryptolithus tesselatus, Arthropod (Trilobite), Middle Ordovician (Trenton Stage). Oblique front-lateral view of the Cephalon. (X2)

1-C. Cryptolithus tesselatus, Arthropod (Trilobite), Middle Ordovician (Trenton Stage). Top view of the Cephalon. (X2)

1-D. Cryptolithus tesselatus, Arthropod (Trilobite), Middle Ordovician (Trenton Stage). Side view of the Cephalon. (X2)

2. Isotelus gigas, Arthropod (Trilobite), Middle Ordovician. Top view of specimen.

3. Flexicalymene, Arthropod (Trilobite), Ordovician to Silurian. Top view of an enrolled specimen.

4-A. Dinorthis pectinella, Brachiopod, Middle Ordovician (Trenton Stage). Exterior view of the brachial valve.

4-B. Dinorthis pectinella, Brachiopod, Middle Ordovician (Trenton Stage). Exterior view of the pedicle valve.

5. Reuschella edsoni, Brachiopod, Middle Ordovician. Exterior view of the pedicle valve.

6. Lingula, Brachiopod, Ordovician to Recent.

7-A. Prasopora, Bryozoan, Ordovician. Top view. (X0.5)

7-B. Prasopora, Bryozoan, Ordovician. Side view. (X0.5)

7-C. Prasopora, Bryozoan, Ordovician. Vertical thin section showing the nature and growth of part of a bryozoan colony. (X18)

8. Bryozoan, “twig-like” type, Ordovician to Devonian.

9. Sowerbyella, Brachiopod, Middle and Upper Ordovician. Exterior view of brachial valve. (X2)

10. Rafinesquina, Brachiopod, Middle and Upper Ordovician. Exterior view of the pedicle valve.

11. Platystrophia trentonensis, Brachiopod, Middle Ordovician (Trenton Stage). Anterior or front view.

12. Hesperorthis tricenaria, Brachiopod, Middle Ordovician (Black River and Trenton Stage). Interior view of the pedicle valve.

12

Fig. 5. The surface of a layer or bed of Glens Falls Limestone. Pen points to a colonial Bryozoan Prasopora “head.” These “heads” are very common just south or to your left if walking down the ramp.

Brachiopods. Brachiopods are abundant in the Park rocks (see Plate 1, 4A, B; 5; 6; 9; 10; 11; 12). These invertebrates are small marine animals which generally live in waters no deeper than 600 feet. The two valves of their shell are joined at the back (posterior) end of the body along a hingeline of interlocking teeth and sockets. The shell of the brachiopod is opened or shut by muscles attached to the inside of each valve. Brachiopods are found in the oldest rocks containing definite and abundant fossils. Brachiopods are still living today.

13

Bryozoans. Bryozoans or “moss animals” are very small marine animals which live in colonies. The bryozoans construct their mutual home or colony of lime which is commonly preserved for the fossil record. Large colonies of the fossil Prasopora (prah-sop-OR-ah) are commonly seen on the weathered surfaces of many of the rock layers in the Park (see Plate 1; 7A, B, C; 8 and Figure 5). Individuals of one genus common here, can be recognized by their chocolate drop shapes. Bryozoans first appear in lower Paleozoic rocks and are still living today in clear well-circulated shallow to deep marine water. Considering all of the fossils found in the Park rocks, the past environment is thought to have been a relatively shallow and warm sea.

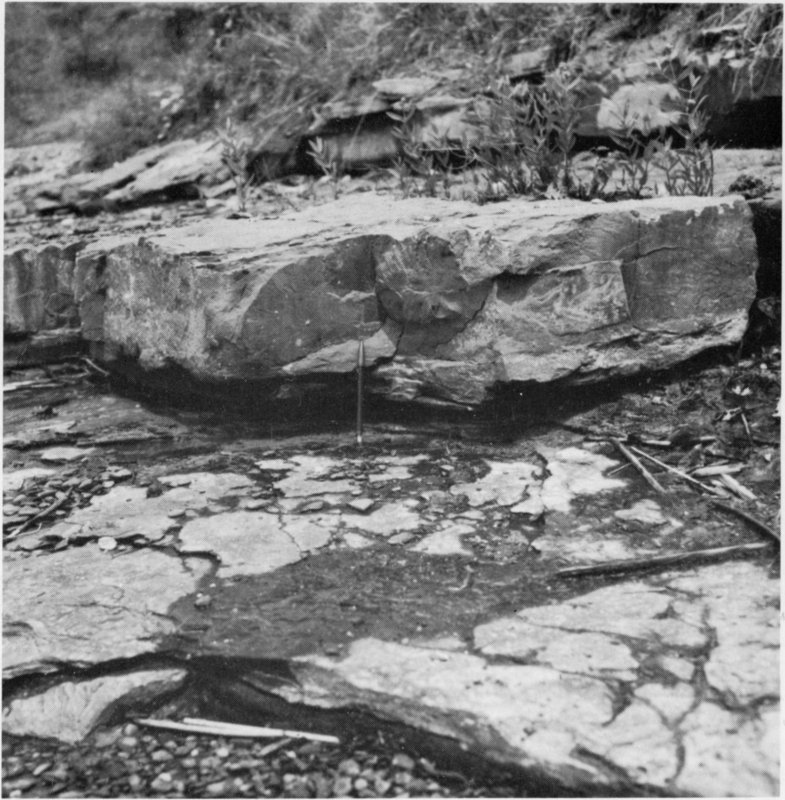

Fig. 6. This photograph shows the typical thickness of the Glens Falls Limestone beds in the Park area. Note the massive nature of the limestone bed. The 5-inch pen in the center of the picture is for scale.

14

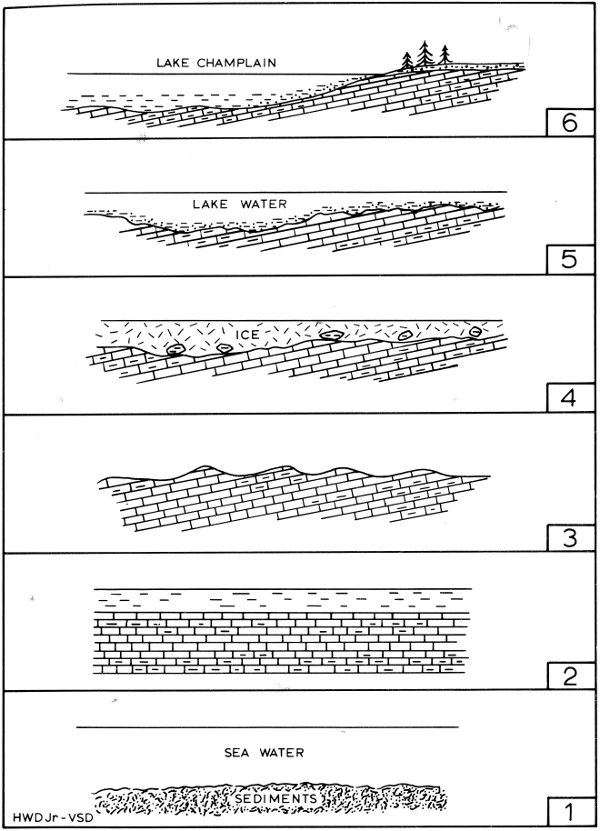

Fig. 7. Sections illustrating the geologic history of D.A.R. State Park.

THE ROCKS AND THEIR HISTORY

Approximately 75 vertical feet of the Glens Falls Limestone occur along the Park beach. The rocks are black[8] or blue-black on a fresh surface, gray or grayish-white on a surface which has been exposed to the weather. Most of the individual beds or layers are 5 to 7 inches thick (see Fig. 6) with the thickest being just under 5 feet. The beds are separated by thin “partings” of rock, many of which contain abundant fossils. The beds consist of massive limestone, shaly limestone or limy shale; the partings are generally limy shale or shaly limestone.

15

Explanation for Figure 7

1. Glens Falls and younger sediments were deposited on the Ordovician sea floor.

2. Sediments hardened into Glens Falls Limestone and younger rocks.

3. Rocks were tilted during the late Ordovician Taconic Disturbance and the younger rocks and part of the Glens Falls Limestone were removed by erosion. Erosion continued for some 350 million years.

4. During the Pleistocene Epoch, which started some 1 million years ago, glacial ice overrode the beveled layers of the Glens Falls Limestone. Hard rocks frozen to the underside of the glacial ice produced scratches or striations in the exposed layers of the Glens Falls Limestone.

5. Glacial lakes Vermont form as the glaciers retreat northward. In between the glacial lakes Vermont and present Lake Champlain, marine waters flooded the valley and formed an arm of the Atlantic Ocean. Clay, silt, sand and gravel were deposited on glaciated Glens Falls Limestone (Fig. 1a).

6. Present-day Lake Champlain formed when relatively greater uplift in the north dammed the Champlain valley.

The rock types found in the Park lead to certain conclusions regarding the environment which existed during their formation. Most of the rocks are composed of lime (limestone) or a mixture of lime, fine sand and mud (limy shale or shaly limestone). The mineral pyrite (FeS₂) is present in many of the rocks. Most of the rocks contain abundant amounts of organic matter. The sediments which make up these rocks were carried to the Ordovician sea by streams flowing primarily from the east. As these streams entered the quiet sea waters the larger followed by the smaller particles began to settle to the bottom. Lime was slowly precipitated from the warm sea water and pyrite formed under stagnant bottom conditions. Organic material accumulated on the bottom and intermixed with the sediments. The poor life-sustaining qualities of much of the bottom waters prevented rapid or complete bacterial action on the accumulated debris and the sediments remained “organic black” in color. Slowly, as the weight of overlying sediments increased, the lower layers were compacted and cemented into the hard limestone and shale which we see today.

16

The tilt or dip of the Park rocks resulted from subsequent earth movements. When were these rocks tilted? From the evidence presented in the Park all that can be said is that they were tilted sometime after hardening and before the Pleistocene glaciers overrode the region during quite recent times (at least 10,000 years ago). Thus, there are some 350 million years of rock record missing in the Park. Can we tell what happened during these “missing” years through a study of only the Park rocks? The answer to this question is partially “yes,” but we must look to the work done in adjacent areas for a more complete story.

The mere fact that there are no rocks representing these millions of years tells us that the sea had withdrawn from the area and that the previously deposited rocks were undergoing erosion during most or all of the missing rock gap (the time not represented by rocks). Information from adjacent areas, however, tells us that the Park rocks were tilted during the Taconic Disturbance which occurred during the final stages of the Ordovician Period. East of the Park, Taconic earth movements are more dramatically exhibited. The rocks are tilted even more than in the Park and are broken by faults or cracks in the earth’s crust. Some of these faults, known as thrust faults, positioned giant slabs of rock far from their original locations and placed older on top of younger rocks.

Following these earth movements there occurred a long period of erosion. Many of the rock layers were stripped off and carried piece by piece by rivers to other regions. Hundreds of millions of years passed and then, less than one million years ago the great glacial ice sheets slowly advanced southward over the Park area. Pieces of hard rock frozen to the underside of the ice sheets scratched and scraped the rock surfaces leaving these scratches or striations for us to see today (near the northern end of the Park beach these striations are common on the outcropping rock). The retreating glaciers created a series of lakes in which clay, silt, sand and gravel were deposited. Today these sediments are found resting on the beveled edges of the Park rocks.

Present-day Lake Champlain owes its existence to a general uplift of the earth’s surface, greater in the north than in the south, perhaps due to the removal of the heavy glacial ice sheet from the area. The greater uplift in the north dammed the Champlain valley which slowly filled with water. For a diagrammatic picture of the geologic history of D.A.R. State Park, see Figure 7.

17

SUGGESTED READING

Beerbower, J. R., 1960, Search for the Past, Prentice-Hall, Englewood Cliffs, N.J.

Collinson, C. C., 1959, Guide for beginning fossil hunters, Educational Series 4, Illinois State Geological Survey, Urbana, Ill.

Dunbar, C. O., 1959, Historical geology, John Wiley and Sons, New York.

Fenton, C. L., 1937, Life long ago, The John Day Co., New York.

Goldring, Winifred, 1931, Handbook of paleontology for beginners and amateurs, part 2, Handbook 9, New York State Museum, Albany, New York.

—— ——, 1950, Handbook of paleontology for beginners and amateurs, part 1, Handbook 9, 2nd Edition, New York State Museum, Albany, New York.

Moore, R. C., 1958, Introduction to historical geology, 2nd Edition, McGraw-Hill Book Co., New York.

Shimer, H. W., 1933, Introduction to study of fossils, The Macmillan Co., New York.

Simpson, G. G., 1953, Life of the past, Yale University Press, New Haven, Conn.

Stokes, W. L., 1960, Essentials of earth history, Prentice-Hall, Inc., Englewood Cliffs, N.J.

Welby, C. W., 1961, Bedrock geology of the Central Champlain Valley of Vermont, Vermont Geological Survey Bull. 14.

—— ——, 1962, Paleontology of the Champlain Basin in Vermont, Vermont Geological Survey Special Publication 1.

18

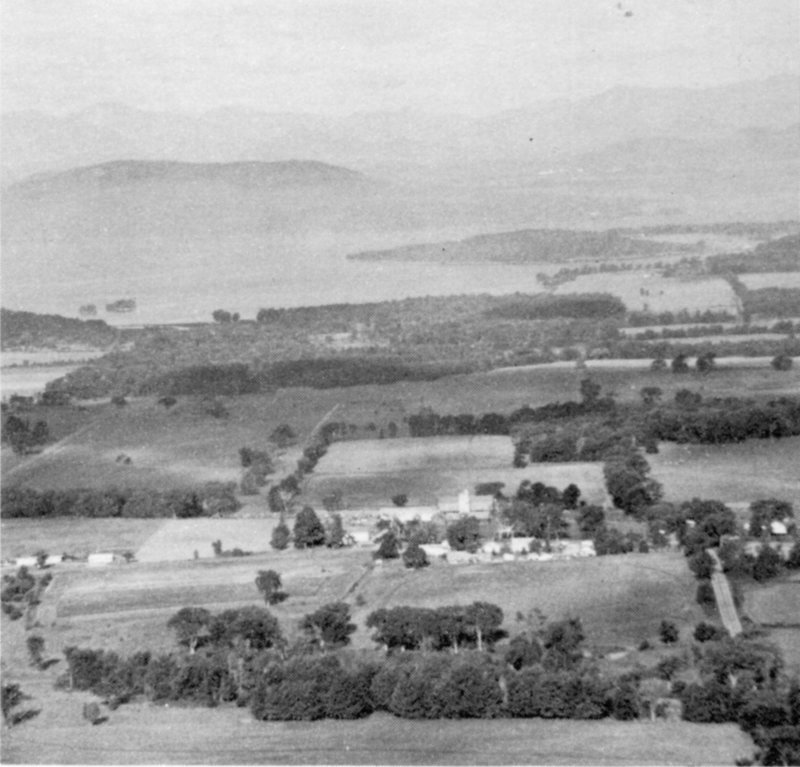

Fig. 7a. View south from Mt. Philo Overlook. Shellhouse and Buck mountains in the distance.

19

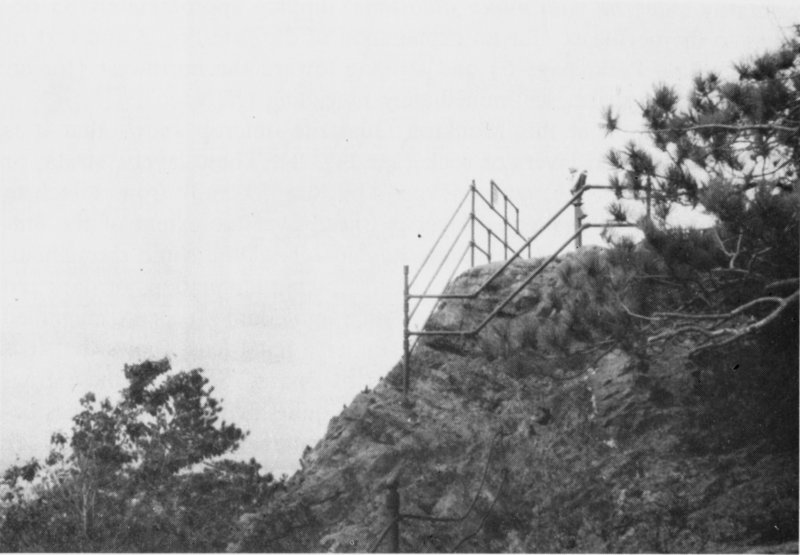

Fig. 8. View looking north at western Overlook in the summit area of Mt. Philo. Note Monkton Quartzite layers which are dipping toward the northeast.

THE GEOLOGY OF MT. PHILO STATE FOREST PARK

INTRODUCTION

Mt. Philo State Forest Park, consisting of some 160 acres, is located about 15 miles south of Burlington and 1 mile east of U.S. Route 7 (see map, Fig. 1). This park is noted for its scenic views, especially of the broad Champlain Valley and the rugged Adirondack Mountains beyond (see cover picture and Fig. 7a). From a 46-foot high observation tower a panoramic view is easily gained. Picnic facilities, including stone fireplaces, fuel wood, piped spring water and sanitary facilities are available. A large rustic lodge with porch and portico provides protection from sudden showers. Tenting on the top of Mt. Philo is not allowed.

THE GEOLOGY OF THE PARK

The Rocks

The rocks of the Park which will probably first attract your attention are those exposed at the main western Overlook which is located in the summit area. This Overlook is found just northwest of the Park lodge (see Fig. 8). These rocks are light to dark red or purplish in color, are 20 primarily quartzite with minor dolostone[9] dipping approximately 35 degrees to the northeast (for an explanation of dip, see Fig. 3 and text of D.A.R. State Park, page 6) and striking toward the northwest (for an explanation of strike, see immediately preceding reference).

A closer look at this Monkton Quartzite outcrop shows that it is made up of several layers of rock (see Fig. 8). These layers, strata, or beds are not all of the same thickness, but are generally from 1 inch to 1 foot thick. If an individual layer is traced over the extent of the outcrop, it is found that its thickness remains about the same throughout. It is therefore said to be regularly bedded. Thin laminations of dark red shale are abundant and commonly define individual layers. A magnified look at a specimen of this quartzite, under a hand lens, shows that it is composed of fine to coarse fragments of quartz. Some of these fragments have rounded edges, but others are quite angular. The spaces between the fragments are filled with silica (quartz). Therefore, the rock is said to possess a silica cement.

In many places where this Monkton Quartzite has been studied, features attesting to a shallow water origin have been found. Among these features are mud cracks, which form under alternating wet and dry conditions; ripple marks, which are usually found only on shallow water bottoms; and cross-bedding, which commonly forms in shallow water areas.

The Monkton Quartzite underlies approximately a third of the Park (see Geologic map, Fig. 9). This quartzite is between 250 and 300 feet thick on Mt. Philo; however, the lower 50 feet or so consist predominantly of white quartzite interbedded with dolostone. The age of the Monkton Quartzite is considered to be Lower Cambrian (see Standard Geologic Time Scale, Fig. 4).

21

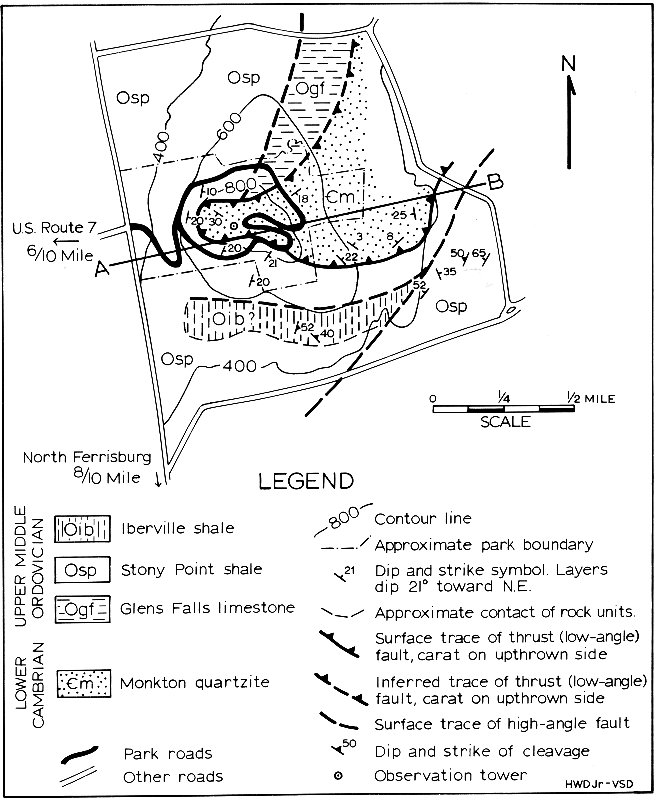

Fig. 9. Geologic Map of Mt. Philo State Forest Park (after C. W. Welby. 1961). Because Ogf and Oib were not definitely identified by the author of this pamphlet and for the sake of simplicity, these rock units have not been discussed in the text of the pamphlet. Some dip and strike symbols have been added to Welby’s original map.

LEGEND
UPPER MIDDLE ORDOVICIAN
Oib Iberville shale
Osp Stony Point shale
Ogf Glens Falls limestone
LOWER CAMBRIAN
Cm Monkton quartzite
Park roads
Other roads
Contour line
Approximate park boundary
Dip and strike symbol. Layers dip 21° toward N.E.
Approximate contact of rock units.
Surface trace of thrust (low-angle) fault, carat on upthrown side
Inferred trace of thrust (low-angle) fault, carat on upthrown side
Surface trace of high-angle fault
Dip and strike of cleavage
Observation tower

A second type of rock is exposed in the south bank of the exit road approximately 0.7 miles from the summit area. This is the black[10] to bluish-black Stony Point Shale (see Fig. 10), which underlies the Monkton quartzite. This shale, or hardened limy mud, is thinbedded and shows abundant cleavage[11] parallel to the layers or beds. At this outcrop the 22 layers strike to the northeast and dip 20 to 40 degrees toward the southeast. The dip and strike of the Monkton Quartzite (see above) is not similar to the dip and strike of the underlying Stony Point Shale. It follows, that the layers of the Monkton Quartzite are not parallel to those of the Stony Point Shale.

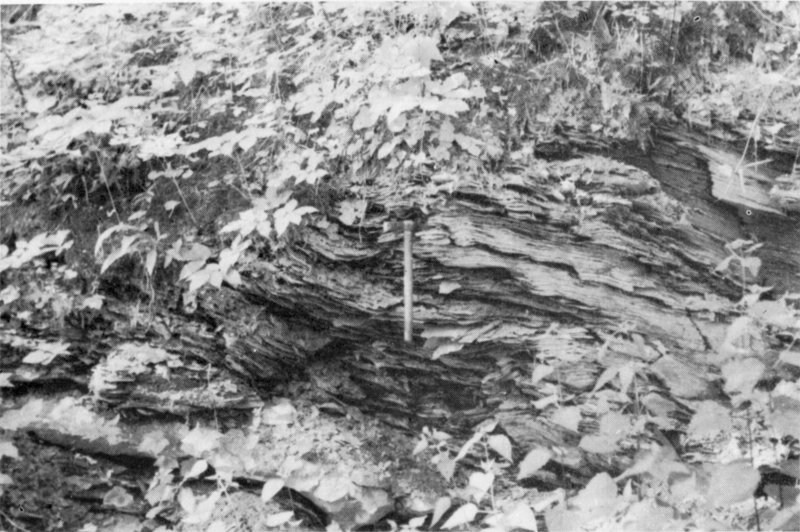

Fig. 10. View looking south of cut-bank, south side of exit road, about 0.7 miles down from the summit parking area. Here the layers dip 20 to 40 degrees toward the southeast and strike in a northeast direction. Note that the shale is thin-bedded and contains numerous cleavage planes parallel to the layering. The handle of the geologic pick is about 1 foot long.

The fact that these two units are not parallel could mean that the Stony Point Shale was deposited, hardened into rock, uplifted, folded and eroded, all prior to the deposition of the Monkton Quartzite. But, first, what is the age of the underlying Stony Point Shale? If the story is as listed above, the Stony Point Shale must be older[12] than the overlying Monkton Quartzite. From the fossil animal remains found in the Stony Point Shale, geologists have dated the Stony Point Shale as upper middle Ordovician (see Standard Geologic Time Scale, Fig. 4). And so, here we have older rocks (Lower Cambrian) resting on younger (upper middle Ordovician).

23

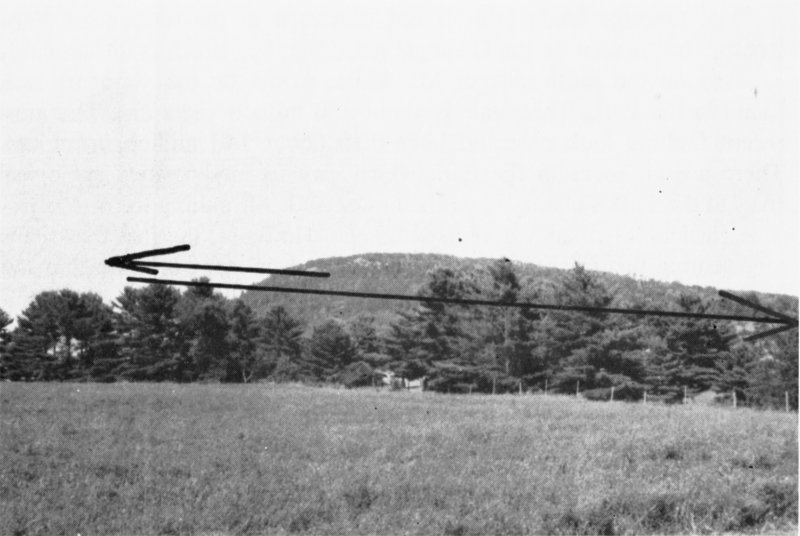

Fig. 11. View of Mt. Philo, looking toward the northeast. The black line approximates the position of the thrust fault. The Monkton Quartzite, which is above the line, was thrust westward over the Stony Point Shale (note the arrow). Line A-B, Fig. 9, approximates the section.

Structural Geology

How can we explain this inverted order of rock units? The geologic evidence presented in the Park does not indicate that folding of the rocks was responsible. From the surface distribution of the two rock types (see Geologic map, Fig. 9) and the nature of their contact with each other, a fault relation is envisioned, in which older rocks were thrust westward over the younger and thus to rest upon them (see Fig. 11).

We know the ages of both rock units involved in this thrust fault but what is the geologic age of the actual thrust movement? Both the Stony Point Shale and the Monkton Quartzite were hard rock when this thrusting took place, therefore, the thrusting would have occurred later than upper middle Ordovician time, but before late Silurian time. Two other fault systems are recognized in or near the Park (see Geologic map, Fig. 9). They are high angle[13] faults which formed later than the thrust fault, but still preceding late Silurian time.

24

The Iberville Shale (this is not described in the section on “The Rocks,” but is seen on the Geologic map, Fig. 9), which is questionably exposed on the south side of Mt. Philo, would be the youngest rock found in the Park. This shale is about 390 million years old. The most recent faulting took place no later than about 340 million years ago. There are no rocks in the Park which give us any positive geological clues to the Park’s history from the last episode of faulting to the Pleistocene glaciers less than 1 million years ago. However, the fact that rocks representing this interval of time are not present does indicate that the area was above water during most of these 339 million years (this number of years is very approximate). If any rocks were deposited during this “rock-gap” period, they have since been washed away.

The Pleistocene Deposits

Beginning between 60,000 and 70,000 years ago two glacial advances and retreats took place in the Champlain Valley. This was during the most recent or the Wisconsin Stage of the Pleistocene Epoch. Scratches or striations were cut into the overridden rock by rock debris carried along at the base of the ice as it advanced (note the arrow in (“br”) area at overlook in Fig. 12; this shows striation orientation, therefore, the direction in which the glacier advanced). The glacial sediments found on Mt. Philo were deposited during the final retreat of glacial ice, which took place from 11,000 to 12,000 years ago. Most of the Park is covered with these glacial deposits and by more recent soils.

Most of the glacial deposits found on Mt. Philo are classified as glacial till[14] (see Map of Glacial Deposits, Fig. 12), but other glacial deposits are also mapped. A kame[15] (designated “K” in Fig. 12) is a glacial feature found in the southern part of the Park.

25

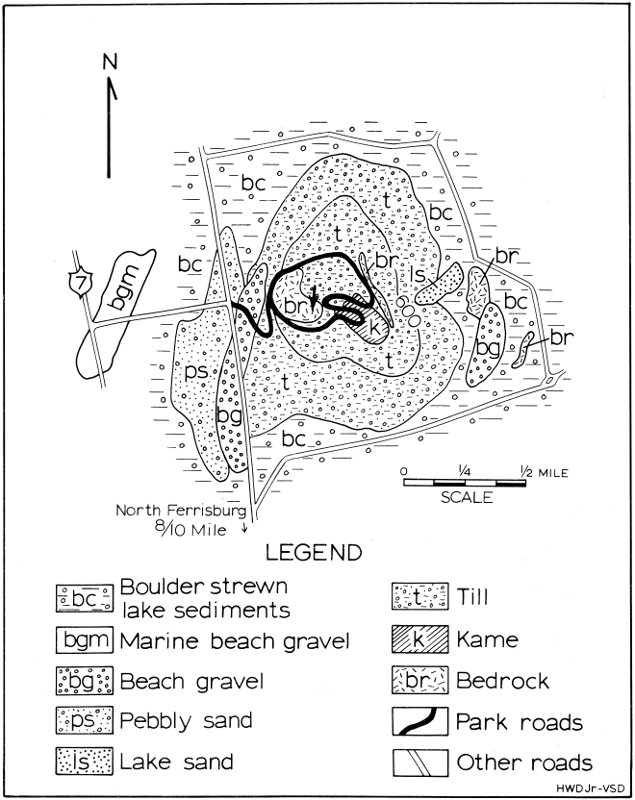

Fig. 12. Map of the Pleistocene deposits of Mt. Philo State Forest Park (after D. P. Stewart, 1961).

LEGEND
bc Boulder strewn lake sediments
bgm Marine beach gravel
bg Beach gravel
ps Pebbly sand
ls Lake sand
t Till
k Kame
br Bedrock
Park roads
Other roads

With the slow retreat of the glacial ice front from the Mt. Philo region, deposits were left which indicate that a series of lakes formed in front of the wasting ice mass. There is also evidence just west of Mt. Philo (see “bgm” in Fig. 12) which indicates that just prior to the formation of present-day Lake Champlain, an arm of the Atlantic Ocean reached into the Champlain Valley from the St. Lawrence River region. Lake-beach gravels (designated “bg” in Fig. 12) are found on both the east and west slopes of Mt. Philo. The interesting fact about these beach gravels is that they occur almost 500 feet above the present-day level of Lake Champlain. Lake sand (designated “ls” in Fig. 12) is found some 450 feet above Lake Champlain. This means that during a 26 good portion of its recent geologic history, Mt. Philo was an island surrounded by lake water. From the distribution of marine beach gravel (designated “bgm” in Fig. 12), it appears that the invasion of sea water from the St. Lawrence region did not isolate Mt. Philo as an island.

The complete story of the lake series is still not known, but, for the most up-to-date treatment of this subject see D. P. Stewart’s paper entitled “The glacial geology of Vermont”: Vermont Geological Survey Bulletin 19 (1961). Suggested also is C. H. Chapman’s article entitled “Late glacial and postglacial history of the Champlain valley” in the American Journal of Science, 5th series, volume 34, pages 89-124 (1937). Looking out over the Champlain lowlands from the summit of Mt. Philo leaves little doubt in the visitor’s mind as to the prior existence of lakes which surrounded Mt. Philo in the not too distant past (see Cover picture).

Summary of the Geologic History

During lower Cambrian time, the Monkton Quartzite and dolostone followed by the Winooski Dolostone (not seen in the Park) were deposited east of Mt. Philo State Forest Park. During late Cambrian and early Ordovician, thick dolostones were deposited from the sea water which covered the Mt. Philo area (not seen at the surface in the Park).

During middle Ordovician time, a series of shale, calcareous shale and limestone was deposited from the sea water. Then, sometime between the beginning of late Ordovician and late Silurian time, the eastern lower Cambrian sequence was thrust westward over the middle Ordovician rocks. This low-angle thrusting was succeeded by high angle faulting.

The Park rocks were subjected to weathering and erosion for over 300 million years or until glaciers advanced over the area less than 60,000 to 70,000 years ago. Advancing glaciers scoured the rock; retreating or wasting glacial ice left deposits of clay, sand and gravel in the Park. A series of lakes formed south of the northward wasting glacial ice and deposits of beach-gravel and lake-sand formed along the slopes of Mt. Philo, which was then an island. An arm of the sea next advanced southward into the Champlain Valley leaving marine beach-gravels just west of Mt. Philo. The marine waters retreated and present-day Lake Champlain came into existence. The formation of the present soil cover and the deposition of recent alluvium from presently flowing rivers and streams concludes this brief summary of the Park’s geologic history.

27

SUGGESTED READING
(in addition to the general references listed for D.A.R. State Park)

Cady, W. M., 1945, Stratigraphy and structure of west-central Vermont, Geological Society of America Bulletin, volume 56, pages 515-588.

Chapman, C. H., 1937, The glacial and postglacial history of the Champlain valley, American Journal of Science, 5th series, volume 34, pages 89-124.

Stewart, David P., 1961, The glacial geology of Vermont, Vermont Geological Survey Bull. 19.

Stewart, David P. and Paul MacClintock, 1969, The Surficial Geology and Pleistocene History of Vermont, Vermont Geological Survey Bull. 31 (in press).

Welby, C. W., 1961, Bedrock geology of the Central Champlain Valley of Vermont, Vermont Geological Survey Bull. 14.

28

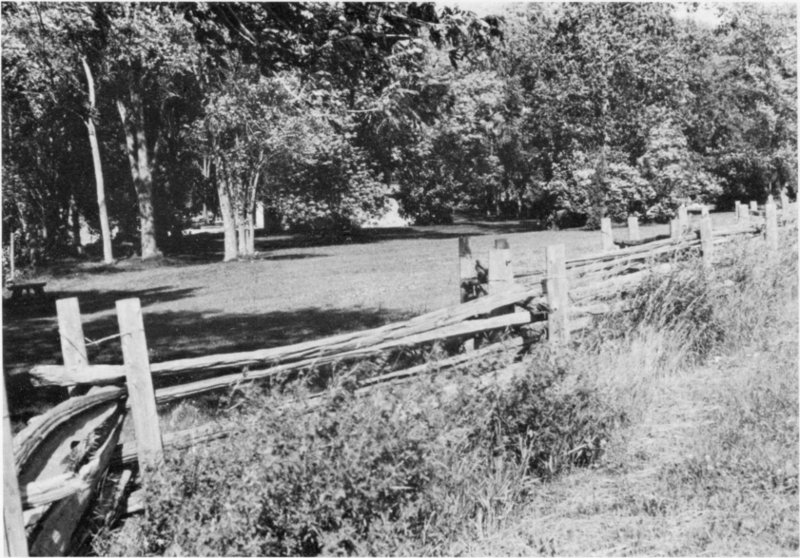

Fig. 12a. Over a typical Grand Isle split-rail fence at Sand Bar State Park.

29

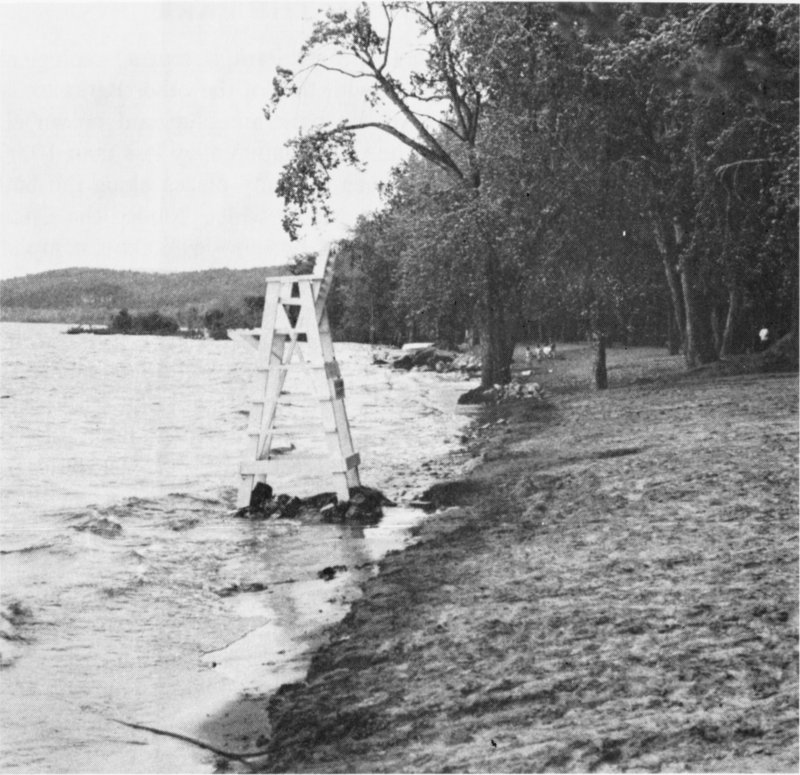

Fig. 13. A portion of the beach at Sand Bar State Park looking east. The escarpment in the left distance marks the trace of the Champlain thrust fault.

THE GEOLOGY OF SAND BAR STATE PARK

INTRODUCTION

Sand Bar State Park is located in northwestern Vermont on U.S. Route 2, approximately 14 miles north of Burlington and near the east approach to Sand Bar Bridge which leads to South Hero Island in Lake Champlain (see map, Fig. 1). Tenting, picnicking and swimming are the Parks main attractions (Fig. 12a). The swimming beach is on the north side of U.S. Route 2 and fronts on Lake Champlain. Its shallowness makes the beach safe for children (Fig. 13). The tenting facilities are located on the south side of U.S. Route 2 on a south-facing shoreline.

30

THE GEOLOGY OF THE PARK

The geologic history of Sand Bar State Park is recent, geologically speaking, especially when compared with that of the other Parks treated in this pamphlet. The sediments of the park are blue and brown clay which were deposited throughout the Champlain Valley less than 10,000 years ago. This clay, which can be seen in many places along the bathing beach, was deposited from marine waters which flooded the Champlain Valley just prior to the formation of present-day Lake Champlain. No bedrock crops out in Sand Bar State Park.

The blue clay is covered with deposits brought downstream by the Lamoille River during very recent times and deposited as a delta[16] into Lake Champlain. This delta has shifted its distributary channels frequently and continues to grow southwestwardly into Lake Champlain. Much of the finer material (sand) brought into Lake Champlain by the Lamoille River has been shifted and concentrated by lake currents into ridges or bars; one sand bar stretches to South Hero Island and forms the foundation for the causeway named Sand Bar Bridge. Prior to the building of Sand Bar Bridge (causeway was started in 1849, opened to travel on December 5, 1850), this sand bar was fordable and was used as a link between South Hero Island and the mainland.

Most of the sand now found north of the Park bathing beach and which is responsible for the extensive “shallows” in the swimming area, was supplied by the now abandoned northern channel of the Lamoille River. It is interesting to note that most of the sand now seen on the bathing beach has been imported from nearby areas of Vermont. Since the northern distributary channel of the Lamoille River is no longer supplying sand, and sand from the active southern channel cannot work its way northward because of the Sand Bar Bridge causeway, there is a lack of sand for the beach.

The extensive swamp areas near the east end of Sand Bar Bridge are a wildlife sanctuary. The north-trending prominent escarpment east of the Park marks the trace of the Champlain thrust fault (Fig. 13). In a quarry at the east end of Sand Bar Bridge may be seen the fault contact between the younger, Middle Ordovician, Stony Point Formation, and the older, Lower Cambrian, Dunham Dolomite.

31

SUGGESTED READING

Erwin, R. B., 1957, The Geology of the Limestone of Isle La Motte and South Hero Island, Vermont, Vermont Geological Survey, Bull. 9.

Stone, S. W. and Dennis, J. G., 1964, The Geology of the Milton Quadrangle, Vermont, Vermont Geological Survey Bull. 26.

32

Additional reports on the geology of Vermont state parks distributed by the Vermont State Library, Montpelier, Vermont 05602.

The Geology of Groton State Forest, by Robert A. Christman, 1956
The Geology of Mt. Mansfield State Forest, by Robert A. Christman, 1956
The Geology of the Calvin Coolidge State Forest Park, by Harry W. Dodge, Jr., 1959
Geology of Button Bay State Park, by Harry W. Dodge, Jr., 1962
The Geology of Darling State Park, by Harry W. Dodge, Jr., 1967

FOOTNOTES

[1]A “strike” measurement is expressed as so many degrees east or west of north or south. For a diagram illustrating the dip and strike of a rock layer see Figure 3.
[2]This is one of the three major rock groups or families. The first consists of igneous rocks, including granite, syenite, and basalt, which were formed by solidification of molten rock-material. The igneous rocks are ancestors of the other two rock families; they form over 90 percent of the outer 10 miles of the Earth’s crust. The second family, consisting of sedimentary or layered rocks including shale, sandstone and limestone, is composed of pieces and grains and other materials from all the families of rocks. In addition, sedimentary rocks are formed also from lime secreted by marine plants and animals or chemically precipitated from sea water, or by the accumulations of shells. The third family, metamorphic rocks, including gneiss, schist, slate and marble, were igneous or sedimentary rocks that have been subjected to heat and pressure in the presence of mineral-forming solutions. Metamorphic rocks generally look different from the rocks from which they formed, because the original minerals of the rock have been changed and reoriented.
[3]The actual remains are usually not preserved in their original state but are represented by molds and casts. Picture an ancient sea. The sea bottom mud slowly hardens around a shell. Water then seeps through the hardened mud and dissolves the shell leaving an open space where the shell once was. This open space is a mold. If the mold is filled a copy of the original shell is formed. This is called a cast.
[4]The relative rather than the absolute age of the rocks can be determined from a study of their fossil content. These fossils are compared with collections from various places in the world where the standard geologic time scale assigns them a place (see Fig. 4). The Park rocks were deposited during the Ordovician Period. How is a standard geologic time scale put together? Several geologists first worked out the sequences of rocks according to the Law of Superposition in Great Britain and neighboring parts of Europe. When systematic collections of fossils were made from these layers and arranged according to age it was found that certain fossils occurring in rocks in distant areas were identical and occupied the same relative age position. These fossils were considered to be of the same relative age. Fossils found in the Park can be compared with these reference fossils and a relative geologic age can be assigned to them. Absolute ages can be determined in some cases by the use of rates of decay of radioactive elements and in general these ages agree with the relative ages derived through the use of fossils.
[5]The capitalized syllable is the accented syllable.
[6]An index fossil is used to date the rocks in which it occurs. A good index fossil must be abundant, widespread and easily recognized. Its vertical range is restricted to a small number of rock layers, therefore the geological span of life of a good index fossil is usually short.
[7]Chitin is a colorless horny substance similar to the material which makes up fingernails.
[8]The black color is due to an abundance of finely divided organic (plant and animal) material within the rock.
[9]A quartzite is either a metamorphic or sedimentary rock consisting of fragments of the mineral quartz (SiO₂) which are cemented together by silica (quartz). The combination of quartz fragments held together by quartz cement creates a very hard rock which oftentimes will break across the fragments rather than around them. The quartzites of the Park area are primarily of a sedimentary origin. For a description of the three major rock groups, of which the sedimentary and metamorphic groups are two, see footnote, D.A.R. State Park, page 6. A dolostone is a sedimentary rock composed of fragmental, concretionary, or precipitated dolomite (a mineral of chemical composition, CaMg(CO₃)₂) of organic or inorganic origin.
[10]The black color is due to the inclusion of finely disseminated carbonaceous material (animal and plant remains) within the rock.
[11]This splitting or cleavage was produced after the layers had hardened into rock. The cleavage planes were produced when the rocks were subjected to pressures too great to withstand. In some places these cleavage planes do not parallel the layers.
[12]According to the basic geologic law, the Law of Superposition, younger rocks (those deposited last) are always found resting on older rocks (those deposited before the younger). The only time that this is not true is when either breaks (faults) or folds in the earth’s crust place the layers in an inverted order, as in the case here cited.
[13]The fault plane of a high-angle fault forms a large angle (generally from 30 to 90 degrees) at its intersection with an imaginary horizontal plane. The plane of a thrust fault, or low-angle fault, forms a small angle (generally less than 30 degrees) at its intersection with an imaginary horizontal plane.
[14]This is the Burlington till (Stewart, 1961) and was deposited from the Burlington Ice Lobe during its period of wasting. The till is a hodge-podge mixture of clay, sand and pebbles and is usually brown in color.
[15]A kame is a mound or ridge of poorly sorted (sometimes well-sorted, that is, made up of all the same sized particles) water deposited materials. Most kames are ice-contact features; that is to say, the materials which make up the kame were deposited in contact with a glacial ice surface. The Mt. Philo kame may be the filling of an ice-free area during the final melting of the glacial ice.
[16]Delta is the name of the fourth letter of the Greek alphabet, the capital form of which is an equilateral triangle. The triangular-shaped tract of land formed by the deposit of river sediment at river mouths is named for the triangular shape of the capital Greek letter delta.

Transcriber’s Notes






End of the Project Gutenberg EBook of The Geology of D.A.R. State Park, Mt.
Philo State Forest Park, Sand Bar Sta, by Harry W. Dodge, Jr.

*** END OF THIS PROJECT GUTENBERG EBOOK GEOLOGY OF D.A.R. STATE PARK ***

***** This file should be named 60989-h.htm or 60989-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/6/0/9/8/60989/

Produced by Stephen Hutcheson, Lisa Corcoran and the Online
Distributed Proofreading Team at http://www.pgdp.net

Updated editions will replace the previous one--the old editions will
be renamed.

Creating the works from print editions not protected by U.S. copyright
law means that no one owns a United States copyright in these works,
so the Foundation (and you!) can copy and distribute it in the United
States without permission and without paying copyright
royalties. Special rules, set forth in the General Terms of Use part
of this license, apply to copying and distributing Project
Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm
concept and trademark. Project Gutenberg is a registered trademark,
and may not be used if you charge for the eBooks, unless you receive
specific permission. If you do not charge anything for copies of this
eBook, complying with the rules is very easy. You may use this eBook
for nearly any purpose such as creation of derivative works, reports,
performances and research. They may be modified and printed and given
away--you may do practically ANYTHING in the United States with eBooks
not protected by U.S. copyright law. Redistribution is subject to the
trademark license, especially commercial redistribution.

START: FULL LICENSE

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full
Project Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.

Section 1. General Terms of Use and Redistributing Project
Gutenberg-tm electronic works

1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or
destroy all copies of Project Gutenberg-tm electronic works in your
possession. If you paid a fee for obtaining a copy of or access to a
Project Gutenberg-tm electronic work and you do not agree to be bound
by the terms of this agreement, you may obtain a refund from the
person or entity to whom you paid the fee as set forth in paragraph
1.E.8.

1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this
agreement and help preserve free future access to Project Gutenberg-tm
electronic works. See paragraph 1.E below.

1.C. The Project Gutenberg Literary Archive Foundation ("the
Foundation" or PGLAF), owns a compilation copyright in the collection
of Project Gutenberg-tm electronic works. Nearly all the individual
works in the collection are in the public domain in the United
States. If an individual work is unprotected by copyright law in the
United States and you are located in the United States, we do not
claim a right to prevent you from copying, distributing, performing,
displaying or creating derivative works based on the work as long as
all references to Project Gutenberg are removed. Of course, we hope
that you will support the Project Gutenberg-tm mission of promoting
free access to electronic works by freely sharing Project Gutenberg-tm
works in compliance with the terms of this agreement for keeping the
Project Gutenberg-tm name associated with the work. You can easily
comply with the terms of this agreement by keeping this work in the
same format with its attached full Project Gutenberg-tm License when
you share it without charge with others.

1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are
in a constant state of change. If you are outside the United States,
check the laws of your country in addition to the terms of this
agreement before downloading, copying, displaying, performing,
distributing or creating derivative works based on this work or any
other Project Gutenberg-tm work. The Foundation makes no
representations concerning the copyright status of any work in any
country outside the United States.

1.E. Unless you have removed all references to Project Gutenberg:

1.E.1. The following sentence, with active links to, or other
immediate access to, the full Project Gutenberg-tm License must appear
prominently whenever any copy of a Project Gutenberg-tm work (any work
on which the phrase "Project Gutenberg" appears, or with which the
phrase "Project Gutenberg" is associated) is accessed, displayed,
performed, viewed, copied or distributed:

  This eBook is for the use of anyone anywhere in the United States and
  most other parts of the world at no cost and with almost no
  restrictions whatsoever. You may copy it, give it away or re-use it
  under the terms of the Project Gutenberg License included with this
  eBook or online at www.gutenberg.org. If you are not located in the
  United States, you'll have to check the laws of the country where you
  are located before using this ebook.

1.E.2. If an individual Project Gutenberg-tm electronic work is
derived from texts not protected by U.S. copyright law (does not
contain a notice indicating that it is posted with permission of the
copyright holder), the work can be copied and distributed to anyone in
the United States without paying any fees or charges. If you are
redistributing or providing access to a work with the phrase "Project
Gutenberg" associated with or appearing on the work, you must comply
either with the requirements of paragraphs 1.E.1 through 1.E.7 or
obtain permission for the use of the work and the Project Gutenberg-tm
trademark as set forth in paragraphs 1.E.8 or 1.E.9.

1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any
additional terms imposed by the copyright holder. Additional terms
will be linked to the Project Gutenberg-tm License for all works
posted with the permission of the copyright holder found at the
beginning of this work.

1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including
any word processing or hypertext form. However, if you provide access
to or distribute copies of a Project Gutenberg-tm work in a format
other than "Plain Vanilla ASCII" or other format used in the official
version posted on the official Project Gutenberg-tm web site
(www.gutenberg.org), you must, at no additional cost, fee or expense
to the user, provide a copy, a means of exporting a copy, or a means
of obtaining a copy upon request, of the work in its original "Plain
Vanilla ASCII" or other form. Any alternate format must include the
full Project Gutenberg-tm License as specified in paragraph 1.E.1.

1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works
provided that

* You pay a royalty fee of 20% of the gross profits you derive from
  the use of Project Gutenberg-tm works calculated using the method
  you already use to calculate your applicable taxes. The fee is owed
  to the owner of the Project Gutenberg-tm trademark, but he has
  agreed to donate royalties under this paragraph to the Project
  Gutenberg Literary Archive Foundation. Royalty payments must be paid
  within 60 days following each date on which you prepare (or are
  legally required to prepare) your periodic tax returns. Royalty
  payments should be clearly marked as such and sent to the Project
  Gutenberg Literary Archive Foundation at the address specified in
  Section 4, "Information about donations to the Project Gutenberg
  Literary Archive Foundation."

* You provide a full refund of any money paid by a user who notifies
  you in writing (or by e-mail) within 30 days of receipt that s/he
  does not agree to the terms of the full Project Gutenberg-tm
  License. You must require such a user to return or destroy all
  copies of the works possessed in a physical medium and discontinue
  all use of and all access to other copies of Project Gutenberg-tm
  works.

* You provide, in accordance with paragraph 1.F.3, a full refund of
  any money paid for a work or a replacement copy, if a defect in the
  electronic work is discovered and reported to you within 90 days of
  receipt of the work.

* You comply with all other terms of this agreement for free
  distribution of Project Gutenberg-tm works.

1.E.9. If you wish to charge a fee or distribute a Project
Gutenberg-tm electronic work or group of works on different terms than
are set forth in this agreement, you must obtain permission in writing
from both the Project Gutenberg Literary Archive Foundation and The
Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm
trademark. Contact the Foundation as set forth in Section 3 below.

1.F.

1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
works not protected by U.S. copyright law in creating the Project
Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm
electronic works, and the medium on which they may be stored, may
contain "Defects," such as, but not limited to, incomplete, inaccurate
or corrupt data, transcription errors, a copyright or other
intellectual property infringement, a defective or damaged disk or
other medium, a computer virus, or computer codes that damage or
cannot be read by your equipment.

1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium
with your written explanation. The person or entity that provided you
with the defective work may elect to provide a replacement copy in
lieu of a refund. If you received the work electronically, the person
or entity providing it to you may choose to give you a second
opportunity to receive the work electronically in lieu of a refund. If
the second copy is also defective, you may demand a refund in writing
without further opportunities to fix the problem.

1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO
OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.

1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of
damages. If any disclaimer or limitation set forth in this agreement
violates the law of the state applicable to this agreement, the
agreement shall be interpreted to make the maximum disclaimer or
limitation permitted by the applicable state law. The invalidity or
unenforceability of any provision of this agreement shall not void the
remaining provisions.

1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in
accordance with this agreement, and any volunteers associated with the
production, promotion and distribution of Project Gutenberg-tm
electronic works, harmless from all liability, costs and expenses,
including legal fees, that arise directly or indirectly from any of
the following which you do or cause to occur: (a) distribution of this
or any Project Gutenberg-tm work, (b) alteration, modification, or
additions or deletions to any Project Gutenberg-tm work, and (c) any
Defect you cause.

Section 2. Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of
computers including obsolete, old, middle-aged and new computers. It
exists because of the efforts of hundreds of volunteers and donations
from people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future
generations. To learn more about the Project Gutenberg Literary
Archive Foundation and how your efforts and donations can help, see
Sections 3 and 4 and the Foundation information page at
www.gutenberg.org



Section 3. Information about the Project Gutenberg Literary Archive Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg Literary
Archive Foundation are tax deductible to the full extent permitted by
U.S. federal laws and your state's laws.

The Foundation's principal office is in Fairbanks, Alaska, with the
mailing address: PO Box 750175, Fairbanks, AK 99775, but its
volunteers and employees are scattered throughout numerous
locations. Its business office is located at 809 North 1500 West, Salt
Lake City, UT 84116, (801) 596-1887. Email contact links and up to
date contact information can be found at the Foundation's web site and
official page at www.gutenberg.org/contact

For additional contact information:

    Dr. Gregory B. Newby
    Chief Executive and Director
    [email protected]

Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To SEND
DONATIONS or determine the status of compliance for any particular
state visit www.gutenberg.org/donate

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations. To
donate, please visit: www.gutenberg.org/donate

Section 5. General Information About Project Gutenberg-tm electronic works.

Professor Michael S. Hart was the originator of the Project
Gutenberg-tm concept of a library of electronic works that could be
freely shared with anyone. For forty years, he produced and
distributed Project Gutenberg-tm eBooks with only a loose network of
volunteer support.

Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as not protected by copyright in
the U.S. unless a copyright notice is included. Thus, we do not
necessarily keep eBooks in compliance with any particular paper
edition.

Most people start at our Web site which has the main PG search
facility: www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
