THE
ELEMENTS OF PERSPECTIVE.

---

INTRODUCTION.

When you begin to read this book, sit down very near the window, and shut the window. I hope the view out of it is pretty; but, whatever the view may be, we shall find enough in it for an illustration of the first principles of perspective (or, literally, of “looking through”).

Every pane of your window may be considered, if you choose, as a glass picture; and what you see through it, as painted on its surface.

And if, holding your head still, you extend your hand to the glass, you may, with a brush full of any thick color, trace, roughly, the lines of the landscape on the glass.

But, to do this, you must hold your head very still. Not only you must not move it sideways, nor up and down, but it must not even move backwards or forwards; for, if you move your head forwards, you will see more of the landscape through the pane; and, if you move it backwards, you will see less: or considering the pane of glass as a picture, when you hold your head near it, the objects are painted small, and a great many of them go into a little space; but, when you hold your head some distance back, the objects are painted larger upon the pane, and fewer of them go into the field of it.

But, besides holding your head still, you must, when you try to trace the picture on the glass, shut one of your eyes. If you do not, the point of the brush appears double; and, [p2] on farther experiment, you will observe that each of your eyes sees the object in a different place on the glass, so that the tracing which is true to the sight of the right eye is a couple of inches (or more, according to your distance from the pane,) to the left of that which is true to the sight of the left.

Thus, it is only possible to draw what you see through the window rightly on the surface of the glass, by fixing one eye at a given point, and neither moving it to the right nor left, nor up nor down, nor backwards nor forwards. Every picture drawn in true perspective may be considered as an upright piece of glass,[Footnote 3] on which the objects seen through it have been thus drawn. Perspective can, therefore, only be quite right, by being calculated for one fixed position of the eye of the observer; nor will it ever appear deceptively right unless seen precisely from the point it is calculated for. Custom, however, enables us to feel the rightness of the work on using both our eyes, and to be satisfied with it, even when we stand at some distance from the point it is designed for.

Supposing that, instead of a window, an unbroken plate of crystal extended itself to the right and left of you, and high in front, and that you had a brush as long as you wanted (a mile long, suppose), and could paint with such a brush, then the clouds high up, nearly over your head, and the landscape far away to the right and left, might be traced, and painted, on this enormous crystal field.[Footnote 4] But if the field were so vast (suppose a mile high and a mile wide), certainly, after the picture was done, you would not stand as near to it, to see it, as you are now sitting near to your window. In order to trace the upper clouds through your great glass, you would have had to stretch your neck [p3] quite back, and nobody likes to bend their neck back to see the top of a picture. So you would walk a long way back to see the great picture—a quarter of a mile, perhaps,—and then all the perspective would be wrong, and would look quite distorted, and you would discover that you ought to have painted it from the greater distance, if you meant to look at it from that distance. Thus, the distance at which you intend the observer to stand from a picture, and for which you calculate the perspective, ought to regulate to a certain degree the size of the picture. If you place the point of observation near the canvas, you should not make the picture very large: vice versâ, if you place the point of observation far from the canvas, you should not make it very small; the fixing, therefore, of this point of observation determines, as a matter of convenience, within certain limits, the size of your picture. But it does not determine this size by any perspective law; and it is a mistake made by many writers on perspective, to connect some of their rules definitely with the size of the picture. For, suppose that you had what you now see through your window painted actually upon its surface, it would be quite optional to cut out any piece you chose, with the piece of the landscape that was painted on it. You might have only half a pane, with a single tree; or a whole pane, with two trees and a cottage; or two panes, with the whole farmyard and pond; or four panes, with farmyard, pond, and foreground. And any of these pieces, if the landscape upon them were, as a scene, pleasantly composed, would be agreeable pictures, though of quite different sizes; and yet they would be all calculated for the same distance of observation.

In the following treatise, therefore, I keep the size of the picture entirely undetermined. I consider the field of canvas as wholly unlimited, and on that condition determine the perspective laws. After we know how to apply those laws without limitation, we shall see what limitations of the size of the picture their results may render advisable.

But although the size of the picture is thus independent [p4] of the observer’s distance, the size of the object represented in the picture is not. On the contrary, that size is fixed by absolute mathematical law; that is to say, supposing you have to draw a tower a hundred feet high, and a quarter of a mile distant from you, the height which you ought to give that tower on your paper depends, with mathematical precision, on the distance at which you intend your paper to be placed. So, also, do all the rules for drawing the form of the tower, whatever it may be.

Hence, the first thing to be done in beginning a drawing is to fix, at your choice, this distance of observation, or the distance at which you mean to stand from your paper. After that is determined, all is determined, except only the ultimate size of your picture, which you may make greater, or less, not by altering the size of the things represented, but by taking in more, or fewer of them. So, then, before proceeding to apply any practical perspective rule, we must always have our distance of observation marked, and the most convenient way of marking it is the following:

PLACING OF THE SIGHT-POINT, SIGHT-LINE, STATION-POINT, AND STATION-LINE.

Fig. 1.

I. The Sight-Point.—

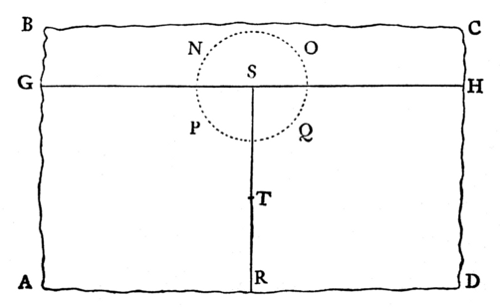

Let A B C D, Fig. 1., be your sheet [p5] of paper, the larger the better, though perhaps we may cut out of it at last only a small piece for our picture, such as the dotted circle N O P Q. This circle is not intended to limit either the size or shape of our picture: you may ultimately have it round or oval, horizontal or upright, small or large, as you choose. I only dot the line to give you an idea of whereabouts you will probably like to have it; and, as the operations of perspective are more conveniently performed upon paper underneath the picture than above it, I put this conjectural circle at the top of the paper, about the middle of it, leaving plenty of paper on both sides and at the bottom. Now, as an observer generally stands near the middle of a picture to look at it, we had better at first, and for simplicity’s sake, fix the point of observation opposite the middle of our conjectural picture. So take the point S, the center of the circle N O P Q;—or, which will be simpler for you in your own work, take the point S at random near the top of your paper, and strike the circle N O P Q round it, any size you like. Then the point S is to represent the point opposite which you wish the observer of your picture to place his eye, in looking at it. Call this point the “Sight-Point.”



II. The Sight-Line.—

Through the Sight-point, S, draw a horizontal line, G H, right across your paper from side to side, and call this line the “Sight-Line.”



This line is of great practical use, representing the level of the eye of the observer all through the picture. You will find hereafter that if there is a horizon to be represented in your picture, as of distant sea or plain, this line defines it.

III. The Station-Line.—

From S let fall a perpendicular line, S R, to the bottom of the paper, and call this line the “Station-Line.”



This represents the line on which the observer stands, at a greater or less distance from the picture; and it ought to be imagined as drawn right out from the paper at the point S. Hold your paper upright in front of you, and hold your pencil horizontally, with its point against the point S, as if you [p6] wanted to run it through the paper there, and the pencil will represent the direction in which the line S R ought to be drawn. But as all the measurements which we have to set upon this line, and operations which we have to perform with it, are just the same when it is drawn on the paper itself, below S, as they would be if it were represented by a wire in the position of the leveled pencil, and as they are much more easily performed when it is drawn on the paper, it is always in practice, so drawn.

IV. The Station-Point.—

On this line, mark the distance S T at your pleasure, for the distance at which you wish your picture to be seen, and call the point T the “Station-Point.”

Fig. 2.

In practice, it is generally advisable to make the distance S T about as great as the diameter of your intended picture; and it should, for the most part, be more rather than less; but, as I have just stated, this is quite arbitrary. However, in this figure, as an approximation to a generally advisable distance, I make the distance S T equal to the diameter of the circle N O P Q. Now, having fixed this distance, S T, all the dimensions of the objects in our picture are fixed likewise, and for this reason:—

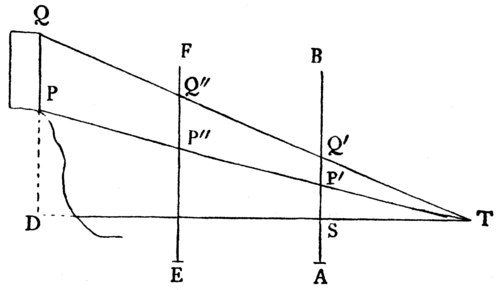

Let the upright line A B, Fig. 2., represent a pane of glass placed where our picture is to be placed; but seen at the side [p7] of it, edgeways; let S be the Sight-point; S T the Station-line, which, in this figure, observe, is in its true position, drawn out from the paper, not down upon it; and T the Station-point.

Suppose the Station-line S T to be continued, or in mathematical language “produced,” through S, far beyond the pane of glass, and let P Q be a tower or other upright object situated on or above this line.

Now the apparent height of the tower P Q is measured by the angle Q T P, between the rays of light which come from the top and bottom of it to the eye of the observer. But the actual height of the image of the tower on the pane of glass A B, between us and it, is the distance P′ Q′ between the points where the rays traverse the glass.

Evidently, the farther from the point T we place the glass, making S T longer, the larger will be the image; and the nearer we place it to T, the smaller the image, and that in a fixed ratio. Let the distance D T be the direct distance from the Station-point to the foot of the object. Then, if we place the glass A B at one-third of that whole distance, P′ Q′ will be one-third of the real height of the object; if we place the glass at two-thirds of the distance, as at E F, P″ Q″ (the height of the image at that point) will be two-thirds the height[Footnote 5] of the object, and so on. Therefore the mathematical law is that P′ Q′ will be to P Q as S T to D T. I put this ratio clearly by itself that you may remember it:

In which formula, recollect that P′ Q′ is the height of the appearance of the object on the picture; P Q the height of the object itself; S the Sight-point; T the Station-point; D a point at the direct distance of the object; though the object is [p8] seldom placed actually on the line T S produced, and may be far to the right or left of it, the formula is still the same.

For let S, Fig. 3., be the Sight-point, and A B the glass—here seen looking down on its upper edge, not sideways;—then if the tower (represented now, as on a map, by the dark square), instead of being at D on the line S T produced, be at E, to the right (or left) of the spectator, still the apparent height of the tower on A B will be as S′ T to E T, which is the same ratio as that of S T to D T.

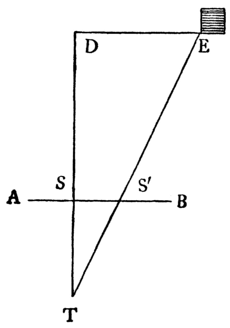

Fig. 3.

Now in many perspective problems, the position of an object is more conveniently expressed by the two measurements D T and D E, than by the single oblique measurement E T.

I shall call D T the “direct distance” of the object at E, and D E its “lateral distance.” It is rather a license to call D T its “direct” distance, for E T is the more direct of the two; but there is no other term which would not cause confusion.

Lastly, in order to complete our knowledge of the position of an object, the vertical height of some point in it, above or below the eye, must be given; that is to say, either D P or D Q in Fig. 2.[Footnote 6] : this I shall call the “vertical distance” of the point given. In all perspective problems these three distances, and the dimensions of the object, must be stated, otherwise the problem is imperfectly given. It ought not to be required of us merely to draw a room or a church in perspective; but to draw this room from this corner, and that church on that spot, in perspective. For want of knowing [p9] how to base their drawings on the measurement and place of the object, I have known practiced students represent a parish church, certainly in true perspective, but with a nave about two miles and a half long.

It is true that in drawing landscapes from nature the sizes and distances of the objects cannot be accurately known. When, however, we know how to draw them rightly, if their size were given, we have only to assume a rational approximation to their size, and the resulting drawing will be true enough for all intents and purposes. It does not in the least matter that we represent a distant cottage as eighteen feet long, when it is in reality only seventeen; but it matters much that we do not represent it as eighty feet long, as we easily might if we had not been accustomed to draw from measurement. Therefore, in all the following problems the measurement of the object is given.

The student must observe, however, that in order to bring the diagrams into convenient compass, the measurements assumed are generally very different from any likely to occur in practice. Thus, in Fig. 3., the distance D S would be probably in practice half a mile or a mile, and the distance T S, from the eye of the observer to the paper, only two or three feet. The mathematical law is however precisely the same, whatever the proportions; and I use such proportions as are best calculated to make the diagram clear.

Now, therefore, the conditions of a perspective problem are the following:

• The Sight-line G H given, Fig. 1.;
• The Sight-point S given;
• The Station-point T given; and
• The three distances of the object,[Footnote 7] direct, lateral, and vertical, with its dimensions, given.

The size of the picture, conjecturally limited by the dotted circle, is to be determined afterwards at our pleasure. On these conditions I proceed at once to construction.

[p10]
PROBLEM I.

TO FIX THE POSITION OF A GIVEN POINT.[Footnote 8]

Let P, Fig. 4., be the given point.

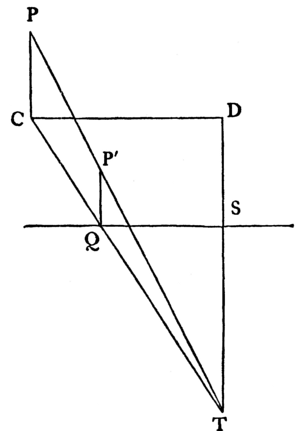

Fig. 4.

Let its direct distance be D T; its lateral distance to the left, D C; and vertical distance beneath the eye of the observer, C P.

[Let G H be the Sight-line, S the Sight-point, and T the Station-point.][Footnote 9]

It is required to fix on the plane of the picture the position of the point P.

[p11]
Arrange the three distances of the object on your paper, as in Fig. 4.[Footnote 10]

Join C T, cutting G H in Q.

From Q let fall the vertical line Q P′.

Join P T, cutting Q P in P′.

P′ is the point required.

If the point P is above the eye of the observer instead of below it, C P is to be measured upwards from C, and Q P′ drawn upwards from Q. The construction will be as in Fig. 5.

Fig. 5.

And if the point P is to the right instead of the left of the [p12] observer, D C is to be measured to the right instead of the left.

The figures 4. and 5., looked at in a mirror, will show the construction of each, on that supposition.

Now read very carefully the examples and notes to this problem in Appendix I. (page 69). I have put them in the Appendix in order to keep the sequence of following problems more clearly traceable here in the text; but you must read the first Appendix before going on.

[p13]
PROBLEM II.

TO DRAW A RIGHT LINE BETWEEN TWO GIVEN POINTS.

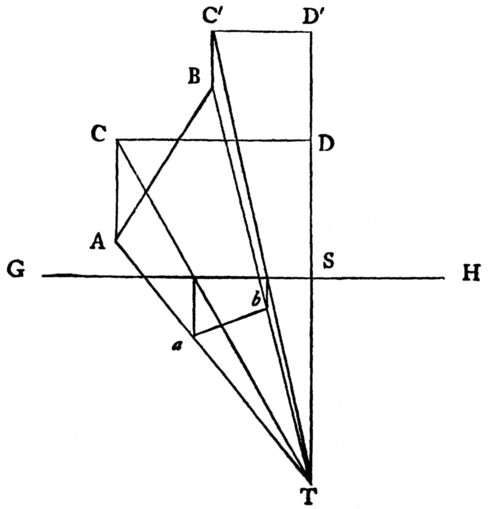

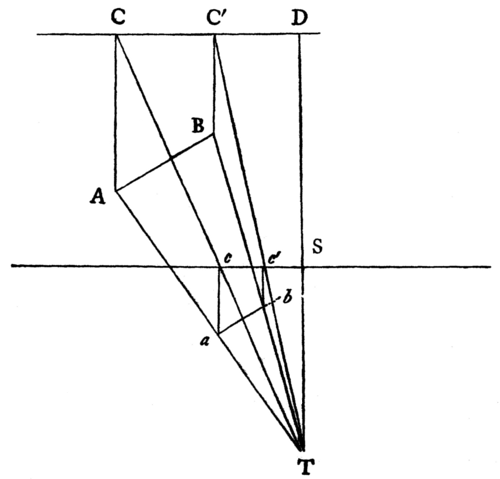

Fig. 6.

Let A B, Fig. 6., be the given right line, joining the given points A and B.

Let the direct, lateral, and vertical distances of the point A be T D, D C, and C A.

Let the direct, lateral, and vertical distances of the point B be T D′, D C′, and C′ B.

Then, by Problem I., the position of the point A on the plane of the picture is a.

And similarly, the position of the point B on the plane of the picture is b.

Join a b.

Then a b is the line required.

[p14]
COROLLARY I.

If the line A B is in a plane parallel to that of the picture, one end of the line A B must be at the same direct distance from the eye of the observer as the other.

Therefore, in that case, D T is equal to D′ T.

Then the construction will be as in Fig. 7.; and the student will find experimentally that a b is now parallel to A B.[Footnote 11]

Fig. 7.

And that a b is to A B as T S is to T D.

Therefore, to draw any line in a plane parallel to that of the picture, we have only to fix the position of one of its extremities, a or b, and then to draw from a or b a line parallel to the given line, bearing the proportion to it that T S bears to T D.

[p15]
COROLLARY II.

If the line A B is in a horizontal plane, the vertical distance of one of its extremities must be the same as that of the other.

Therefore, in that case, A C equals B C′ (Fig. 6.).

And the construction is as in Fig. 8.

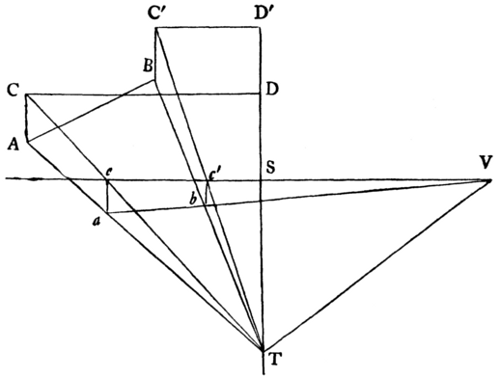

Fig. 8.

In Fig. 8. produce a b to the sight-line, cutting the sight-line in V; the point V, thus determined, is called the Vanishing-Point of the line A B.

Join T V. Then the student will find experimentally that T V is parallel to A B.[Footnote 12]

[p16]
COROLLARY III.

If the line A B produced would pass through some point beneath or above the station-point, C D is to D T as C′ D′ is to D′ T; in which case the point c coincides with the point c′, and the line a b is vertical.

Therefore every vertical line in a picture is, or may be, the perspective representation of a horizontal one which, produced, would pass beneath the feet or above the head of the spectator.[Footnote 13]

[p17]
PROBLEM III.

TO FIND THE VANISHING-POINT OF A GIVEN HORIZONTAL LINE.

Fig. 9.

Let A B, Fig. 9., be the given line.

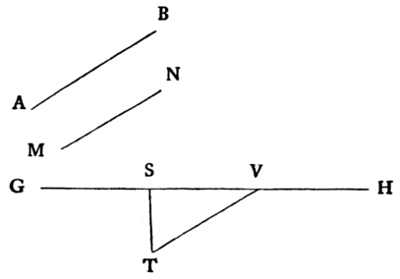

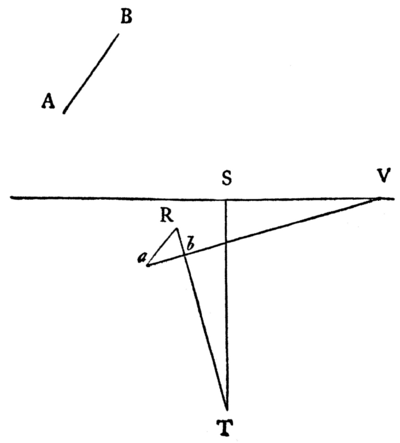

From T, the station-point, draw T V parallel to A B, cutting the sight-line in V.

V is the Vanishing-point required.[Footnote 14]

[p18]
COROLLARY I.

As, if the point b is first found, V may be determined by it, so, if the point V is first found, b may be determined by it. For let A B, Fig. 10., be the given line, constructed upon the paper as in Fig. 8.; and let it be required to draw the line a b without using the point C′.

Fig. 10.

Find the position of the point A in a. (Problem I.)

[p19]
Find the vanishing-point of A B in V. (Problem III.)

Join a V.

Join B T, cutting a V in b.

Then a b is the line required.[Footnote 15]

COROLLARY II.

We have hitherto proceeded on the supposition that the given line was small enough, and near enough, to be actually drawn on our paper of its real size; as in the example given in Appendix I. We may, however, now deduce a construction available under all circumstances, whatever may be the distance and length of the line given.

Fig. 11.

From Fig. 8. remove, for the sake of clearness, the lines [p20] C′ D′, b V, and T V; and, taking the figure as here in Fig. 11., draw from a, the line a R parallel to A B, cutting B T in R.

Then a R is to A B as a T is to A T.

Then — is to — as c T is to C T.

Then — is to — as T S is to T D.

That is to say, a R is the sight-magnitude of A B.[Footnote 16]

Fig. 12.

Therefore, when the position of the point A is fixed in a, as in Fig. 12., and a V is drawn to the vanishing-point; if we draw a line a R from a, parallel to A B, and make a R equal to the sight-magnitude of A B, and then join R T, the line R T will cut a V in b.

So that, in order to determine the length of a b, we need not draw the long and distant line A B, but only a R parallel to it, and of its sight-magnitude; which is a great gain, for the line A B may be two miles long, and the line a R perhaps only two inches.

[p21]
COROLLARY III.

In Fig. 12., altering its proportions a little for the sake of clearness, and putting it as here in Fig. 13., draw a horizontal line a R′ and make a R′ equal to a R.

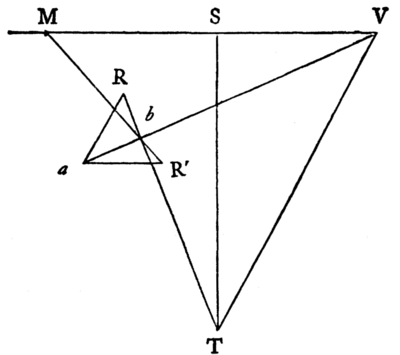

Through the points R and b draw R′ M, cutting the sight-line in M. Join T V. Now the reader will find experimentally that V M is equal to V T.[Footnote 17]

Fig. 13.

Hence it follows that, if from the vanishing-point V we lay off on the sight-line a distance, V M, equal to V T; then draw through a a horizontal line a R′, make a R′ equal to the sight-magnitude of A B, and join R′ M; the line R′ M will cut a V in b. And this is in practice generally the most convenient way of obtaining the length of a b.

[p22]
COROLLARY IV.

Removing from the preceding figure the unnecessary lines, and retaining only R′ M and a V, as in Fig. 14., produce the line a R′ to the other side of a, and make a X equal to a R′.

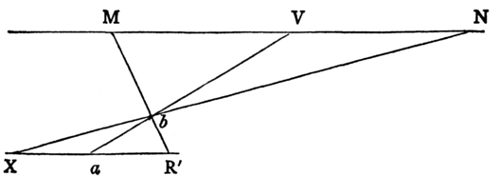

Join X b, and produce X b to cut the line of sight in N.

Fig. 14.

Then as X R′ is parallel to M N, and a R′ is equal to a X, V N must, by similar triangles, be equal to V M (equal to V T in Fig. 13.).

Therefore, on whichever side of V we measure the distance V T, so as to obtain either the point M, or the point N, if we measure the sight-magnitude a R′ or a X on the opposite side of the line a V, the line joining R′ M or X N will equally cut a V in b.

The points M and N are called the “Dividing-Points” of the original line A B (Fig. 12.), and we resume the results of these corollaries in the following three problems.

[p23]
PROBLEM IV.

TO FIND THE DIVIDING-POINTS OF A GIVEN HORIZONTAL LINE.

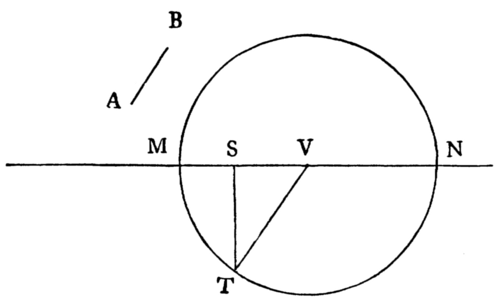

Fig. 15.

Let the horizontal line A B (Fig. 15.) be given in position and magnitude. It is required to find its dividing-points.

Find the vanishing-point V of the line A B.

With center V and distance V T, describe circle cutting the sight-line in M and N.

Then M and N are the dividing-points required.

In general, only one dividing-point is needed for use with any vanishing-point, namely, the one nearest S (in this case the point M). But its opposite N, or both, may be needed under certain circumstances.

[p24]
PROBLEM V.

TO DRAW A HORIZONTAL LINE, GIVEN IN POSITION AND MAGNITUDE, BY MEANS OF ITS SIGHT-MAGNITUDE AND DIVIDING-POINTS.

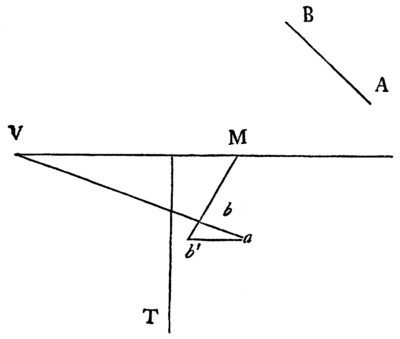

Fig. 16.

Let A B (Fig. 16.) be the given line.

Find the position of the point A in a.

Find the vanishing-point V, and most convenient dividing-point M, of the line A B.

Join a V.

Through a draw a horizontal line a b′ and make a b′ equal to the sight-magnitude of A B. Join b′ M, cutting a V in b.

Then a b is the line required.

[p25]
COROLLARY I.

Fig. 17.

Supposing it were now required to draw a line A C (Fig. 17.) twice as long as A B, it is evident that the sight-magnitude a c′ must be twice as long as the sight-magnitude a b′; we have, therefore, merely to continue the horizontal line a b′, make b′ c′ equal to a b′, join c M′, cutting a V in c, and a c will be the line required. Similarly, if we have to draw a line A D, three times the length of A B, a d′ must be three times the length of a b′, and, joining d′ M, a d will be the line required.

The student will observe that the nearer the portions cut off, b c, c d, etc., approach the point V, the smaller they become; and, whatever lengths may be added to the line A D, and successively cut off from a V, the line a V will never be cut off entirely, but the portions cut off will become infinitely small, and apparently “vanish” as they approach the point V; hence this point is called the “vanishing” point.

[p26]
COROLLARY II.

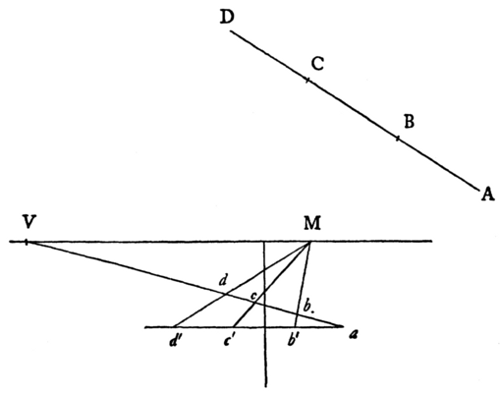

It is evident that if the line A D had been given originally, and we had been required to draw it, and divide it into three equal parts, we should have had only to divide its sight-magnitude, a d′, into the three equal parts, a b′, b′ c′, and c′ d′, and then, drawing to M from b′ and c′, the line a d would have been divided as required in b and c. And supposing the original line A D be divided irregularly into any number of parts, if the line a d′ be divided into a similar number in the same proportions (by the construction given in Appendix I.), and, from these points of division, lines are drawn to M, they will divide the line a d in true perspective into a similar number of proportionate parts.

The horizontal line drawn through a, on which the sight-magnitudes are measured, is called the “Measuring-line.”

And the line a d, when properly divided in b and c, or any other required points, is said to be divided “IN PERSPECTIVE RATIO” to the divisions of the original line A D.

If the line a V is above the sight-line instead of beneath it, the measuring-line is to be drawn above also: and the lines b′ M, c′ M, etc., drawn down to the dividing-point. Turn Fig. 17. upside down, and it will show the construction.

[p27]
PROBLEM VI.

TO DRAW ANY TRIANGLE, GIVEN IN POSITION AND MAGNITUDE, IN A HORIZONTAL PLANE.

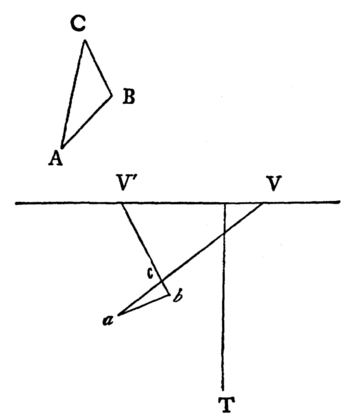

Fig. 18.

Let A B C (Fig. 18.) be the triangle.

As it is given in position and magnitude, one of its sides, at least, must be given in position and magnitude, and the directions of the two other sides.

Let A B be the side given in position and magnitude.

Then A B is a horizontal line, in a given position, and of a given length.

Draw the line A B. (Problem V.)

Let a b be the line so drawn.

Find V and V′, the vanishing-points respectively of the lines A C and B C. (Problem III.)

[p28]
From a draw a V, and from b, draw b V′, cutting each other in c.

Then a b c is the triangle required.

If A C is the line originally given, a c is the line which must be first drawn, and the line V′ b must be drawn from V′ to c and produced to cut a b in b. Similarly, if B C is given, V c must be drawn to c and produced, and a b from its vanishing-point to b, and produced to cut a c in a.

[p29]
PROBLEM VII.

TO DRAW ANY RECTILINEAR QUADRILATERAL FIGURE, GIVEN IN POSITION AND MAGNITUDE, IN A HORIZONTAL PLANE.

Fig. 19.

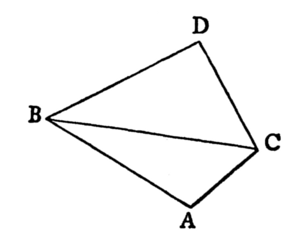

Let A B C D (Fig. 19.) be the given figure.

Join any two of its opposite angles by the line B C.

Draw first the triangle A B C. (Problem VI.)

And then, from the base B C, the two lines B D, C D, to their vanishing-points, which will complete the figure. It is unnecessary to give a diagram of the construction, which is merely that of Fig. 18. duplicated; another triangle being drawn on the line A C or B C.

COROLLARY.

It is evident that by this application of Problem VI. any given rectilinear figure whatever in a horizontal plane may be drawn, since any such figure may be divided into a number of triangles, and the triangles then drawn in succession.

More convenient methods may, however, be generally [p30] found, according to the form of the figure required, by the use of succeeding problems; and for the quadrilateral figure which occurs most frequently in practice, namely, the square, the following construction is more convenient than that used in the present problem.

[p31]
PROBLEM VIII.

TO DRAW A SQUARE, GIVEN IN POSITION AND MAGNITUDE, IN A HORIZONTAL PLANE.

Fig. 20.

Let A B C D, Fig. 20., be the square.

As it is given in position and magnitude, the position and magnitude of all its sides are given.

Fix the position of the point A in a.

Find V, the vanishing-point of A B; and M, the dividing-point of A B, nearest S.

Find V′, the vanishing-point of A C; and N, the dividing-point of A C, nearest S.

[p32]
Draw the measuring-line through a, and make a b′, a c′, each equal to the sight-magnitude of A B.

(For since A B C D is a square, A C is equal to A B.)

Draw a V′ and c′ N, cutting each other in c.

Draw a V, and b′ M, cutting each other in b.

Then a c, a b, are the two nearest sides of the square.

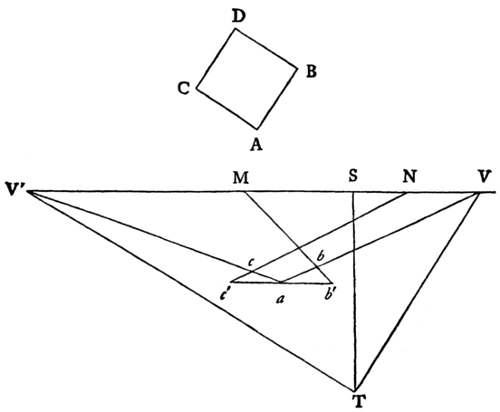

Now, clearing the figure of superfluous lines, we have a b, a c, drawn in position, as in Fig. 21.

Fig. 21.

And because A B C D is a square, C D (Fig. 20.) is parallel to A B.

And all parallel lines have the same vanishing-point. (Note to Problem III.)

Therefore, V is the vanishing-point of C D.

Similarly, V′ is the vanishing-point of B D.

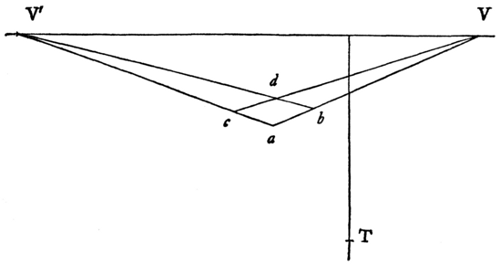

Therefore, from b and c (Fig. 22.) draw b V′, c V, cutting each other in d.

Then a b c d is the square required.

COROLLARY I.

It is obvious that any rectangle in a horizontal plane may be drawn by this problem, merely making a b′, on the measuring-line, Fig. 20., equal to the sight-magnitude of one of its sides, and a c′ the sight-magnitude of the other.

[p33]
COROLLARY II.

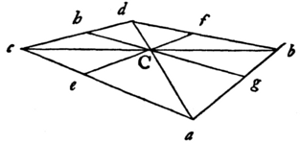

Let a b c d, Fig. 22., be any square drawn in perspective. Draw the diagonals a d and b c, cutting each other in C. Then C is the center of the square. Through C, draw e f to the vanishing-point of a b, and g h to the vanishing-point of a c, and these lines will bisect the sides of the square, so that a g is the perspective representation of half the side a b; a e is half a c; c h is half c d; and b f is half b d.

Fig. 22.

COROLLARY III.

Since A B C D, Fig. 20., is a square, B A C is a right angle; and as T V is parallel to A B, and T V′ to A C, V′ T V must be a right angle also.

As the ground plan of most buildings is rectangular, it constantly happens in practice that their angles (as the corners of ordinary houses) throw the lines to the vanishing-points thus at right angles; and so that this law is observed, and V T V′ is kept a right angle, it does not matter in general practice whether the vanishing-points are thrown a little more or a little less to the right or left of S: but it matters much that the relation of the vanishing-points should be accurate. Their position with respect to S merely causes the spectator to see a little more or less on one side or other of the house, which may be a matter of chance or choice; but their rectangular relation determines the rectangular shape of the building, which is an essential point.

[p34]
PROBLEM IX.

TO DRAW A SQUARE PILLAR, GIVEN IN POSITION AND MAGNITUDE, ITS BASE AND TOP BEING IN HORIZONTAL PLANES.

Let A H, Fig. 23., be the square pillar.

Then, as it is given in position and magnitude, the position and magnitude of the square it stands upon must be given (that is, the line A B or A C in position), and the height of its side A E.

Fig. 23.
Fig. 24.

Find the sight-magnitudes of A B and A E. Draw the two sides a b, a c, of the square of the base, by Problem VIII., as in Fig. 24. From the points a, b, and c, raise vertical lines a e, c f, b g.

Make a e equal to the sight-magnitude of A E.

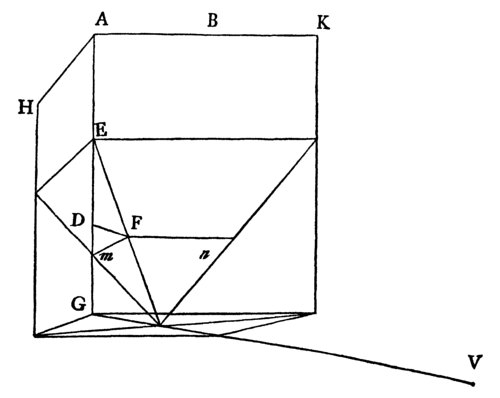

Now because the top and base of the pillar are in horizontal planes, the square of its top, F G, is parallel to the square of its base, B C.

Therefore the line E F is parallel to A C, and E G to A B.

Therefore E F has the same vanishing-point as A C, and E G the same vanishing-point as A B.

From e draw e f to the vanishing-point of a c, cutting c f in f.

Similarly draw e g to the vanishing-point of a b, cutting b g in g.

Complete the square g f in h, by drawing g h to the vanishing-point of e f, and f h to the vanishing-point of e g, cutting each other in h. Then a g h f is the square pillar required.

[p35]
COROLLARY.

It is obvious that if A E is equal to A C, the whole figure will be a cube, and each side, a e f c and a e g b, will be a square in a given vertical plane. And by making A B or A C longer or shorter in any given proportion, any form of rectangle may be given to either of the sides of the pillar. No other rule is therefore needed for drawing squares or rectangles in vertical planes.

Also any triangle may be thus drawn in a vertical plane, by inclosing it in a rectangle and determining, in perspective ratio, on the sides of the rectangle, the points of their contact with the angles of the triangle.

And if any triangle, then any polygon.

A less complicated construction will, however, be given hereafter.[Footnote 18]

[p36]
PROBLEM X.

TO DRAW A PYRAMID, GIVEN IN POSITION AND MAGNITUDE, ON A SQUARE BASE IN A HORIZONTAL PLANE.

Fig. 25.

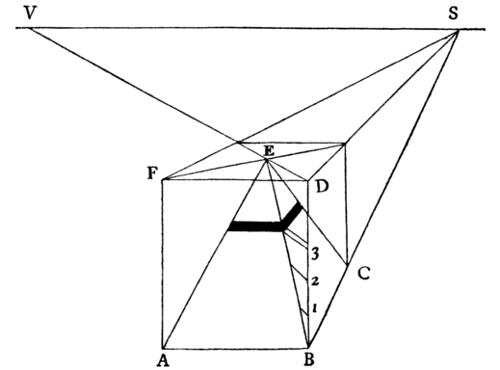

Let A B, Fig. 25., be the four-sided pyramid. As it is given in position and magnitude, the square base on which it stands must be given in position and magnitude, and its vertical height, C D.[Footnote 19]

Fig. 26.

Draw a square pillar, A B G E, Fig. 26., on the square base of the pyramid, and make the height of the pillar A F equal [p36] to the vertical height of the pyramid C D (Problem IX.). Draw the diagonals G F, H I, on the top of the square pillar, cutting each other in C. Therefore C is the center of the square F G H I. (Prob. VIII. Cor. II.)

Fig. 27.

Join C E, C A, C B.

Then A B C E is the pyramid required. If the base of the pyramid is above the eye, as when a square spire is seen on the top of a church-tower, the construction will be as in Fig. 27.

[p38]
PROBLEM XI.

TO DRAW ANY CURVE IN A HORIZONTAL OR VERTICAL PLANE.

Fig. 28.

Let A B, Fig. 28., be the curve.

Inclose it in a rectangle, C D E F.

Fix the position of the point C or D, and draw the rectangle. (Problem VIII. Coroll. I.)[Footnote 20]

Let C D E F, Fig. 29., be the rectangle so drawn.

Fig. 29.

If an extremity of the curve, as A, is in a side of the rectangle, divide the side C E, Fig. 29., so that A C shall be (in perspective ratio) to A E as A C is to A E in Fig. 28. (Prob. V. Cor. II.)

Similarly determine the points of contact of the curve and rectangle e, f, g.

If an extremity of the curve, as B, is not in a side of the rectangle, let [p39] fall the perpendiculars B a, B b on the rectangle sides. Determine the correspondent points a and b in Fig. 29., as you have already determined A, B, e, and f.

From b, Fig. 29., draw b B parallel to C D,[Footnote 21] and from a draw a B to the vanishing-point of D F, cutting each other in B. Then B is the extremity of the curve.

Determine any other important point in the curve, as P, in the same way, by letting fall P q and P r on the rectangle’s sides.

Any number of points in the curve may be thus determined, and the curve drawn through the series; in most cases, three or four will be enough. Practically, complicated curves may be better drawn in perspective by an experienced eye than by rule, as the fixing of the various points in haste involves too many chances of error; but it is well to draw a good many by rule first, in order to give the eye its experience.[Footnote 22]

COROLLARY.

If the curve required be a circle, Fig. 30., the rectangle which incloses it will become a square, and the curve will have four points of contact, A B C D, in the middle of the sides of the square.

Fig. 30.

Draw the square, and as a square may be drawn about a circle in any position, draw it with its nearest side, E G, parallel to the sight-line.

Let E F, Fig. 31., be the square so drawn.

[p40]

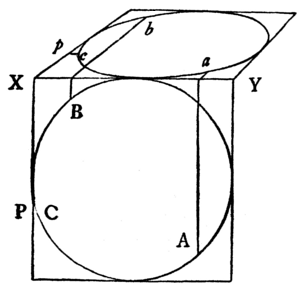

Draw its diagonals E F, G H; and through the center of the square (determined by their intersection) draw A B to the vanishing-point of G F, and C D parallel to E G. Then the points A B C D are the four points of the circle’s contact.

Fig. 31.

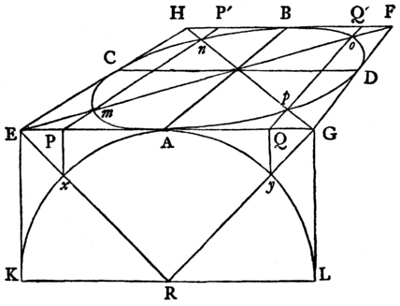

On E G describe a half square, E L; draw the semicircle K A L; and from its center, R, the diagonals R E, R G, cutting the circle in x, y.

From the points x y, where the circle cuts the diagonals, raise perpendiculars, P x, Q y, to E G.

From P and Q draw P P′, Q Q′, to the vanishing-point of G F, cutting the diagonals in m, n, and o, p.

Then m, n, o, p are four other points in the circle.

Through these eight points the circle may be drawn by the hand accurately enough for general purposes; but any number of points required may, of course, be determined, as in Problem XI.

The distance E P is approximately one-seventh of E G, and may be assumed to be so in quick practice, as the error involved is not greater than would be incurred in the hasty operation of drawing the circle and diagonals.

It may frequently happen that, in consequence of associated [p41] constructions, it may be inconvenient to draw E G parallel to the sight-line, the square being perhaps first constructed in some oblique direction. In such cases, Q G and E P must be determined in perspective ratio by the dividing-point, the line E G being used as a measuring-line.

[p42]
PROBLEM XII.

TO DIVIDE A CIRCLE DRAWN IN PERSPECTIVE INTO ANY GIVEN NUMBER OF EQUAL PARTS.

Let A B, Fig. 32., be the circle drawn in perspective. It is required to divide it into a given number of equal parts; in this case, 20.

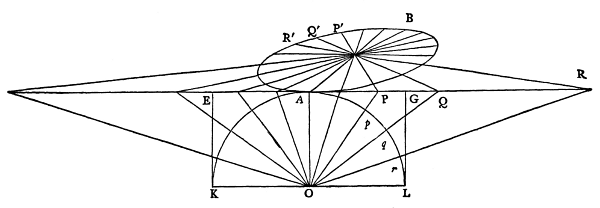

Let K A L be the semicircle used in the construction. Divide the semicircle K A L into half the number of parts required; in this case, 10.

Produce the line E G laterally, as far as may be necessary.

From O, the center of the semicircle K A L, draw radii through the points of division of the semicircle, p, q, r, etc., and produce them to cut the line E G in P, Q, R, etc.

From the points P Q R draw the lines P P′, Q Q′, R R′, etc., through the center of the circle A B, each cutting the circle in two points of its circumference.

Then these points divide the perspective circle as required.

If from each of the points p, q, r, a vertical were raised to the line E G, as in Fig. 31., and from the point where it cut E G a line were drawn to the vanishing-point, as Q Q′ in Fig. 31., this line would also determine two of the points of division.

[p43]
Fig. 32.

If it is required to divide a circle into any number of given unequal parts (as in the points A, B, and C, Fig. 33.), the shortest way is thus to raise vertical lines from A and B to the side of the perspective square X Y, and then draw to the vanishing-point, cutting the perspective circle in a and b, the points required. Only notice that if any point, as A, is on the nearer side of the circle A B C, its representative point, a, must be on the nearer side of the circle a b c; and if the point B is on the farther side of the circle A B C, b must be [p44] on the farther side of a b c. If any point, as C, is so much in the lateral arc of the circle as not to be easily determinable by the vertical line, draw the horizontal C P, find the correspondent p in the side of the perspective square, and draw p c parallel to X Y, cutting the perspective circle in c.

Fig. 33.

COROLLARY.

It is obvious that if the points P′, Q′, R, etc., by which the circle is divided in Fig. 32., be joined by right lines, the resulting figure will be a regular equilateral figure of twenty sides inscribed in the circle. And if the circle be divided into given unequal parts, and the points of division joined by right lines, the resulting figure will be an irregular polygon inscribed in the circle with sides of given length.

Thus any polygon, regular or irregular, inscribed in a circle, may be inscribed in position in a perspective circle.

[p45]
PROBLEM XIII.

TO DRAW A SQUARE, GIVEN IN MAGNITUDE, WITHIN A LARGER SQUARE GIVEN IN POSITION AND MAGNITUDE; THE SIDES OF THE TWO SQUARES BEING PARALLEL.

Fig. 34.

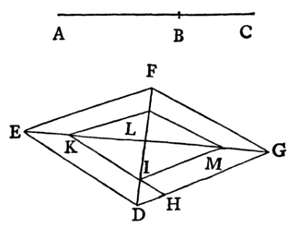

Let A B, Fig. 34., be the sight-magnitude of the side of the smaller square, and A C that of the side of the larger square.

Draw the larger square. Let D E F G be the square so drawn.

Join E G and D F.

On either D E or D G set off, in perspective ratio, D H equal to one half of B C. Through H draw H K to the vanishing-point of D E, cutting D F in I and E G in K. Through I and K draw I M, K L, to vanishing-point of D G, cutting D F in L and E G in M. Join L M.

Then I K L M is the smaller square, inscribed as required.[Footnote 23]

[p46] COROLLARY.

Fig. 36.

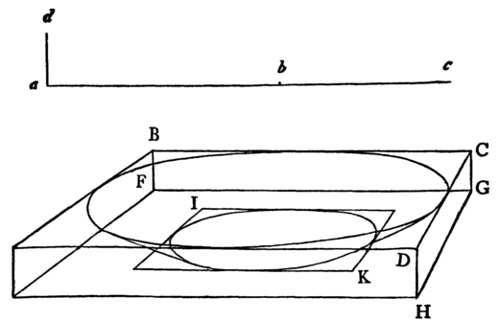

If, instead of one square within another, it be required to draw one circle within another, the dimensions of both being given, inclose each circle in a square. Draw the squares first, and then the circles within, as in Fig. 36.

[p47]
PROBLEM XIV.

TO DRAW A TRUNCATED CIRCULAR CONE, GIVEN IN POSITION AND MAGNITUDE, THE TRUNCATIONS BEING IN HORIZONTAL PLANES, AND THE AXIS OF THE CONE VERTICAL.

Let A B C D, Fig. 37., be the portion of the cone required.

Fig. 37.

As it is given in magnitude, its diameters must be given at the base and summit, A B and C D; and its vertical height, C E.[Footnote 24]

And as it is given in position, the center of its base must be given.

Fig. 38.

Draw in position, about this center,[Footnote 25] the square pillar [p48] a f d, Fig. 38., making its height, b g, equal to C E; and its side, a b, equal to A B.

In the square of its base, a b c d, inscribe a circle, which therefore is of the diameter of the base of the cone, A B.

In the square of its top, e f g h, inscribe concentrically a circle whose diameter shall equal C D. (Coroll. Prob. XIII.)

Join the extremities of the circles by the right lines k l, n m. Then k l n m is the portion of cone required.

COROLLARY I.

If similar polygons be inscribed in similar positions in the circles k n and l m (Coroll. Prob. XII.), and the corresponding angles of the polygons joined by right lines, the resulting figure will be a portion of a polygonal pyramid. (The dotted lines in Fig. 38., connecting the extremities of two diameters and one diagonal in the respective circles, occupy the position of the three nearest angles of a regular octagonal pyramid, having its angles set on the diagonals and diameters of the square a d, inclosing its base.)

If the cone or polygonal pyramid is not truncated, its apex will be the center of the upper square, as in Fig. 26.

COROLLARY II.

If equal circles, or equal and similar polygons, be inscribed in the upper and lower squares in Fig. 38., the resulting figure will be a vertical cylinder, or a vertical polygonal pillar, of given height and diameter, drawn in position. [p49]

COROLLARY III.

If the circles in Fig. 38., instead of being inscribed in the squares b c and f g, be inscribed in the sides of the solid figure b e and d f, those sides being made square, and the line b d of any given length, the resulting figure will be, according to the constructions employed, a cone, polygonal pyramid, cylinder, or polygonal pillar, drawn in position about a horizontal axis parallel to b d.

Similarly, if the circles are drawn in the sides g d and e c, the resulting figures will be described about a horizontal axis parallel to a b.

[p50]
PROBLEM XV.

TO DRAW AN INCLINED LINE, GIVEN IN POSITION AND MAGNITUDE.

We have hitherto been examining the conditions of horizontal and vertical lines only, or of curves inclosed in rectangles.

Fig. 39.
Fig. 40.

We must, in conclusion, investigate the perspective of inclined lines, beginning with a single one given in position. For the sake of completeness of system, I give in Appendix II. Article III. the development of this problem from the second. But, in practice, the position of an inclined line may be most conveniently defined by considering it as the diagonal of a rectangle, as A B in Fig. 39., and I shall therefore, though at some sacrifice of system, examine it here under that condition.

If the sides of the rectangle A C and A D are given, the slope of the line A B is determined; and then its position will depend on that of the rectangle. If, as in Fig. 39., the rectangle is parallel to the picture plane, the line A B must be so also. If, as in Fig. 40., the rectangle is inclined to the [p51] picture plane, the line A B will be so also. So that, to fix the position of A B, the line A C must be given in position and magnitude, and the height A D.

Fig. 41.

If these are given, and it is only required to draw the single line A B in perspective, the construction is entirely simple; thus:—

Draw the line A C by Problem I.

Let A C, Fig. 41., be the line so drawn. From a and c raise the vertical lines a d, c b. Make a d equal to the sight-magnitude of A D. From d draw d b to the vanishing-point of a c, cutting b c in b.

Join a b. Then a b is the inclined line required.

Fig. 42.

If the line is inclined in the opposite direction, as D C in Fig. 42., we have only to join d c instead of a b in Fig. 41., and d c will be the line required.

I shall hereafter call the line A C, when used to define the position of an inclined line A B (Fig. 40.), the “relative horizontal” of the line A B.

Observation.

Fig. 43.

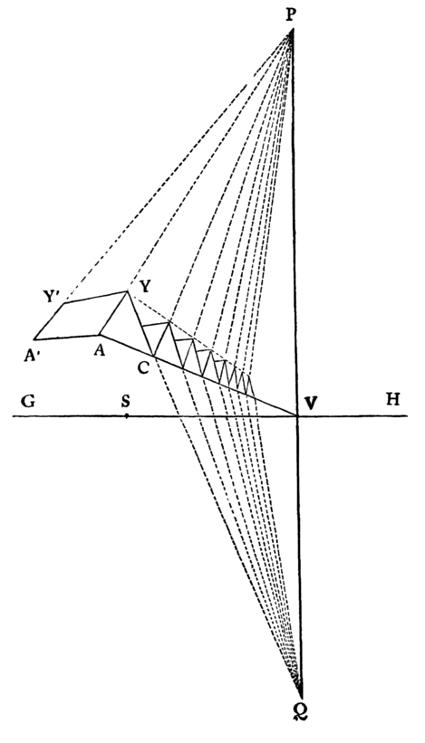

In general, inclined lines are most needed for gable roofs, in which, when the conditions are properly stated, the vertical height of the gable, X Y, Fig. 43., is given, and the base line, A C, in position. When these are given, draw A C; raise vertical A D; make A D equal to sight-magnitude of X Y; complete the perspective-rectangle A D B C; join A B and D C (as by dotted lines in figure); and through the intersection of the dotted lines draw vertical X Y, cutting D B in Y. Join A Y, C Y; and these lines are the sides of the gable. If [p52] the length of the roof A A′ is also given, draw in perspective the complete parallelopiped A′ D′ B C, and from Y draw Y Y′ to the vanishing-point of A A′, cutting D′ B′ in Y′. Join A′ Y, and you have the slope of the farther side of the roof.

Fig. 44.

The construction above the eye is as in Fig. 44.; the roof is reversed in direction merely to familiarize the student with the different aspects of its lines.

[p53]
PROBLEM XVI.

TO FIND THE VANISHING-POINT OF A GIVEN INCLINED LINE.

If, in Fig. 43. or Fig. 44., the lines A Y and A′ Y′ be produced, the student will find that they meet.

Let P, Fig. 45., be the point at which they meet.

From P let fall the vertical P V on the sight-line, cutting the sight-line in V.

Then the student will find experimentally that V is the vanishing-point of the line A C.[Footnote 26]

Complete the rectangle of the base A C′, by drawing A′ C′ to V, and C C′ to the vanishing-point of A A′.

Join Y′ C′.

Now if Y C and Y′ C′ be produced downwards, the student will find that they meet.

Let them be produced, and meet in P′.

Produce P V, and it will be found to pass through the point P′.

Therefore if A Y (or C Y), Fig. 45., be any inclined line drawn in perspective by Problem XV., and A C the relative horizontal (A C in Figs. 39, 40.), also drawn in perspective.

Through V, the vanishing-point of A V, draw the vertical P P′ upwards and downwards.

Produce A Y (or C Y), cutting P P′ in P (or P′).

Then P is the vanishing-point of A Y (or P′ of C Y).

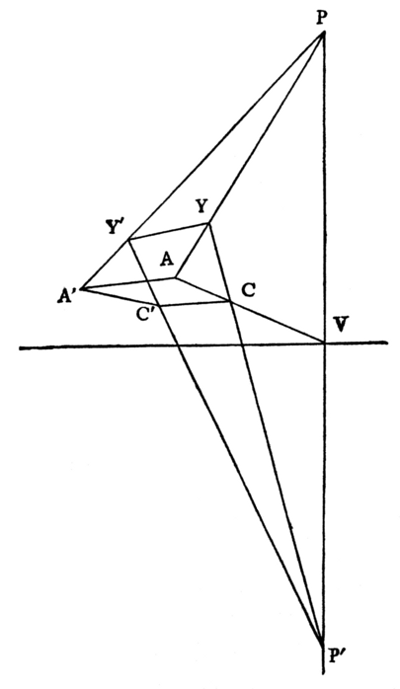

Fig. 45.

The student will observe that, in order to find the point P by this method, it is necessary first to draw a portion of the given inclined line by Problem XV. Practically, it is always necessary to do so, and, therefore, I give the problem in this form.

[p54]
Theoretically, as will be shown in the analysis of the problem, the point P should be found by drawing a line from the station-point parallel to the given inclined line: but there is no practical means of drawing such a line; so that in whatever terms the problem may be given, a portion of the inclined line (A Y or C Y) must always be drawn in perspective before P can be found.

[p55]
PROBLEM XVII.

TO FIND THE DIVIDING-POINTS OF A GIVEN INCLINED LINE.

Fig. 46.

Let P, Fig. 46., be the vanishing-point of the inclined line, and V the vanishing-point of the relative horizontal.

Find the dividing-points of the relative horizontal, D and D′.

Through P draw the horizontal line X Y.

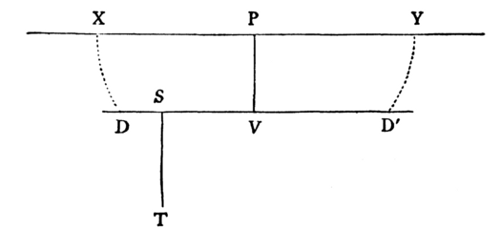

With center P and distance D P describe the two arcs D X and D′ Y, cutting the line X Y in X and Y.

Then X and Y are the dividing-points of the inclined line.[Footnote 27]

Obs. The dividing-points found by the above rule, used with the ordinary measuring-line, will lay off distances on the retiring inclined line, as the ordinary dividing-points lay them off on the retiring horizontal line.

Another dividing-point, peculiar in its application, is sometimes useful, and is to be found as follows:—

[p56]
Fig. 47.

Let A B, Fig. 47., be the given inclined line drawn in perspective, and A c the relative horizontal.

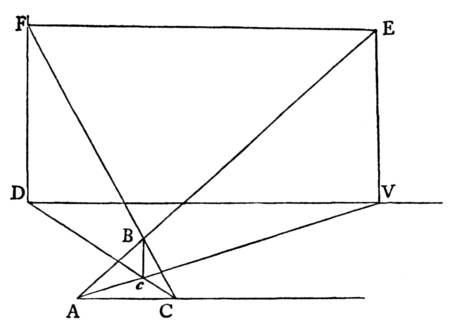

Find the vanishing-points, V and E, of A c and A B; D, the dividing-point of A c; and the sight-magnitude of A c on the measuring-line, or A C.

From D erect the perpendicular D F.

Join C B, and produce it to cut D E in F. Join E F.

Then, by similar triangles, D F is equal to E V, and E F is parallel to D V.

Hence it follows that if from D, the dividing-point of A c, we raise a perpendicular and make D F equal to E V, a line C F, drawn from any point C on the measuring-line to F, will mark the distance A B on the inclined line, A B being the portion of the given inclined line which forms the diagonal of the vertical rectangle of which A C is the base.

[p57]
PROBLEM XVIII.

TO FIND THE SIGHT-LINE OF AN INCLINED PLANE IN WHICH TWO LINES ARE GIVEN IN POSITION.[Footnote 28]

As in order to fix the position of a line two points in it must be given, so in order to fix the position of a plane, two lines in it must be given.

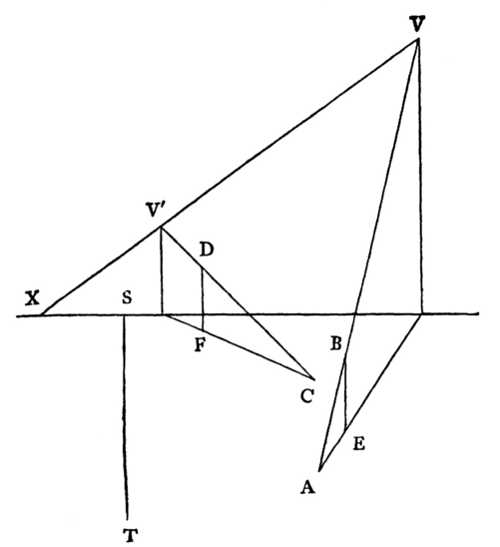

Fig. 48.

Let the two lines be A B and C D, Fig. 48.

[p58]
As they are given in position, the relative horizontals A E and C F must be given.

Then by Problem XVI. the vanishing-point of A B is V, and of C D, V′.

Join V V′ and produce it to cut the sight-line in X.

Then V X is the sight-line of the inclined plane.

Like the horizontal sight-line, it is of indefinite length; and may be produced in either direction as occasion requires, crossing the horizontal line of sight, if the plane continues downward in that direction.

X is the vanishing-point of all horizontal lines in the inclined plane.

[p59]
PROBLEM XIX.

TO FIND THE VANISHING-POINT OF STEEPEST LINES IN AN INCLINED PLANE WHOSE SIGHT-LINE IS GIVEN.

Fig. 49.

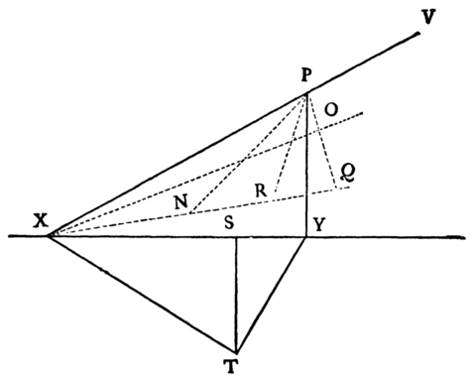

Let V X, Fig. 49., be the given sight-line.

Produce it to cut the horizontal sight-line in X.

Therefore X is the vanishing-point of horizontal lines in the given inclined plane. (Problem XVIII.)

Join T X, and draw T Y at right angles to T X.

Therefore Y is the rectangular vanishing-point corresponding to X.[Footnote 29]

From Y erect the vertical Y P, cutting the sight-line of the inclined plane in P.

[p60]
Then P is the vanishing-point of steepest lines in the plane.

All lines drawn to it, as Q P, R P, N P, etc., are the steepest possible in the plane; and all lines drawn to X, as Q X, O X, etc., are horizontal, and at right angles to the lines P Q, P R, etc.

[p61]
PROBLEM XX.

TO FIND THE VANISHING-POINT OF LINES PERPENDICULAR TO THE SURFACE OF A GIVEN INCLINED PLANE.

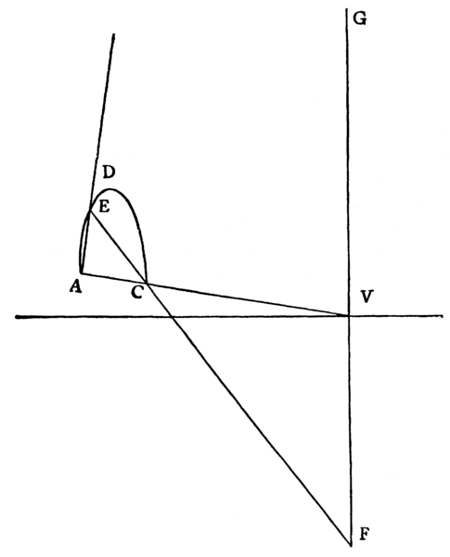

Fig. 50.

As the inclined plane is given, one of its steepest lines must be given, or may be ascertained.

Let A B, Fig. 50., be a portion of a steepest line in the [p62] given plane, and V the vanishing-point of its relative horizontal.

Through V draw the vertical G F upwards and downwards.

From A set off any portion of the relative horizontal A C, and on A C describe a semicircle in a vertical plane, A D C, cutting A B in E.

Join E C, and produce it to cut G F in F.

Then F is the vanishing-point required.

For, because A E C is an angle in a semicircle, it is a right angle; and therefore the line E F is at right angles to the line A B; and similarly all lines drawn to F, and therefore parallel to E F, are at right angles with any line which cuts them, drawn to the vanishing-point of A B.

And because the semicircle A D C is in a vertical plane, and its diameter A C is at right angles to the horizontal lines traversing the surface of the inclined plane, the line E C, being in this semicircle, is also at right angles to such traversing lines. And therefore the line E C, being at right angles to the steepest lines in the plane, and to the horizontal lines in it, is perpendicular to its surface.

---

[p63]
The preceding series of constructions, with the examples in the first Article of the Appendix, put it in the power of the student to draw any form, however complicated,[Footnote 30] which does not involve intersection of curved surfaces. I shall not proceed to the analysis of any of these more complex problems, as they are entirely useless in the ordinary practice of artists. For a few words only I must ask the reader’s further patience, respecting the general placing and scale of the picture.

As the horizontal sight-line is drawn through the sight-point, and the sight-point is opposite the eye, the sight-line is always on a level with the eye. Above and below the sight-line, the eye comprehends, as it is raised or depressed while the head is held upright, about an equal space; and, on each side of the sight-point, about the same space is easily seen without turning the head; so that if a picture represented the true field of easy vision, it ought to be circular, and have the sight-point in its center. But because some parts of any given view are usually more interesting than others, either the uninteresting parts are left out, or somewhat more than would generally be seen of the interesting parts is included, by moving the field of the picture a little upwards or downwards, so as to throw the sight-point low or high. The operation will be understood in a moment by cutting an aperture in a piece of pasteboard, and moving it up and down in front of the eye, without moving the eye. It will be seen to embrace sometimes the low, sometimes the high objects, without [p64] altering their perspective, only the eye will be opposite the lower part of the aperture when it sees the higher objects, and vice versâ.

There is no reason, in the laws of perspective, why the picture should not be moved to the right or left of the sight-point, as well as up or down. But there is this practical reason. The moment the spectator sees the horizon in a picture high, he tries to hold his head high, that is, in its right place. When he sees the horizon in a picture low, he similarly tries to put his head low. But, if the sight-point is thrown to the left hand or right hand, he does not understand that he is to step a little to the right or left; and if he places himself, as usual, in the middle, all the perspective is distorted. Hence it is generally unadvisable to remove the sight-point laterally, from the center of the picture. The Dutch painters, however, fearlessly take the license of placing it to the right or left; and often with good effect.

The rectilinear limitation of the sides, top, and base of the picture is of course quite arbitrary, as the space of a landscape would be which was seen through a window; less or more being seen at the spectator’s pleasure, as he retires or advances.

The distance of the station-point is not so arbitrary. In ordinary cases it should not be less than the intended greatest dimension (height or breadth) of the picture. In most works by the great masters it is more; they not only calculate on their pictures being seen at considerable distances, but they like breadth of mass in buildings, and dislike the sharp angles which always result from station-points at short distances.[Footnote 31]

Whenever perspective, done by true rule, looks wrong, it is always because the station-point is too near. Determine, [p65] in the outset, at what distance the spectator is likely to examine the work, and never use a station-point within a less distance.

There is yet another and a very important reason, not only for care in placing the station-point, but for that accurate calculation of distance and observance of measurement which have been insisted on throughout this work. All drawings of objects on a reduced scale are, if rightly executed, drawings of the appearance of the object at the distance which in true perspective reduces it to that scale. They are not small drawings of the object seen near, but drawings the real size of the object seen far off. Thus if you draw a mountain in a landscape, three inches high, you do not reduce all the features of the near mountain so as to come into three inches of paper. You could not do that. All that you can do is to give the appearance of the mountain, when it is so far off that three inches of paper would really hide it from you. It is precisely the same in drawing any other object. A face can no more be reduced in scale than a mountain can. It is infinitely delicate already; it can only be quite rightly rendered on its own scale, or at least on the slightly diminished scale which would be fixed by placing the plate of glass, supposed to represent the field of the picture, close to the figures. Correggio and Raphael were both fond of this slightly subdued magnitude of figure. Colossal painting, in which Correggio excelled all others, is usually the enlargement of a small picture (as a colossal sculpture is of a small statue), in order to permit the subject of it to be discerned at a distance. The treatment of colossal (as distinguished from ordinary) paintings will depend therefore, in general, on the principles of optics more than on those of perspective, though, occasionally, portions may be represented as if they were the projection of near objects on a plane behind them. In all points the subject is one of great difficulty and subtlety; and its examination does not fall within the compass of this essay.

Lastly, it will follow from these considerations, and the [p66] conclusion is one of great practical importance, that, though pictures may be enlarged, they cannot be reduced, in copying them. All attempts to engrave pictures completely on a reduced scale are, for this reason, nugatory. The best that can be done is to give the aspect of the picture at the distance which reduces it in perspective to the size required; or, in other words, to make a drawing of the distant effect of the picture. Good painting, like nature’s own work, is infinite, and unreduceable.

I wish this book had less tendency towards the infinite and unreduceable. It has so far exceeded the limits I hoped to give it, that I doubt not the reader will pardon an abruptness of conclusion, and be thankful, as I am myself, to get to an end on any terms.

[p69]
I.

PRACTICE AND OBSERVATIONS ON THE PRECEDING PROBLEMS.

---

Problem I.

An example will be necessary to make this problem clear to the general student.

The nearest corner of a piece of pattern on the carpet is 4½ feet beneath the eye, 2 feet to our right and 3½ feet in direct distance from us. We intend to make a drawing of the pattern which shall be seen properly when held 1½ foot from the eye. It is required to fix the position of the corner of the piece of pattern.

Fig. 51.

Let A B, Fig. 51., be our sheet of paper, some 3 feet wide. Make S T equal to 1½ foot. Draw the line of sight through S. Produce T S, and make D S equal to 2 feet, therefore T D equal to 3½ feet. Draw D C, equal to 2 feet; C P, equal to 4 feet. Join T C (cutting the sight-line in Q) and T P.

Let fall the vertical Q P′, then P′ is the point required.

If the lines, as in the figure, fall outside of your sheet of paper, in order to draw them, it is necessary to attach other sheets of paper to its edges. This is inconvenient, but must be done [p70] at first that you may see your way clearly; and sometimes afterwards, though there are expedients for doing without such extension in fast sketching.

It is evident, however, that no extension of surface could be of any use to us, if the distance T D, instead of being 3½ feet, were 100 feet, or a mile, as it might easily be in a landscape.

It is necessary, therefore, to obtain some other means of construction; to do which we must examine the principle of the problem.

In the analysis of Fig. 2., in the introductory remarks, I used the word “height” only of the tower, Q P, because it was only to its vertical height that the law deduced from the figure could be applied. For suppose it had been a pyramid, as O Q P, Fig. 52., then the image of its side, Q P, being, like every other magnitude, limited on the glass A B by the lines coming from its extremities, would appear only of the length Q′ S; and it is not true that Q′ S is to Q P as T S is to T P. But if we let fall a vertical Q D from Q, so as to get the vertical height of the pyramid, then it is true that Q′ S is to Q D as T S is to T D.

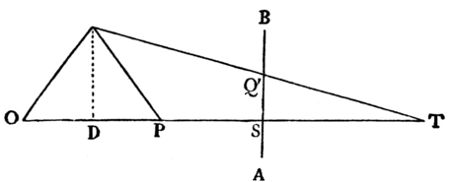

Fig. 52.

Supposing this figure represented, not a pyramid, but a triangle on the ground, and that Q D and Q P are horizontal lines, expressing lateral distance from the line T D, still the rule would be false for Q P and true for Q D. And, similarly, it is true for all lines which are parallel, like Q D, to [p71] the plane of the picture A B, and false for all lines which are inclined to it at an angle.

Hence generally. Let P Q (Fig. 2. in Introduction, p. 6) be any magnitude parallel to the plane of the picture; and P′ Q′ its image on the picture.

Then always the formula is true which you learned in the Introduction: P′ Q′ is to P Q as S T is to D T.

Now the magnitude P dash Q dash in this formula I call the “SIGHT-MAGNITUDE” of the line P Q. The student must fix this term, and the meaning of it, well in his mind. The “sight-magnitude” of a line is the magnitude which bears to the real line the same proportion that the distance of the picture bears to the distance of the object. Thus, if a tower be a hundred feet high, and a hundred yards off; and the picture, or piece of glass, is one yard from the spectator, between him and the tower; the distance of picture being then to distance of tower as 1 to 100, the sight-magnitude of the tower’s height will be as 1 to 100; that is to say, one foot. If the tower is two hundred yards distant, the sight-magnitude of its height will be half a foot, and so on.

But farther. It is constantly necessary, in perspective operations, to measure the other dimensions of objects by the sight-magnitude of their vertical lines. Thus, if the tower, which is a hundred feet high, is square, and twenty-five feet broad on each side; if the sight-magnitude of the height is one foot, the measurement of the side, reduced to the same scale, will be the hundredth part of twenty-five feet, or three inches: and, accordingly, I use in this treatise the term “sight-magnitude” indiscriminately for all lines reduced in the same proportion as the vertical lines of the object. If I tell you to find the “sight-magnitude” of any line, I mean, always, find the magnitude which bears to that line the proportion of S T to D T; or, in simpler terms, reduce the line to the scale which you have fixed by the first determination of the length S T.

Therefore, you must learn to draw quickly to scale before you do anything else; for all the measurements of your object [p72] must be reduced to the scale fixed by S T before you can use them in your diagram. If the object is fifty feet from you, and your paper one foot, all the lines of the object must be reduced to a scale of one fiftieth before you can use them; if the object is two thousand feet from you, and your paper one foot, all your lines must be reduced to the scale of one two-thousandth before you can use them, and so on. Only in ultimate practice, the reduction never need be tiresome, for, in the case of large distances, accuracy is never required. If a building is three or four miles distant, a hairbreadth of accidental variation in a touch makes a difference of ten or twenty feet in height or breadth, if estimated by accurate perspective law. Hence it is never attempted to apply measurements with precision at such distances. Measurements are only required within distances of, at the most, two or three hundred feet. Thus it may be necessary to represent a cathedral nave precisely as seen from a spot seventy feet in front of a given pillar; but we shall hardly be required to draw a cathedral three miles distant precisely as seen from seventy feet in advance of a given milestone. Of course, if such a thing be required, it can be done; only the reductions are somewhat long and complicated: in ordinary cases it is easy to assume the distance S T so as to get at the reduced dimensions in a moment. Thus, let the pillar of the nave, in the case supposed, be 42 feet high, and we are required to stand 70 feet from it: assume S T to be equal to 5 feet. Then, as 5 is to 70 so will the sight-magnitude required be to 42; that is to say, the sight-magnitude of the pillar’s height will be 3 feet. If we make S T equal to 2½ feet, the pillar’s height will be 1½ foot, and so on.

And for fine divisions into irregular parts which cannot be measured, the ninth and tenth problems of the sixth book of Euclid will serve you: the following construction is, however, I think, more practically convenient:—

The line A B (Fig. 53.) is divided by given points, a, b, c, into a given number of irregularly unequal parts; it is required to divide any other line, C D, into an equal number [p73] of parts, bearing to each other the same proportions as the parts of A B, and arranged in the same order.

Draw the two lines parallel to each other, as in the figure.

Join A C and B D, and produce the lines A C, B D, till they meet in P.

Join a P, b P, c P, cutting c D in f, g, h.

Then the line C D is divided as required, in f, g, h.

In the figure the lines A B and C D are accidentally perpendicular to A P. There is no need for their being so.

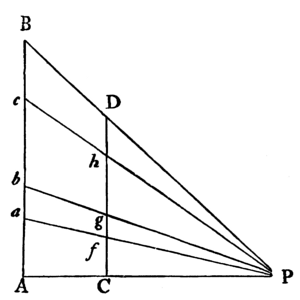

Fig. 53.

Now, to return to our first problem.

The construction given in the figure is only the quickest mathematical way of obtaining, on the picture, the sight-magnitudes of D C and P C, which are both magnitudes parallel with the picture plane. But if these magnitudes are too great to be thus put on the paper, you have only to obtain the reduction by scale. Thus, if T S be one foot, T D eighty feet, D C forty feet, and C P ninety feet, the distance Q S must be made equal to one eightieth of D C, or half a foot; and the distance Q P′, one eightieth of C P, or one eightieth of ninety feet; that is to say, nine eighths of a foot, or thirteen and a half inches. The lines C T and P T are thus practically useless, it being only necessary to measure Q S [p74] and Q P, on your paper, of the due sight-magnitudes. But the mathematical construction, given in Problem I., is the basis of all succeeding problems, and, if it is once thoroughly understood and practiced (it can only be thoroughly understood by practice), all the other problems will follow easily.

Lastly. Observe that any perspective operation whatever may be performed with reduced dimensions of every line employed, so as to bring it conveniently within the limits of your paper. When the required figure is thus constructed on a small scale, you have only to enlarge it accurately in the same proportion in which you reduced the lines of construction, and you will have the figure constructed in perspective on the scale required for use.

[p75]
PROBLEM IX.

The drawing of most buildings occurring in ordinary practice will resolve itself into applications of this problem. In general, any house, or block of houses, presents itself under the main conditions assumed here in Fig. 54. There will be an angle or corner somewhere near the spectator, as A B; and the level of the eye will usually be above the base of the building, of which, therefore, the horizontal upper lines will slope down to the vanishing-points, and the base lines rise to them. The following practical directions will, however, meet nearly all cases:—

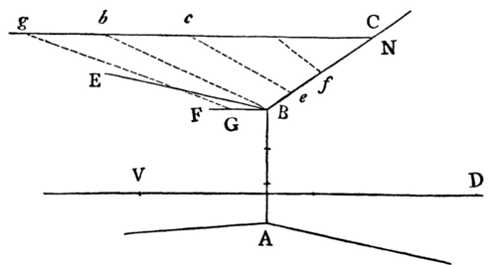

Fig. 54.

Let A B, Fig. 54., be any important vertical line in the block of buildings; if it is the side of a street, you may fix upon such a line at the division between two houses. If its real height, distance, etc., are given, you will proceed with [p76] the accurate construction of the problem; but usually you will neither know, nor care, exactly how high the building is, or how far off. In such case draw the line A B, as nearly as you can guess, about the part of the picture it ought to occupy, and on such a scale as you choose. Divide it into any convenient number of equal parts, according to the height you presume it to be. If you suppose it to be twenty feet high, you may divide it into twenty parts, and let each part stand for a foot; if thirty feet high, you may divide it into ten parts, and let each part stand for three feet; if seventy feet high, into fourteen parts, and let each part stand for five feet; and so on, avoiding thus very minute divisions till you come to details. Then observe how high your eye reaches upon this vertical line; suppose, for instance, that it is thirty feet high and divided into ten parts, and you are standing so as to raise your head to about six feet above its base, then the sight-line may be drawn, as in the figure, through the second division from the ground. If you are standing above the house, draw the sight-line above B; if below the house, below A; at such height or depth as you suppose may be accurate (a yard or two more or less matters little at ordinary distances, while at great distances perspective rules become nearly useless, the eye serving you better than the necessarily imperfect calculation). Then fix your sight-point and station-point, the latter with proper reference to the scale of the line A B. As you cannot, in all probability, ascertain the exact direction of the line A V or B V, draw the slope B V as it appears to you, cutting the sight-line in V. Thus having fixed one vanishing-point, the other, and the dividing-points, must be accurately found by rule; for, as before stated, whether your entire group of points (vanishing and dividing) falls a little more or less to the right or left of S does not signify, but the relation of the points to each other does signify. Then draw the measuring-line B G, either through A or B, choosing always the steeper slope of the two; divide the measuring-line into parts of the same length as those used on A B, and let them stand for the [p77] same magnitudes. Thus, suppose there are two rows of windows in the house front, each window six feet high by three wide, and separated by intervals of three feet, both between window and window and between tier and tier; each of the divisions here standing for three feet, the lines drawn from B G to the dividing-point D fix the lateral dimensions, and the divisions on A B the vertical ones. For other magnitudes it would be necessary to subdivide the parts on the measuring-line, or on A B, as required. The lines which regulate the inner sides or returns of the windows (a, b, c, etc.) of course are drawn to the vanishing-point of B F (the other side of the house), if F B V represents a right angle; if not, their own vanishing-point must be found separately for these returns. But see Practice on Problem XI.

Fig. 55.

Interior angles, such as E B C, Fig. 55. (suppose the corner of a room), are to be treated in the same way, each side of the room having its measurements separately carried to it from the measuring-line. It may sometimes happen in such cases that we have to carry the measurement up from the corner B, and that the sight-magnitudes are given us from the length of the line A B. For instance, suppose the room is eighteen feet high, and therefore A B is eighteen feet; and we have to lay off lengths of six feet on the top of the room wall, B C. Find D, the dividing-point of B C. Draw a [p78] measuring-line, B F, from B; and another, g C, anywhere above. On B F lay off B G equal to one third of A B, or six feet; and draw from D, through G and B, the lines G g, B b, to the upper measuring-line. Then g b is six feet on that measuring-line. Make b c, c h, etc., equal to b g; and draw c e, h f, etc., to D, cutting B C in e and f, which mark the required lengths of six feet each at the top of the wall.

[p79]
PROBLEM X.

This is one of the most important foundational problems in perspective, and it is necessary that the student should entirely familiarize himself with its conditions.

In order to do so, he must first observe these general relations of magnitude in any pyramid on a square base.

Let A G H′, Fig. 56., be any pyramid on a square base.

Fig. 56.

The best terms in which its magnitude can be given, are the length of one side of its base, A H, and its vertical altitude (C D in Fig. 25.); for, knowing these, we know all the other magnitudes. But these are not the terms in which its size will be usually ascertainable. Generally, we shall have given us, and be able to ascertain by measurement, one side of its base A H, and either A G the length of one of the lines of its angles, or B G (or B′ G) the length of a line drawn from its vertex, G, to the middle of the side of its base. In measuring a real pyramid, A G will usually be the line most easily found; but in many architectural problems B G is given, or is most easily ascertainable.

Observe therefore this general construction.

Fig. 57.

Let A B D E, Fig. 57., be the square base of any pyramid.

Draw its diagonals, A E, B D, cutting each other in its center, C.

Bisect any side, A B, in F.

From F erect vertical F G.

Produce F B to H, and make F H equal to A C.

Now if the vertical altitude of the pyramid (C D in Fig. 25.) be given, make F G equal to this vertical altitude.

[p80]
Join G B and G H.

Then G B and G H are the true magnitudes of G B and G H in Fig. 56.

If G B is given, and not the vertical altitude, with center B, and distance G B, describe circle cutting F G in G, and F G is the vertical altitude.

If G H is given, describe the circle from H, with distance G H, and it will similarly cut F G in G.

It is especially necessary for the student to examine this construction thoroughly, because in many complicated forms of ornaments, capitals of columns, etc., the lines B G and G H become the limits or bases of curves, which are elongated on the longer (or angle) profile G H, and shortened on the shorter (or lateral) profile B G. We will take a simple instance, but must previously note another construction.

It is often necessary, when pyramids are the roots of some ornamental form, to divide them horizontally at a given vertical height. The shortest way of doing so is in general the following.

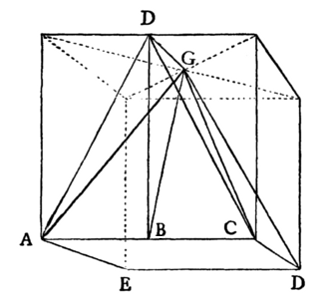

Fig. 58.

Let A E C, Fig. 58., be any pyramid on a square base A B C, and A D C the square pillar used in its construction.

[p81]
Then by construction (Problem X.) B D and A F are both of the vertical height of the pyramid.

Of the diagonals, F E, D E, choose the shortest (in this case D E), and produce it to cut the sight-line in V.

Therefore V is the vanishing-point of D E.

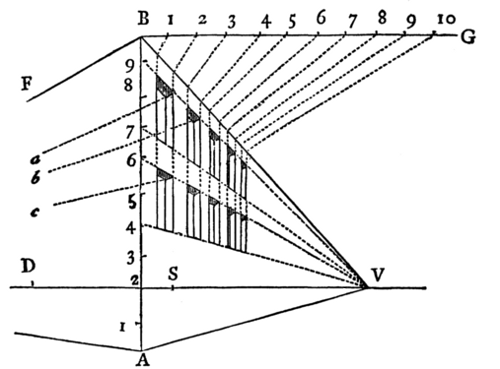

Divide D B, as may be required, into the sight-magnitudes of the given vertical heights at which the pyramid is to be divided.

  Fig. 59.

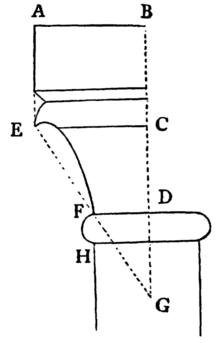

  Fig. 60.

From the points of division, 1, 2, 3, etc., draw to the vanishing-point V. The lines so drawn cut the angle line of the pyramid, B E, at the required elevations. Thus, in the figure, it is required to draw a horizontal black band on the pyramid at three fifths of its height, and in breadth one twentieth of its height. The line B D is divided into five parts, of which three are counted from B upwards. Then the line drawn to V marks the base of the black band. Then one fourth of one of the five parts is measured, which similarly gives the breadth of the band. The terminal lines of the band are then drawn on the sides of the pyramid parallel to A B (or to its vanishing-point if it has one), and to the vanishing-point of B C.

[p82]
If it happens that the vanishing-points of the diagonals are awkwardly placed for use, bisect the nearest base line of the pyramid in B, as in Fig. 59.

Erect the vertical D B and join G B and D G (G being the apex of pyramid).

Find the vanishing-point of D G, and use D B for division, carrying the measurements to the line G B.

In Fig. 59., if we join A D and D C, A D C is the vertical profile of the whole pyramid, and B D C of the half pyramid, corresponding to F G B in Fig. 57.

Fig. 61.

We may now proceed to an architectural example.

Let A H, Fig. 60., be the vertical profile of the capital of a pillar, A B the semi-diameter of its head or abacus, and F D the semi-diameter of its shaft.

Let the shaft be circular, and the abacus square, down to the level E.

Join B D, E F, and produce them to meet in G.

Therefore E C G is the semi-profile of a reversed pyramid containing the capital.

[p83]
Construct this pyramid, with the square of the abacus, in the required perspective, as in Fig. 61.; making A E equal to A E in Fig. 60., and A K, the side of the square, equal to twice A B in Fig. 60. Make E G equal to C G, and E D equal to C D. Draw D F to the vanishing-point of the diagonal D V (the figure is too small to include this vanishing-point), and F is the level of the point F in Fig. 60., on the side of the pyramid.

Draw F m, F n, to the vanishing-points of A H and A K. Then F n and F m are horizontal lines across the pyramid at the level F, forming at that level two sides of a square.

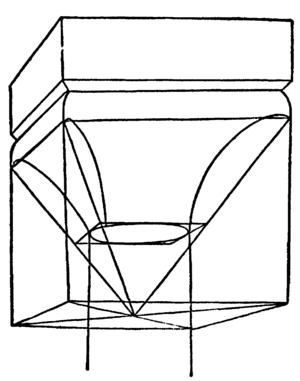

Fig. 62.

Complete the square, and within it inscribe a circle, as in Fig. 62., which is left unlettered that its construction may be clear. At the extremities of this draw vertical lines, which will be the sides of the shaft in its right place. It will be found to be somewhat smaller in diameter than the entire shaft in Fig. 60., because at the center of the square it is more distant than the nearest edge of the square abacus. The curves of the capital may then be drawn approximately by the eye. They are not quite accurate in Fig. 62., there [p84] being a subtlety in their junction with the shaft which could not be shown on so small a scale without confusing the student; the curve on the left springing from a point a little way round the circle behind the shaft, and that on the right from a point on this side of the circle a little way within the edge of the shaft. But for their more accurate construction see Notes on Problem XIV.

[p85]
PROBLEM XI.

It is seldom that any complicated curve, except occasionally a spiral, needs to be drawn in perspective; but the student will do well to practice for some time any fantastic shapes which he can find drawn on flat surfaces, as on wall-papers, carpets, etc., in order to accustom himself to the strange and great changes which perspective causes in them.

Fig. 63.

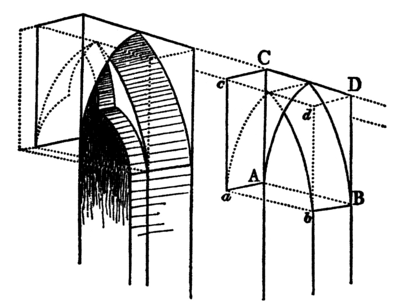

The curves most required in architectural drawing, after the circle, are those of pointed arches; in which, however, all that will be generally needed is to fix the apex, and two points in the sides. Thus if we have to draw a range of pointed arches, such as A P B, Fig. 63., draw the measured arch to its sight-magnitude first neatly in a rectangle, A B C D; then draw the diagonals A D and B C; where they cut the curve draw a horizontal line (as at the level E in the figure), and carry it along the range to the vanishing-point, fixing the points where the arches cut their diagonals all along. If the arch is cusped, a line should be drawn, at F to mark the height of the cusps, and verticals raised at G and H, to determine the interval between them. Any other points [p86] may be similarly determined, but these will usually be enough. Figure 63. shows the perspective construction of a square niche of good Veronese Gothic, with an uncusped arch of similar size and curve beyond.

Fig. 64.

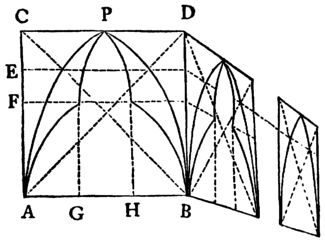

In Fig. 64. the more distant arch only is lettered, as the construction of the nearest explains itself more clearly to the eye without letters. The more distant arch shows the general construction for all arches seen underneath, as of bridges, cathedral aisles, etc. The rectangle A B C D is first drawn to contain the outside arch; then the depth of the arch, A a, is determined by the measuring-line, and the rectangle, a b c d, drawn for the inner arch.

A a, B b, etc., go to one vanishing-point; A B, a b, etc., to the opposite one.

In the nearer arch another narrow rectangle is drawn to determine the cusp. The parts which would actually come into sight are slightly shaded.

[p87]
PROBLEM XIV.

Several exercises will be required on this important problem.

I. It is required to draw a circular flat-bottomed dish narrower at the bottom than the top; the vertical depth being given, and the diameter at the top and bottom.

Fig. 65.

Let a b, Fig. 65., be the diameter of the bottom, a c the diameter of the top, and a d its vertical depth.

Take A D in position equal to a c.

On A D draw the square A B C D, and inscribe in it a circle.

Therefore, the circle so inscribed has the diameter of the top of the dish.

From A and D let fall verticals, A E, D H, each equal to a d.

Join E H, and describe square E F G H, which accordingly will be equal to the square A B C D, and be at the depth a d beneath it.

Within the square E F G H describe a square I K, whose diameter shall be equal to a b.

Describe a circle within the square I K. Therefore the circle so inscribed has its diameter equal to a b; and it is [p88] in the center of the square E F G H, which is vertically beneath the square A B C D.

Therefore the circle in the square I K represents the bottom of the dish.

Now the two circles thus drawn will either intersect one another, or they will not.

If they intersect one another, as in the figure, and they are below the eye, part of the bottom of the dish is seen within it.

Fig. 66.

To avoid confusion, let us take then two intersecting circles without the inclosing squares, as in Fig. 66.

Draw right lines, a b, c d, touching both circles externally. Then the parts of these lines which connect the circles are the sides of the dish. They are drawn in Fig. 65. without any prolongations, but the best way to construct them is as in Fig. 66.

If the circles do not intersect each other, the smaller must either be within the larger or not within it.

If within the larger, the whole of the bottom of the dish is seen from above, Fig. 67. a.

Fig. 67.

If the smaller circle is not within the larger, none of the bottom is seen inside the dish, b.

If the circles are above instead of beneath the eye, the bottom of the dish is seen beneath it, c.

If one circle is above and another beneath the eye, neither the bottom nor top of the dish is seen, d. Unless the object be very large, the circles in this case will have little apparent curvature.

II. The preceding problem is simple, [p89] because the lines of the profile of the object (a b and c d, Fig. 66.) are straight. But if these lines of profile are curved, the problem becomes much more complex: once mastered, however, it leaves no farther difficulty in perspective.

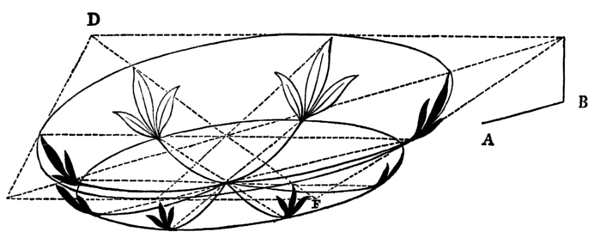

Let it be required to draw a flattish circular cup or vase, with a given curve of profile.

The basis of construction is given in Fig. 68., half of it only being drawn, in order that the eye may seize its lines easily.

Fig. 68.

Two squares (of the required size) are first drawn, one above the other, with a given vertical interval, A C, between them, and each is divided into eight parts by its diameters and diagonals. In these squares two circles are drawn; which are, therefore, of equal size, and one above the other. Two smaller circles, also of equal size, are drawn within these larger circles in the construction of the present problem; more may be necessary in some, none at all in others.

It will be seen that the portions of the diagonals and diameters of squares which are cut off between the circles represent radiating planes, occupying the position of the spokes of a wheel.

Now let the line A E B, Fig. 69., be the profile of the vase or cup to be drawn.

Inclose it in the rectangle C D, and if any portion of it is not curved, as A E, cut off the curved portion by the vertical line E F, so as to include it in the smaller rectangle F D.

[p90]
Draw the rectangle A C B D in position, and upon it construct two squares, as they are constructed on the rectangle A C D in Fig. 68.; and complete the construction of Fig. 68., making the radius of its large outer circles equal to A D, and of its small inner circles equal to A E.

The planes which occupy the position of the wheel spokes will then each represent a rectangle of the size of F D. The construction is shown by the dotted lines in Fig. 69.; c being the center of the uppermost circle.

Fig. 69.

Within each of the smaller rectangles between the circles, draw the curve E B in perspective, as in Fig. 69.

Draw the curve x y, touching and inclosing the curves in the rectangles, and meeting the upper circle at y.[Footnote 32]

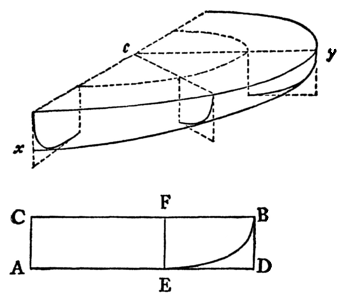

Then x y is the contour of the surface of the cup, and the upper circle is its lip.

If the line x y is long, it may be necessary to draw other rectangles between the eight principal ones; and, if the curve of profile A B is complex or retorted, there may be several lines corresponding to X Y, inclosing the successive waves of the profile; and the outer curve will then be an undulating or broken one.

[p91]

Fig. 70.

III. All branched ornamentation, forms of flowers, capitals of columns, machicolations of round towers, and other such arrangements of radiating curve, are resolvable by this problem, using more or fewer interior circles according to the conditions of the curves. Fig. 70. is an example of the construction of a circular group of eight trefoils with curved stems. One outer or limiting circle is drawn within the square E D C F, and the extremities of the trefoils touch it at the extremities of its diagonals and diameters. A [p92] smaller circle is at the vertical distance B C below the larger, and A is the angle of the square within which the smaller circle is drawn; but the square is not given, to avoid confusion. The stems of the trefoils form drooping curves, arranged on the diagonals and diameters of the smaller circle, which are dotted. But no perspective laws will do work of this intricate kind so well as the hand and eye of a painter.

IV. There is one common construction, however, in which, singularly, the hand and eye of the painter almost always fail, and that is the fillet of any ordinary capital or base of a circular pillar (or any similar form). It is rarely necessary in practice to draw such minor details in perspective; yet the perspective laws which regulate them should be understood, else the eye does not see their contours rightly until it is very highly cultivated.

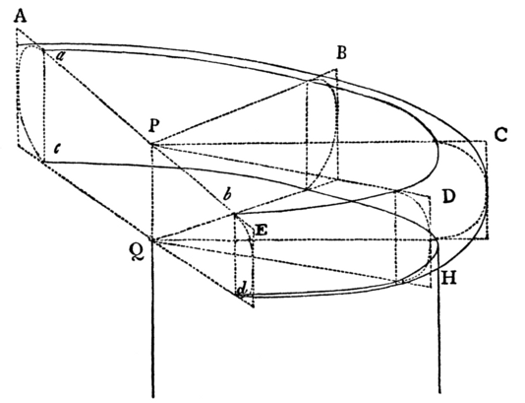

Fig. 71.

Fig. 71. will show the law with sufficient clearness; it represents the perspective construction of a fillet whose profile is a semicircle, such as F H in Fig. 60., seen above the eye. Only half the pillar with half the fillet is drawn, to avoid confusion.

[p93]
Q is the center of the shaft.

P Q the thickness of the fillet, sight-magnitude at the shaft’s center.

Round P a horizontal semicircle is drawn on the diameter of the shaft a b.

Round Q another horizontal semicircle is drawn on diameter c d.

These two semicircles are the upper and lower edges of the fillet.

Then diagonals and diameters are drawn as in Fig. 68., and, at their extremities, semicircles in perspective, as in Fig. 69.

The letters A, B, C, D, and E, indicate the upper and exterior angles of the rectangles in which these semicircles are to be drawn; but the inner vertical line is not dotted in the rectangle at C, as it would have confused itself with other lines.

Then the visible contour of the fillet is the line which incloses and touches[Footnote 33] all the semicircles. It disappears behind the shaft at the point H, but I have drawn it through to the opposite extremity of the diameter at d.

Turned upside down the figure shows the construction of a basic fillet.

The capital of a Greek Doric pillar should be drawn frequently for exercise on this fourteenth problem, the curve of its echinus being exquisitely subtle, while the general contour is simple.

[p94]
PROBLEM XVI.

It is often possible to shorten other perspective operations considerably, by finding the vanishing-points of the inclined lines of the object. Thus, in drawing the gabled roof in Fig. 43., if the gable A Y C be drawn in perspective, and the vanishing-point of A Y determined, it is not necessary to draw the two sides of the rectangle, A′ D′ and D′ B′, in order to determine the point Y′; but merely to draw Y Y′ to the vanishing-point of A A′ and A′ Y′ to the vanishing-point of A Y, meeting in Y′, the point required.

Again, if there be a series of gables, or other figures produced by parallel inclined lines, and retiring to the point V, as in Fig. 72.,[Footnote 34] it is not necessary to draw each separately, but merely to determine their breadths on the line A V, and draw the slopes of each to their vanishing-points, as shown in Fig. 72. Or if the gables are equal in height, and a line be drawn from Y to V, the construction resolves itself into a zigzag drawn alternately to P and Q, between the lines Y V and A V.

The student must be very cautious, in finding the vanishing-points of inclined lines, to notice their relations to the horizontals beneath them, else he may easily mistake the horizontal to which they belong.

Thus, let A B C D, Fig. 73., be a rectangular inclined plane, and let it be required to find the vanishing-point of its diagonal B D.

Find V, the vanishing-point of A D and B C.

Draw A E to the opposite vanishing-point, so that D A E may represent a right angle.

Let fall from B the vertical B E, cutting A E in E.

Join E D, and produce it to cut the sight-line in V′.

[p95]

Fig. 72.

[p96]
Then, since the point E is vertically under the point B, the horizontal line E D is vertically under the inclined line B D.

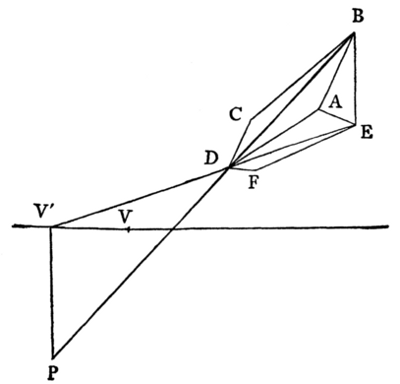

Fig. 73.

So that if we now let fall the vertical V′ P from V′, and produce B D to cut V′ P in P, the point P will be the vanishing-point of B D, and of all lines parallel to it.[Footnote 35]

[p97]
PROBLEM XVIII.

Before examining the last three problems it is necessary that you should understand accurately what is meant by the position of an inclined plane.

Cut a piece of strong white pasteboard into any irregular shape, and dip it in a sloped position into water. However you hold it, the edge of the water, of course, will always draw a horizontal line across its surface. The direction of this horizontal line is the direction of the inclined plane. (In beds of rock geologists call it their “strike.”)

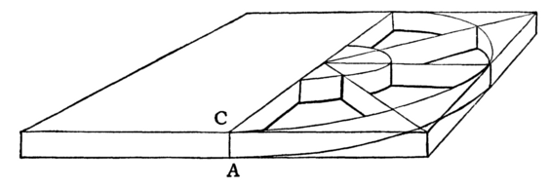

Fig. 74.

Next, draw a semicircle on the piece of pasteboard; draw its diameter, A B, Fig. 74., and a vertical line from its center, C D; and draw some other lines, C E, C F, etc., from the center to any points in the circumference.

Now dip the piece of pasteboard again into water, and, holding it at any inclination and in any direction you choose, bring the surface of the water to the line A B. Then the line C D will be the most steeply inclined of all the lines drawn to the circumference of the circle; G C and H C will be less steep; and E C and F C less steep still. The nearer the lines to C D, the steeper they will be; and the nearer to A B, the more nearly horizontal.

[p98]
When, therefore, the line A B is horizontal (or marks the water surface), its direction is the direction of the inclined plane, and the inclination of the line D C is the inclination of the inclined plane. In beds of rock geologists call the inclination of the line D C their “dip.”

To fix the position of an inclined plane, therefore, is to determine the direction of any two lines in the plane, A B and C D, of which one shall be horizontal and the other at right angles to it. Then any lines drawn in the inclined plane, parallel to A B, will be horizontal; and lines drawn parallel to C D will be as steep as C D, and are spoken of in the text as the “steepest lines” in the plane.

But farther, whatever the direction of a plane may be, if it be extended indefinitely, it will be terminated, to the eye of the observer, by a boundary line, which, in a horizontal plane, is horizontal (coinciding nearly with the visible horizon);—in a vertical plane, is vertical;—and, in an inclined plane, is inclined.

This line is properly, in each case, called the “sight-line” of such plane; but it is only properly called the “horizon” in the case of a horizontal plane: and I have preferred using always the term “sight-line,” not only because more comprehensive, but more accurate; for though the curvature of the earth’s surface is so slight that practically its visible limit always coincides with the sight-line of a horizontal plane, it does not mathematically coincide with it, and the two lines ought not to be considered as theoretically identical, though they are so in practice.

It is evident that all vanishing-points of lines in any plane must be found on its sight-line, and, therefore, that the sight-line of any plane may be found by joining any two of such vanishing-points. Hence the construction of Problem XVIII.

[p99]
II.

DEMONSTRATIONS WHICH COULD NOT CONVENIENTLY BE INCLUDED IN THE TEXT.

---

I.

THE SECOND COROLLARY, PROBLEM II.

In Fig. 8. omit the lines C D, C′ D′, and D S; and, as here in Fig. 75., from a draw a d parallel to A B, cutting B T in d; and from d draw d e parallel to B C′.

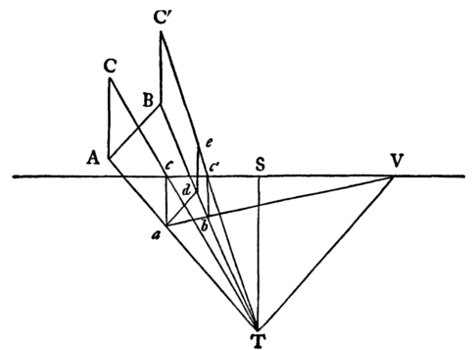

Fig. 75.

Now as a d is parallel to A B—

[p100]
Now because the triangles a c V, b c′ V, are similar—

But a c is equal to d e—

But a d is parallel to A B—

[p101]
II.

THE THIRD COROLLARY, PROBLEM III.

In Fig. 13., since a R is by construction parallel to A B in Fig. 12., and T V is by construction in Problem III. also parallel to A B—

Again, by the construction of Fig. 13., a R′ is parallel to M V—

And it has just been shown that also

But by construction, a R′ = a R—

[p102]
III.

ANALYSIS OF PROBLEM XV.

We proceed to take up the general condition of the second problem, before left unexamined, namely, that in which the vertical distances B C′ and A C (Fig. 6. page 13), as well as the direct distances T D and T D′ are unequal.

In Fig. 6., here repeated (Fig. 76.), produce C′ B downwards, and make C′ E equal to C A.

Fig. 76.

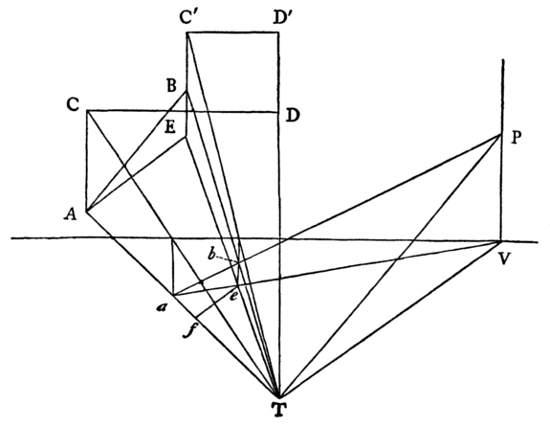

Join A E.

Then, by the second Corollary of Problem II., A E is a horizontal line.

Draw T V parallel to A E, cutting the sight-line in V.

[p103]
Complete the constructions of Problem II. and its second Corollary.

Then by Problem II. a b is the line A B drawn in perspective; and by its Corollary a e is the line A E drawn in perspective.

From V erect perpendicular V P, and produce a b to cut it in P.

Join T P, and from e draw e f parallel to A E, and cutting A T in f.

Now in triangles E B T and A E T, as e b is parallel to E B and e f to A E;—e b ∶ e f ∷ E B ∶ A E[eqn x].

But T V is also parallel to A E and P V to e b.

Therefore also in the triangles a P V and a V T,

Therefore P V ∶ V T ∷ E B ∶ A E[eqn xii].

And, by construction, angle T P V = ∠ A E B.

Therefore the triangles T V P, A E B, are similar; and T P is parallel to A B.

[p104]
Now the construction in this problem is entirely general for any inclined line A B, and a horizontal line A E in the same vertical plane with it.

So that if we find the vanishing-point of A E in V, and from V erect a vertical V P, and from T draw T P parallel to A B, cutting V P in P, P will be the vanishing-point of A B, and (by the same proof as that given at page 17) of all lines parallel to it.

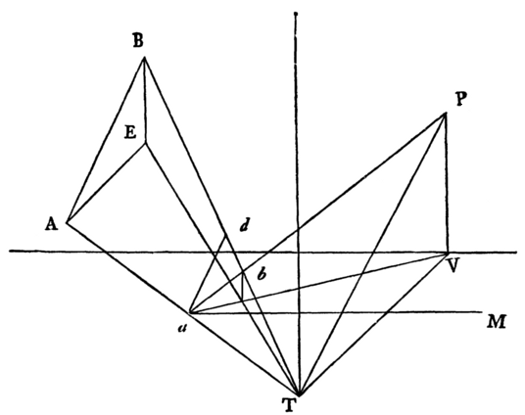

Fig. 77.

Next, to find the dividing-point of the inclined line.

I remove some unnecessary lines from the last figure and repeat it here, Fig. 77., adding the measuring-line a M, that the student may observe its position with respect to the other lines before I remove any more of them.

Now if the line A B in this diagram represented the length of the line A B in reality (as A B does in Figs. 10. and 11.), we should only have to proceed to modify Corollary III. of Problem II. to this new construction. We shall see presently that A B does not represent the actual length of the inclined line A B in nature, nevertheless we shall first proceed as if it did, and modify our result afterwards.

[p105]
In Fig. 77. draw a d parallel to A B, cutting B T in d.

Therefore a d is the sight-magnitude of A B, as a R is of A B in Fig. 11.

Fig. 78.

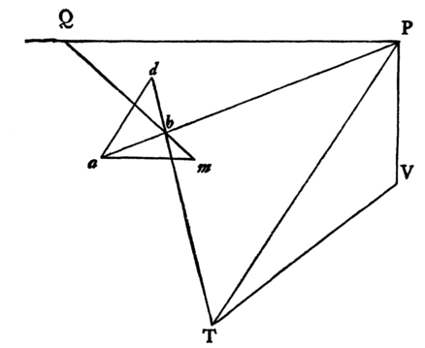

Remove again from the figure all lines except P V, V T, P T, a b, a d, and the measuring-line.

Set off on the measuring-line a m equal to a d.

Draw P Q parallel to a m, and through b draw m Q, cutting P Q in Q.

Then, by the proof already given in page 20, P Q = P T.

Therefore if P is the vanishing-point of an inclined line A B, and Q P is a horizontal line drawn through it, make P Q equal to P T, and a m on the measuring-line equal to the sight-magnitude of the line A B in the diagram, and the line joining m Q will cut a P in b.

We have now, therefore, to consider what relation the length of the line A B in this diagram, Fig. 77., has to the length of the line A B in reality.

Now the line A E in Fig. 77. represents the length of A E in reality.

But the angle A E B, Fig. 77., and the corresponding angle in all the constructions of the earlier problems, is in reality a right angle, though in the diagram necessarily represented as obtuse.

Fig. 79.

Therefore, if from E we draw E C, as in Fig. 79., at right angles to A E, make E C = E B, and join A C, A C will be the real length of the line A B.

Now, therefore, if instead of a m in Fig. 78., we take the real length of A B, that real length will be to a m as A C to A B in Fig. 79.

And then, if the line drawn to the measuring-line P Q is still to cut a P in b, it is evident that the line P Q must be shortened in the same ratio that a m was shortened; and the true dividing-point will be Q′ in Fig. 80., fixed so that Q′ P shall be to Q P as a m′ is to a m; a m′ representing the real length of A B.

[p106]
But a m′ is therefore to a m as A C is to A B in Fig. 79.

Therefore P Q′ must be to P Q as A C is to A B.

But P Q equals P T (Fig. 78.); and P V is to V T (in Fig. 78.) as B E is to A E (Fig. 79.).

Hence we have only to substitute P V for E C, and V T for A E, in Fig. 79., and the resulting diagonal A C will be the required length of P Q′.

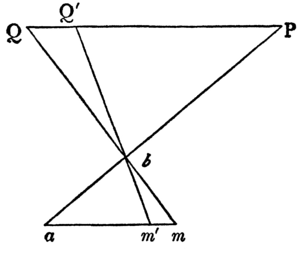

Fig. 80.

It will be seen that the construction given in the text (Fig. 46.) is the simplest means of obtaining this magnitude, for V D in Fig. 46. (or V M in Fig. 15.) = V T by construction in Problem IV. It should, however, be observed, that the distance P Q′ or P X, in Fig. 46., may be laid on the sight-line of the inclined plane itself, if the measuring-line be drawn parallel to that sight-line. And thus any form may be drawn on an inclined plane as conveniently as on a horizontal one, with the single exception of the radiation of the verticals, which have a vanishing-point, as shown in Problem XX.

THE END.

End of Project Gutenberg's The Elements of Perspective, by John Ruskin

*** END OF THIS PROJECT GUTENBERG EBOOK THE ELEMENTS OF PERSPECTIVE ***

***** This file should be named 60816-h.htm or 60816-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/6/0/8/1/60816/

Produced by Juliet Sutherland, David Wilson and the Online
Distributed Proofreading Team at http://www.pgdp.net

Updated editions will replace the previous one--the old editions will
be renamed.

Creating the works from print editions not protected by U.S. copyright
law means that no one owns a United States copyright in these works,
so the Foundation (and you!) can copy and distribute it in the United
States without permission and without paying copyright
royalties. Special rules, set forth in the General Terms of Use part
of this license, apply to copying and distributing Project
Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm
concept and trademark. Project Gutenberg is a registered trademark,
and may not be used if you charge for the eBooks, unless you receive
specific permission. If you do not charge anything for copies of this
eBook, complying with the rules is very easy. You may use this eBook
for nearly any purpose such as creation of derivative works, reports,
performances and research. They may be modified and printed and given
away--you may do practically ANYTHING in the United States with eBooks
not protected by U.S. copyright law. Redistribution is subject to the
trademark license, especially commercial redistribution.

START: FULL LICENSE

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full
Project Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.

Section 1. General Terms of Use and Redistributing Project
Gutenberg-tm electronic works

1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or
destroy all copies of Project Gutenberg-tm electronic works in your
possession. If you paid a fee for obtaining a copy of or access to a
Project Gutenberg-tm electronic work and you do not agree to be bound
by the terms of this agreement, you may obtain a refund from the
person or entity to whom you paid the fee as set forth in paragraph
1.E.8.

1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this
agreement and help preserve free future access to Project Gutenberg-tm
electronic works. See paragraph 1.E below.

1.C. The Project Gutenberg Literary Archive Foundation ("the
Foundation" or PGLAF), owns a compilation copyright in the collection
of Project Gutenberg-tm electronic works. Nearly all the individual
works in the collection are in the public domain in the United
States. If an individual work is unprotected by copyright law in the
United States and you are located in the United States, we do not
claim a right to prevent you from copying, distributing, performing,
displaying or creating derivative works based on the work as long as
all references to Project Gutenberg are removed. Of course, we hope
that you will support the Project Gutenberg-tm mission of promoting
free access to electronic works by freely sharing Project Gutenberg-tm
works in compliance with the terms of this agreement for keeping the
Project Gutenberg-tm name associated with the work. You can easily
comply with the terms of this agreement by keeping this work in the
same format with its attached full Project Gutenberg-tm License when
you share it without charge with others.

1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are
in a constant state of change. If you are outside the United States,
check the laws of your country in addition to the terms of this
agreement before downloading, copying, displaying, performing,
distributing or creating derivative works based on this work or any
other Project Gutenberg-tm work. The Foundation makes no
representations concerning the copyright status of any work in any
country outside the United States.

1.E. Unless you have removed all references to Project Gutenberg:

1.E.1. The following sentence, with active links to, or other
immediate access to, the full Project Gutenberg-tm License must appear
prominently whenever any copy of a Project Gutenberg-tm work (any work
on which the phrase "Project Gutenberg" appears, or with which the
phrase "Project Gutenberg" is associated) is accessed, displayed,
performed, viewed, copied or distributed:

  This eBook is for the use of anyone anywhere in the United States and
  most other parts of the world at no cost and with almost no
  restrictions whatsoever. You may copy it, give it away or re-use it
  under the terms of the Project Gutenberg License included with this
  eBook or online at www.gutenberg.org. If you are not located in the
  United States, you'll have to check the laws of the country where you
  are located before using this ebook.

1.E.2. If an individual Project Gutenberg-tm electronic work is
derived from texts not protected by U.S. copyright law (does not
contain a notice indicating that it is posted with permission of the
copyright holder), the work can be copied and distributed to anyone in
the United States without paying any fees or charges. If you are
redistributing or providing access to a work with the phrase "Project
Gutenberg" associated with or appearing on the work, you must comply
either with the requirements of paragraphs 1.E.1 through 1.E.7 or
obtain permission for the use of the work and the Project Gutenberg-tm
trademark as set forth in paragraphs 1.E.8 or 1.E.9.

1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any
additional terms imposed by the copyright holder. Additional terms
will be linked to the Project Gutenberg-tm License for all works
posted with the permission of the copyright holder found at the
beginning of this work.

1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including
any word processing or hypertext form. However, if you provide access
to or distribute copies of a Project Gutenberg-tm work in a format
other than "Plain Vanilla ASCII" or other format used in the official
version posted on the official Project Gutenberg-tm web site
(www.gutenberg.org), you must, at no additional cost, fee or expense
to the user, provide a copy, a means of exporting a copy, or a means
of obtaining a copy upon request, of the work in its original "Plain
Vanilla ASCII" or other form. Any alternate format must include the
full Project Gutenberg-tm License as specified in paragraph 1.E.1.

1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works
provided that

* You pay a royalty fee of 20% of the gross profits you derive from
  the use of Project Gutenberg-tm works calculated using the method
  you already use to calculate your applicable taxes. The fee is owed
  to the owner of the Project Gutenberg-tm trademark, but he has
  agreed to donate royalties under this paragraph to the Project
  Gutenberg Literary Archive Foundation. Royalty payments must be paid
  within 60 days following each date on which you prepare (or are
  legally required to prepare) your periodic tax returns. Royalty
  payments should be clearly marked as such and sent to the Project
  Gutenberg Literary Archive Foundation at the address specified in
  Section 4, "Information about donations to the Project Gutenberg
  Literary Archive Foundation."

* You provide a full refund of any money paid by a user who notifies
  you in writing (or by e-mail) within 30 days of receipt that s/he
  does not agree to the terms of the full Project Gutenberg-tm
  License. You must require such a user to return or destroy all
  copies of the works possessed in a physical medium and discontinue
  all use of and all access to other copies of Project Gutenberg-tm
  works.

* You provide, in accordance with paragraph 1.F.3, a full refund of
  any money paid for a work or a replacement copy, if a defect in the
  electronic work is discovered and reported to you within 90 days of
  receipt of the work.

* You comply with all other terms of this agreement for free
  distribution of Project Gutenberg-tm works.

1.E.9. If you wish to charge a fee or distribute a Project
Gutenberg-tm electronic work or group of works on different terms than
are set forth in this agreement, you must obtain permission in writing
from both the Project Gutenberg Literary Archive Foundation and The
Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm
trademark. Contact the Foundation as set forth in Section 3 below.

1.F.

1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
works not protected by U.S. copyright law in creating the Project
Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm
electronic works, and the medium on which they may be stored, may
contain "Defects," such as, but not limited to, incomplete, inaccurate
or corrupt data, transcription errors, a copyright or other
intellectual property infringement, a defective or damaged disk or
other medium, a computer virus, or computer codes that damage or
cannot be read by your equipment.

1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium
with your written explanation. The person or entity that provided you
with the defective work may elect to provide a replacement copy in
lieu of a refund. If you received the work electronically, the person
or entity providing it to you may choose to give you a second
opportunity to receive the work electronically in lieu of a refund. If
the second copy is also defective, you may demand a refund in writing
without further opportunities to fix the problem.

1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO
OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.

1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of
damages. If any disclaimer or limitation set forth in this agreement
violates the law of the state applicable to this agreement, the
agreement shall be interpreted to make the maximum disclaimer or
limitation permitted by the applicable state law. The invalidity or
unenforceability of any provision of this agreement shall not void the
remaining provisions.

1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in
accordance with this agreement, and any volunteers associated with the
production, promotion and distribution of Project Gutenberg-tm
electronic works, harmless from all liability, costs and expenses,
including legal fees, that arise directly or indirectly from any of
the following which you do or cause to occur: (a) distribution of this
or any Project Gutenberg-tm work, (b) alteration, modification, or
additions or deletions to any Project Gutenberg-tm work, and (c) any
Defect you cause.

Section 2. Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of
computers including obsolete, old, middle-aged and new computers. It
exists because of the efforts of hundreds of volunteers and donations
from people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future
generations. To learn more about the Project Gutenberg Literary
Archive Foundation and how your efforts and donations can help, see
Sections 3 and 4 and the Foundation information page at
www.gutenberg.org



Section 3. Information about the Project Gutenberg Literary Archive Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg Literary
Archive Foundation are tax deductible to the full extent permitted by
U.S. federal laws and your state's laws.

The Foundation's principal office is in Fairbanks, Alaska, with the
mailing address: PO Box 750175, Fairbanks, AK 99775, but its
volunteers and employees are scattered throughout numerous
locations. Its business office is located at 809 North 1500 West, Salt
Lake City, UT 84116, (801) 596-1887. Email contact links and up to
date contact information can be found at the Foundation's web site and
official page at www.gutenberg.org/contact

For additional contact information:

    Dr. Gregory B. Newby
    Chief Executive and Director
    [email protected]

Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To SEND
DONATIONS or determine the status of compliance for any particular
state visit www.gutenberg.org/donate

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations. To
donate, please visit: www.gutenberg.org/donate

Section 5. General Information About Project Gutenberg-tm electronic works.

Professor Michael S. Hart was the originator of the Project
Gutenberg-tm concept of a library of electronic works that could be
freely shared with anyone. For forty years, he produced and
distributed Project Gutenberg-tm eBooks with only a loose network of
volunteer support.

Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as not protected by copyright in
the U.S. unless a copyright notice is included. Thus, we do not
necessarily keep eBooks in compliance with any particular paper
edition.

Most people start at our Web site which has the main PG search
facility: www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
