This booklet is not intended to be the last word on Southern Derringers. I suspect that it is merely intended to be a guide for someone who has more patience than I to do the research work that is required on a complete story.
I am listing 29 different makers all of which are authenticated. This story does not include pocket pistols, which are of a slightly different shape nor does it include overcoat pistols or duelling pistols. I think these are of an entirely different category even if these same makers produced them.
You may debate the excluding of the following:
Because I live in the Mississippi Valley, the guns that I am describing are of special interest to me and the others that can be called southern guns do not fit into my scheme of things.
Thus I have narrowed down geographically this story of the derringers of the Mississippi Valley to an exclusive group. It is sad that so little research work has been done in this direction in the past. Careful study of other books shows that only six or eight of these twenty-nine names and authenticated guns are spoken of in limited terms.
Since I got my first muzzleloading gun when I was 12 years old, I guess you could say I have been collecting guns for 38 years. In that length of time I have met many wonderful people and made numerous everlasting friends. Among these people are Hume Parks, Hal Swann, Cecil Godman, Dr. Bill Huckaba, Dr. D. R. Moore, Leon Jackson, Robin Hale, Harry G. King and Charles Elias all of which ably assisted me with this booklet and without those efforts, it would not have been possible.
{Trophy Shelf}
During the 20 months in 1969 and 1970 that we have been displaying our derringers at gun shows we have won 25 awards. Our derringers have been displayed from the East Coast to the West Coast and from the North to the South. Great acclaim was given them at the National Rifle Association Convention. Considering the point that awards are won not only on quality or quantity but on the educational value, we believe that our display is one of the best. Now that the ice has been broken towards listing and showing all of the different southern makers, let us hope that our collector friends will come up with more information and more details of when these little known gunsmiths and dealers operated and perhaps new makers that are not now recognized or known.
This chart shows the relative rarity of Southern derringers in the opinion of several knowledgeable collectors. Position #1 is the easiest to obtain and position #10 is the hardest to find. The text of this book takes up each maker in this same order.
| 1. | Hyde & Goodrich | 1 |
| 2. | F. H. Clark | 2 |
| 3. | Schneider | 3 |
| 4. | F. Glassick | 3 |
| 5. | C. Suter | 5 |
| 6. | H. E. Dimick | 5 |
| 7. | F. J. Bitterlick | 5 |
| 8. | Lullman & Vienna | 6 |
| 9. | Bitterlick & Legler | 7 |
| 10. | S. O’Dell | 7 |
| 11. | Schneider & Glassick | 8 |
| 12. | W. H. Calhoun | 8 |
| 13. | L. Swett | 9 |
| 14. | J. A. Schafer | 9 |
| 15. | J. R. Trumpler | 9 |
| 16. | J. B. Gilmore | 9 |
| 17. | Linde | 10 |
| 18. | Folsom | 10 |
| 19. | A. Weisgerber | 10 |
| 20. | J. Mirriman | 10 |
| 21. | Louis Hoffman | 10 |
| 22. | J. Conning | 10 |
| 23. | A. R. Mendenhall | 10 |
| 24. | J. Hausmann | 10 |
| 25. | A. J. Millspaugh | 10 |
| 26. | Holyoake-Lownes | 10 |
| 27. | F. S. Schumann | 10 |
| 28. | E. R. Sieber | 10 |
| 29. | H. G. Newcomb | 10 |
Henry Deringer of the famed Philadelphia company believed that the greatest part of his trade was in the southern states. It was only proper that many independent makers of derringer type guns would spring up throughout the area where they were so popular. The line from St. Louis to New Orleans was the starting point for the westward trade and many of these guns were carried as a hideout weapon to California during the most popular period from 1845 through 1870. A casual study shows great differences between the southern made derringers and those of Philadelphia, each of which has its own peculiar and particular characteristics.
In the court case of Henry Deringer vs. Plate, Deringer states that he started producing his celebrated small gun in 1825. A careful study of the southern manufactured derringers shows that all of them started around 1855 or later with some of them continuing production until the 1870s.
There are two kinds of Southern Derringers; those that are made by Henry Deringer with agent markings and those that are manufactured in the South.
Henry Deringer pistols bearing agents names and marked with the legend “MAN^d for” appear to date from the earlier period of his manufacture.
Later pistols omit this stamping and read, for example:
WOLF & DURRINGER LOUISE KY AGENTS
LULLMAN & VIENNA MEMPHIS, TENN.
Please note that the Calhoun, Hyde & Goodrich, J. B. Gilmore, Lullman & Vienna and the two F. H. Clarks are marked with the earlier marking, while the Swett, the one F. H. Clark and the two Lullman & Vienna’s are marked with the later type of stamping. These are the only guns in my collection that are genuine Henry Deringers.
Of those southern made derringers that are manufactured in that area, only a few have the escutcheon plate underneath the forearm with a screw through the plate holding the barrel. Most of this type did not use a wedge but one did use a wedge and this screw. Many used a screw through the trigger plate to the barrel.
A few of the southern made derringers had flat butts particularly those of Nashville and Memphis.
About half of the southern manufactured guns had octagon barrels and the other half had those of the Henry Derringer style with a round barrel and a rib on top.
Never before have I observed a gun photograph using a mirror to show the underside of a forearm and the guard. Although this innovation is about 1½ inches out of focus, because of the extra light travel, it does show these features that are otherwise hidden and that are very important in identification. All of this photography, and for our catalog, is done with an ancient Polaroid with portrait lenses.
In 1957 I obtained my first specimen of a southern made derringer from Nathan Swayze, author of “51 Colt Navies”, at the Jackson Mississippi Gun Show. This was a Glassick Derringer as was my second gun obtained later that year at another Jackson Mississippi Gun Show.
About one year later from Horace Tolliver of Manchester, Tennessee I traded for two more derringers, one a Glassick and the other a Schneider & Glassick.
By 1961 I had six or eight different guns and I cannot now remember in what order they arrived and who I obtained them from. About 1962 I stopped buying Yankee. Deringers and still have thirty odd such pieces. They were too easy to get.
By this time I began to hear rumors of other makers that were not listed in any of the gun books and I drifted along for a few years until about 1965 or 1966 gathering together perhaps a total of fifteen or eighteen of the guns.
My appetite was whetted in 1963 when Theodore Dexter, a prominent gun dealer of that time, offered for sale a pair of Louis Hoffman, Vicksburg, Mississippi derringers in awfully nice condition. So, another pair had turned up that I had never heard of nor had anyone ever seen before. One of these guns is now in Mississippi near Vicksburg and the other is in a prominent collection in California and someday I would like to get these two back together and perhaps in my possession. All of this information made me real warm towards expanding the collection of Southern Derringers especially after I saw an O’Dell, a Linde and a Merriman. Slowing somewhat in my collection of military long guns before 1890, my collection of Kentucky Rifles, Colt Pistols, Confederate Revolvers, Confederate Veterans Reunion Badges and certain other items, I began to concentrate more on the Southern Derringers until today I have over fifty of these guns.
Five guns exist that I do not have. They are A. J. Millspaugh, Shreveport, H. G. Newcomb, Natchez, J. A. Schaffer, Vicksburg, Louis Hoffman, Vicksburg and Holyoake-Lownes & Co. One other, F. Schumann is authenticated by newspaper accounts of that period as having made derringers but not a single specimen has ever turned up according to my collector friends. Of great importance though is a derringer barrel, octagon in shape, marked “F. Schumann, Memphis, Tennessee” that has never been assembled or made into a gun. This specimen is in Dixie’s collection and was found 30 years ago in an old Memphis gun repair store.
By no means have I completed my collection. I do look forward to years of hunting for additional pieces, adding more information to my papers and if enough of you good readers are interested in this book so that I can dispose of the first 1000 copies, I will look forward to the time when it can be reprinted with additional information.

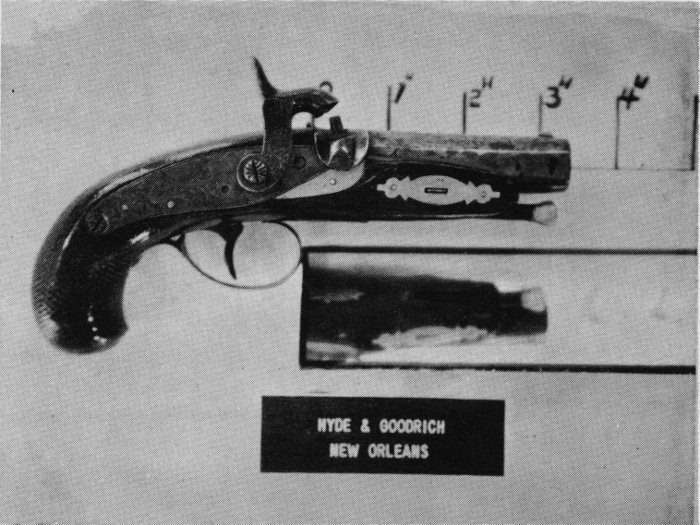

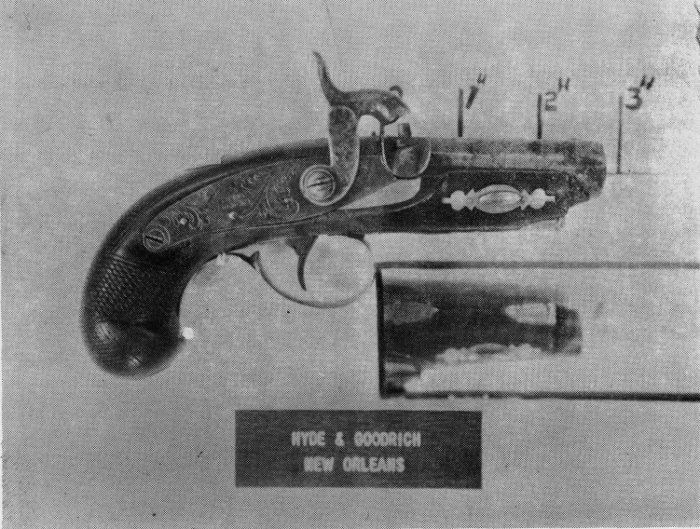

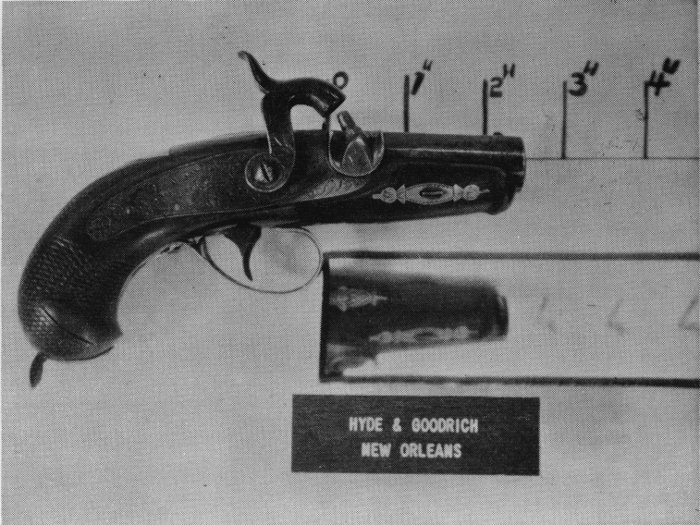

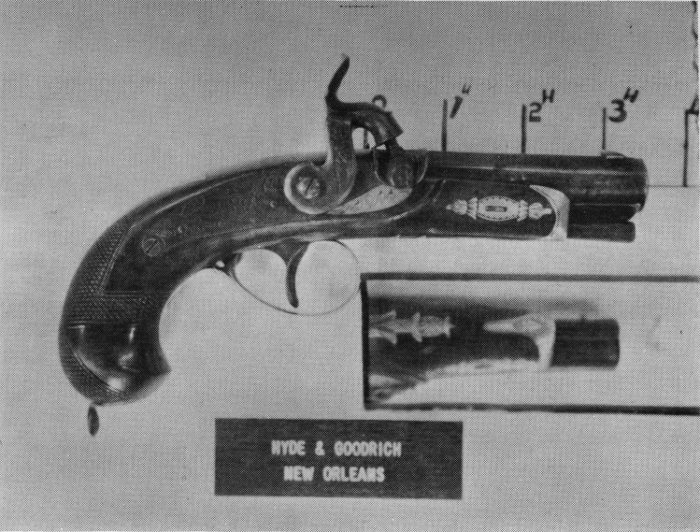

#2 The vast majority of Hyde and Goodrich deringers are usually of a bulky undesirable style that I do not like. This one follows that example. Caliber is .410. Has German silver furniture and with ramrod. The barrel markings on #2, #255, and #284 use the same single stamp.
The barrel is marked in three lines as follows:
Mand for
Hyde and Goodrich
Agents, N. O.
In a City Directory of 1853 this company was listed as dealers in “guns, pistols and military goods.” They imported a number of arms just prior to the war, marked “Hyde & Goodrich, Agents for the United States South.”
In 1861 the firm was changed into Thomas, Griswold & Company, both Thomas and Griswold having been former employees of Hyde & Goodrich.
One of the principles of Hyde & Goodrich; A. L. Hyde, withdrew from the firm on August 23, 1861.
#255 Another Hyde and Goodrich except this one has gold bands at the breech and sterling silver furniture which makes it somewhat more desirable. This is one of the fattest and bulkiest Henry Deringer that I have ever seen. Made without ramrod. Cap box in butt. .380 caliber.
Marked in three lines with one die stamp on the barrel as follows:
Mand for
Hyde and Goodrich
Agents, N. O.
#284 This is an extremely fine Hyde and Goodrich with 100% original browning on the barrel and 95% of the original varnish. It has the excellent quality classic style in the stock contour. Double gold banded breech. Furniture is German silver. Made with ramrod and capbox in butt. Muzzle of the barrel is fluted. Caliber is .420.
Remember that all Hyde and Goodrich deringers are genuine Henry Deringer guns and are not manufactured by Hyde and Goodrich. These four guns and all that I have ever seen have the pineapple finial on the trigger guard. Be sure that you note the different kinds of Henry Deringer barrel markings when the agent’s names is used. For instance, in the case of Hyde and Goodrich Henry Deringer guns that are in my collection, there are two different types of barrel stampings.
Marked with one stamp on the barrel only:
Mand for
Hyde and Goodrich
Agents, N. O.
#3 Still the same is this Hyde and Goodrich gun that is bulky and I do not think pretty. Made with ramrod and German silver mountings. Caliber is .390.
Contrary to the other guns, this one is marked with four different hand stamps as follows:
Mand for
Hyde and Goodrich
Agents, N. Orleans
This is a fake Hyde & Goodrich, it being a Belgian produced derringer in what is apparently an original case with accessories. The barrel is Belgian proofed underneath.
The point in showing this fake gun in this book is that somewhere on the West Coast someone is running around stamping odd derringers with the name Hyde & Goodrich as follows in three lines.
Mand for
Hyde and Goodrich
Agents, N. O.
When the fellow at the Las Vegas Show walked up to my table and showed me the gun my eyes popped out that here was a cased Hyde & Goodrich and I did not stop to analyze it. From the contour of the gun and the French type casing, I should have realized that it was not an American gun. It was reasonably priced and I shelled out the money within about thirty seconds after looking at the gun.
Then that night up in the hotel room I got to looking at the gun and remembered that I had seen the same gun at the Disneyland Show six months before and it was not marked at that time. Then I examined the barrel stampings closer and realized that they were new stampings. Upon my arrival home I compared this stamping with other guns in our collection and found that this was a good facsimile but the spacing of the letters was not the same as on the original. And then, there were other minute differences in the letters that showed it was new.
As in most of these cases, the fellow I bought it from refused to refund my money and I got stuck with it.
But it is a good lesson to not buy anything too quick or that is rare or at a high price unless you study it out first to be sure it is not faked or altered.
#251 This derringer is one of a matched pair manufactured by Henry Deringer of Philadelphia. The furniture is German silver and the stock is made without ramrod. Two silver bands at the breech of the barrel add to their value. This pair is in exceptionally fine condition retaining nearly all of the varnish and the original smooth brown finish of the barrels. A desirable small style of an ideal shape. Has pineapple trigger guard finial. Silver tear shaped inlay at butt. Caliber is .38.
Marked on the top barrel flat in four lines with one hand stamp as follows:
Mand for
F. H. Clark & Co.
Memphis, Tenn.
Agents
#276 A very fine F. H. Clark genuine Henry Derringer pistol with two silver bands at the breech. Typical trigger guard has pineapple finial. Made without ramrod. This is a desirable small size gun. .43 caliber.
Marked on the barrel in four lines as follows:
Mand for
F. H. Clark & Co.
Memphis, Tenn.
Agents
#273 Same description as #276 with the exception that this stock is a little smaller and the grip is slightly different in shape. In general, a more slender gun. A high quality gun with double silver banded breech and the same marking on the barrel. Made without ramrod and with a tear drop for a butt cap. German silver mounted. Caliber is .410.
Apparently one hand stamp was used to mark the four lines on the barrel as follows:
Mand for
F. H. Clark & Co.
Memphis, Tenn.
Agents

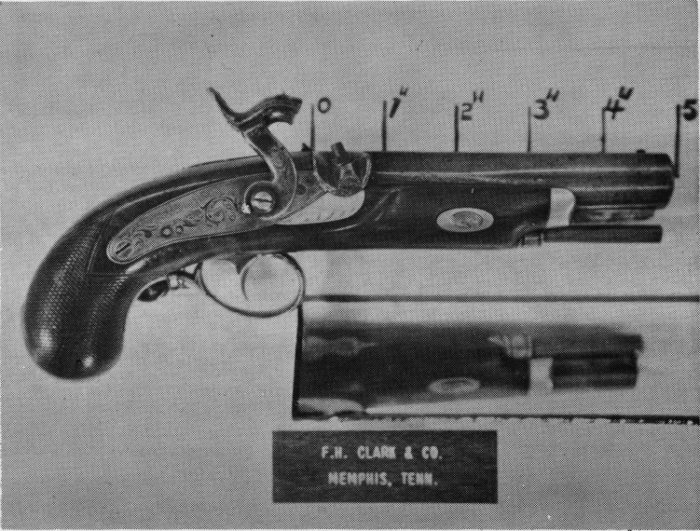

#229 Now, this gun is a little bit different from a genuine Henry Deringer in that this one was produced by the F. H. Clark Company in Memphis. Notice the extra stubby bird head grip. German silver mounted throughout even to the ramrod thimble. Notice that there is no screw holding the barrel to the forearm and is held in place with the wedge only. Very coarse checkering. The caliber is .420.
Marked on the breechblock on the top barrel flat:
F. H. Clark & Co.
Memphis
#236 Another original F. H. Clark gun but this one has bag grips, steel trigger guard, and steel thimble with a silver nosecap. Notice that this one has a screw in the trigger guard finial holding the barrel to the forearm plus the wedge through the forearm. Made with ramrod and has a tear drop butt cap. The stock has been broken at the rear of the barrel and an ancient steel inlay has been placed in the wood each side of the stock above the triggerguard. Caliber is .430.
Marked on the breechplug in the top flat position:
F. H. Clark & Co.
Memphis
#280 A fine matched pair of Clark manufactured derringers that I obtained in 1970 from a gun auction in England. How they got to England, I don’t know. With them was the original case with all the compartments broken and loose. The case has been sent to an expert to have it restored.
Notice that it is a bag grip type of gun. No screw in the trigger guard finial holding to the barrel. The trigger guard and thimble are steel and the balance of the inlays are German silver. These are apparently the original ramrods. A matched pair of guns are very, very rare; and these two are in very nice condition. Caliber is .440.
Marked on the breechblock at the top barrel flat position as follows:
F. H. Clark & Co.
Memphis

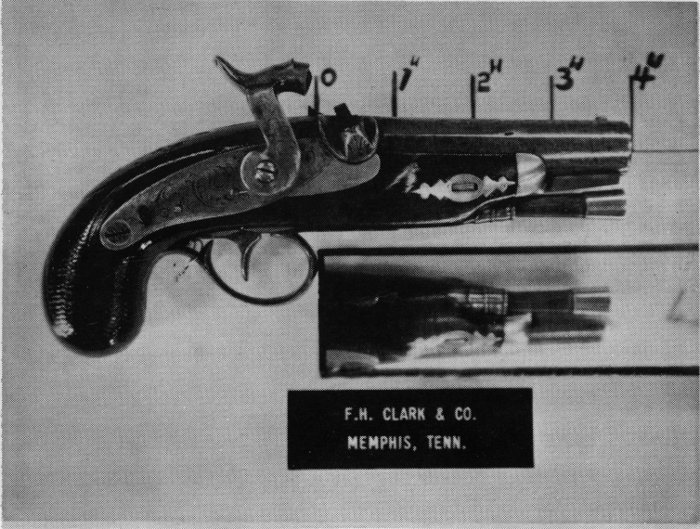

#217 This is as fine a pair of matched derringers by Clark as money can buy anywhere. Beautifully browned barrels with 100% of the fine French varnish on the wood remaining. Has steel trigger guard and thimble, but does not have a screw in the trigger guard finial holding to the barrel. A rather large sized derringer. Bag grips have silver tear drop butt escutcheon.
There is an interesting story about this matched pair of guns and how they were found. About four years ago a friend from England wrote that he had these guns in his possession and he had gotten them from a collection in Norway. How they got to Norway, only Heaven knows. Anyway, they were so high priced that I passed them up. A friend of mine, Cecil Godwin, did get the guns and two years later I wanted them so badly that I paid him a handsome profit so that I could add them to my collection. They are even so fine that they have the original ramrods intact. Caliber is .420.
The breechplug of the barrel on the top flat is marked in two lines with the metal still puffed up around the letters because it is so new and without any wear. They are marked in two lines as follows:
F. H. Clark & Co.
Memphis
#268 A Memphis manufactured gun by F. H. Clark with steel trigger guard and thimble. All other inlays are of German silver. Made without screw in forearm or trigger guard that goes direct to barrel. Any derringer such as this one with a barrel 4¾” long is considered to be a large size. Notice that this gun has bag grips and not bird head style. Caliber is .430.
Marked on the breechblock at the top barrel flat position as follows:
F. H. Clark & Co.
Memphis

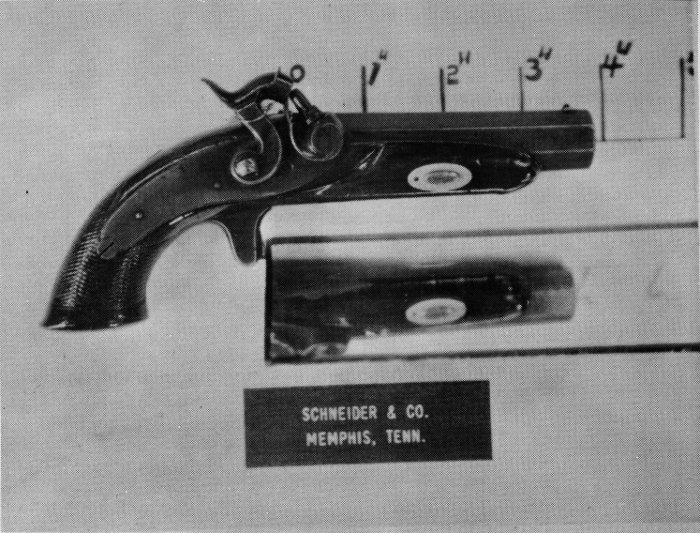

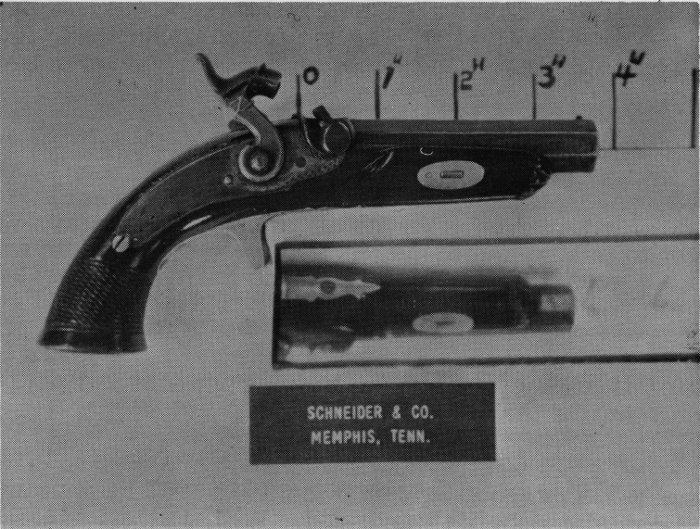

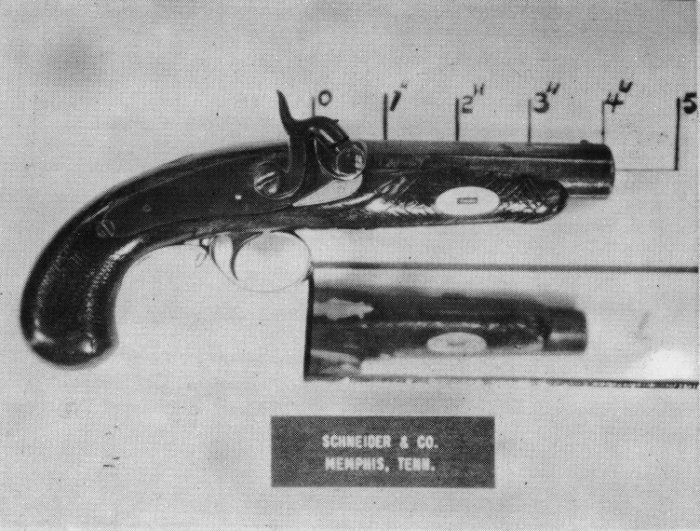

#248 A Schneider and Company derringer that is a medium size for this brand of gun. Barrel is full octagon. Trigger guard and tear drop buttcap are made of sterling silver and other inlays are of German silver. Made without ramrod. The stock forearm at the nose is fluted. Trigger guard finial has a screw going through to the barrel to hold the gun together, along with the wedge helping to hold the forearm to the barrel. Most of the Schneider guns have a definite pronounced curve shape to the lock. Notice how low the hammer is. The lockplate is very plain with a simple lined border. The caliber of this specimen is .450.
The serial number of this gun is #122, the highest known. Of all the Southern made derringers, this is the only maker that serial numbered his guns. Of course this is an assumption that the number on top of the breechblock is the serial number, but all that we have ever seen had a similar number in this position. Assuming that the Schneider Company manufactured one hundred and twenty-two pieces, and that possibly thirty of these guns are in existence, this means that the survival rate is one out of four. Bearing in mind that this 23 survival rate is only an assumption, consider how few guns some of the lesser known makers must have produced. At this rate, for instance, Siebert should not have produced many over six or eight guns.
I have known of this gun’s existence for nearly thirty years. In 1943 when I was taking the train from Union City to Chattanooga, I happened to sit down by a Mr. Fain Taylor from Greenfield, twenty miles away. We got to talking and found out that we were both interested in guns, and he told me that he had this gun. Then after the War was over, I went by to visit him and see his collection. Of course, this gun was not for sale. At that time and during the years gone by in the 1930’s he used this little pistol as a training gun for his bird dogs out in the field.
The years went by and I would see him ever so often and ask him about his gun. Finally, in 1967 he appeared at the store one day and said, “Well, I’m going to let you have my gun. You like these Southern derringers so well that I think the best place for this gun to be is in your collection.” With that, I paid him the going rate for this type of gun and of course I don’t think that I will ever dispose of it in my lifetime.
The barrel is marked on the top flat in two lines with one stamp as follows:
Schneider & Co.
Memphis, Tenn.
Schneider was a gunsmith in the 1850’s and later a member of the revolver making firm of Schneider and Glassick.

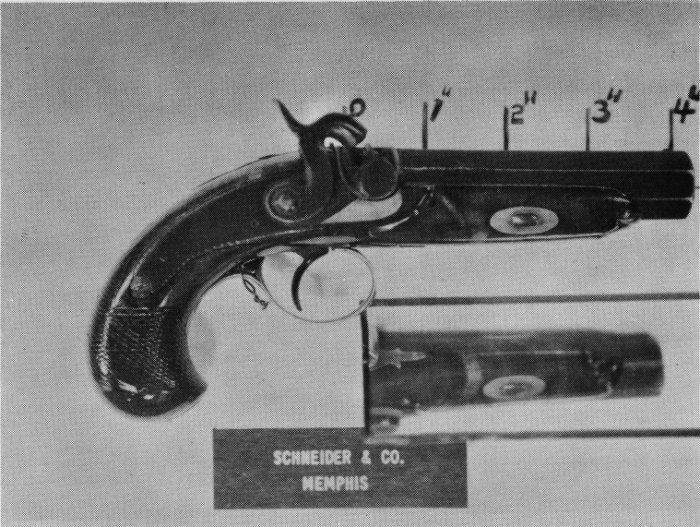

#283 All Schneider derringers that I have ever seen were marked with the same two line one piece stamp. Clearly seen in the photograph is the screw in the trigger plate holding the stock to the rear of the barrel. Butt is nicely checkered and is flat with an oval buttcap. In addition to the screw, the barrel is held in place with a wedge. The deeply curved lock is very plain with a simple engraved line border. Full octagon barrel. The serial number 55 is stamped on the top of the breechplug flat. On the tang is a #1 which leaves some thought that this might be #1 of a pair. The nose of the forearm is fluted. Of some importance to me is the fact that this is a sheath trigger pistol, and the trigger plate and sheath are of German silver. Bitterlick of Nashville made this type of gun with a sheath trigger and a flat butt. The caliber is .380.
The top barrel flat is marked in two lines with one hand stamp as follows:
Schneider & Co.
Memphis, Tenn.
#275. This Schneider has excellent styling and is typical of many Memphis & Nashville guns. The screw through the trigger plate extends into the barrel to hold the gun together. Made with the wedge through the forearm. The nose of the forearm is fluted. Flat butt with oval German silver inlay. Deeply curved lock is very plain with simple lined border. The serial number on the top flat of the breechplug is #8 with a #1 on the tang which leaves the thought that this might be one of a pair. Full octagon steel barrel with steel dovetailed front sight. This is the sheath trigger style with a steel trigger plate and sheath, just the opposite material from #283.
Marked on the top barrel flat with one hand stamp and two lines as follows:
Schneider & Co.
Memphis, Tenn.
#267 This Schneider derringer is the third or fourth Southern made gun that I obtained fifteen years ago. My good friend Horace Tolliver of Manchester, Tennessee, had the gun. Remember that this Schneider is made with a regular trigger guard instead of the sheath trigger guard. The inlays and guard have no engraving with line engraving only on the trigger plate. Semi-formed bird head grip with a tear drop German silver butt plate. Notice how low the hammer is on the gun. Someone in years gone by attempted to dress up the gun by checkering the forearm; but of course this hurt it some. The nose of the forearm is fluted. There is no screw through the trigger plate holding the barrel in place. This barrel is not octagon, but instead is a round barrel with a rib on top similar to all those made by Henry Deringer. Steel dovetailed front sight. Caliber is .440.
Marked on the top barrel flat with one two line hand stamp as follows:
Schneider & Co.
Memphis, Tenn.

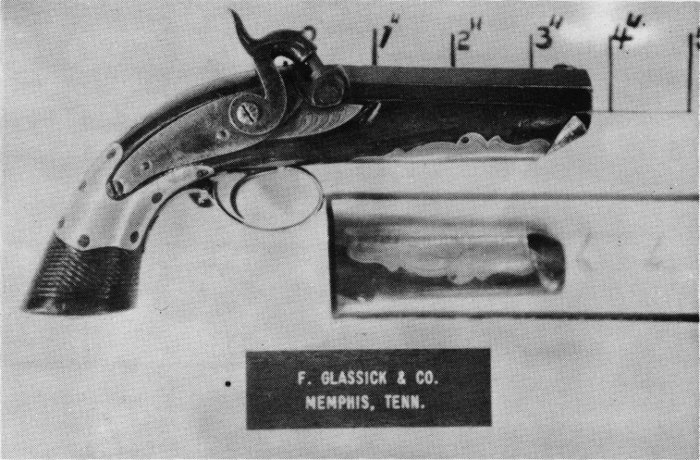

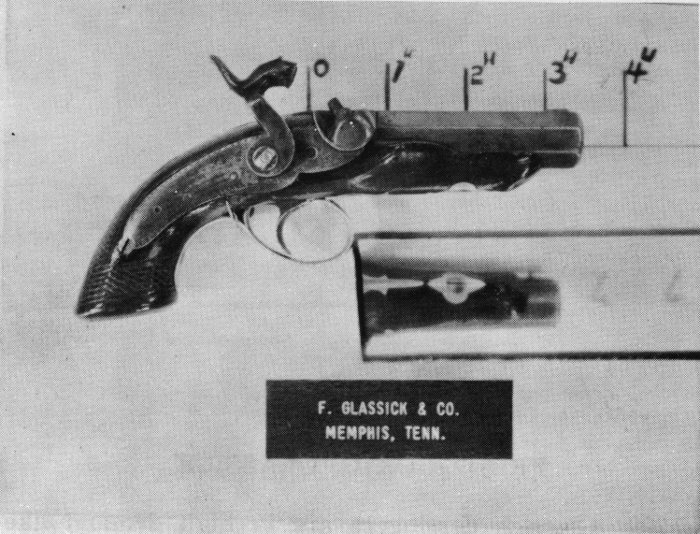

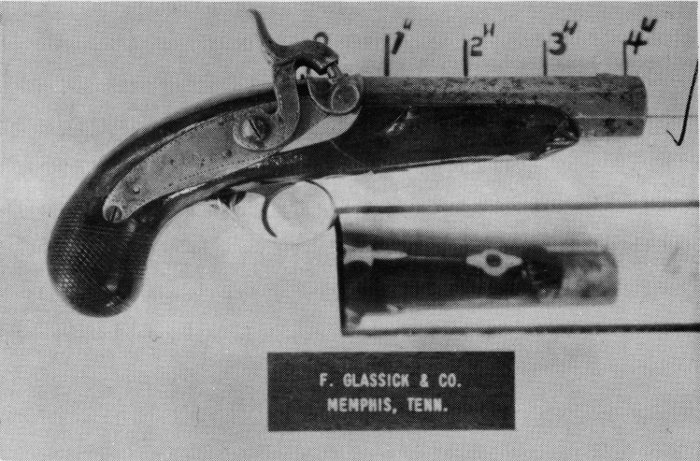

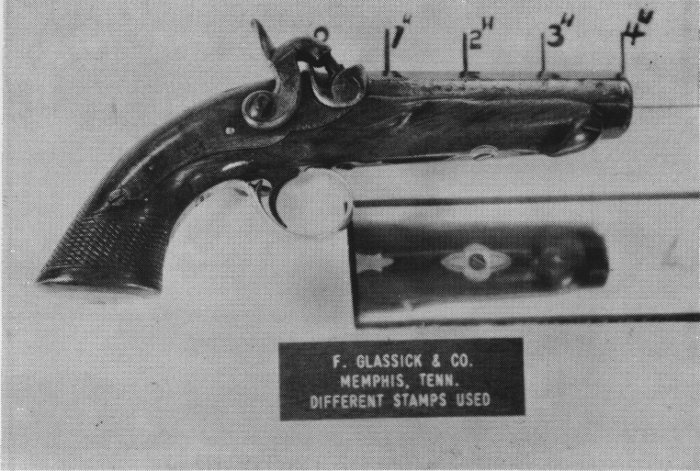

#214 This Glassick derringer is German silver mounted throughout and has a standard derringer style trigger guard. Through the trigger plate at the finial is a metal screw that attaches the plate to the barrel which is doubly held in place by another screw through an escutcheon under the forearm into the barrel. Made without wedge. The lock has the pronounced downward curve. Full octagon barrel. Butt is flat with an oval German silver inlay without capbox. Checkering is rather coarse. The German silver blade front sight is milled into the barrel. Caliber is .400.
Marked with one hand stamp in one line on the top barrel flat. The barrel is so short and the one line is so long that part of the name is on the breech-plug on this particular gun. The same hand stamp was used to mark #209 as was used on this one and is worded as follows:
F. Glassick & Co., Memphis, Tenn.
Glassick was a gunsmith circa 1850, whose name is found stamped on imitation derringer pistols. About 1859 he entered into a partnership to form Schneider and Glassick.
#209 Glassick derringers are in high demand like the Griswold and Greer Confederate revolver, though they are relatively easy to get, but command a good price. I suppose it is because Glassick and Schneider are so well known that they will bring more money than some of the lesser known derringers.
This version is a real work of art in some respects. All inlays are of sterling silver. This model is made with a ramrod and with an oval sterling silver butt cap with cap box built in. Although this gun shows 75% original varnish, in the past the grip has been broken into two pieces and is carefully repaired with an inlay all the way around. To make this grip inlay required a great deal of efficiency on the part of the person that did it because it is just absolutely perfect the way that it is put in with steel screws. Then the forearm apparently is cracked underneath the wide inlay that is highly engraved. These two silver inlay repair jobs, in my opinion, add quite a bit of value to the gun because of their beauty and quality of workmanship. This gun has a full octagon barrel and its breech is gold banded. The front sight has a steel dovetailed base with a sterling silver blade. The lock may not be curved as much as other Memphis guns, but it does have the low profile hammer. Glassick derringers are not serial numbered. This beautifully executed piece is a real man stopper in that its caliber is .510. I obtained this gun from Bernie Braverman of Pittsburgh, Pennsylvania about 1959 at a Columbus, Ohio gun show.
Marked on the top barrel flat with one hand stamp as follows:
F. Glassick & Co., Memphis, Tenn.
#210 This is the second Southern made derringer that I had in my collection and this is one that I obtained in Jackson, Mississippi. Notice that it has a bag type grip and the lock plate is not very deeply curved. Has standard trigger guard and the nose of the forearm is fluted. The full octagon barrel is not serial numbered and has a dove tailed steel base front sight with a German silver blade. Hammer sets rather high. Through the trigger guard plate is attached one screw that holds the barrel in place and then on the forearm forward is another screw plate holding the screw in position that attaches the forearm to the barrel in the second position. Caliber is .510.
The markings on this top flat of the barrel on this gun are in two lines with letters about the same size as my other specimens. The markings are as follows:
F. Glassick & Co.
Memphis, Tenn.
#211 My first Southern derringer was this Glassick derringer that I obtained at one of the early Jackson, Mississippi gun shows about fifteen or sixteen years ago. My good friend Nathan Swazy brought the gun in and I traded him two old Civil War swords and a Colt pistol. You cannot tell it now, but the forearm was shattered and my good friend Frank Hitchings of Memphis replaced the forearm in such a manner that the joint in the new wood cannot be distinguished from the old. This gun is German silver mounted throughout and has a fluted forearm nose. There are two screws holding the barrel in position through the trigger plate and the nice escutcheon under the forearm. Flat butts are rather common to many of the Memphis and Nashville guns. Full octagon barrel with a brass front sight milled into the steel barrel. Its caliber is a tremendous .510.
The barrel markings on this gun are made in one line, but contrary to #209 and #214 in which case one stamp was used, two stamps were used on this one. “F. Glassick & Co.” is a different stamp from “Memphis, Tenn.” The same stamps were used on #210 as are used on this one with exception that #210 has the stamps in two lines and this one is in one line as follows:
F. Glassick & Co., Memphis, Tenn.

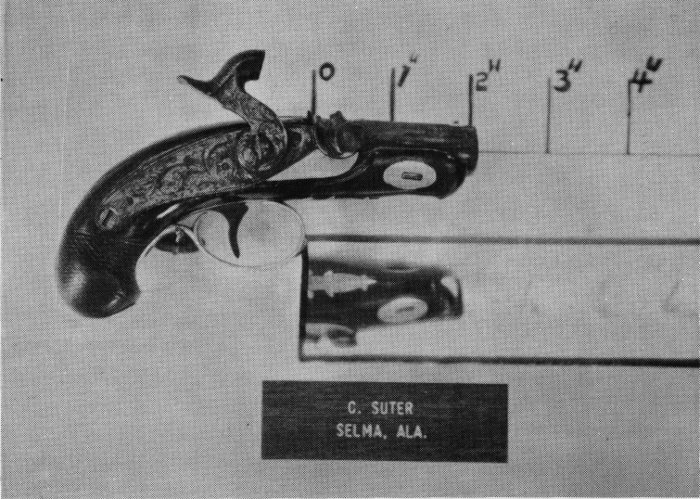

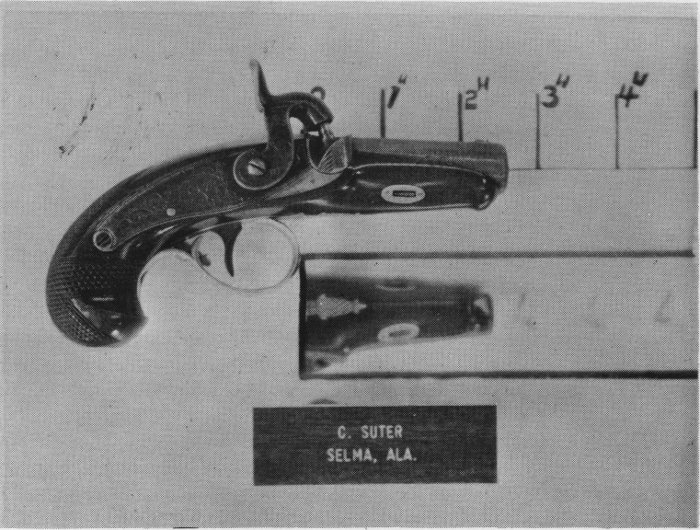

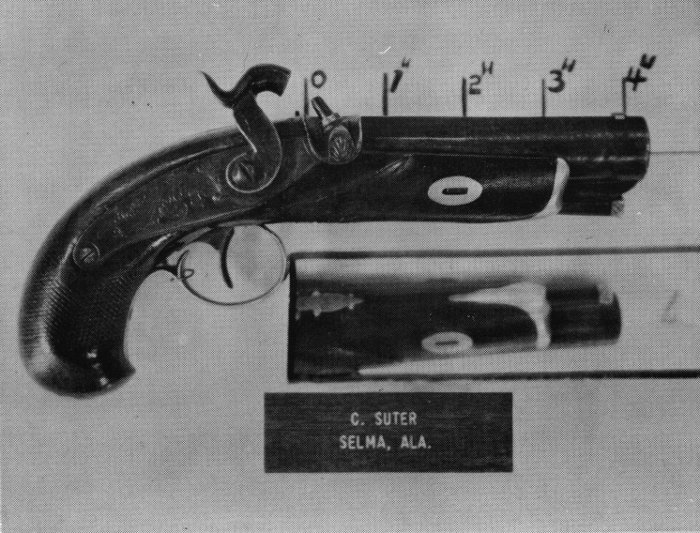

#274 Little is known about this maker, Suter. No guns made by Henry Deringer with Suter’s name on the barrel are known.
This particular piece is a small size and has characteristics of styling that make it desirable. It is German silver mounted throughout with a pineapple finial on the trigger plate. There is no screw through the trigger plate holding the barrel in position. The wedge and the tang screw are the only attachments to the barrel. No provision for ramrod. Round barrel has rib at top flat. The front sight is German silver dovetailed and the rear of the barrel has two gold bands which enhances its value. The condition of the gun is extra nice with real sharp original checkering. The extra thin barrel at the muzzle is caliber .42.
The barrel is marked on the right hand side below the top flat “steel.” The top flat of the barrel is marked in two lines with two different hand stamps as follows:
C. Suter,
Selma, Ala.
#4 This is a photograph of a genuine Wurfflein Deringer made in Philadelphia. The sideplate of German silver is absolutely identical to those of most Suter Deringers. This will leave some room for thought that Suter Deringers are made by Wurfflein. Notice there is some similarity in the shape and contour of this Suter #274 and the illustrated Wurfflein. Both of these guns are often but not always marked with the word “steel” on the right hand barrel flat immediately below the top flat but always with different size stamps.
C. Suter,
Selma, Ala.
#264 I have seen Suter derringers in many sizes and this is about as large as they come. Although the barrel is slightly over 4”, other derringer makers made them even longer. The stock is German silver mounted and has provision for a ramrod. The buttcap is a German silver rosette held in place by a steel wood screw. Typical derringer German silver trigger guard with pineapple finial. Suter was good at copying Henry Deringer’s trigger guard. Two gold bands are at the breech of the barrel and the front sight is completely made of German silver that is dovetailed into the flat. Barrel is round with a rib at the top. Caliber is .410.
All markings of Suter guns that I have seen appear to be marked with the same two hand stamps with the name and the town in different stamps. This specimen is marked in one line with two different stamps as follows:
C. Suter, Selma, Ala.
#243 Again we have an extra small derringer by Suter of Alabama. German silver mounted throughout and there is no screw through the trigger plate holding the barrel to the stock. No provision for ramrod. Round barrel has two bands at the breech in gold and in silver with a dovetailed German silver front sight.
The barrel is marked on the right hand side below the top flat “steel.” The barrel is marked in two lines on the top flat as follows:
C. Suter,
Selma, Ala.

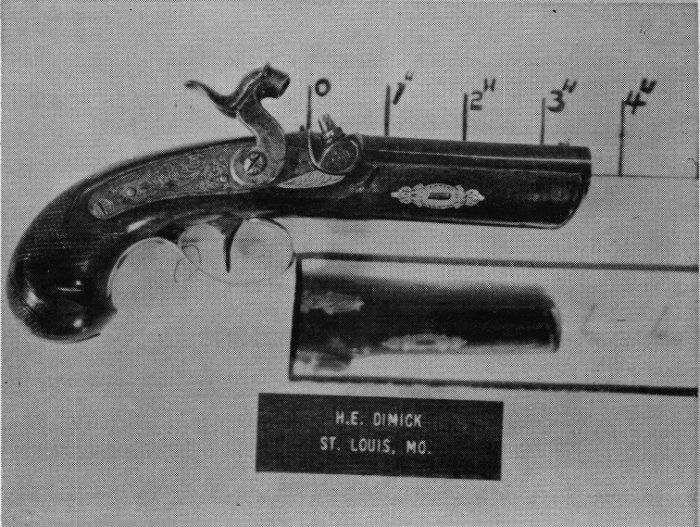

#272 H. E. Dimick of course is so well known that a description of his history of operations is not necessarily of interest in this little book but we are going to use it anyway. In the course of several years of collecting, I have seen no less than 10 or 12 H. E. Dimick derringers, all with the same type of small markings on the top barrel flat. Invariably the lock plates are not marked but do have a floral pattern engraved in place. They are always long and slender and are not large guns and are not heavy. This piece is made without ramrod and with German silver mountings throughout. The trigger plate finial is in the shape of a pineapple. The barrel has a brown twist steel imitation finish. The German silver front sight is milled into the barrel and is not dovetailed. Caliber is .390.
The barrel is marked on the top flat at a slight angle showing hand stampings with one die stamp and one line as follows:
H. E. Dimick
This name will be noted in all of the 1859 Saint Louis City Directories. Dimick was probably the best known and prolific of all the secondary St. Louis riflemakers and his guns stood on their own reputation. He came from Kentucky to establish the St. Louis Gun Shop at 38 North Main Street in 1849. From 1849 through 1864, the firm was known as H. E. Dimick & Co. From 1865 until Mr. Dimick’s death in 1873 the listing was simply H. E. Dimick. Thus, here is a clue towards dating your guns with this mark.
There has been a great deal of confusion about the associates in the H. E. Dimick & Co. plant. Henry Folsom may have been a partner for a few years; he was at least important enough in the firm to be listed along with H. E. Dimick in a City Directory.

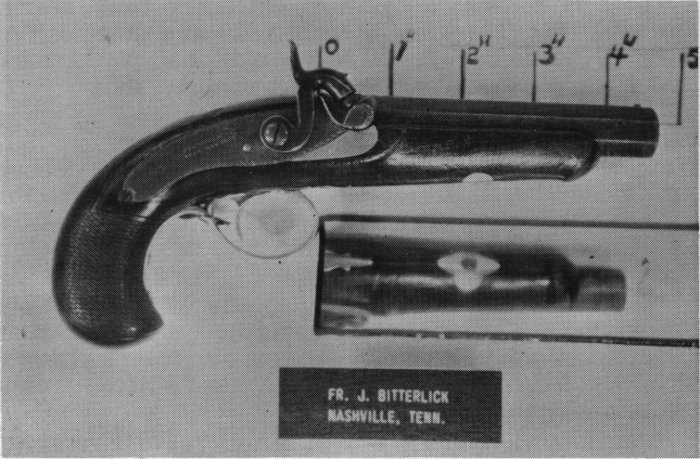

#261 Contrary to most derringers made in the South, Bitterlick marked his on both the barrel and the lock. All furniture is of plain, not engraved, German silver and the escutcheon plate under the forearm embraces the screw that attaches the forearm to the barrel. The forearm nose is fluted. The barrel is full octagon, and its caliber is .400.
The markings are to be found identically on the lock and the barrel in two lines with one hand stamp marked as follows:
Fr. J. Bitterlick
Nashville, Tenn.
Franz J. Bitterlick was born July 16, 1829 and died July 12, 1880 at 51 years and 6 days old. His daughter Ann Elizabeth married Charles Evers and their descendents and great grandchildren are living in Nashville today, 1971.
Joseph Legler was born October 21, 1837 and died June 15, 1931 at the age of 93 years and 8 months. His descendents by the name of Legler still live in Nashville today.
Franz Bitterlick and Joseph Legler were brothers-in-law, having married sisters Mary and Helen Lochmann respectively.
There is no record of when Bitterlick first started operating but if he was born in 1829 and started the business when he was 25 years old, that would mean that the Bitterlick Company started about 1854.
The first record of a business using either of these two names is found in King’s City Directory of 1867, the earliest available, and is listed as Bitterlick & Legler, Gunsmiths, 22 Deaderich Street. No City Directories are available before 1867 so it is entirely possible that the combination of the two names originated before that date.
Considering that in 1867, Legler was 30 years old and considering the point that he could have been a partner of Bitterlick as early as 25 years of age means that the Bitterlick & Legler Company could have started around 1862.
In an interview in 1970 with Mr. Bernard Evers, Sr., the grandson of Bitterlick, he stated he believed the gunsmith business started in 1854, give or take a year, and that Bitterlick made himself scarce during the War Between the States by taking a four year “Round the World” trip.
All in all it would average up that the company of Bitterlick operated from perhaps 1854 to 1862 or 1865.
Bitterlick and Legler without a doubt operated from 1862-65 til the last listing of the combination company in the King’s City Directory of 1879.
In 1880 Joseph Legler is listed as a gunsmith and Frank Bitterlick as a grocer at two different addresses.
Thus from these dates that we have accumulated here you can tell approximately when your gun was made according to the name on the barrel, and that no derringers were produced after 1879 because none are known marked “Legler.”
According to a news clipping dated March 1, 1963 of the Nashville Tennessean newspaper, the J. Legler, Gunsmith business was sold on that date and it is noted that the operation was started 95 years ago on Deaderich Street which would make the business starting in 1868. To me this does not quite add up since the City Directories state that they were operating in 1867. I would say that the business started sometime between 1854 and 1867.
Joseph Legler is buried in the Mt. Olive Cemetery near Nashville, Tennessee.
It is interesting to note that the Legler descendents with the same name operated this business as a gunsmith at 321 Deaderich Street until December 31, 1962 when the business was closed out. The building was sold to a real estate agent on March 1, 1963.
All their pistols were high quality. In addition to derringer type pieces it is known that Bitterlick produced and manufactured shotguns and a few target rifles marked “FR. J. Bitterlick & Co., Nashville, Tenn.”. Early double breechloading shotguns with outside hammers are known that are marked “J. Leghler, Nashville, Tenn.” and will you please note the new spelling of Legler in this later breechloading period.

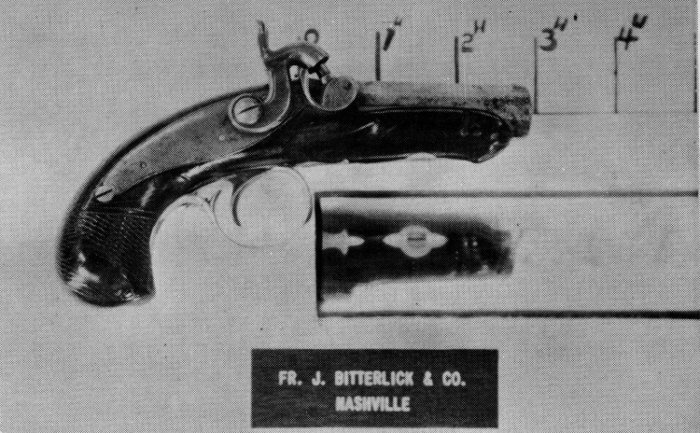

#285 This is a small sized derringer by any standards and is made by Bitterlick. I have never seen a Bitterlick smaller than this one. This gun also has the escutcheon screw plate underneath the forearm attaching that part to the full octagon barrel. The forearm nose is fluted as is common to many of these Nashville and Memphis guns. All furniture is of German silver and is plain, not engraved.
The barrel markings are slightly different from #261 in that the expression “& Co.” has been added as follows:
Fr. J. Bitterlick & Co.
Nashville, Tenn.

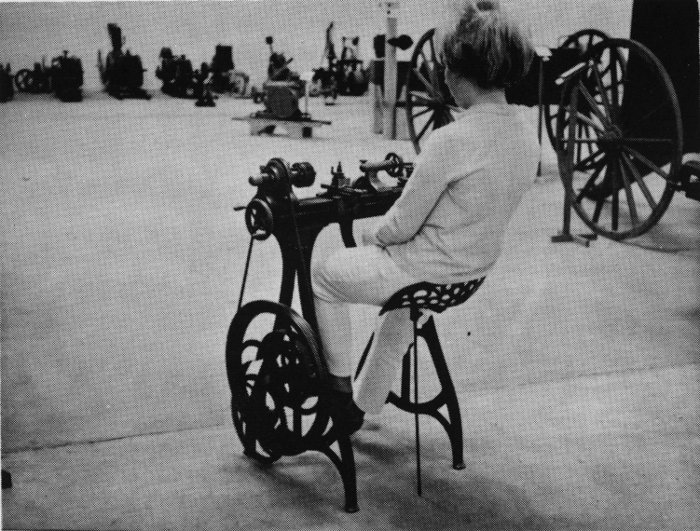

#285A This is a real old foot powered metal turning lathe that is in our collection here at Dixie Gun Works. It was obtained from the current Snodgrass Gun Shop in Nashville and Mr. Snodgrass states that many, many years ago he got it from the old Legler Gun Shop. There is an awfully good chance that parts such as screws for the Bitterlick or Bitterlick & Legler Derringers were made on this same lathe. Incidentally, Hal Swann of Nashville has a large quantity of Bitterlick or Bitterlick & Legler tools such as files, bullet mould cherries, screwdrivers and even a die stamp reading “Bitterlick & Co.” This die stamp is not the same one that is used on the derringers though. This die stamp has never been seen on a gun.

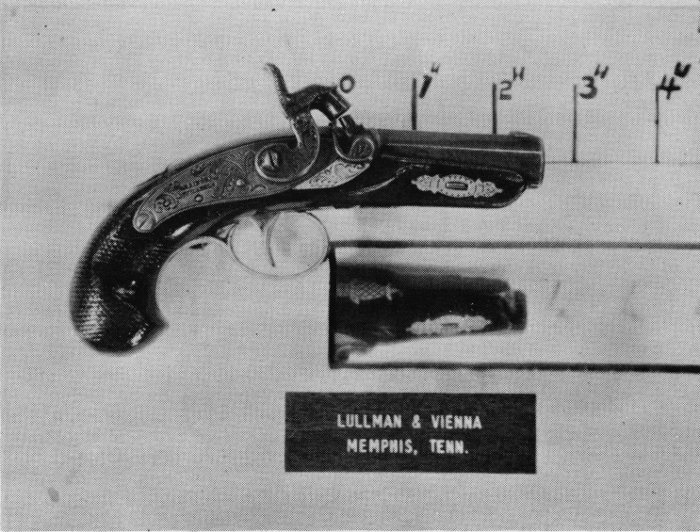

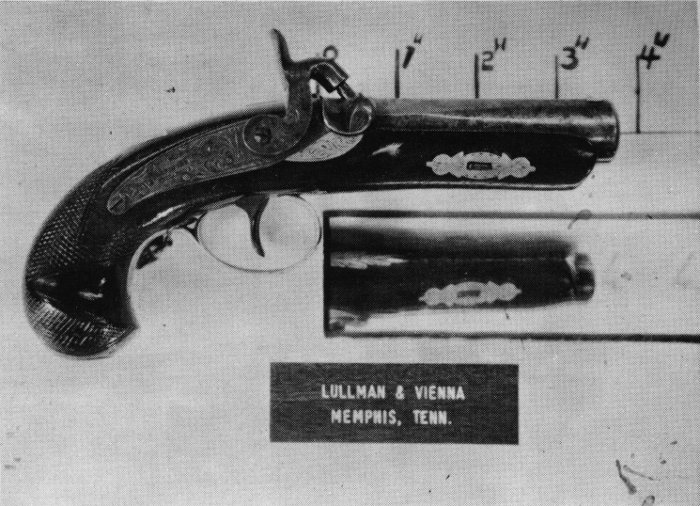

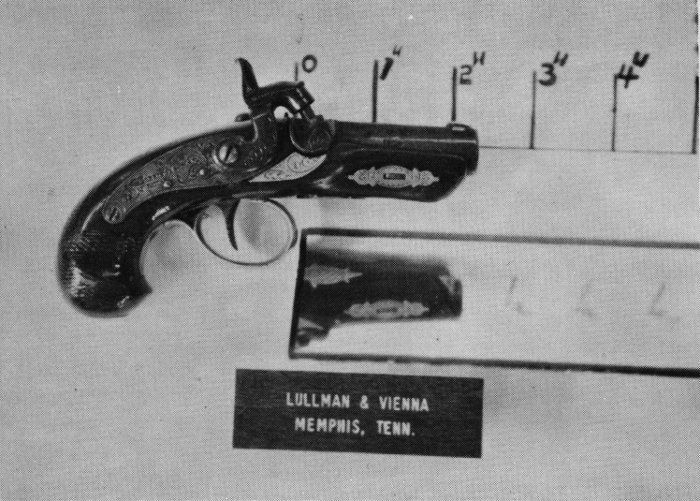

#266 Lullman and Vienna apparently was a retail store dealing in guns, watches, and jewelry. I have never seen a Lullman and Vienna marked gun except for those that are genuine Henry Deringer guns. Or, in other words, they did not make their own guns.
This specimen is German silver mounted throughout, without ramrod and with a tear drop buttcap. Typical round Henry Deringer barrel with a flat rib on top. Full dovetailed German silver front sight. The breech of the barrel has two silver bands which enhances its value.
All guns by this maker were invariably marked with the same die stamp and two lines with one stamp manufactured as one unit. The stampings reads as follows:
Lullman & Vienna,
Memphis, Tenn.
#258 A very desirable sized derringer with a short barrel and many people call this the Abe Lincoln model which is true except for the marking on the barrel. This gun is German silver mounted throughout, and made without ramrod. Solid German silver front sight is dovetailed into position. The rear of the barrel has two silver bands. Has typical Henry Deringer markings on the lock and on the breechplug. The caliber is .410.
The barrel markings are typically as follows:
Lullman & Vienna,
Memphis, Tenn.
#254 An even smaller sized Lullman and Vienna derringer is this genuine Henry Deringer gun that is marked with this agent’s name on the barrel. German silver throughout and you will notice that this gun does not have a ramrod like all the others by this same maker in my collection. I wonder if all were sold to Lullman and Vienna without ramrods? Solid German silver front sight dovetailed in place along with two silver barrel bands at the breech. Its caliber is .380.
The barrel markings are typically as follows:
Lullman & Vienna,
Memphis, Tenn.
#262 This Bitterlick specimen is typical of his earlier guns except for the later markings on the barrel. The full octagon barrel is held in place by two screws through the forearm and through the trigger plate directly into the barrel. The escutcheons and furniture are all of plain German silver with no engraving whatsoever. Has German silver pin type front sight with gold band at the breech. The breech is marked with the number “I.” All metal parts show old milling marks and file marks because of its excellent condition. Caliber is .470.
The identical markings are to be found on both the barrel and the lock and two different hand stamps are used as follows:
Fr. J. Bitterlick & Legler
Nashville, Tenn.

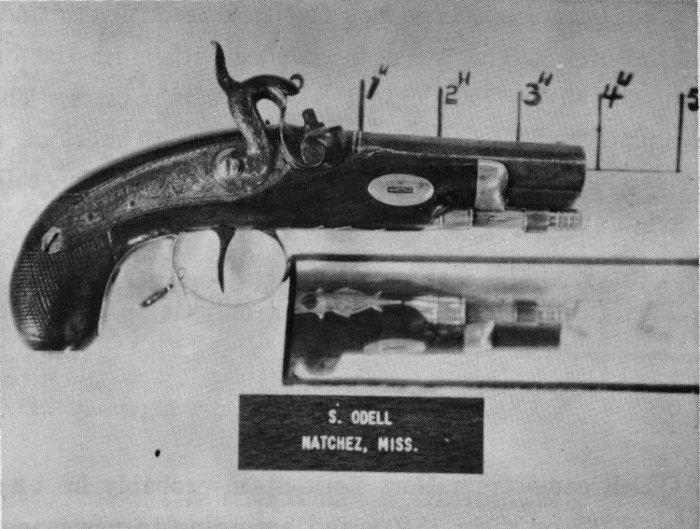

#222 O’Dell guns are often times easily recognized by their characteristic European influence. The grips are a little different in this shape gun in that they are the flat bag type instead of a rounded bag type which is more of an English style than American. The round faced hammer does not follow the characteristics of Southern derringers. All furniture is of German silver and of the highest quality casting and are fully engraved with English line scroll engraving. The trigger plate has a pineapple finial and through the trigger plate is the typical Southern style screw that attaches the forearm to the barrel along with the barrel being held in place by a wedge.
I need to mention that there are several known Henry Deringer made guns that are marked in one line on the barrel and with a hand stamp “S. O’Dell.” In this specimen that we present here that is marked on the lock plate, the name is hand engraved in and is not stamped.
This ornate specimen has five gold and silver bands at the breech. The barrel is rounded with a rib flat on top. The silver front sight is machined into place. The lockplate is filed down to fit the wood with more of a cross curve than Henry Deringer guns show. The caliber is unusually small, it being only .330.
This gun is marked on the lock only as follows:
S. O’Dell
O’Dell came from New York State probably in the late 1830’s or early 1840’s and according to newspaper accounts of that period was murdered in the early 1860’s at Natchez. Although his derringers had bag shaped grips and not bird head grips, I am classifying them as a derringer rather than a pocket pistol. Halfstock rifles with his name are known.

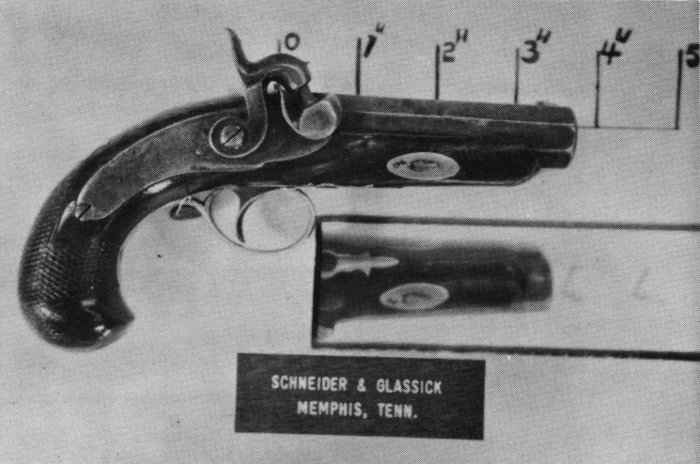

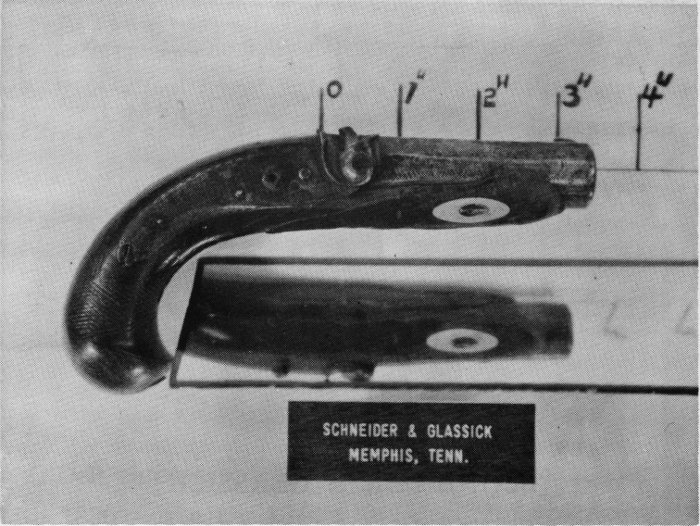

#215 Schneider and Glassick derringers have characteristics of both of these earlier companies that merged to form this one. All furniture is very plain German silver without even the least line engraving. There is a screw through the trigger plate holding the barrel into position along with the typical wedge. The full octagon barrel is rather plain with no embellishments at the breech. The caliber is .450.
The markings are in one line with one stamp on the top flat of the barrel as follows:
Schneider & Glassick, Memphis, Tenn.
Schneider & Glassick, gunsmiths, formed about 1859 by William S. Schneider and Frederick G. Glassick, both of whom had previously operated independently. They early secured a Confederate contract to manufacture revolvers, this being in addition to the repairing of other types of firearms. They advertised in March, 1862, advising persons who had left “guns or pistols longer than three months” to call, as they intended delivering all such arms to the Confederate government as of March 15th.
Shortly after this advertising date of March 7, 1862, Memphis was evacuated by all Confederate Ordnance activities, and the firm was not heard from again.
#6 Although in deplorable condition, this Schneider and Glassick can be restored and I am going to spend upwards of $200 to have the trigger guard and the hammer made new. Notice the extra long length of the grip and of the bird head shape. The barrel is held in place both by a trigger plate screw and a wedge. The front sight is a brass blade milled into the steel barrel with no engraving or ornamentation at the breech. Notice the heavy downward curve of the lock. Caliber is .500.
The barrel markings are done with the same stamp as used on gun #215 which is a one piece stamp in one line as follows:
Schneider & Glassick, Memphis, Tenn.

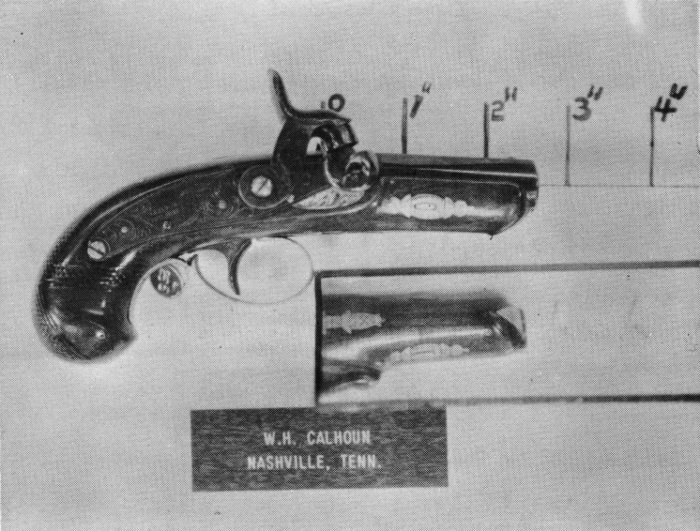

#225 W. H. Calhoun was a fancy goods merchant in Nashville, Tennessee during and well before the Civil War. Fancy goods merchants sold jewelry, watches, and guns which sort of fitted together in those days and times. Calhoun never made guns himself as far as I know and was not a gunsmith. This is a genuine Henry Deringer gun surcharged or marked with the agent’s name on the barrel. This gun has typical Henry Deringer characteristics such as German silver furniture and a pineapple finial on the trigger plate. The stock is made without ramrod. The caliber is .370.
The barrel markings are in four lines on the top flat and appear to be marked each line individually as follows:
Mand for
W. H. Calhoun
Agent,
Nashville, Tenn.

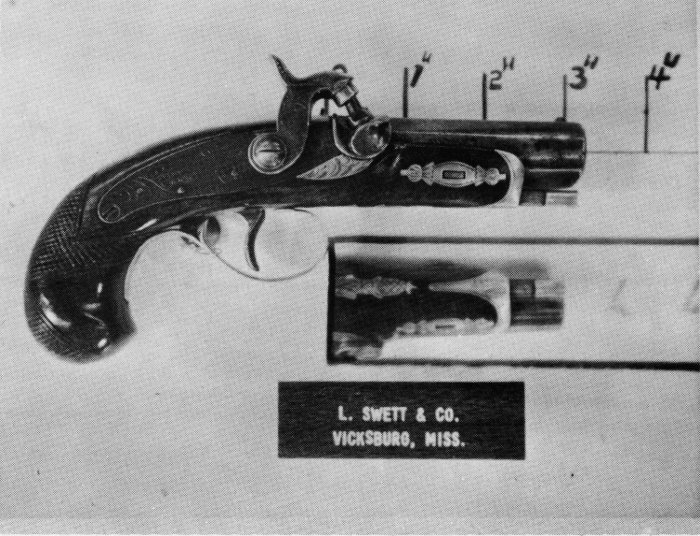

#282 L. Swett was a dealer of guns and general merchandise in Vicksburg, Mississippi and as far as I know never made guns himself. The guns that I have seen by this maker were all Henry Deringer agent marked guns. This speciment is very typical of a genuine Henry Deringer such as with ramrod, German silver furniture, and pineapple finial on the trigger plate.
The barrel markings are in three lines and it appears to be one stamp because each line is so perfect when compared with the other. The markings are as follows:
Made for
L. Swett & Co.
Vicksburg, Miss.
This name represents an agent primarily since no guns not of Henry Deringer manufacture are known. Newspaper advertisements of that period show he operated in the late 1850’s. It is interesting to notice that Mrs. Jefferson Davis carried a Swett derringer in her purse. The gun is now on display in the old capitol museum in Jackson, Mississippi.
J. A. Schafer. Vicksburg, Mississippi, is one gun that I do not have and I would like to obtain. I have heard of three of these guns and they are always Henry Deringer guns surcharged with this agent’s name and without a doubt all will be typical of Henry Deringer manufactury.

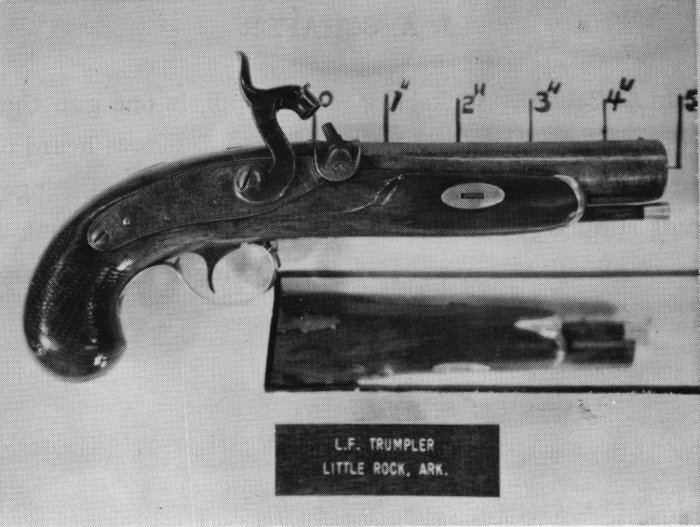

#204 Trumpler of Little Rock does not make a gun that looks like a Henry Deringer or a Southern Derringer. His guns are entirely different. Notice the funny nosecap, the tall hammer, and the extra narrow trigger guard and trigger plate. Although the trigger plate ends in a finial of a pineapple, it is not a Henry Deringer type of pineapple. This derringer has a silver band at the breech with a small amount of engraving. The barrel is round with a rib on top. Its caliber is .430.
The only markings are on the barrel as follows in one line:
L. F. Trumpler, L. Rock, Ark.
#278 J. B. Gilmore, Shreveport, Louisiana, produced guns by his own hand and he also used Henry Deringer guns that were surcharged with his own name. This particular gun is rather slender and it has a nice appealing style, it being manufactured by Gilmore himself. Notice the turned down forearm nose. The gun is mounted with German silver furniture lightly engraved. The barrel is round with a flat rib on top. Its caliber is .380.
The only markings are on the top of the barrel flat as follows:
J. B. GILMORE
Jerome Bonaparte Gilmore was born in Jefferson County, Kentucky, in 1827, and came to Shreveport, La. in 1849. There is a strong possibility that he was the son of J. Gilmore, of the firm J. Gilmore and Moses Dickson, Gunmakers, of Louisville (1848-1860), as, according to the census of 1840, J. Gilmore, Sr. had a son of about this age. J. B. Gilmore worked for David Pobst, gunmaker, until about 1853 when young Gilmore went into the gun business for himself. The 1850 census lists both Pobst and Gilmore in the same recorders 54 visit which usually means that they were members of the same household, possibly roommates. Advertisements for both Pobst and Gilmore appear in the Caddo Gazette in 1853, and seem to indicate that they are competitors. An ad in the Caddo Gazette, 3 Feb., 1855 is as follows:
J. B. Gilmore, Gun Manufacturer,
Shreveport, La., two doors below the City Hotel on Texas St.
To my friends and customers. After an absence of four months, I am again at my post, during which time I have visited the best Gun Manufacturers of the West and South, that I might make myself acquainted with the more recent and valuable improvements in gunnery. And can now assure my customers that any work entrusted to me will be finished in the best style, with such valuable improvements as have been made in the work. I will keep constantly on hand Shot Guns, Pistols of all kinds, including Colt’s celebrated repeaters of all sizes, Game and Shot bags, Powder Flasks and Horns, Bullet bags, Capprimers, Tubes and tube wrenches, Bullet-moulds, Gun Barrels, Locks, Triggers, Ribbs, Mounting, Baldwin & Anderson’s Patent Wadding, Eley’s wire Cartridge, Cox & Eley’s caps, also Colt’s metal lined for his repeating pistols, and a good assortment of all other kinds. Hazard & Dupont’s powder, both keg and canister of the finest quality. A few of the celebrated patent-muzzle Rifles for long shooting, these guns are far ahead of all others that are made, on account of the great distance as well as the accuracy with which they can be fired. Rifles of all sizes and qualities made to order. All kinds of guns and pistols repaired in the neatest manner, and shortest notice, warranted to stand.
As Gilmore’s shop was located on the trail to Texas (highway 80 today), it is likely that he furnished many settlers and frontiersmen with guns.
In 1860, Caddo Parish had 1153 registered voters. In 1860 Caddo Parish sent 1500 men to war. On the 17th day of May 1861, J. B. Gilmore entered the military service of the Confederate States of America as Captain of “F” Company, Shreveport Rangers, 3rd Regiment, Louisiana Infantry. His regiment was transported by the steamer “Grand Duke” to New Orleans and then proceeded to Fort Smith, Ark., reporting to General Ben McCulloch, commanding the Army of the West. He served with his command in all the skermishes and fights including the battles of Oak Hills and Elk Horn in Ark. and Mo. On the 1st of May 1862, his regiment arrived at Corinth, Miss., where it was reorganized on the 8th of May. As a result of this reorganization, Gilmore was elected Lt. Colonel. Lt. Colonel Gilmore participated in the skermishes at Farmington and other points near Corinth. Col. F. C. Armstrong was appointed a Brigadier General, and on 6 July took leave of the regiment. Soon after Gilmore was appointed to full Colonel by President Davis and assumed command of the regiment. At the battle of Iuka, Miss., on 19 Sept., 1862, Col. Gilmore was severely wounded and, not being able to withdraw with his regiment, was captured. He was paroled on the 23rd of Sept., and rejoined his regiment at Snyder’s Bluff. He was with the regiment during their investment at Vicksburg, Miss., but being very weak did not assume command. He resigned his command on 7 July, 1863 and was paroled with his regiment but never exchanged.
Upon his return from the war he joined a cotton firm as a buyer. It is probable that his wound prevented him from carrying on his gun business. In 1860 he had purchased three lots from Leroy M. Nutt for $2300, and in 1872 built a substantial residence on this site. The first City Directory (1878) lists him as residing at 506 Cotton St.
Gilmore’s wife’s name was Emma and he had a son, Edwin Vincent. During the carpetbagger era he was Mayor of Shreveport, and was known as a man of fine character. He was a member of the “General LeRoy Stafford Camp No. 3, United Confederate Veterans” and it was men from this camp that served as pall bearers at his funeral in 1900. Jerome Bonaparte Gilmore’s tombstone lies in lot 22, section 33 of the Greenwood Cemetery, Shreveport, La., just 20 steps from the graves of his Confederate comrades in arms.

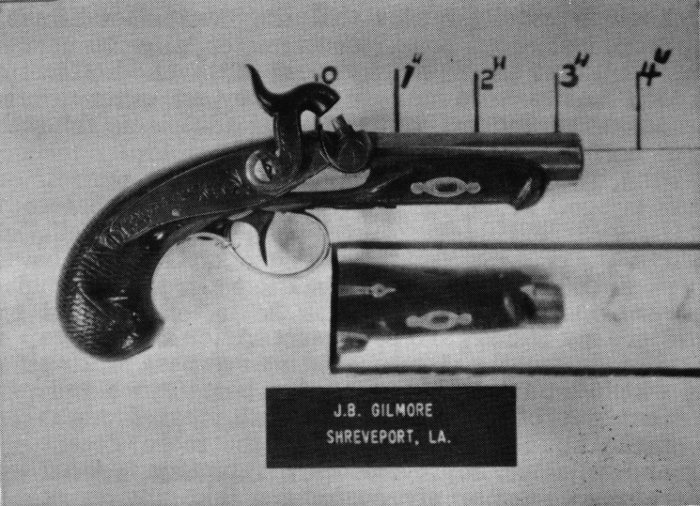

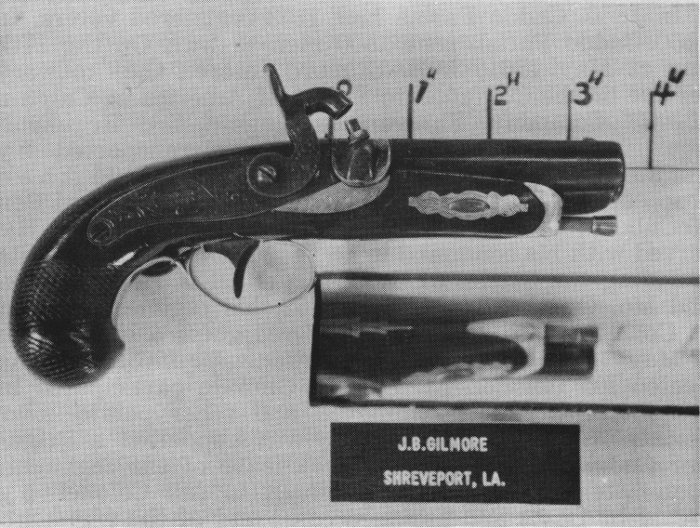

#258 This is a Gilmore gun that is manufactured by Henry Deringer. It has typical derringer markings on the lock plate and the breechplug. It is mounted in German silver in a typical fashion. The only difference in this and most Henry Deringers is that the trigger plate finial is not a pineapple. Made with ramrod. Its caliber is .440.
Marked on the top barrel flat as follows in three lines:
Mand for
J. B. Gilmore
Shreveport, La.

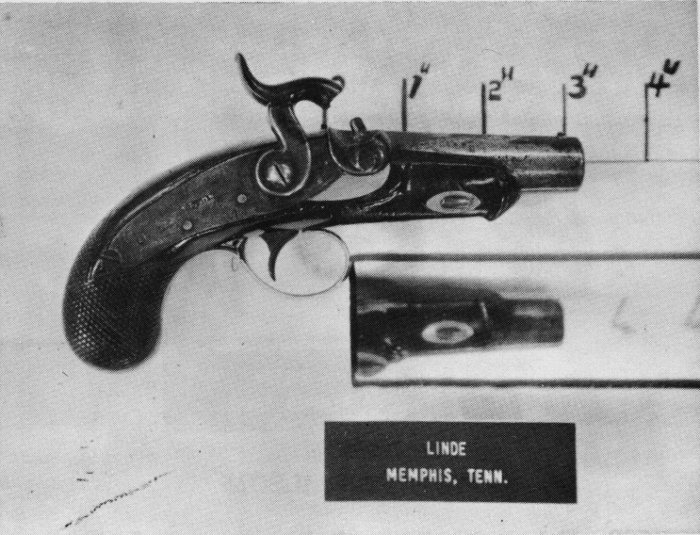

#205 Linde is a lesser known gunmaker of Memphis and he is authenticated through newspaper advertisements of those days. Little is known of his history. This particular gun has a different shape stock and notice the turned down forearm nose that is fluted. The furniture is not engraved. Notice the different shaped hammer. The barrel is round with a top barrel flat. The front sight is German silver dovetailed into place.
The only markings are on both the barrel and the lock as follows:
A. Linde

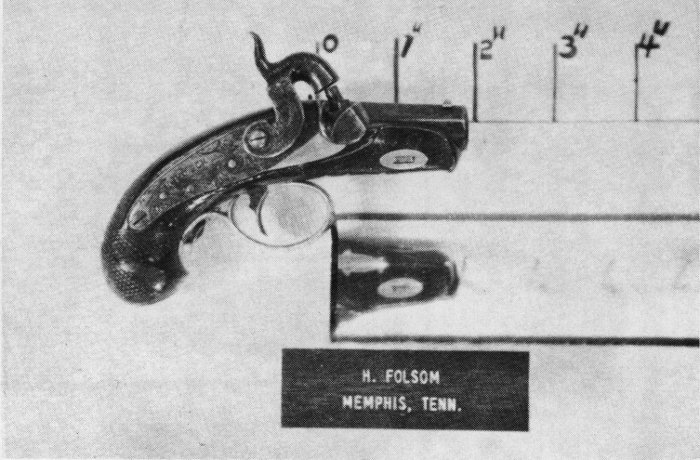

#220 Folsom was a well known manufacturer and dealer of New Orleans, Memphis, and St. Louis. This particular handsome little gun with its 1⅞” barrel was manufactured by him and is not a Henry Deringer product although it has characteristics exactly like old Henry of Philadelphia. All furniture is of German silver. This is the size of derringer that I would call a gambler’s vest pocket special. Its caliber is .390.
The only mark is on the lock itself as follows:
H. Folsom
He was a gunsmith and military outfitter who in the late 1850’s was located in St. Louis, Missouri, and who for a time was there connected with H. E. Dimick, a gunsmith and dealer in imitation Colt Navy Revolvers.
Folsom was entirely Southern in feeling and about 1859 left St. Louis for New Orleans, Louisiana. There he opened up a shop at 55 Chartres Street. Imported revolvers are occasionally found bearing his name.
Also to be found with his name and the St. Louis address are various types of swords.
Some rifles are known that are marked “H. Folsom & Co., St. Louis.”
He is first listed in 1866 in the St. Louis City Directory and again in 1870 as a dealer and gunsmith.
It is known that Folsom worked in Memphis at some time and it is possible and reasonable that he made deringers there and in St. Louis but with a different marking, leaving off the St. Louis in the case of the Memphis guns.

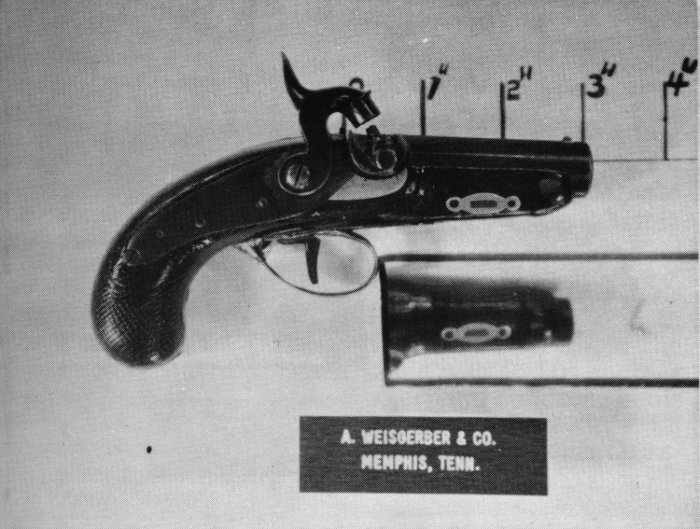

#256 Weisgerber was an authenticated maker according to newspapers of those days of derringers, shotguns, and rifles. To date, I know of one rifle and two derringer pistols, one of which is in my collection. Notice the heavy bag grip and the unusual shaped hammer. The forearm nose is fluted. All parts are German silver, not engraved, and the inlays are held in place with wood screws which is contrary to the vast majority of the others in my collection. Its caliber is .440.
The only markings are on the top barrel flat as follows in two lines:
A. Weisgerber & Co.
Memphis, Tenn.

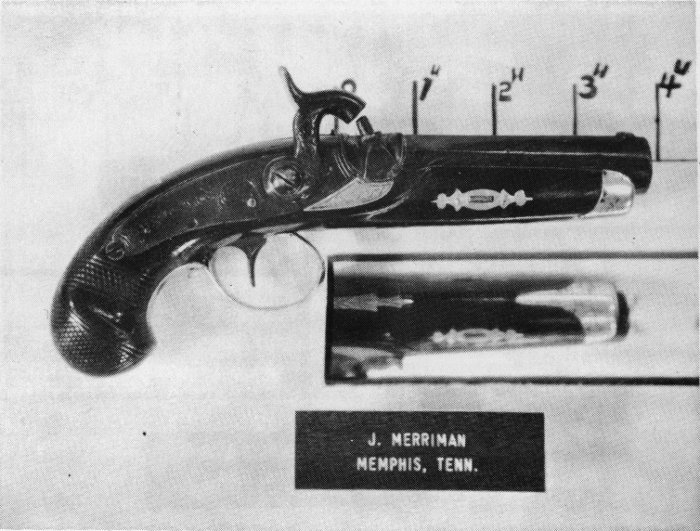

#219 Again we have a Memphis maker, whose name was Merriman, that little is known of but he is authenticated as a derringer maker by newspaper accounts. This gun has a rounded face European style hammer that appears to be original with the gun and all furniture is German silver. There is some engraving on the inlays. There is no provision for a ramrod. Its caliber is .410.
The only markings are on the barrel in two lines as follows:
J. F. Merriman & Co.
Memphis
As far as I know Hoffman was a derringer maker himself and did not use any Henry Deringer guns that were surcharged. I only know of two of these guns and I am sorry that I am not able to obtain them for photographing. I can tell you that they are highly ornate similar to the O’Dell manufactured guns. Hoffman was located in Vicksburg.
Louis Ferdinand Alexander Hoffmann was born in Berlin, Prussia in 1823. His father was an officer in the Prussian army but died when Louis was 9. His mother died when he was 11, leaving five orphan children. Louis came to America in 1852 settling for a short time in Patterson, New Jersey, then moving to St. Louis, Missouri and on to Vicksburg in 1854.
During his early years in Europe he was brought up in the machine shop of Borsig of Berlin, then the largest of its kind in Europe. This fact later may explain the heavy European influence on Mr. Hoffmann’s guns.
From 1854 til 1857 he worked in Vicksburg at the Zimmerman and Reading Foundry, learning the art of metal craft. In 1857 at the age of 34 he had saved enough money to start his own business.
His first ad in the Vicksburg Daily Whig dated October, 1857 states: “New gun shop—Louis Hoffmann takes pleasure in informing his community and the public generally that he will carry on the gunsmith business and all its branches. It will make rifles to order, stock guns and pistols, etc.”
The 1860 Vicksburg City Directory list six gunsmiths working for him, One of these was Adam Schafer who later went into the retail business himself and Philadelphia Henry Deringers are known to be marked with his agency’s name.
Hoffmann’s earliest known address was listed in 1857 as China Street and later on Washington Street. The Washington Street store burned in 1879 and new buildings were erected on Clay Street. This became known as the famous “Hoffmann Block.”
In 1886 the former Louis Hoffmann or Hoffmann Hardware Company was incorporated and the name changed to Louis Hoffmann Hardware Company, Inc., Hoffmann Block, Vicksburg, Mississippi.
Depending of these mentioned names and addresses, you can date your guns roughly.
The successors of the Hoffmann Hardware & Gun Company is in business today under the name of O’Neill McNamarra Hardware Company.

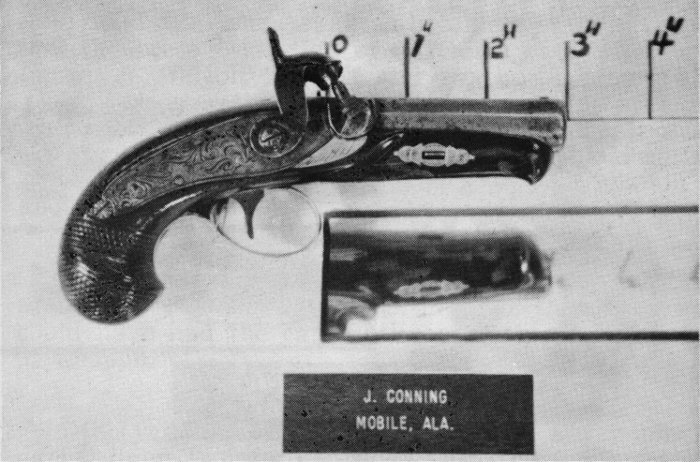

#241 Generally this Conning derringer follows the description of a genuine Henry Deringer gun in both style and makeup but is not a Henry Deringer. The trigger guard and other furniture is of German silver and there is no provision for a ramrod. Notice the turned down lip at the forearm nose. The round barrel is made with a barrel rib at the top. The only barrel markings underneath the barrel are a cryptic assembly number cut in Roman numerals so this gun is apparently American made because there are no proof marks. I have never heard of another such gun. Its caliber is .410.
The only markings are on the barrel in two lines in script and engraved as follows:
Made for
J. Conning, Mobile
This maker advertised that his shop was open for business at Dauphin and Water Streets in Mobile, Alabama. This will leave the impression that he operated a retail store but so far no actual proof of this has been noted except that on October 21, 1862 he advertised “military buttons just received a few gross of very fine military gold staff buttons, sold by the gross or the set.”
He had some facilities for manufacturing and is well known for his Confederate swords. There is a record of an important contract with the state of Alabama for sabres.

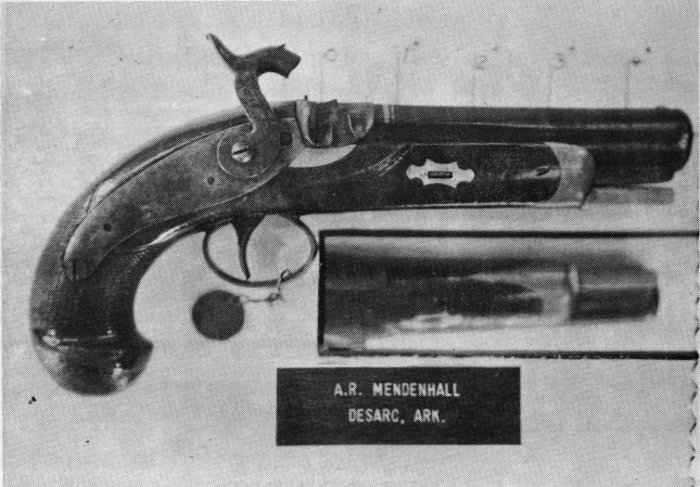

#259 Mendenhall of the little town of DesArc, Arkansas produced derringers that had no characteristics of either the Mississippi derringer makers, those of Nashville or of Memphis. His were entirely different. Notice the heavy walnut stock, the long slender hammer, and the pewter nosecap. Has provision for the ramrod in the nosecap. The trigger guard is of steel and all other furniture is of German silver held in place with pins. There is a screw through the trigger guard that attaches to the barrel along with a wedge to hold the barrel in place. The barrel has two bands of gold and silver at the breech and the front sight is dovetailed German silver. The lockplate is plain with no engraving whatsoever as is the hammer. The grips are checkered with a bird head style. The caliber is .500.
The only markings are on the barrel with a one piece machine made hand stamp in two lines as follows:
A. R. Mendenhall
DesArc, Ark.
From Charles Elias, North Little Rock, Arkansas comes certain information on this deringer maker that he has dug out of the U.S. Census files of Arkansas taken every decade.
In 1836, the year Arkansas became a state in the Union, the present location of the town of DesArc was known as McNulty’s Bluff and was nothing more than a ferry crossing the White River at this point—the most eastern edge of what was then Pulaski County. It wasn’t until the early 1840’s that the townsite was laid out and became known as DesArc. Today the population is about 500.
A R. Mendenhall was born in 1836. It is realistic to assume that at the age of 25, in 1860, this young man could have had the capabilities of fashioning this type of weapon.
In the year 1860, this man, along with a wagonmaker named John Langford, resided with the family of William H. Harvey whose occupation was listed in the U.S. Census of that year as a “grocery keeper.” Mendenhall was 24 years old and single. His native state was Michigan; his occupation, gunsmith. He owned no real property, but assessed $200.00 in personal property.
Mendenhall’s name appears again in the U.S. Census of 1870. By this time, he had married a young Tennessee woman and gave his native state as Ohio. In both real and personal property, he listed his net worth as a little less than $1,000.00. Residing with him was another man whose occupation was listed as “grocery keeper.” William H. Harvey had disappeared from the scene.
Other sources state that a Mendenhall worked in the “Confederate States Ordnance Works” at Tyler, Texas which operated from 1862 to 1865. According to this book in my library, Mendenhall was the best workman in the armoury and was engaged in some capacity with pistol making. Could this be the same man?
It is reasonable to assume that any Mendenhall Derringer was produced in 1860 or later.
#242 J. Hausmann was an arms dealer before the Civil War in New Orleans. Little is known about him. Notice that this gun has definite Southern characteristics of some of the Memphis and Nashville guns in the screw plate under the forearm that holds the barrel to the forearm, the fluted nose of the forearm, and the full octagon barrel. All furniture is likewise plain as is characteristic of many of these guns. The grips are bird head shaped and are protected at the butt with a tear drop inlay. There is a screw through the trigger plate holding to the barrel. The caliber is .410.
A friend in Memphis has in his collection an identical gun marked #1 on the tang. Mine is marked #2. I got my gun from Bob Elz of California and the #1 was found in Ohio. Neither of us will sell his gun and we are at a standstill about getting these two identical guns into one collection. No other derringers by this maker are known.
The only markings are on the lock plate itself, hand engraved, as follows:
J. Hausmann
A. J. Millspaugh operated in Shreveport, Louisiana. I have never seen one of his guns nor heard of anyone that had one except in one book a mention is made that Philadelphia derringers are known with his name. I do not personally believe he would be any more scarce than a Linde or a Weisgerber.
Holyoake-Lownes of Memphis, Tennessee was an importer of English made derringer type guns with his name surcharged on the barrel. I have heard of one gun only with this marking and it of course has English proof marks but has positive features of a genuine Henry Deringer gun.
A description of the only known gun is as follows: The round barrel with the rib on top is rifled and is caliber .490. Barrel length is 3⅝” and the overall length is 7¾”. Two silver bands at breech. Oval silver wedge escutcheons. Monogram plate in the shape of a rectangle with clipped corners. German silver fore end cap is made for loading rod. Eight cornered daisy design German silver butt cap.
This company advertised guns for sale in the “Memphis Daily Appeal” of Wednesday, May 4, 1853.
The top flat of the barrel is marked in one line with one die stamp “Holyoake-Lownes & Co. Memphis.”

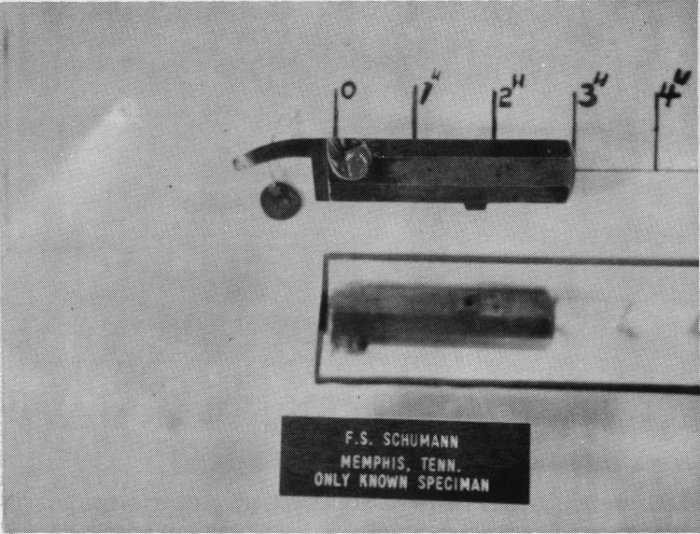

#201 F. Schumann is identified as a maker of derringers by old newspaper accounts. None of my collector friends or dealer friends have ever heard of or seen a genuine Schumann derringer and I am indeed fortunate in obtaining this specimen of a barrel whose caliber is .410 and is full octagon. This barrel turned up in Memphis about twenty-five or thirty years ago in an old gun shop where it was obtained and kept in a collection thereafter. It has never been on a gun and still shows the old original file marks.

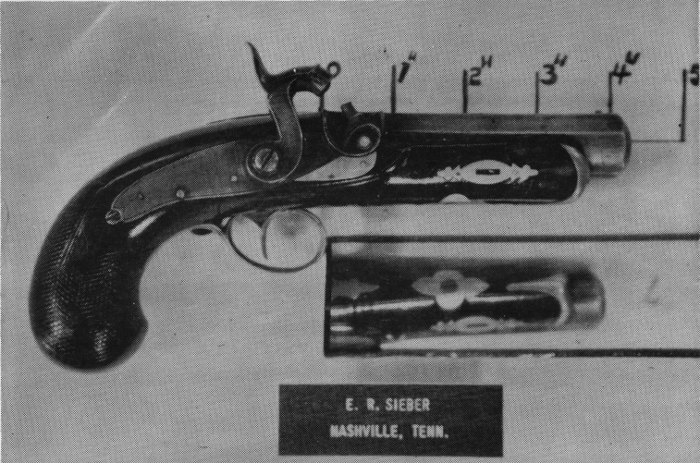

#286 Sieber of Nashville, Tennessee is virtually unknown among my gun collector friends and dealers until this gun turned up in Norman Flayderman’s catalog in 1970. It is definitely Nashville made with the characteristics of those guns in the full octagon barrel, the escutcheon plate under the forearm holding the screw to attach the barrel, and the lack of engraving. The buttcap, sideplate, nameplate on the wrist, and escutcheons are of German silver. The trigger guard, believe it or not, is of brass and appears to be original. The barrel is a little different in that the bottom half is rounded with the top half octagon. To say this another way, there are three octagon flats at the top of the barrel with the other part underneath rounded. There is a gold blow-out plug on the breechplug. Two bands at the breech are of gold and silver and one silver band at the muzzle. It is a shame, but someone in the past has sand-papered the barrel which is in extra fine condition. They saw the old brown color and thought they were removing rust when actually the gun had original browning on the barrel and some smart fellow removed all of it. I would call this a high quality but plain derringer. Its caliber is .440.
The only markings are on the top barrel flat as follows:
E. R. Sieber,
Nashville, Tenn.
H. G. Newcomb is a little known maker of Vicksburg, Mississippi who made his own derringers. I have only heard of two guns by this maker and they are in a collection in Mississippi and maybe sometime we can obtain this specimen for photographing and describing.
Apparently Newcomb was active about the same time as O’Dell but he lived into the early 1870’s. Two of his derringers are known and one is even more ornate than O’Dell produced guns while the other is very plain. It is rumored that some genuine Henry Deringers were agent marked with Newcomb’s name but I have never personally seen one of these guns.

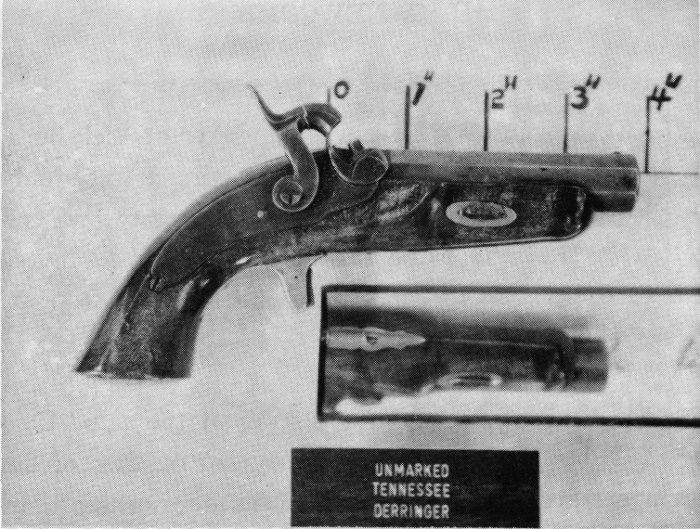

#221 Here is an unmarked derringer that could have been made either in Nashville or in Memphis according to the sheath trigger and the flat butt. Bitterlick produced guns of this style and marked them but I do not have one for my collection. Notice that this is made of curly maple rather than like all the rest of walnut. The full octagon barrel has one silver band at the breech. The tang is marked with “#1”. There is no way to determine whether this gun was made in Nashville or Memphis. Its caliber is .480.
#212 Having no characteristics whatsoever of any other known Southern derringer maker is this specimen from my collection that I have had for ten or twelve years. The tear drop buttcap, the wedge plate escutcheons, the silver inlay under the barrel and the left hand sideplate and name plate over the wrist are all plain with no engraving which is typical of Southern guns. There is no provision for ramrod. Notice the forearm nose is fluted and that it is turned downward somewhat. The trigger guard is steel and does have the Southern type of screw through the trigger plate attaching to the barrel. The lock plate has a very high radius curve to make it fit the curve of the wrist. The round barrel is flat on top. The dovetailed steel base front sight has a German silver blade. Notice that the hammer is not derringer style in that it has a slightly rounded face. No proof marks under barrel. This gun is in exceedingly fine condition, and I would say almost like new. Its caliber is .450.
#206 Here is an unidentifiable hand made Southern type derringer with markings on the barrel that are hand cut and very crude as follows: “J. E. B.” The wood is curly maple and the trigger guard and trigger plate are steel with no butt cap on the flat butt. There is a screw through the trigger plate attaching the forearm to the barrel. This can be seen in the photograph. The rifled bore is caliber .500.
End of the Project Gutenberg EBook of Southern Derringers of the Mississippi
Valley, by Turner Kirkland
*** END OF THIS PROJECT GUTENBERG EBOOK SOUTHERN DERRINGERS ***
***** This file should be named 58040-h.htm or 58040-h.zip *****
This and all associated files of various formats will be found in:
http://www.gutenberg.org/5/8/0/4/58040/
Produced by Stephen Hutcheson and the Online Distributed
Proofreading Team at http://www.pgdp.net
Updated editions will replace the previous one--the old editions will
be renamed.
Creating the works from print editions not protected by U.S. copyright
law means that no one owns a United States copyright in these works,
so the Foundation (and you!) can copy and distribute it in the United
States without permission and without paying copyright
royalties. Special rules, set forth in the General Terms of Use part
of this license, apply to copying and distributing Project
Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm
concept and trademark. Project Gutenberg is a registered trademark,
and may not be used if you charge for the eBooks, unless you receive
specific permission. If you do not charge anything for copies of this
eBook, complying with the rules is very easy. You may use this eBook
for nearly any purpose such as creation of derivative works, reports,
performances and research. They may be modified and printed and given
away--you may do practically ANYTHING in the United States with eBooks
not protected by U.S. copyright law. Redistribution is subject to the
trademark license, especially commercial redistribution.
START: FULL LICENSE
THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK
To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full
Project Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.
Section 1. General Terms of Use and Redistributing Project
Gutenberg-tm electronic works
1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or
destroy all copies of Project Gutenberg-tm electronic works in your
possession. If you paid a fee for obtaining a copy of or access to a
Project Gutenberg-tm electronic work and you do not agree to be bound
by the terms of this agreement, you may obtain a refund from the
person or entity to whom you paid the fee as set forth in paragraph
1.E.8.
1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this
agreement and help preserve free future access to Project Gutenberg-tm
electronic works. See paragraph 1.E below.
1.C. The Project Gutenberg Literary Archive Foundation ("the
Foundation" or PGLAF), owns a compilation copyright in the collection
of Project Gutenberg-tm electronic works. Nearly all the individual
works in the collection are in the public domain in the United
States. If an individual work is unprotected by copyright law in the
United States and you are located in the United States, we do not
claim a right to prevent you from copying, distributing, performing,
displaying or creating derivative works based on the work as long as
all references to Project Gutenberg are removed. Of course, we hope
that you will support the Project Gutenberg-tm mission of promoting
free access to electronic works by freely sharing Project Gutenberg-tm
works in compliance with the terms of this agreement for keeping the
Project Gutenberg-tm name associated with the work. You can easily
comply with the terms of this agreement by keeping this work in the
same format with its attached full Project Gutenberg-tm License when
you share it without charge with others.
1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are
in a constant state of change. If you are outside the United States,
check the laws of your country in addition to the terms of this
agreement before downloading, copying, displaying, performing,
distributing or creating derivative works based on this work or any
other Project Gutenberg-tm work. The Foundation makes no
representations concerning the copyright status of any work in any
country outside the United States.
1.E. Unless you have removed all references to Project Gutenberg:
1.E.1. The following sentence, with active links to, or other
immediate access to, the full Project Gutenberg-tm License must appear
prominently whenever any copy of a Project Gutenberg-tm work (any work
on which the phrase "Project Gutenberg" appears, or with which the
phrase "Project Gutenberg" is associated) is accessed, displayed,
performed, viewed, copied or distributed:
This eBook is for the use of anyone anywhere in the United States and
most other parts of the world at no cost and with almost no
restrictions whatsoever. You may copy it, give it away or re-use it
under the terms of the Project Gutenberg License included with this
eBook or online at www.gutenberg.org. If you are not located in the
United States, you'll have to check the laws of the country where you
are located before using this ebook.
1.E.2. If an individual Project Gutenberg-tm electronic work is
derived from texts not protected by U.S. copyright law (does not
contain a notice indicating that it is posted with permission of the
copyright holder), the work can be copied and distributed to anyone in
the United States without paying any fees or charges. If you are
redistributing or providing access to a work with the phrase "Project
Gutenberg" associated with or appearing on the work, you must comply
either with the requirements of paragraphs 1.E.1 through 1.E.7 or
obtain permission for the use of the work and the Project Gutenberg-tm
trademark as set forth in paragraphs 1.E.8 or 1.E.9.
1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any
additional terms imposed by the copyright holder. Additional terms
will be linked to the Project Gutenberg-tm License for all works
posted with the permission of the copyright holder found at the
beginning of this work.
1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.
1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.
1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including
any word processing or hypertext form. However, if you provide access
to or distribute copies of a Project Gutenberg-tm work in a format
other than "Plain Vanilla ASCII" or other format used in the official
version posted on the official Project Gutenberg-tm web site
(www.gutenberg.org), you must, at no additional cost, fee or expense
to the user, provide a copy, a means of exporting a copy, or a means
of obtaining a copy upon request, of the work in its original "Plain
Vanilla ASCII" or other form. Any alternate format must include the
full Project Gutenberg-tm License as specified in paragraph 1.E.1.
1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.
1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works
provided that
* You pay a royalty fee of 20% of the gross profits you derive from
the use of Project Gutenberg-tm works calculated using the method
you already use to calculate your applicable taxes. The fee is owed
to the owner of the Project Gutenberg-tm trademark, but he has
agreed to donate royalties under this paragraph to the Project
Gutenberg Literary Archive Foundation. Royalty payments must be paid
within 60 days following each date on which you prepare (or are
legally required to prepare) your periodic tax returns. Royalty
payments should be clearly marked as such and sent to the Project
Gutenberg Literary Archive Foundation at the address specified in
Section 4, "Information about donations to the Project Gutenberg
Literary Archive Foundation."
* You provide a full refund of any money paid by a user who notifies
you in writing (or by e-mail) within 30 days of receipt that s/he
does not agree to the terms of the full Project Gutenberg-tm
License. You must require such a user to return or destroy all
copies of the works possessed in a physical medium and discontinue
all use of and all access to other copies of Project Gutenberg-tm
works.
* You provide, in accordance with paragraph 1.F.3, a full refund of
any money paid for a work or a replacement copy, if a defect in the
electronic work is discovered and reported to you within 90 days of
receipt of the work.
* You comply with all other terms of this agreement for free
distribution of Project Gutenberg-tm works.
1.E.9. If you wish to charge a fee or distribute a Project
Gutenberg-tm electronic work or group of works on different terms than
are set forth in this agreement, you must obtain permission in writing
from both the Project Gutenberg Literary Archive Foundation and The
Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm
trademark. Contact the Foundation as set forth in Section 3 below.
1.F.
1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
works not protected by U.S. copyright law in creating the Project
Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm
electronic works, and the medium on which they may be stored, may
contain "Defects," such as, but not limited to, incomplete, inaccurate
or corrupt data, transcription errors, a copyright or other
intellectual property infringement, a defective or damaged disk or
other medium, a computer virus, or computer codes that damage or
cannot be read by your equipment.
1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.
1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium
with your written explanation. The person or entity that provided you
with the defective work may elect to provide a replacement copy in
lieu of a refund. If you received the work electronically, the person
or entity providing it to you may choose to give you a second
opportunity to receive the work electronically in lieu of a refund. If
the second copy is also defective, you may demand a refund in writing
without further opportunities to fix the problem.
1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO
OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.
1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of
damages. If any disclaimer or limitation set forth in this agreement
violates the law of the state applicable to this agreement, the
agreement shall be interpreted to make the maximum disclaimer or
limitation permitted by the applicable state law. The invalidity or
unenforceability of any provision of this agreement shall not void the
remaining provisions.
1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in
accordance with this agreement, and any volunteers associated with the
production, promotion and distribution of Project Gutenberg-tm
electronic works, harmless from all liability, costs and expenses,
including legal fees, that arise directly or indirectly from any of
the following which you do or cause to occur: (a) distribution of this
or any Project Gutenberg-tm work, (b) alteration, modification, or
additions or deletions to any Project Gutenberg-tm work, and (c) any
Defect you cause.
Section 2. Information about the Mission of Project Gutenberg-tm
Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of
computers including obsolete, old, middle-aged and new computers. It
exists because of the efforts of hundreds of volunteers and donations
from people in all walks of life.
Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future
generations. To learn more about the Project Gutenberg Literary
Archive Foundation and how your efforts and donations can help, see
Sections 3 and 4 and the Foundation information page at
www.gutenberg.org Section 3. Information about the Project Gutenberg
Literary Archive Foundation
The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg Literary
Archive Foundation are tax deductible to the full extent permitted by
U.S. federal laws and your state's laws.
The Foundation's principal office is in Fairbanks, Alaska, with the
mailing address: PO Box 750175, Fairbanks, AK 99775, but its
volunteers and employees are scattered throughout numerous
locations. Its business office is located at 809 North 1500 West, Salt
Lake City, UT 84116, (801) 596-1887. Email contact links and up to
date contact information can be found at the Foundation's web site and
official page at www.gutenberg.org/contact
For additional contact information:
Dr. Gregory B. Newby
Chief Executive and Director
[email protected]
Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation
Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.
The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To SEND
DONATIONS or determine the status of compliance for any particular
state visit www.gutenberg.org/donate
While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.
International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.
Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations. To
donate, please visit: www.gutenberg.org/donate
Section 5. General Information About Project Gutenberg-tm electronic works.
Professor Michael S. Hart was the originator of the Project
Gutenberg-tm concept of a library of electronic works that could be
freely shared with anyone. For forty years, he produced and
distributed Project Gutenberg-tm eBooks with only a loose network of
volunteer support.
Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as not protected by copyright in
the U.S. unless a copyright notice is included. Thus, we do not
necessarily keep eBooks in compliance with any particular paper
edition.
Most people start at our Web site which has the main PG search
facility: www.gutenberg.org
This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
