In the summer of 1892 while the Author was in California, preparing for a Lecturing tour through Australia and India, he received an invitation from the Fine Arts Commission of the World's Columbian Exposition to give a series of Lectures on Zoopraxography in association with the Exposition now being held in Chicago.
As these Lectures under the more familiar title of "The Science of Animal Locomotion in Its Relation to Design in Art" had already been given at nearly all the principal Institutions of Art, Science and Education in Europe and in the United States, (see appendix A) the Author was induced to believe that they might be repeated in a popular manner at the Exposition, with some appreciation of the importance of the facts which his investigation has revealed, not merely by the student of Nature or of Art, but by that large and important class of students, known as the general public.
Under this impression he delayed his far Occidental expedition and returned to Chicago to find a commodious theater erected for this special purpose on the grounds of the Exposition, to which the name of Zoöpraxographical Hall had been given; the Science of Zoöpraxography having had its origin in the Author's first experiments in 1872. It is not intended in this monograph to give more than a synopsis of the usual course of Lectures on the subject, nor to reproduce any of the pictured or sculptured representations which are necessary for its proper elucidation, but merely to describe the common methods of limb action adopted by quadrupeds—especially by the horse—in their various acts of progressive motion, and to illustrate the most important phases of these movements by tracings from the original photogravures of the Author's work.
In the presentation of a Lecture on Zoöpraxography the course usually adopted is to project, much larger than the size of life upon a screen, a series of the most important phases of some act of animal motion—the stride of a horse, while galloping for example—which are analytically described. These successive phases are then combined in the Zoöpraxiscope, which is set in motion, and a reproduction of the original movements of life is distinctly visible to the audience.
With this apparatus, horse-races are reproduced with such fidelity that the individual characteristics of the motion of every animal can readily be seen; flocks of birds fly across the screen with every movement of their wings clearly perceptible; two gladiators contend for victory with an energy which would cause the arena to resound with wild applause, athletes turn somersaults, and other actions by men, women and children, horses, dogs, cats and wild animals, such as running, dancing, jumping, trotting and kicking, are illustrated in the same manner. By this method of analysis and synthesis the eye is taught how to observe and to distinguish the differences between a true and a false impression of animal movements. The Zoöpraxiscopical exhibition is followed by illuminated copies of paintings and sculptures, demonstrating how the movement has been interpreted by the Artists of all ages; from the primitive engravers of the cave dwelling period, to the most eminent painters and sculptors of the present day.
In the year 1872, while the Author was engaged in his official duties as Photographer of the United States Government for the Pacific coast, there arose in the city of San Francisco one of those controversies upon Animal Locomotion, which has engaged the attention of mankind from the dawn of symbolical design, to the present era of reformation in the artistic expression of animal movements.
The subject of this particular dispute was the possibility of a horse having all of his feet free of contact with the ground at the same instant, while trotting, even at a high rate of speed, and the disputants were Mr. Frederick MacCrellish and the Hon. Leland Stanford.
The attention of the Author was directed to this controversy and he immediately sought the means for its settlement.
At this time the rapid dry plate had not yet been evolved from the laboratory of the chemist, and the problem before him was to develop a sufficiently intense and contrasted image upon a wet collodion plate, after an exposure of so brief a duration that a horse's foot moving with a velocity of more than a hundred lineal feet in a second of time, should be photographed practically "sharp."
A few days' experimenting and about a dozen negatives, with a celebrated fast trotter—"Occident"—as a model, while trotting at the rate of a mile in two minutes and sixteen seconds, laterally in front of the camera, decided the argument for once and for all time in favor of those disputants who held the opinion that a horse while trotting was for a portion of his stride entirely free from contact with the ground. With a knowledge of the fact that some horses while trotting will make a stride of twenty feet or more in length, it is difficult to understand why there should ever have been any difference of opinion on the subject.
These first experiments of Zoöpraxography were made at Sacramento, California, in May, 1872. A few impressions were printed from the selected negative for private distribution, and were commented upon by the "Alta California," a newspaper published in San Francisco.
Thus far the photographs had been made with a single camera, requiring a separate trotting for each exposure. The horse being of a dark color and the background white, the pictures were little better than silhouettes, and it was difficult to distinguish, except by inference, the right feet from the left.
Several phases of as many different movements had been photographed, which the Author endeavored with little success to arrange in consecutive order for the construction of a complete stride.
It then occurred to him that if a number of cameras were placed in a line, and exposures effected successively in each, with regulated intervals of time or of distance, an analysis of one single step or stride could be obtained which would be of value both to the Scientist and the Artist.
The practical application of this system of photographing required considerable time for its development, and much experimenting with chemicals and apparatus.
It being desirable that the horses used as models should be representatives of their various breeds, and the Author not being the owner of any that could be fairly classed as such, obtained the coöperation of Mr. Stanford, who owned a fine stud of horses at his farm at Palo Alto, and there continued his labors.
The apparatus used at this stage of the investigation was essentially the same as that subsequently constructed for the University of Pennsylvania, the arrangement of which will be described further on.
Some of the results of these early experiments which illustrated successive phases of the action of horses while walking, trotting, galloping, &c., were published in 1878, with the title of "The Horse in Motion." Copies of these photographs were deposited the same year in the Library of Congress at Washington, and some of them found their way to Berlin, London, Paris, Vienna, &c., where they were criticized by the journals of the day.
In 1882 the Author visited Europe and at a reception given him by Monsieur Meissonier was invited by that great painter to exhibit the results of his labors to his brother Artists who had assembled in his studios for that purpose. M. Meissonier was the first among Artists to acknowledge the value to Art design of the Author's researches; and upon this occasion, alluding to a full knowledge of the details of a subject being necessary for its truthful and satisfactory translation by the Artist, he declared how much his own impression of a horse's motion had been changed after a careful study of its consecutive phases.
It is scarcely necessary to point out, in confirmation of M. Meissonier's assertions, the modifications in the expression of animal movements now progressing in the works of the Painter and the Sculptor, or to the fact of their being the result of studious attention to the science of Zoöpraxography.
In the same year, during a lecture on "The Science of Animal Locomotion in Its Relation to Design in Art," given at the Royal Institution (see Proceedings of the Royal Institution of Great Britain, March 13, 1882), the author exhibited the results of his experiments at Palo Alto, when he, with the Zoöpraxiscope and an oxy-hydrogen lantern, projected on the wall a synthesis of many of the actions he had photographed.
It may not be considered irrelevant if he repeats what he on that occasion said in his analysis of the quadrupedal walk:—
"So far as the camera has revealed, these successive foot fallings are invariable, and are probably common to all quadrupeds....
"It is also probable that these photographic investigations—which were executed with wet collodion plates, with exposures not exceeding in some instances the one five-thousandth part of a second—will dispel many popular illusions as to the gaits of a horse, and future and more exhaustive experiments, with the advantages of recent chemical discoveries, will completely unveil all the visible muscular action of men and animals even during their most rapid movements....
"The employment of automatic apparatus for the purpose of obtaining a regulated succession of photographic exposures is too recent for it to be generally used for scientific experiment or for its advantages to be properly appreciated. At some future time the philosopher will find it indispensable for many of his investigations."
The great interest manifested in the results of his preliminary labors convinced the Author that a comprehensive and systematic investigation with improved mechanical appliances, and newly-discovered chemical manipulations, would demonstrate many novel facts, not only interesting to the casual observer, but of indisputable value to the Artist and to the Scientist. This investigation and the subsequent publication in the elaborate manner determined upon, assumed such imposing proportions, and necessarily demanded so large an expenditure, that all publishers, not unnaturally, shrank from entering the unexplored field.
In this emergency, through the influence of its Provost, Dr. William Pepper, the University of Pennsylvania with an enlightened exercise of its functions as a contributor to human knowledge, instructed the Author to make, under its auspices, a comprehensive investigation of "Animal Locomotion" in the broadest significance of the words, (see appendix B) and some of the Trustees and friends of the University constituted themselves a committee for the purpose of promoting the execution of the work. These gentlemen were Dr. William Pepper, Chas. C. Harrison, J. B. Lippincott, Edw. H. Coates, Samuel Dickson and Thomas Hockley.
The Author acknowledges his obligations to these gentlemen for the interest they took in his labors; for without their generous assistance the work would probably never have been completed; the total amount expended—nearly forty thousand dollars—being entirely beyond his own resources. To Drs. F. X. Dercum, Geo. F. Barker and Horace Jayne, of the University, the Author is also indebted for much valuable assistance.

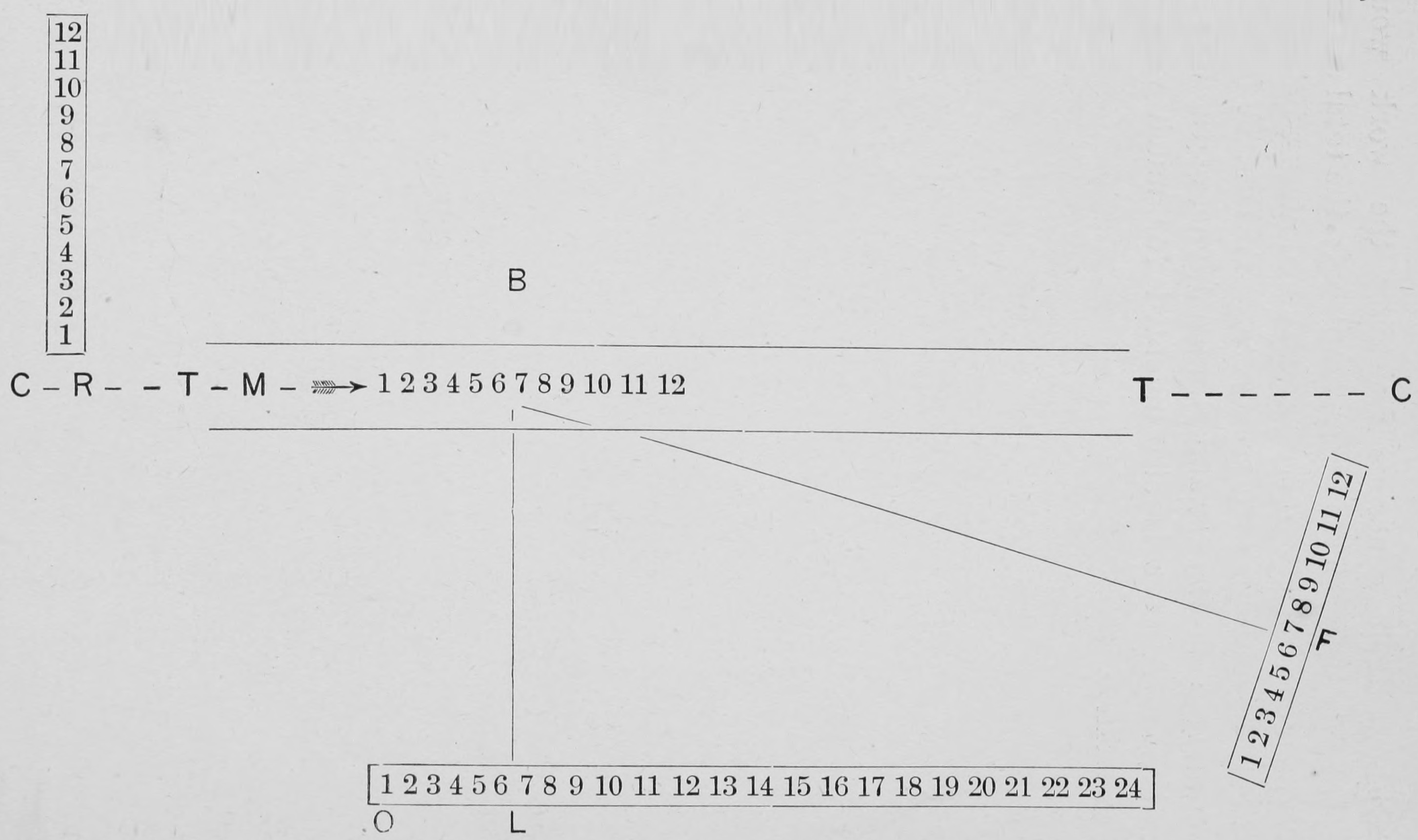

Diagram of the Studio at The University of Pennsylvania, and
Arrangement of the Apparatus for Investigating Animal Locomotion.
For a proper appreciation of the care taken in the Investigation of Animal Locomotion at the University of Pennsylvania to ensure accurate record of the consecutive phases of the various movements, attention to the system adopted is necessary.
In the diagram, B is the Lateral background; consisting of a shed 37 metres or about 120 feet, long, the front of which is open, and divided by vertical and horizontal threads into spaces 5 centimetres, or about 2 inches, square, and by broader threads into larger spaces 50 centimetres, or about 19¾ inches, square.
At C and C, 37 metres, or about 120 feet, apart are "fixed" backgrounds, with vertical threads 5 centimetres, or about two inches, from their centres, with broader threads 30 centimetres, or about 12 inches, from their centres.
For some investigations, readily distinguishable in the plates, "portable" backgrounds are used, consisting of frames 3 metres wide by 4 metres high,—about 10 feet by 13 feet 4 inches,—over some of which black cloth and over others white cloth is stretched, all being divided by vertical and horizontal lines into square spaces of the same description as those of the lateral background.
These portable backgrounds are used when photographing birds and horses, and also wild animals when possible to do so.
L. A lateral battery of 24 automatic electro-photographic cameras, arranged parallel with the line of progressive motion, and usually placed therefrom about 15 metres or 49 feet.
Slow movements are usually photographed with lenses of 3 inches diameter and 15 inches equivalent focus; the centres of the lenses being 15 centimetres, or about 6 inches, apart.
Rapid movements are usually photographed with a portable battery of cameras and smaller lenses.
The centre, between lenses 6 and 7, is opposite the centre of the track T.
For illustrations comprising both "Laterals" and "Foreshortenings," cameras 1 to 12 only are used.
When "Laterals" alone are required, cameras 13 to 24 are connected with the system and used in their regular sequence.
R. A portable battery of 12 automatic electro-photographic cameras, the lenses of which are 1¼ inches diameter and 5 inches equivalent focus; the lenses are arranged 7½ centimetres, or about 3 inches, from their centres. When the battery is used vertically, lens 6 is usually on the same horizontal plane as the lenses of the lateral battery.
In the diagram this battery is arranged vertically for a series of "Rear Foreshortenings," the points of view being at an angle of 90 degrees from the lateral battery.
F. A battery of 12 automatic electro-photographic cameras, similar to that placed at R, arranged horizontally for "Front Foreshortenings," the points of view averaging an angle of 60 degrees from the lateral battery.
O. The position of the operator; the electric batteries; the chronograph for recording the intervals of time between each successive exposure; the motor for completing the successive electric circuits, and other apparatus connected with the investigation.
T T. The track parallel with the lateral battery and covered with corrugated rubber flooring.
M. The model, approaching the point number "1" on the track where the series of photographic illustrations will commence.
An estimate having been made of the interval of time which will be required, between each photographic exposure, to illustrate the complete movement, or that portion of the complete movement desired, the apparatus is adjusted to complete a succession of electric circuits at each required interval of time, and the motor is set in operation. When the series is to illustrate progressive motion; upon the arrival of the model at the point marked "1" on the track, the operator, by pressing a button, completes an electric circuit, which immediately throws into gearing a portion of the apparatus hitherto at rest. By means of suitably arranged connections, an electric current is transmitted to each of the 3 cameras marked "1" in the various batteries, and an exposure is simultaneously made on each of the photographic plates, respectively, contained therein. At the end of the predetermined interval of time, a similar current is transmitted to each of the cameras marked "2," and another exposure made on each of the 3 next plates, and so forth until each series of exposures in each of the three batteries is completed. Assuming the operator to have exercised good judgment in regulating the speed of the apparatus, and in making the first electric contact at the proper time, and that the figures 1 to 12 represent the distance traversed by the model in executing the movement desired, the first three photographic exposures—that is, one exposure in each battery—will have been synchronously made when the model was passing the position marked "1" on the track T; the second three exposures will have been made when the model was passing the position marked "2," and so on until twelve successive exposures were simultaneously made in each of the three batteries. This perfect uniformity of time, speed, and distance, however, was not always obtained.
When this monograph was commenced it was not intended by the author to give any more than a general idea of the method adopted for obtaining the results of his investigation; it has, however, been considered that a few illustrations and brief description of the apparatus devised and used by him may not be without interest to other students.
For the use of these illustrations he is indebted to the courtesy of Rev. Jesse Y. Burk, the Secretary of the University, and to J. B. Lippincott Company, the publishers of "The Muybridge Work at the University of Pennsylvania," a book which contains, among other essays upon the subject, "Materials for a Memoir on Animal Locomotion, by Harrison Allen, M. D.," and "A Study of Some Normal and Abnormal Movements, by Francis X. Dercum, M.D., Ph.D."

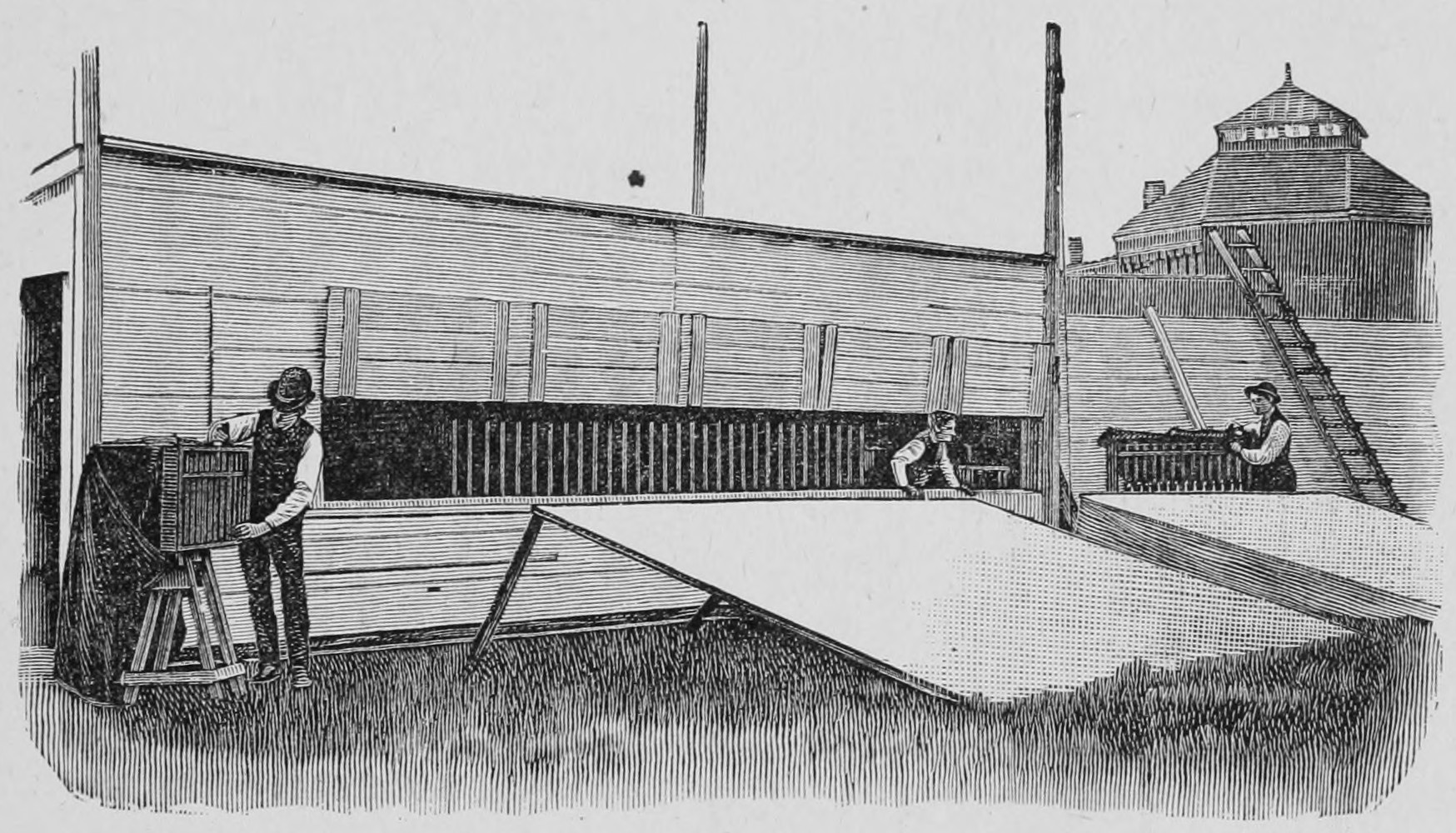

Figure 1 is a view of the building containing the lateral battery of twenty-four photographic cameras, all of which were used when as many consecutive phases of an act of motion were required.
Fig. 1.

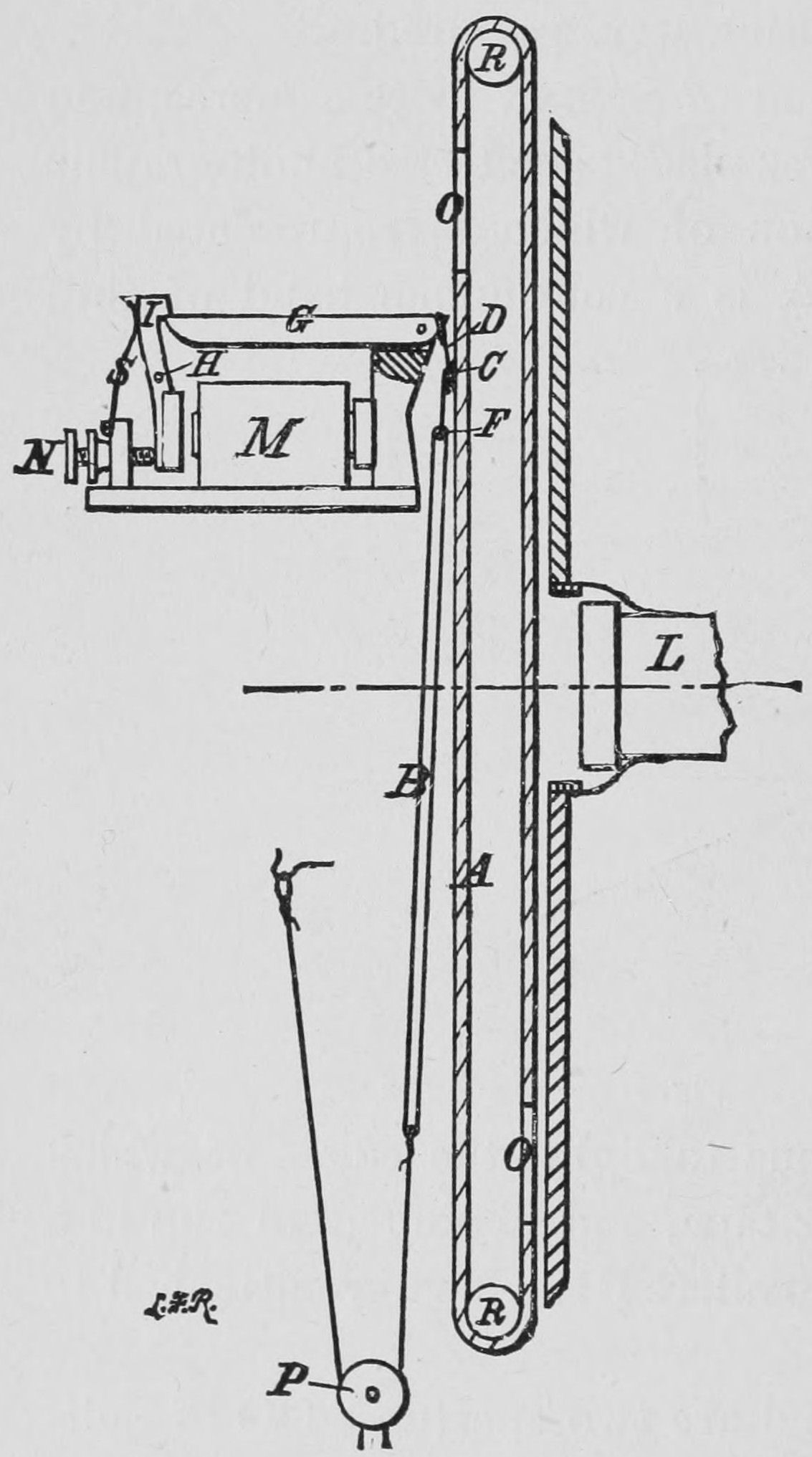

Immediately in front of each of these cameras, and detached therefrom, was placed an electro-photographic exposor, a side section of which is represented by Figure 2, in which A is a continuous band of thin rubber cloth impervious to light; the edges of which are bound with strong tape, and arranged to run in a groove, and over two rollers RR which are attached to a frame.
In this endless band are two apertures OO of suitable size, and so arranged that their full openings as they pass each other shall simultaneously take place in front of the center of the lens L.
The upper and lower edges of these apertures are kept taut by light steel rods attached to the tape binding.
To the lower rod of the front aperture is fastened a ring C and a cleat, to which some elastic rubber bands B are attached; these bands are easily removable and their number increased at discretion; in some instances of rapid exposures a tension of twenty-five pounds or more was required. On a shelf of the frame is a magnet M, over the top of which is arranged a steel lever G pivoted near the end D which terminates with a slightly indented projection.
Fig. 2.
The armature of the magnet is pivoted at H; its upper arm terminates with a shoulder I. S is a spring to prevent the accidental shifting of the shoulder from its contact with the lever when the exposor is ready for its function. N is a set screw to adjust the distance of the armature from the magnet. To prepare for a series of photographic exposures—the plates having been already placed in the cameras—the end of the lever G is placed under the shoulder I; the endless curtain is revolved until the front aperture O is raised to its proper position, when the ring C is hooked upon the projecting point D. A cord attached to the rubber bands B is drawn around the pulley P, and a ring at its end is slipped over a pin, which keeps the spring at a proper state of tension. Upon the completion of an electric circuit the armature is drawn towards the magnet; the end of the lever is released from its contact with the shoulder; the ring C is released from the projecting point D; the front of the endless curtain is drawn rapidly downward; the apertures meet in the center of the lens, form a gradually expanding and then contracting diaphragm, and the exposure is made. A front view of three electro-photographic exposors is seen in Figure 3. The first of these represents the exposor set and ready for an exposure; the second shows the meeting of the apertures at the commencement of an exposure; the third, their position near the completion of the exposure, they having in the meanwhile uncovered the lens to their full capacity.
Fig. 3.
Figure 4 illustrates a portable battery of twelve electro-photographic exposors; it consists of a rectangular box divided into compartments, open at the front and rear.
Fig. 4.

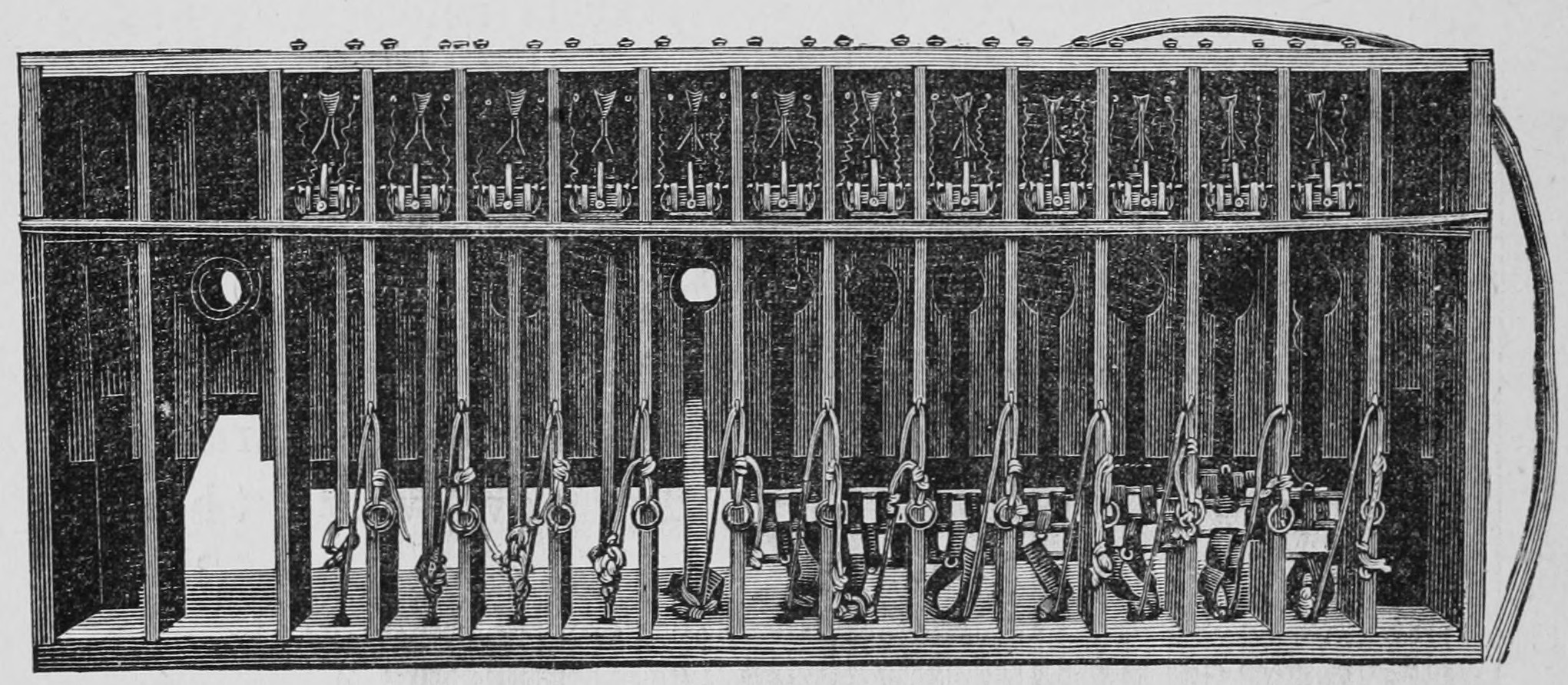

In twelve of these compartments are arranged rollers, curtains, magnets, etc., as previously described, and a compartment through which a focusing lens is used. The two end compartments provide for the adjustment of the camera, which is supported in the box to the rear of the exposing arrangements. A cable of insulated wires for connecting the twelve magnets with the exposing motor, contains a wire for the return current. As seen in the engraving, seven of the magnets by the passage of their respective currents have completed their releasing operations. In the eighth compartment the two apertures in the exposing band are in the act of effecting an exposure. The remaining four magnets are awaiting their turn for action.

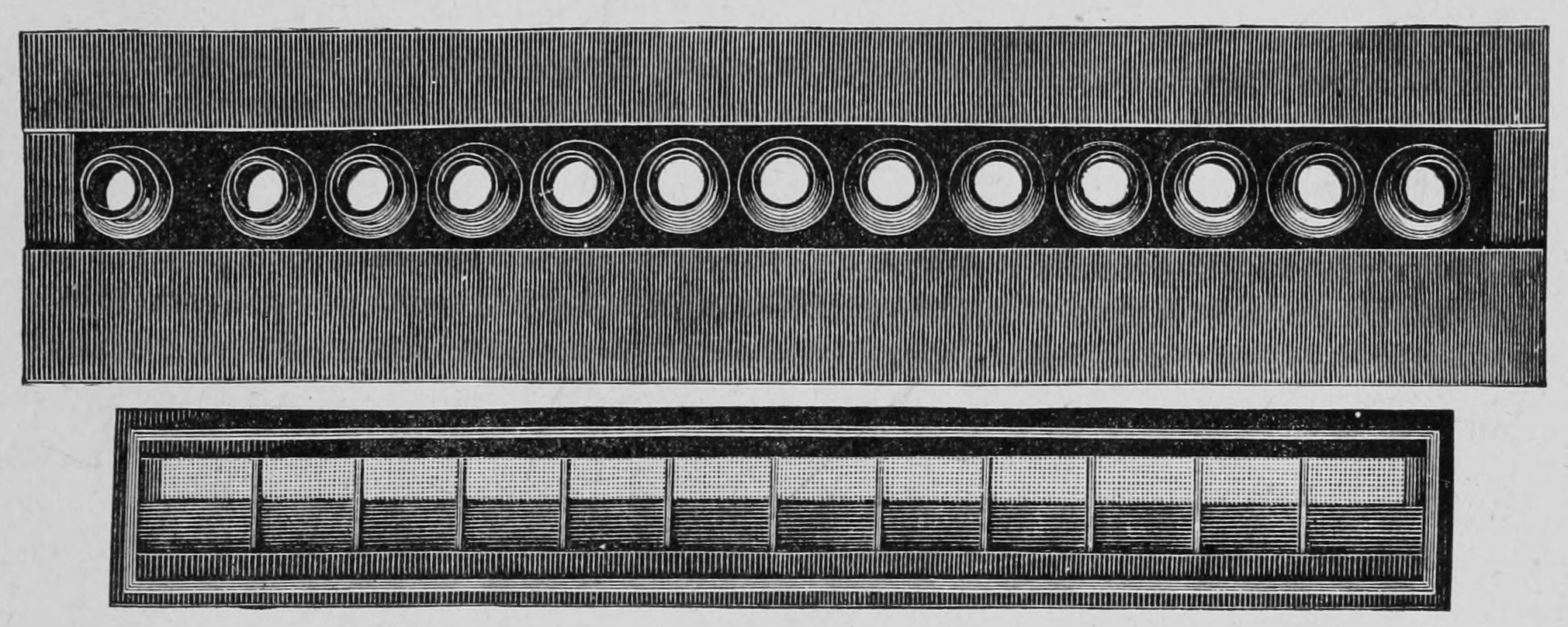

Figure 5 is a photographic camera divided into thirteen compartments, each having a lens of the same construction, and the same focal length; these are arranged to correspond with the compartments in the electro-exposors.
One of the lenses is provided with a focusing screen, and with it the other twelve lenses are adjusted to a proper focus without removing the plate holder behind them from its position in the camera.
The plate holder is constructed to hold three dry plates, each three inches by twelve inches; the front is divided into twelve compartments, each three inches square.
Fig. 5.
Light is excluded from the front by a roller blind, strengthened by thin narrow slats of hard wood; the blind works in grooves, is drawn over a concealed roller, and covers the back of the holder when the plates are being exposed.

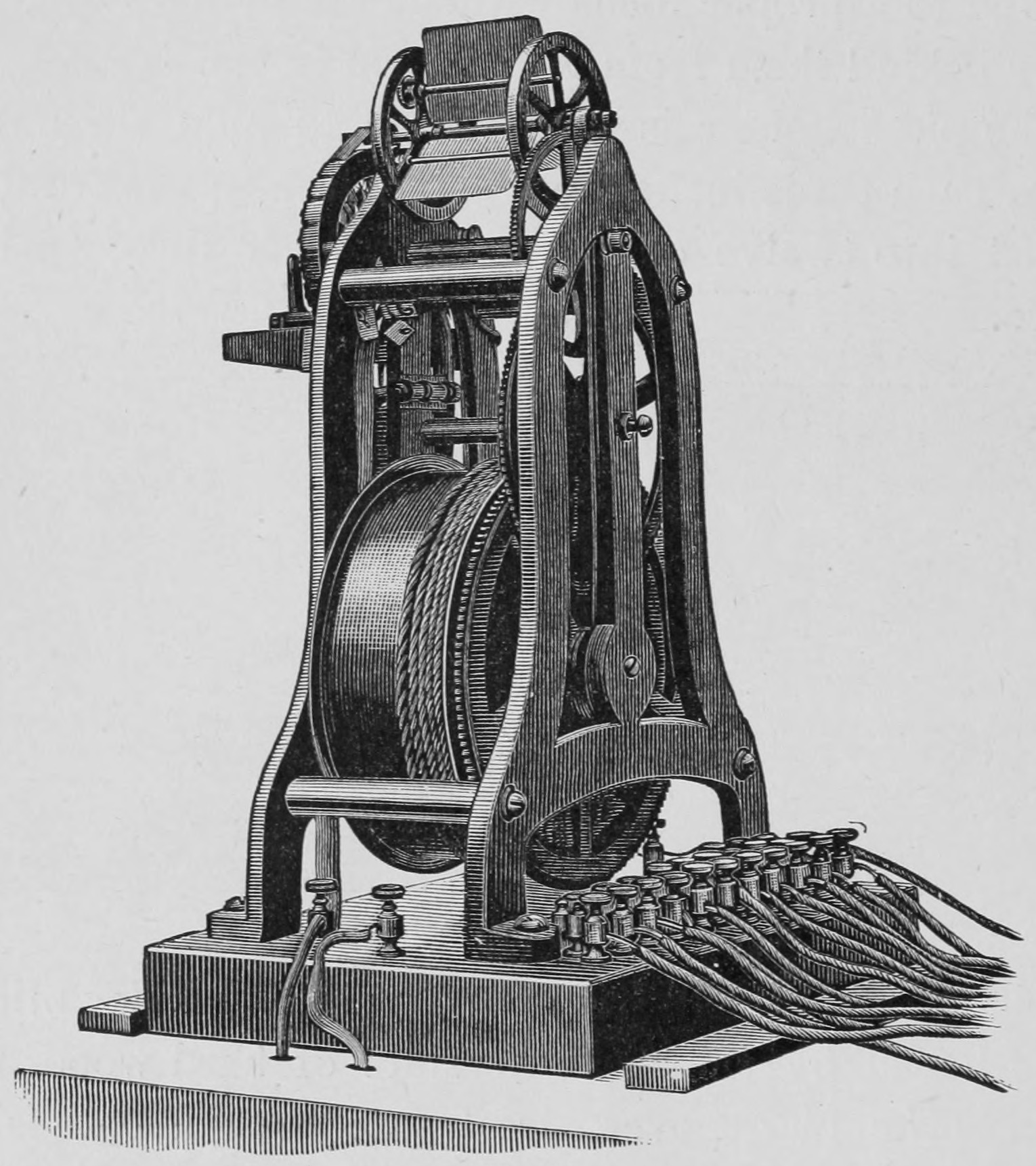

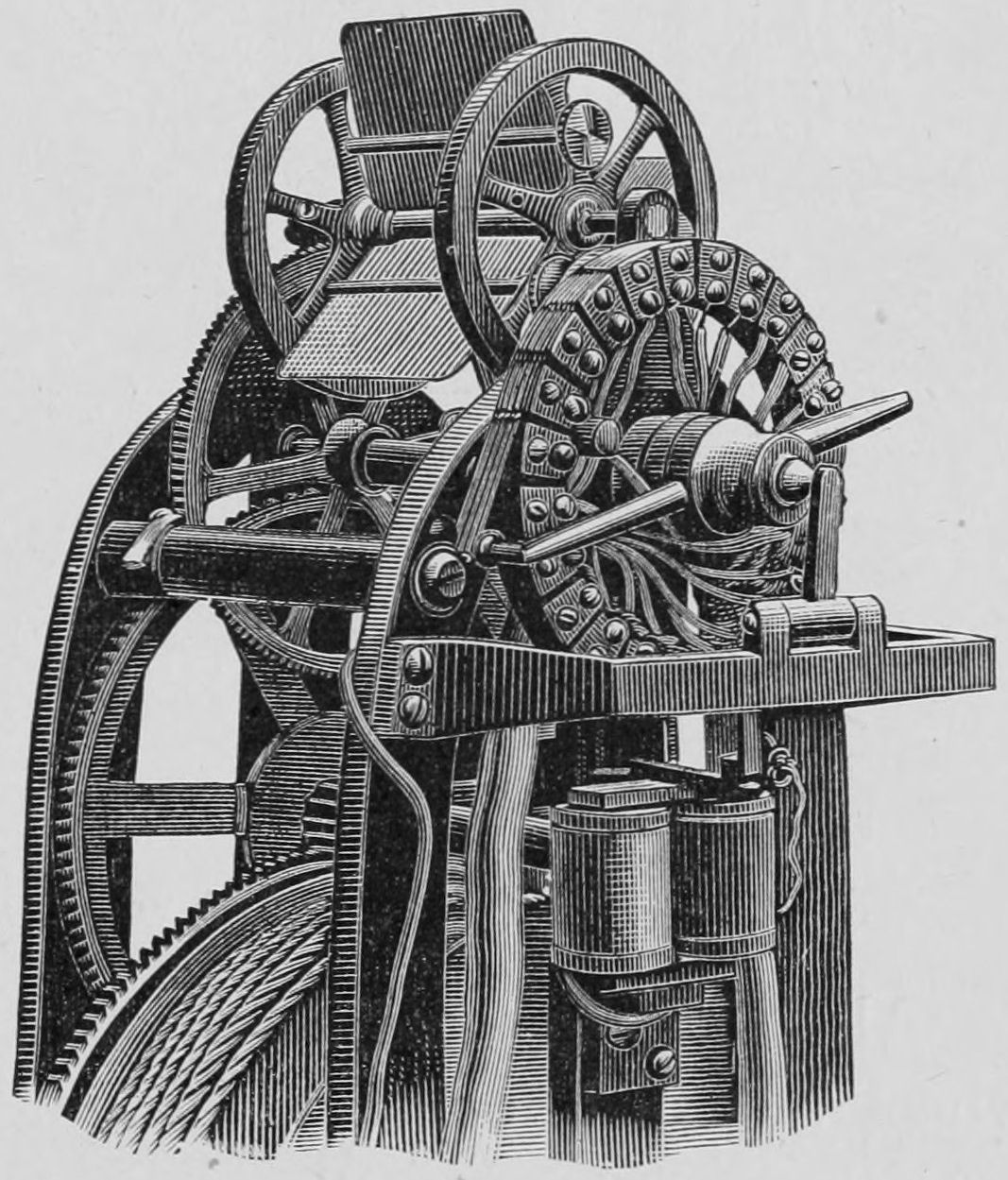

Figure 6 is a rear and side view of the circuit maker, conventionally called the exposing motor.
The motive power is an adjustable weight attached to a cord which is wound around a drum. Twenty-four binding posts are attached to the table at the back of the exposing motor; other binding posts are arranged for return or other currents.

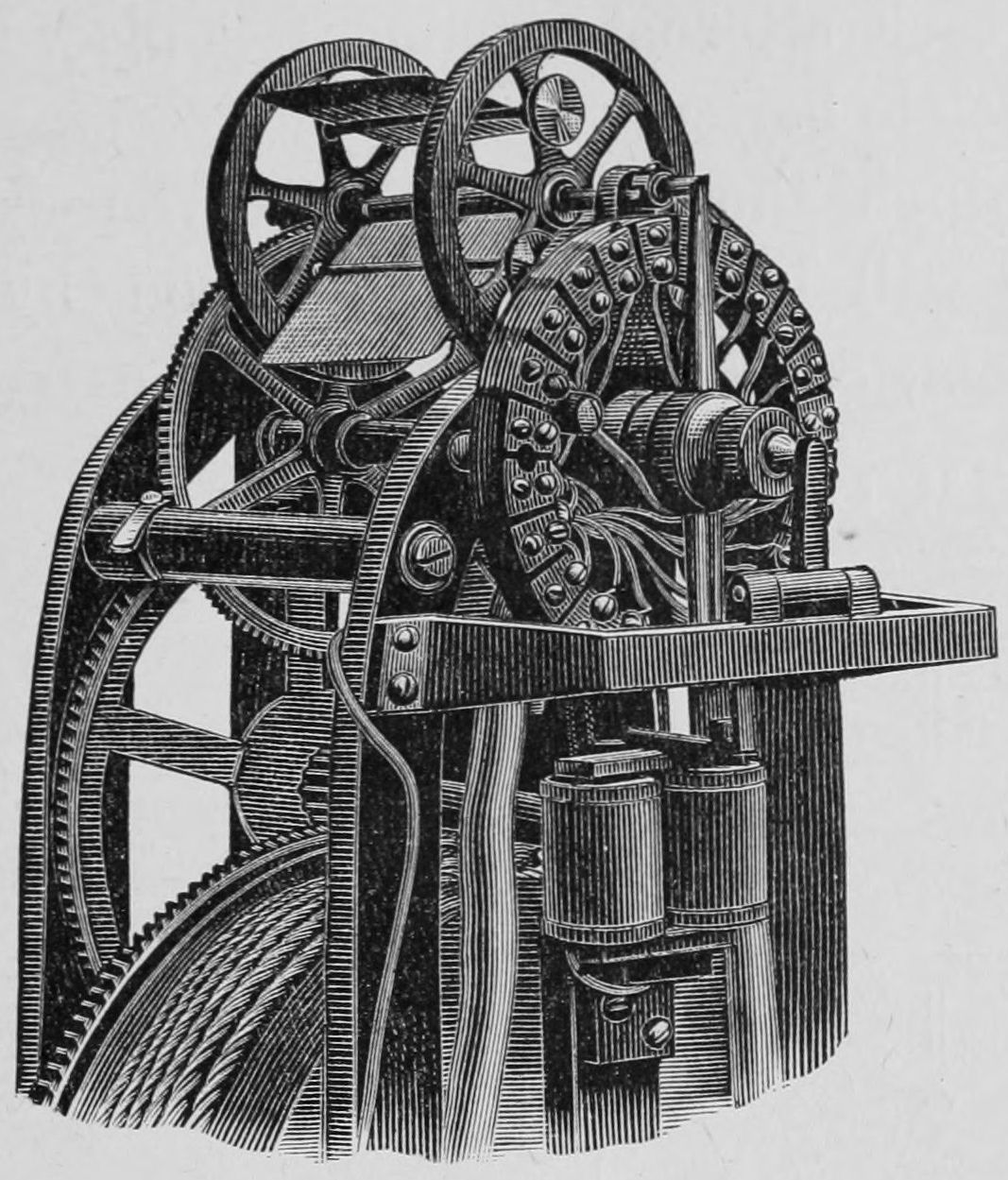

Figure 7 illustrates a front and side view of the upper part of the exposing motor. Fastened to the frame is a ring of hard rubber, in which are inserted twenty-four insulated segments of platinum-coated brass; these segments are connected by insulated wires to the twenty-four binding posts on the back of the motor table, figure 6.
Fig. 6.
A shaft, connected by an arrangement of geared wheels to the drum, passes through the center of the segmented ring and carries a loose collar; a stout metal rod is firmly attached near its longitudinal center to this loose collar. One arm of the rod carries a laminated metal scraper, or contact brush, arranged to travel around the periphery of the ring, and in its revolution to make contact with each segment in succession. The contact brush is connected through the arm with one pole of the battery; and each segment—through its independent wire and magnet of the electro-exposors—with the other pole.
Fig. 7.
|
Fig. 7.
|

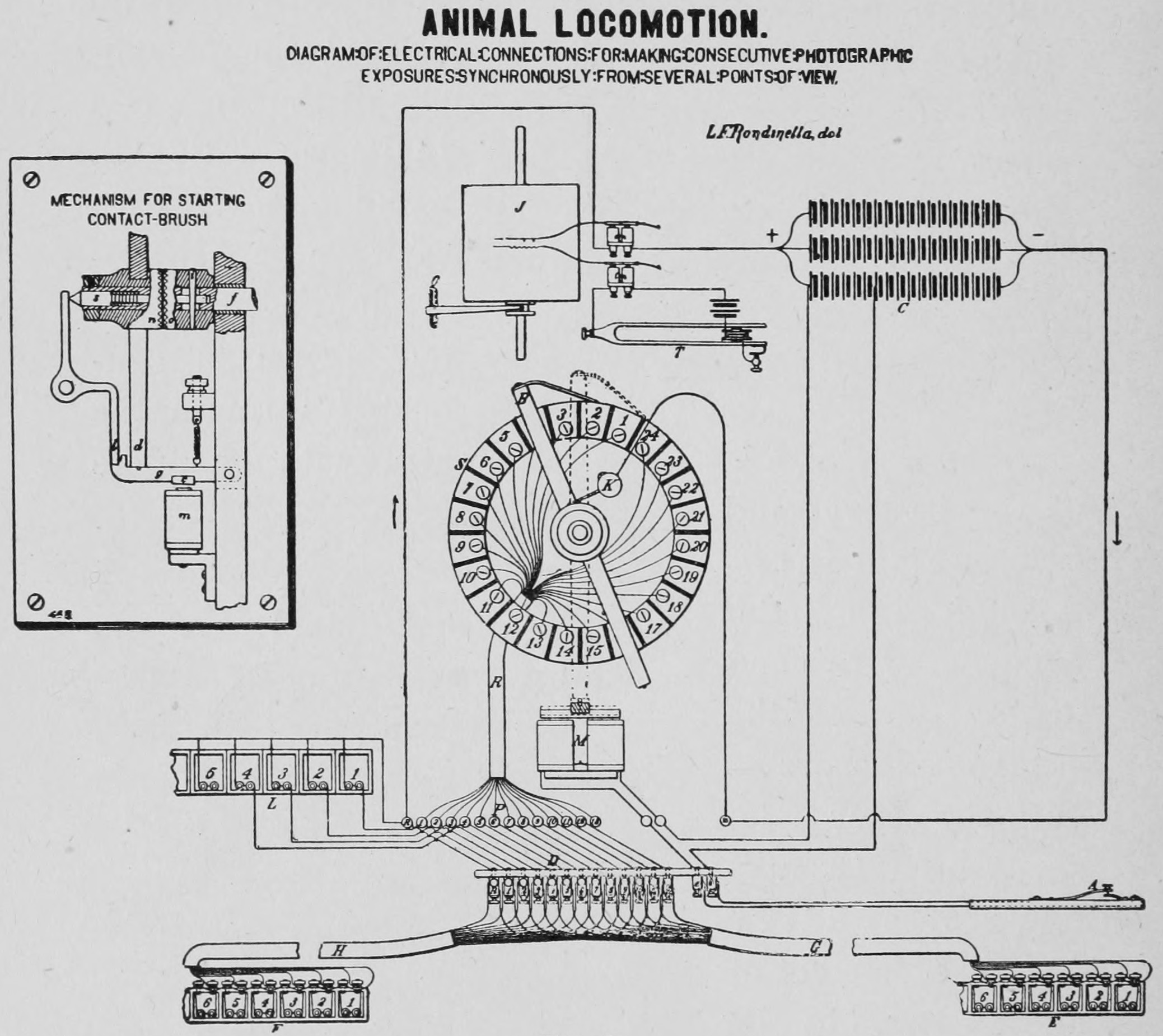

When twenty-four consecutive phases of an act of motion are to be photographed from one point of view, all of the insulated segments in the ring are put in circuit. When twelve consecutive phases are to be photographed synchronously from each of three points of view, each alternate segment is placed in circuit with the electric battery.
The manner in which the series of synchronous exposures is effected will be readily understood by reference to the diagram, 8.
Fig. 8.
All being in readiness, and the weights and fan wheel adjusted to cause the contact brush to sweep over the periphery of the ring at the required rate of speed, the drum, and with it the shaft is set in motion.
At the proper time, pressure on a button completes an independent circuit through the magnet seen below the segmented ring, figure 7, and in the side diagram of figure 8.
The action of the armature releases the lower end of the rod on the loose collar, which, by means of a coiled spring, is immediately thrown into gearing with the already revolving shaft; the contact brush sweeps around the segmented ring and effects the consecutive series of exposures at the pre-arranged intervals of time.
At the University the intervals varied from the one-sixtieth part of a second to several seconds.
A record of these time intervals was kept by a chronograph, a well known instrument; it comprises a revolving drum carrying a cylinder of smoke-blackened paper, on which, by means of successive electric contacts, a pencil is caused to record the vibrations of a tuning fork, while a second pencil marks the commencement of each photographic exposure. The number of vibrations occurring between any two successive exposures marks the time. The tuning fork used made one hundred single vibrations in a second of time. To ensure greater minuteness and accuracy in the record, the vibrations were divided into tenths, and the intervals calculated in thousandths of a second.
For the purpose of determining the synchronous action of the electro-exposors while making a double series of exposures, the accuracy of the time intervals as recorded by the chronograph, and the duration of the shortest photographic exposures used in the investigation, the two batteries of portable cameras were placed side by side, and the exposors were each connected with the exposing motor by separate lengths of a hundred feet of cable. The two series of cameras were pointed to a rapidly revolving disc of five feet diameter. The surface of the disc was black, with narrow white lines radiating from the center to the edge like the spokes of a wheel. A microscopic examination of the two series of resulting negatives proved that no variation could be discovered in the synchronous action of ten of the duplicated series of exposures, and that in the remaining two a variation existed in the simultaneity of a few ten-thousandths of a second—a result sufficiently near to simultaneity for all ordinary photographic work.
Fig. 9.

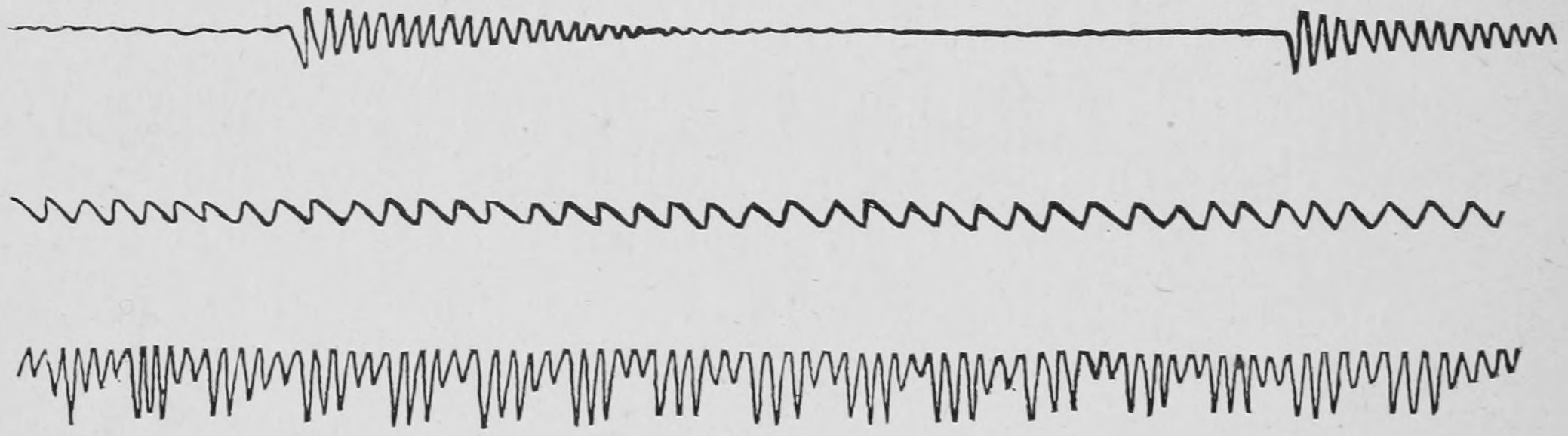

A reproduction of the chronographic record of one of these experiments is seen in figure 9.
The first line records the revolution of the disc; the second the vibration of the tuning fork; and each group of three long double markings in the third line indicates a photographic exposure.
The shortest exposures made at the University were—approximately—the one six-thousandth part of a second; such brief exposures are however for this class of investigation very rarely needed.
Some horses galloping at full speed will, for a short distance, cover about fifty-six or fifty-eight feet of ground in a second of time; a full mile averaging perhaps a hundred seconds. At this speed, a foot recovering its loss of motion will be thrust forward with an occasional velocity of at least 120 lineal feet in a second of time.
During the one one-thousandth part of a second the body of the horse will at this rate move forward about seven one-tenths of an inch, and a moving foot perhaps one and a half inches, not a very serious matter for the usual requirements of the amateur photographer.
A knowledge of the duration of the exposures, however, was in this investigation of no value, and scarcely a matter of curiosity, the aim always being to give as long an exposure as the rapidity of the action would permit, with a due regard to the necessary sharpness of outline, and essential distinctness of detail.
The power used for operating the magnets, through the exposing motor, was given from a lé Clanché battery of fifty-four cells, arranged in multiple arc of three series, each of eighteen cells.
During the investigation at the University of Pennsylvania, more than a hundred thousand photographic exposures were made.
The negative plates were supplied by the Cramer Dry Plate Company of St. Louis, and the positive plates by the Carbutt Company of Philadelphia. On a favorable day five hundred or six hundred negatives were sometimes exposed; on one day the number of exposures reached seven hundred and fifty.
The electrical manipulations were directed by Lino F. Rondinella; the development room was in charge of Henry Bell. The author takes pleasure in acknowledging the skill, patience and energy which these gentlemen exhibited in their respective fields of labor.
Although the one six-thousandth part of a second was the duration of the most rapid exposure made in this investigation, it is by no means the limit of mechanically effected photographic exposures, nor does the one-sixtieth part of a second approach the limit of time intervals. Marey, in his remarkable physiological investigations, has recently made successive exposures with far less intervals of time; and the author has devised, and when a relaxation of the demands upon his time permit, will use an apparatus which will photograph twenty consecutive phases of a single vibration of the wing of an insect; even assuming as correct a quotation from Nicholson's Journal by Pettigrew in his work on Animal Locomotion that a common house fly will make during flight seven hundred and fifty vibrations of its wings in a second of time, a number probably far in excess of the reality.
The ingenious gentlemen who are persistently endeavoring to overcome the obstacles in the construction of an apparatus for aerial navigation, will perhaps some day be awakened by the fact that the only successful method of propulsion will be found in the action of the wing of an insect.
We will now resume the subject proper of this monograph.
It is impossible within its limits to trace the history of the art of delineating animals in motion, or to illustrate it with examples of the truthful impressions of the primitive Artists, or of the imaginative and erroneous conceptions of many of those of modern times. Certain phases of the facts of Animal Locomotion will alone be treated upon, as demonstrated by photographic research.
The illustrations and condensed definitions of the various gaits were prepared by the Author for the "Standard Dictionary." Before studying these it is essential that the meaning of the terms step and stride should be distinctly understood.
A STEP is an act of progressive animal motion, in which one of the supporting members of the body is thrust in the direction of the motion and the support transferred, wholly, or in part, from one member to another.
A STRIDE is an act of progressive animal motion, which, for its completion, requires all of the supporting members of the body, in the exercise of their proper functions, to be consecutively and regularly thrust in the direction of the movement until they hold the same relative positions in respect to each other as they did at the commencement of the notation. In the bipedal walk or run a step is one-half of a stride or full round movement. With all quadrupeds, except the kangaroo and other jumpers, four steps are necessary to complete the stride.
The WALK is a method of progressive motion with a regular individual succession of limb movements. In the evolution of the terrestrial vertebrates the walk was probably the first adopted method of locomotion, and its execution is regulated by the law that the movement of the superior limb precedes the movement of its lateral inferior limb. This is proved not merely by the ordinary quadrupedal walk, but by the suspended motion of the sloth; the crawling of the child upon the ground, the erect walk of man; and the inverse limb movements of the ape tribe.
The relative time intervals of the foot-fallings vary greatly with many species of animals, and even with the same animal under different conditions.
Selecting the horse for the purpose of illustration we find that during the walk—his slowest progressive movement—he has always two, and for a varying period of time, or distance, three feet on the ground at once, while during a very slow walk the support will devolve alternately upon three feet and upon four feet.

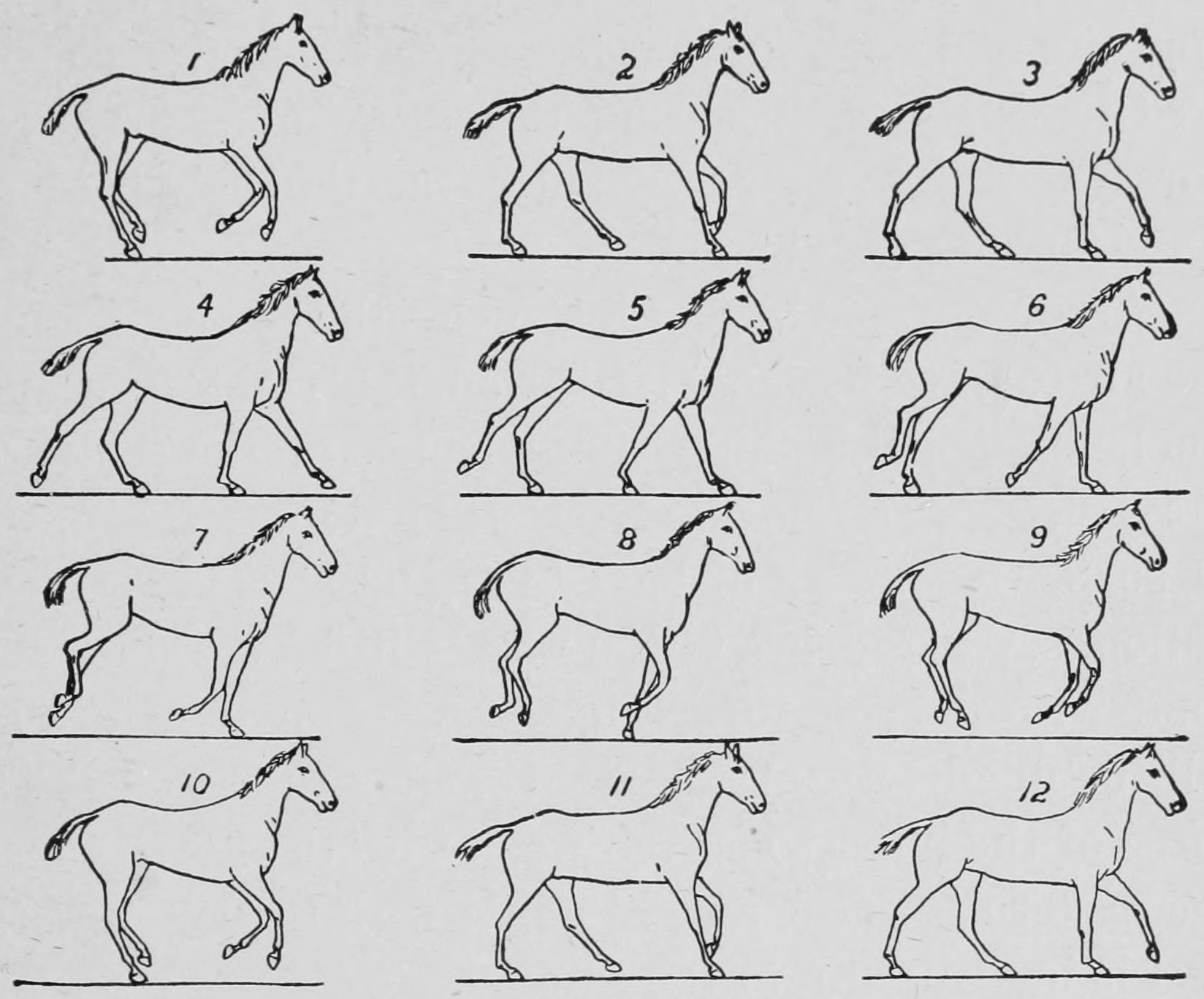

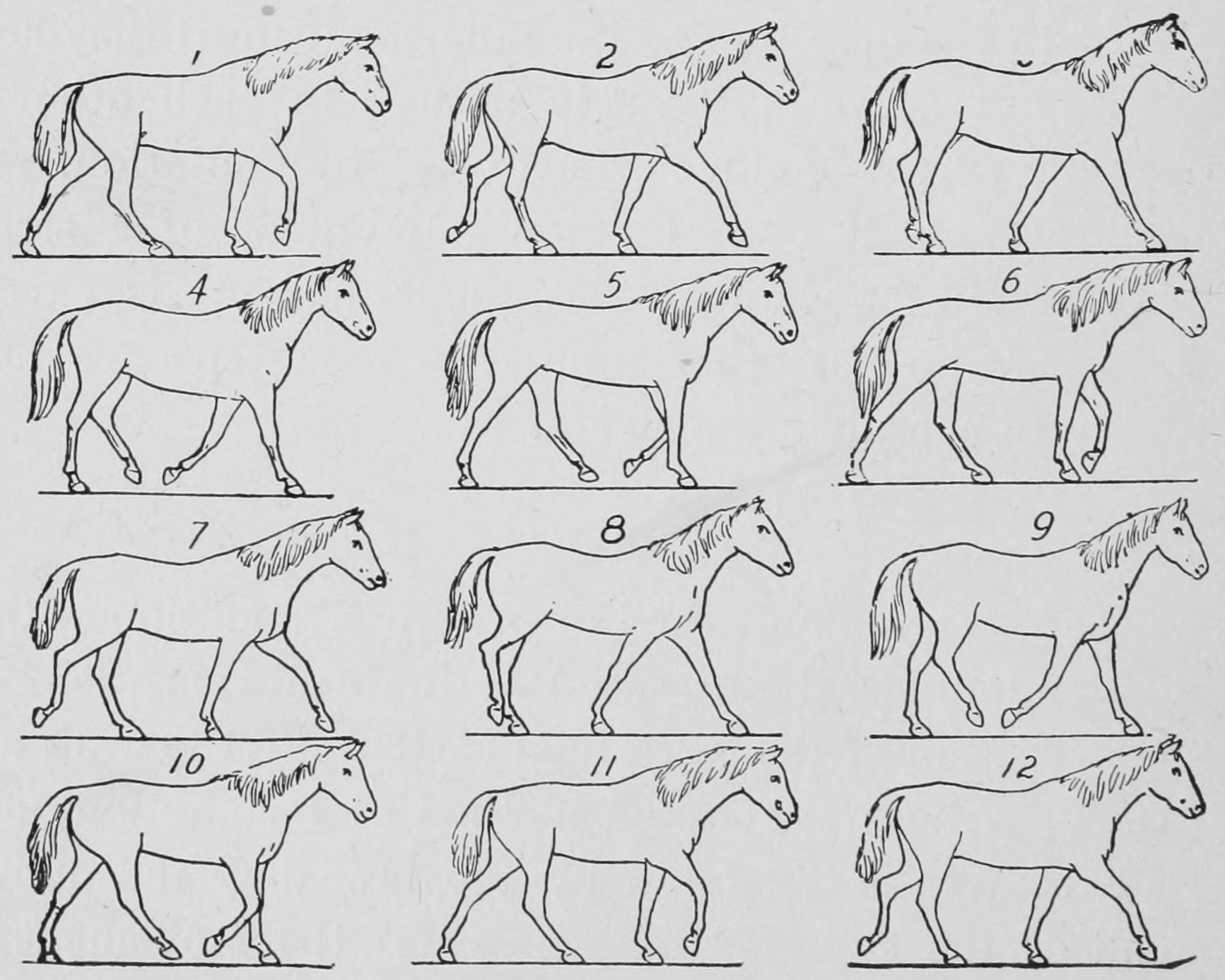

SOME CONSECUTIVE PHASES OF THE WALK.
If the notation of the foot-fallings commences with the landing of the right hind foot, the order in which the other feet are placed upon the ground will be: the right fore, the left hind, and the left fore, commencing again with the right hind.
Assuming that our observation of the stride of a horse during an ordinary walk commences with the landing of the right hind foot, the body will then be supported by both hind and the left fore feet. The left hind is now lifted, the support of the body devolves upon the diagonals—the right hind and left fore—and continues so supported until the left hind is in the act of passing to the front of the right; when the right fore is next placed on the ground. The left fore is now raised, and the body is supported by the right laterals, until the landing of the left hind foot relieves its fellow hind of a portion of its weight. Two steps or one-half of a stride have now been made, and with the substitution of the right feet for the left, two other steps will be executed in practically the same manner, and a full stride will have been completed. We thus see that during the walk a quadruped is supported by eight different methods, the supporting limbs being consecutively:
Both hind and left fore.
Right hind and left fore diagonals.
Right hind and both fore.
Right hind and right fore laterals.
Both hind and right fore.
Left hind and right fore diagonals.
Left hind and both fore.
Left hind and left fore laterals.
Followed as at the commencement with both hind and left fore.
When, therefore, during a walk, a horse is supported on two legs, with two feet suspended between them, each pair are laterals. On the other hand, when the suspended feet are respectively in advance of, and behind the supporting legs, each pair are diagonals.
These invariable rules have been unknown or ignored by many distinguished artists of modern times.
The amble is a method of progressive motion with the same sequence of foot fallings as the walk, but in which a hind foot or a fore foot is lifted from the ground in advance of its fellow hind foot or its fellow fore foot being placed thereon. The support of the body therefore devolves alternately upon a single foot and upon two feet; the single foot being alternately a hind foot and a fore foot, and the two feet being alternately laterals and diagonals. At no time is the body entirely unsupported.
The following series of illustrations will clearly demonstrate the consecutive foot fallings and some characteristic phases of an ambling stride:
SOME CONSECUTIVE PHASES OF THE AMBLE.
The amble has various local names, such as the "single foot," the "fox trot," etc. It has sometimes been erroneously confused with the rack or the so-called "pace;" it is the most gentle and agreeable to the rider of all methods of locomotion of the horse, while the rack is the most ungraceful and disagreeable.
In Scott's romances are many allusions to the "ambling palfry." Ben Jonson in "Every Man in His Humor" speaks of going "out of the old hackney-pace to a fine, easy amble," and Dickens in "Barnaby Rudge" refers to "the gray mare breaking from her sober amble into a gentle trot."
The ambling gait is natural to the elephant, and to the horse, the mule and the ass; but in many countries these latter animals are not encouraged in its use.
The trot is a more or less rapid progressive motion of a quadruped in which the diagonal limbs act nearly simultaneously in being alternately lifted from and placed on the ground, and in which the body of the animal is entirely unsupported twice during each stride.

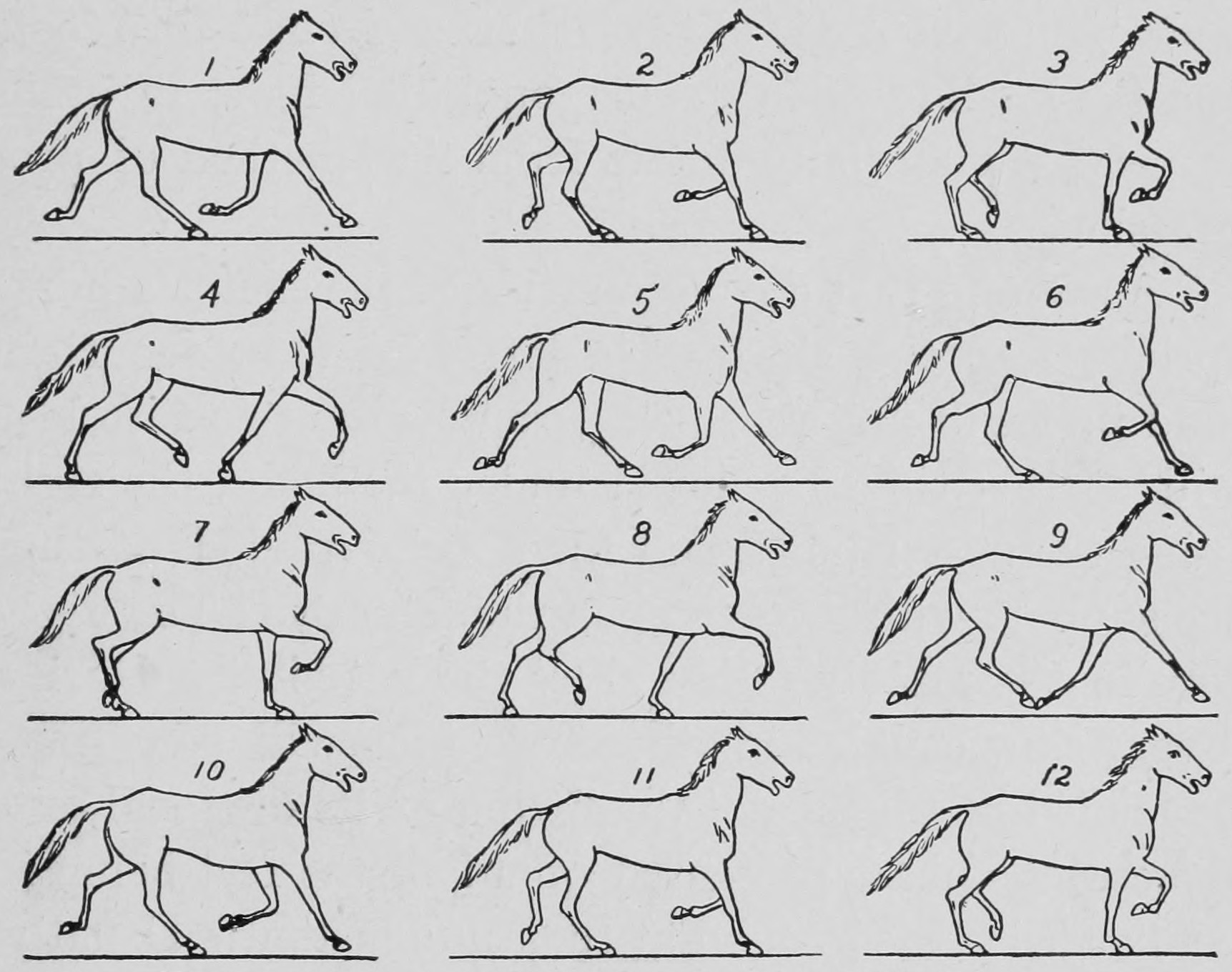

Selecting for the purpose of illustration the phases occurring during two steps or one-half of a stride of 18 feet in length by a horse trotting at the rate of a mile in two minutes and twelve seconds, we find that at the instant his right fore foot strikes the ground, the left hind foot is a few inches behind the point where it will presently strike. As the feet approach the ground, the right hind leg is drawn forward with the pastern nearly horizontal, while the left fore leg is flexed under the body. After the feet strike the ground and the legs approach a vertical position the pasterns are gradually lowered, and act as springs to break the force of the concussion until they are sometimes bent to a right angle with the legs.
At this period the fore foot is raised so high as to frequently strike the elbow, while the diagonal hind foot is comparatively but little above the ground, and is about to pass to the front of the left hind.
The pasterns gradually rise as the legs pass the vertical until the right fore foot has left the ground and the last propelling force is being exercised by the left hind foot; which accomplished, the animal is in mid air.
The right hind foot continues its onward motion until it is sometimes much in advance of its lateral fore foot, the former, however, being gradually lowered, while the latter is being raised. The right hind and both fore legs are now much flexed, while the left hind is stretched backwards to its greatest extent with the bottom of the foot turned upwards, the left fore leg is being thrust forwards and gradually straightened, with the toe raised as the foot approaches the ground; which accomplished, with a substitution of the left limbs for the right, we find them in the same relative positions as when we commenced our examination, and one-half of the stride is completed.

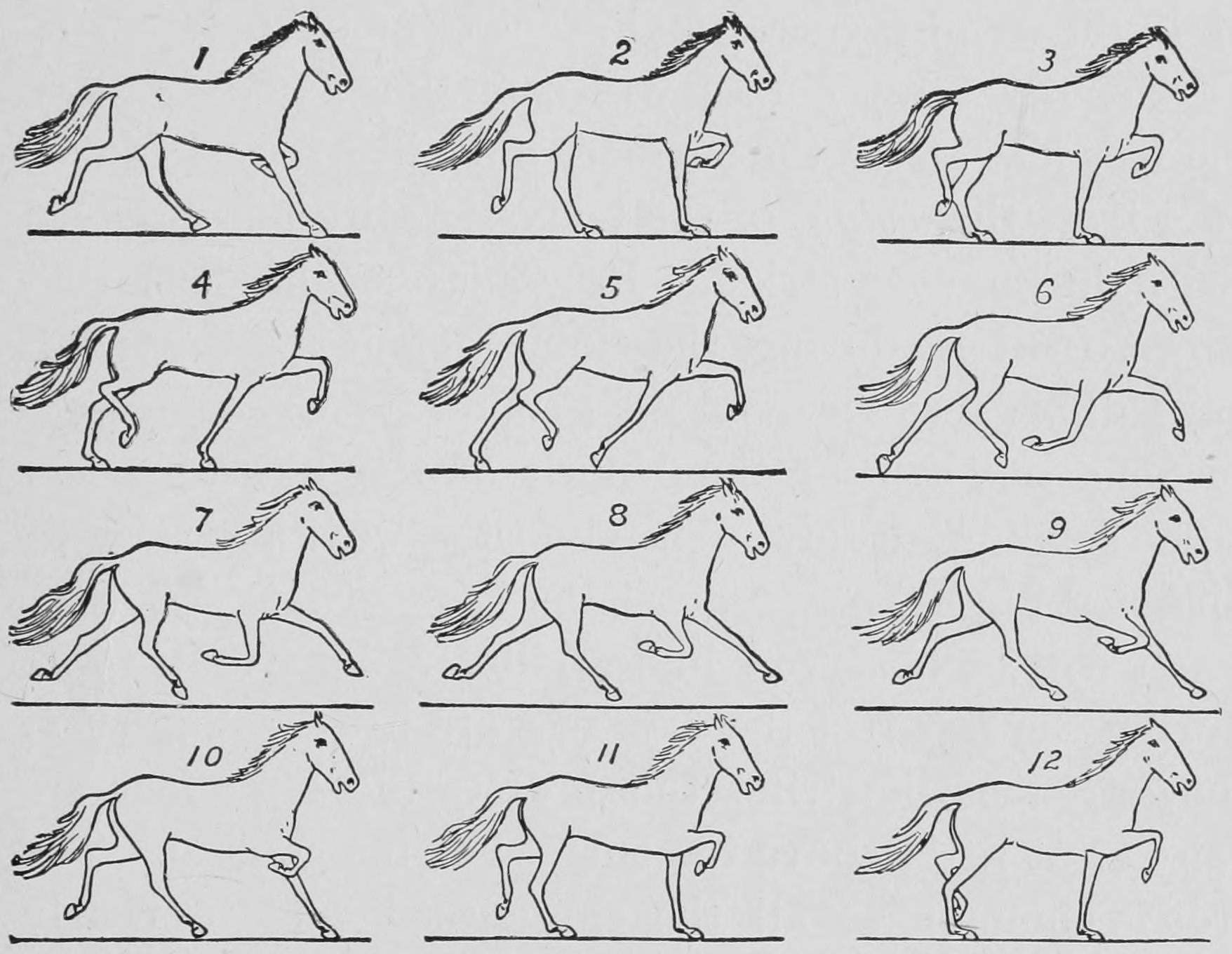

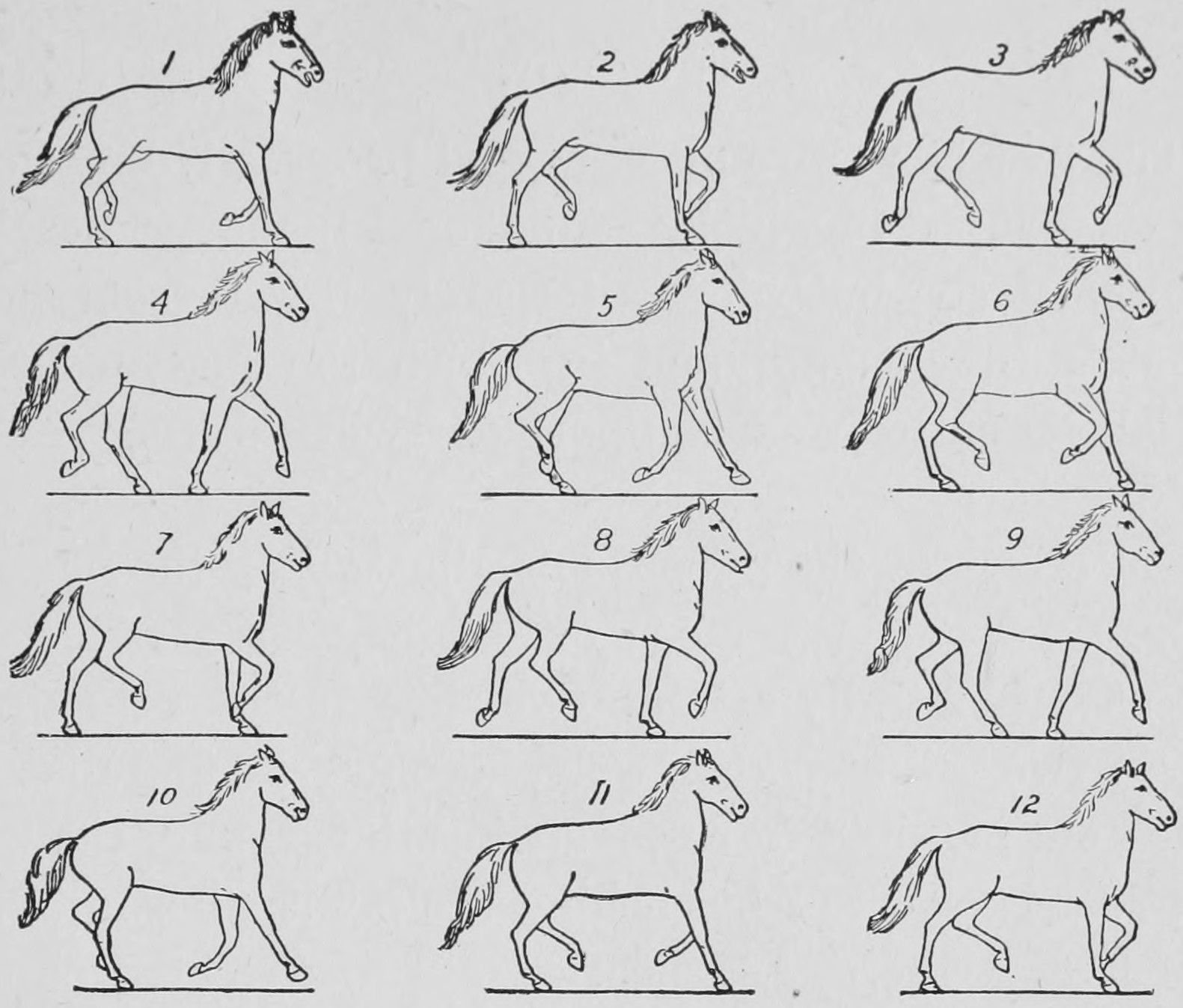

SOME CONSECUTIVE PHASES OF THE TROT.
With slight and immaterial differences, such as might be caused by irregularities of the ground, these movements are repeated by the other pair of diagonals, and the stride is then complete.
If the stride of a trotting horse is divided into two portions, representing the comparative distances traversed by the aggregate of the body while the feet are in contact with, and while they are entirely clear of, the ground, the relative measurements will be found to vary very greatly, they being contingent upon length of limb, weight, speed, and other circumstances.
Heavily built horses will sometimes merely drag the feet just above the surface, but, in every instance of a trot, the weight of the body is really unsupported twice during each stride. It sometimes happens that a fast trotter, during the four steps of a stride, will have all his feet clear of the ground for a distance exceeding one-half of the length of the entire stride. Upon landing, a fore foot almost always precedes its diagonal hind.
It will be observed in the illustrations that while during the fast trot the fore feet are lifted so high that they frequently strike the breast, the hind feet are raised but little above the surface of the ground. The trot is common to all the single-toed and to nearly all the cloven-footed and soft-footed animals. It has, however, not been recorded as being adopted by the elephant, the camel, or the giraffe.
The rack, sometimes miscalled the "pace," is a method of quadrupedal locomotion in which two lateral feet with nearly synchronous action are placed upon and lifted from the ground alternately with the other laterals, the body of the animal being in the intervals entirely without support. The distance which the propelling feet hurl the animal through the air depends, as with other movements, upon a variety of circumstances; at a high rate of speed the distance will be about one-half the total length of the stride. Upon landing, a hind foot usually precedes its lateral fore.
SOME CONSECUTIVE PHASES OF THE RACK.
The rack is an ungraceful gait of the horse, and disagreeable to those who seek comfort in riding.
The movements hitherto described are regular in their action, and a stride may be divided into two parts, each of which—with a change of limbs—is practically similar to the other; we now come to methods of progression which cannot be so divided, and each stride must be considered as a unit of motion.
In the canter we discover the same sequence of foot fallings as in the walk, but not with the same harmonious intervals of time. The gait resembles the gallop in respect to its leaving the horse entirely unsupported for a varying period of time, and in the fact that the spring into the air is always effected from a fore foot, and the landing upon the diagonal hind foot; in other respects it materially differs from that method of progression.
Assuming that during a stride of the canter a horse springs into the air from a left fore foot, the right hind foot will first reach the ground; the two fore legs will at this time be flexed under the body, the right being the first landed, and for a brief period of time the support will devolve upon the laterals. The right fore foot is rapidly followed by the left hind. During a very slow canter the other fore foot will sometimes be landed in advance of the lifting of its diagonal, and the curious phase presented of all of the feet being in contact with the ground at the same instant. Usually, however, the first hind foot to touch the ground will be lifted, and the support thrown upon the diagonals.
The left fore is now brought down, and is followed by the lifting of the right fore; when the left laterals assume the duty of support. The left hind is now raised, and with a final thrust of the left fore foot the animal is projected into the air, to land again upon its diagonal, and repeat the same sequence of movements.
The above phases are selected from a single complete stride, in which the landing occurs on the right hind foot. Had the horse sprung from a right fore foot, the right and left feet would have been reversed through the entire series.
SOME CONSECUTIVE PHASES OF THE CANTER.
The gallop is the most rapid method of quadrupedal motion; in its action the feet are independently brought to the ground; the spring into the air as in the canter is effected from a fore foot, and the landing upon the diagonal hind foot.
The phases illustrated are selected from the stride of a thorough-bred Kentucky horse, galloping at the rate of a mile in a hundred seconds, with a stride of about twenty-one lineal feet.
The length of stride and the distance which the body is carried forward without support depend upon many circumstances, such as the breed, build and condition of the horse, speed, track, etc.
The phases illustrated and the measurement given apply to one stride of one horse, but may be considered as fairly representing the stride of a first-class horse in prime racing condition at the height of his speed, upon a good track.
Assuming—as in this instance—the springing into the air to have been effected from the right fore foot, the landing will take place in advance of the centre of gravity, upon the diagonal, or left hind foot; above, will be suspended the right hind foot, and at a higher elevation, several inches to the rear, will be the right fore foot, with the sole turned upward. The left fore leg will be in advance of the right, and also flexed. The force of the impact and the weight of the horse causes the pastern to form a right angle with the leg, and the heel is impressed into the ground.

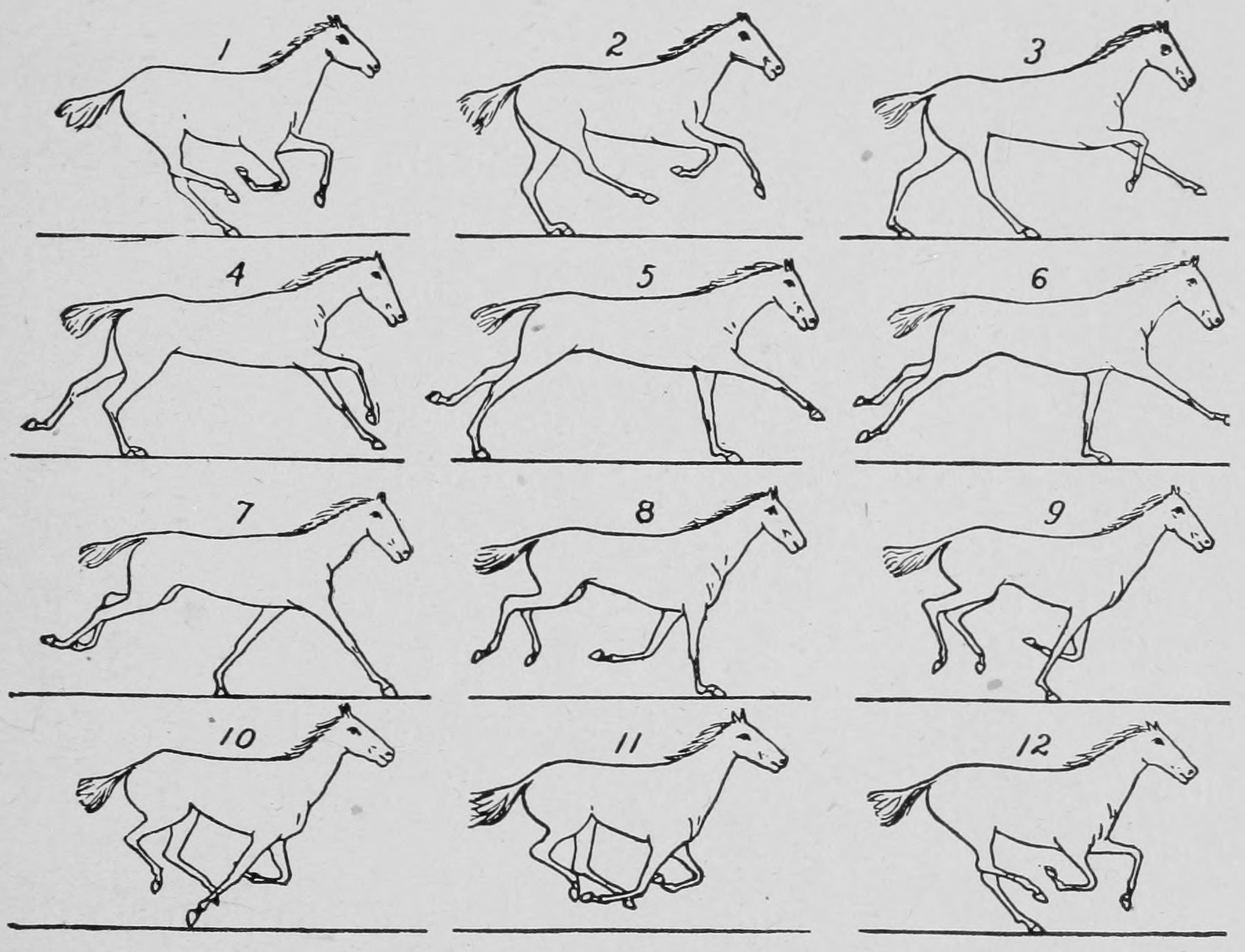

SOME CONSECUTIVE PHASES OF THE GALLOP.
The right hind foot strikes the ground and shares the weight of the body. The left hind foot leaves the ground while the right hind pastern is in its horizontal phase, supporting all the weight. At this period the left fore leg is perfectly straight, with the toe much higher than the heel, and is thrust forward until the pastern joint is vertical with the nose, the right fore knee is bent at a right angle. The left fore foot now strikes and these diagonals are for a brief period upon the ground together. The left fore leg, however, immediately assumes the entire responsibility of support and attains a vertical position, with the pastern at a right angle. The right fore leg becomes perfectly rigid, and is thrust forward to its fullest extent. The right fore foot now strikes the ground, the two fore legs form a right angle, and the hind feet are found thrust backward, the right to its fullest extent. The left fore leg having completed its functions of support, is now lifted, and the weight transferred to the right fore foot alone, which is soon found behind the centre of gravity; the left hind foot passes to the front of the right fore leg, which, exercising its final act of propulsion, thrusts the horse through the air; the left hind foot descends; the stride is completed, and the consecutive phases are renewed. From this analysis we learn that if the spring is made from the right fore foot during the rapid gallop of a thoroughbred horse, it is supported consecutively by
The left hind foot.
Both hind feet.
The right hind foot.
The right hind and the left fore feet.
The left fore foot.
Both fore feet.
The right fore foot.
From which he springs into the air to re-commence the phases with the left hind foot, while the only phase in which he has been discovered without support is one when the legs are flexed under the body. All of the feet at this time are nearly close together and have comparatively little independent motion; this phase, therefore, more persistently than any other, forces itself upon the attention of the careful observer, and conveys to him the impression of a horse's rapid motion in singular contradiction to the conventional interpretation, until quite recently, usually adopted by the Artist.
It should not be understood that the term "spring" implies that the body of the horse is greatly elevated by that action; were it so, much force would be unnecessarily expended with the result of loss of speed. The center of gravity of a horse trotting or galloping at a high rate of speed will preserve an almost strictly horizontal line, the undulations being very slight.
In the gallop of the horse it is probable there may be sometimes a period of suspension between the lifting of one fore foot and the descent of the other, but it has not yet been demonstrated.
The method of galloping described applies to the horse and its allies, and to most of the cloven and soft-footed animals.
In the gallop of the dog the sequence of foot falling and the action of the body is materially different, and the animal is free from support twice in each stride.

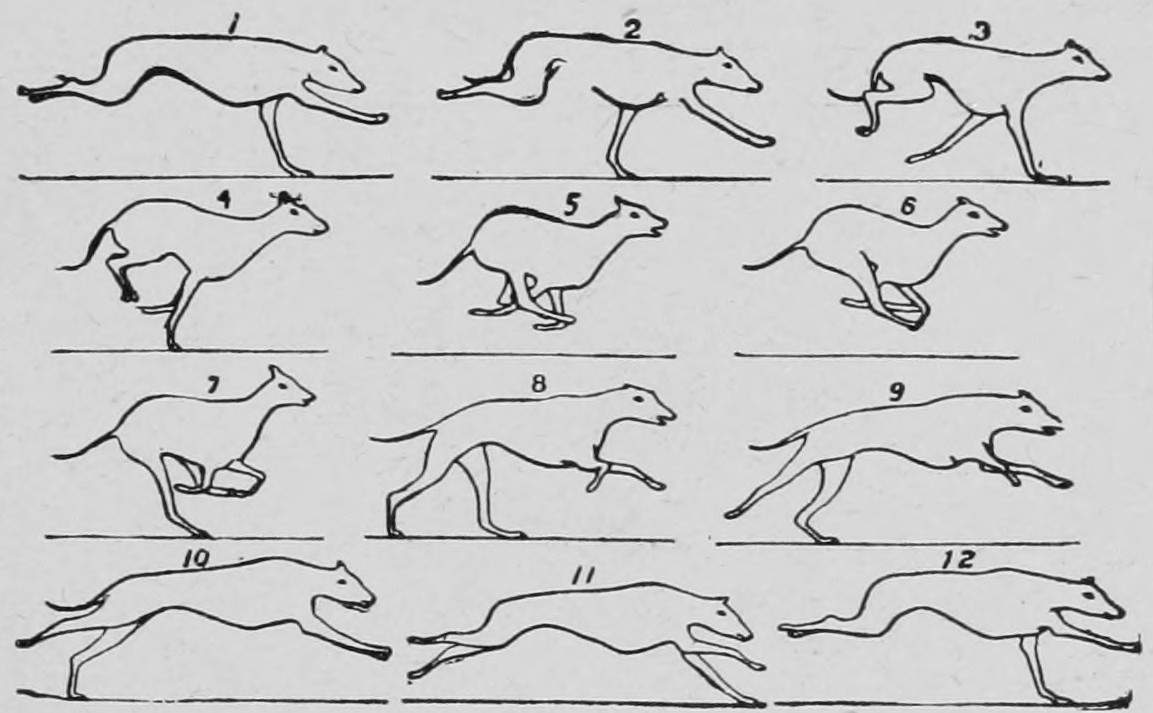

THE GALLOP OF THE DOG.
Assuming that a racing hound after a flight through the air with elongated body and extended legs (like the conventional galloping horse), lands upon the left fore foot, the right fore will next touch the ground; from this he will again spring into the air, and with curved body and flexed legs land upon the right hind foot, while the right fore feet will be half the length of the body to the rear. The left hind now descends, another flight is effected, and again the left fore repeats its functions of support and propulsion.
These successive foot fallings are common to all dogs when galloping, and it is worthy of note that the same rotary action in the use of the limbs is adopted in the gallop of the elk, the deer and the antelope, all of which animals, like the dog, can for a time excel the horse in speed.
A search through all the dictionaries published at the time of writing, and accessible to the Author, fails to discover a correct definition of "the gallop." This motion is in America frequently miscalled the "run," and its execution "running," but no corresponding explanation of the word is given by any lexicographer.
In Scott's "Lady of the Lake" occurs "Then faint afar are heard the feet of rushing steeds in gallop fleet," many other distinguished Authors refer to the same action by the same name, by which, or its equivalents, it is universally known in Europe.
There is little essential difference in general characteristics of either of the several movements that have been described, but with a number of experiments made with horses while leaping, no two were found to agree in the manner of execution. The leap of the same horse at the same rate of speed, with the same rider, over the same hurdle, disclosed much variation in the rise, clearance, and descent of the animal. A few phases were, however, invariable. While the horse was raising his body to clear the hurdle, one hind foot was always in advance of the other, which exercised its last energy alone.
On the descent, the concussion was always first received by one fore foot, followed more or less rapidly by the other, sometimes as much as 30 inches in advance of where the first one struck; the hind feet were also landed with intervals of time and distance.
No attempt will be made to analyze the consecutive phases of various other acts of Animal Locomotion, such as rearing, bucking, kicking, tossing, etc., on account of the irregularity which characterizes their execution, and the difficulty of obtaining reliable data.
The Author has vainly sought for the rules which govern the hind feet of a playfully disposed mule; but the inquiry has usually been unsatisfactory, and upon some occasions disastrous. Should these movements be controlled by any general law, it is of such a complex nature that all attempts to expound it have hitherto been fruitless.

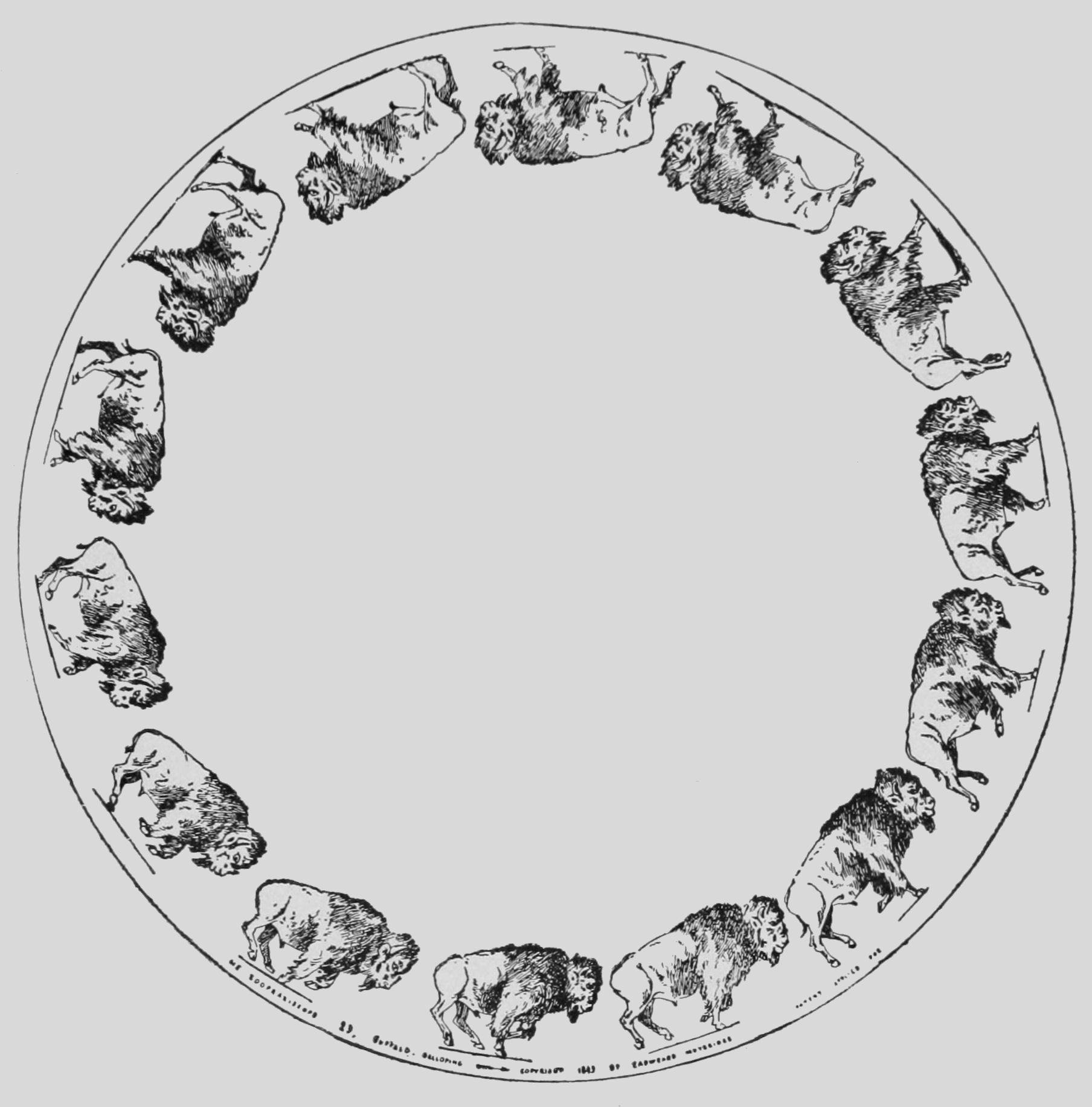

The figures in the series of circles (see appendix A) were selected from
"ANIMAL LOCOMOTION"
and arranged by the Author for his less ambitious work,
"POPULAR ZOOPRAXOGRAPHY."
(See Appendix C).
They were traced by the well known artist, Erwin Faber, and are reproduced one-third the diameter of the circles arranged for the zoöpraxiscope. Many of the original phases of movement are omitted on account of the optical law which in the construction of a zoöpraxiscope requires that the number of illustrations must bear a certain relationship to the number of perforations through which they are viewed.
The popular number of thirteen having been selected for the latter, the same number of figures illustrate actions without lateral progressive motion.
When the number of illustrated phases is less than the number of perforations, the succession of phases is in the direction of the motion, and the disc is necessarily revolved in a reverse direction.
When the number of phases is greater than the number of perforations, the phases succeed each other in a direction contrary to that of the motion, and the disc is revolved in the direction of the motion.
An increased or diminished number of figures will respectively result in an increased or diminished apparent speed of the object.
For further information on the subject, the reader is referred to the
ZOOPRAXISCOPE.
Origin of the Author's Investigations—Diagram of the Studio at the University of Pennsylvania where the Investigation was conducted—Batteries of Cameras, Electro-exposers, Contact-motor, Chronograph, and other apparatus used for photographing consecutive phases of animal movements—Method of obtaining successive exposures of moving objects synchronously from several different points of view—Normal Locomotion of Animals—Twelve consecutive phases of a single step of the Horse while walking; also of the Ox, Elk, Goat, Buffalo, and other cloven-footed animals; the Lion, Elephant, Camel, Dog, and other soft-footed animals; of the Sloth while suspended by its claws, and of the Child while crawling on the ground; of man walking erect—The Normal Method of Locomotion by all animals essentially the same—The Quadrupedal Walk as interpreted by Prehistoric Man, by the Egyptians, Assyrians, Phœnicians, Etruscans, Greeks, Romans, Byzantines, and by eminent artists of mediæval and of modern times—The Statue of Marcus Aurelius the great source of modern errors; Marcus Aurelius in London, Edinburgh, Glasgow, Dublin, Paris, Berlin, Amsterdam, New York, Boston, and many other cities—Albert Durer, Verrocchio, Meissonier, Paul Delaroche, Landseer, Rosa Bonheur, Elizabeth Thompson Butler, &c.—Other Quadrupedal movements, the Amble, Rack, Trot and Canter—Twelve phases in the Gallop of a Horse—Origin of the modern representation of the Gallop—Gallop as depicted by the Hittites, North American Indians, Egyptians, Assyrians, Greeks, the mediæval artists—The modern conventional gallop; evidences of its absurdity; acknowledgment by the Artist of the necessity of reformation—Leap of the Horse, Kick of the Mule, &c., all illustrated by photographs the size of life, from nature, and comparisons made with the interpretation of the same movements by artists of pre-historic, ancient, mediæval and modern times—Demonstration of the action of the primary feathers in the wing of a Bird while Flying, and a solution of the complex problem of Soaring.
After the various methods of locomotion have been demonstrated by analysis, they will be represented synthetically by the Zoopraxiscope.
1. Athlete, Horse-back Somersault.
"On Monday last, in the theatre of the Royal Institution, a select and representative audience assembled to witness a series of the most interesting demonstrations of Animal Locomotion given by Mr. Muybridge.
"The Prince and Princess of Wales, Princess Victoria, Louise, and Maud, and the Duke of Edinburgh honored the occasion by their presence; likewise did I note among the brilliant company Earl Stanhope, Sir Frederick Leighton, P.R.A.; Professors Huxley, Gladstone, and Tyndall; and last, not least, Lord Tennyson, poet laureate.
2. Athletes Boxing.
"Mr. Muybridge exhibited a large number of photographs of horses galloping, leaping, etc.... By the aid of an astonishing apparatus called a Zoopraxiscope, which may be briefly described as a magic lantern run mad (with method in the madness), the animals walked, cantered, ambled, galloped, and leaped over hurdles in a perfectly natural and lifelike manner. I am afraid that, had Muybridge exhibited his Zoopraxiscope three hundred years ago, he would have been burned as a wizard.... After the horses came dogs, deer, and wild bulls. Finally man appeared (in instantaneous photography) on the scene, and ran, leaped, and turned back somersaults to admiration."—George Augustus Sala in Illustrated London News.
3. Athletes Running.
"Both scientific and artistic circles in London are at present greatly interested in the triumphs of Mr. Eadweard Muybridge in photographing the successive phases of animal movements. Our leading biologists and artists have at once perceived and acknowledged the vast importance of the results of his work."—The Times, London.
5. Athlete, Running High Jump.
"The Archbishop of York occupied the chair.... His Grace congratulated the crowded and distinguished audience on the opportunity afforded them of hearing Mr. Muybridge, and said that to everybody who felt an interest in the phenomena of motion, the magnificent results of the investigation carried on by Mr. Muybridge and the University of Pennsylvania were wonderfully instructive."—York Herald.
"His audiences have been drawn from the very first ranks of art, science, and fashion."—British Journal of Photography.
6. Athlete, Standing Long Jump.
"These demonstrations are marvellously complete, ... exceedingly abundant and rich in suggestion and instruction, and appeal to almost every class or condition of humanity."—Saturday Review, London.
"Mr. Muybridge delighted his audience with his wonderful photographs."—The Times, London.
"... Last night Mr. Muybridge gave his final lecture in Newcastle on 'The Science of Animal Locomotion,' with the whole of the wonderful illustrations; the Art Gallery being again crowded to excess."—Newcastle Chronicle.
11. Athletes. Base Ball; Batting.
"A photographic achievement which seemed to me at the time scarce credible, and which I was presently assured by one of our ablest English photographers was absolutely outside the bounds of possibility."—Professor R. A. Proctor in the Gentleman's Magazine.
"At the conversazione of the Royal Society much interest was excited by Mr. Eadweard Muybridge's lecture. The Zoopraxiscope afforded the spectator an opportunity of studying by synthesis, the facts of motion which are also demonstrated by analysis."—Illustrated London News.
14. Boys Playing Leap-frog.
"A really marvellous series of plates."—Nature, London.
"Artistic people are all talking about Mr. Muybridge, who has come hither with that rare desideratum—something new."—London Correspondence, Philadelphia Times.
"It is impossible to do justice in this short time to the extraordinary exhibition given by Mr. Muybridge at the Institute of Technology.... The interest they excite in the mind of the spectator is indescribable."—Sunday Gazette, Boston.
16. Children Running.
"The photographs have solved many complicated questions as to animal locomotion."—Art Journal, London.
"The effect was weird, yet fascinating. Plaudit followed plaudit. A better pleased assemblage of people it would be difficult to find."—Boston Journal.
"... Mr. Muybridge then gave his famous lecture and demonstration on Animal Locomotion. The hall (St. James') was crowded, and many were unable to obtain seats."—Report of the Photographic Convention, British Journal of Photography.
17. Elephant Ambling.
"A demonstration that vividly interests all the world."—L'Illustration, Paris.
"Many of these pictures have great—indeed, astonishing—beauty. The interest which they present from the scientific point of view is three-fold:—(a) They are important as examples of a very nearly perfect method of investigation by photographic and electrical appliances. (b) They have also a great value on account of the actual facts of natural history and physiology which they record. (c) They have, thirdly, a quite distinct, and perhaps their most definite, interest in their relation to psychology."—Prof. E. Ray Lankester, F. R. S., in Nature.
18. Lion Walking.
"Mr. Meissonier's critical guests were evidently sceptical as to the accuracy of many of the positions; but when the photographs were turned rapidly, and made to pass before the lantern, their truthfulness was demonstrated most successfully."—Standard, London.
"Meissonier, devoting himself to his friends, evidently cared little for personal compliments; he was anxious for the well-deserved distinction of his protégé Muybridge.... 'C'est merveilleusement arrangé!' said Alexandre Dumas. 'C'est que la nature compose crânement bien!' replied Meissonier."—Le Temps, Paris.

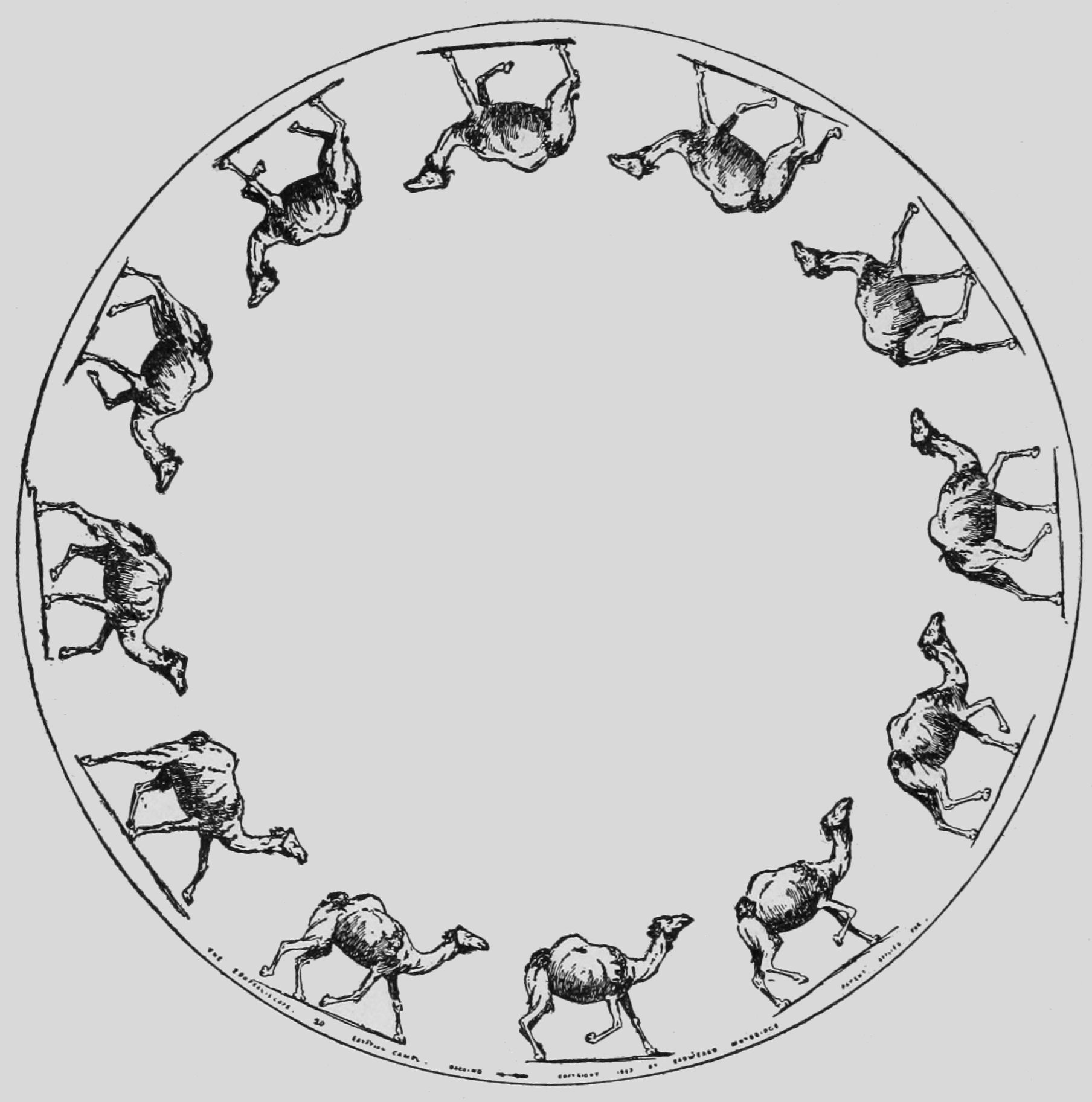

20. Egyptian Camel Racking.
"The sensation of the day, and the topic of popular conversation."—Boston Daily Advertiser.
"The rapid movements by different animals were most interesting: and hurdle-racing by horses—the very whipping process being visible—brought down the house."—Boston Herald.
"On revolving the instrument, the figures that have been derided by so many as impossible absurdities, started into life, and such a perfect representation of a racehorse at full speed as was never before witnessed was immediately visible."—The Field, London.
21. Baboon Walking.
"Mr. Muybridge showed that many of our best artists have been in the habit of depicting animals in positions which they never assume in nature."—Chambers' Edinburgh Journal.
"The large school-room (Clifton College) was crowded. The head master presided. Loud applause and frequent laughter greeted the life-sized photographs from nature, which by a rapid revolution of the Zoopraxiscope, showed among other actions, the ambling of an elephant, the gallop of a race-horse, the somersault of a gymnast and the flight of a bird."—Bristol Mercury.
22. Kangaroo Jumping.
"The lecture theatre of the Royal Academy of Arts was filled to overflowing."—Athenæum, London.
"The Royal Dublin Society's Theatre was filled to its utmost capacity yesterday afternoon, when Mr. Muybridge resumed his course of Lectures. The demonstration is simply marvellous."—Daily Express, Dublin.
"The result of years of labor, and of large expenditure of money is at last laid before the public in this magnificent work, and the result is one of which Mr. Muybridge and the University of Pennsylvania may well be proud."—Evening Post, New York.
23. Buffalo Galloping.
"A Lecture of an exceptionally interesting character."—Nottingham Guardian.
"There was a crowded attendance. Throughout the lecture Mr. Muybridge retained the close interest of his audience, and drew from them frequent and warm applause."—The Scotsman, Edinburgh.
"In all my long experience of London life I cannot recall a single instance where such warm tributes of admiration have been so unsparingly given by the greatest in the land, as in the case of Mr. Muybridge's lectures."—Olive Logan in the Morning Call, San Francisco.
24. Elk Galloping.
"Mr. Muybridge illustrated his lecture with a series of most valuable photographs, as well as that most fascinating of scientific toys—the Zoopraxiscope."—Magazine of Art, London.
"His labors attracted considerable attention in the world of science, while among artists and art critics a pretty controversy set in on the subject of the horse and his representation in art, which is likely to be revived and extended to other fields.... With Mr. Muybridge, 'Instantaneous Photography' has acquired a new significance, ..."—Saturday Review, London.
25. Monkeys Climbing a Cocoa Palm.
"No parallel in the history of photography."—Photographic Times, New York.
"An exhibition which Raphael, Tintoretto, Michael Angelo, and other great masters of the Renaissance would have travelled all over Europe to see."—Evening Transcript, Boston.
"The audience was astonished and delighted at the marvellous demonstrations of Animal Locomotion that were brought before them.... The most remarkable feature of the British Association meeting this year."—Newcastle Journal.
28. Greyhound Galloping.
"The effects of the Zoopraxiscope made up one of the most unique and instructive entertainments imaginable."—Boston Daily Globe.
"A more curious, entertaining, and suggestive exhibition it has not been our good fortune for a long time to attend."—Sacramento Record-Union.
"Everybody has heard something of the wonderful success which Mr. Muybridge has achieved; and in no country in the world is greater interest felt in his work, particularly as regards horses, than in England."—Engineering, London.
29. Mule, Bucking and Kicking.
"Simply marvels of the photographer's art."—Mercury, Leeds.
"Not the least instructive part of the Lecture was the contrast between the positions of animals as shown in ancient and modern art, with their true positions as shown by themselves in the camera."—New York Tribune.
"Professor Marey invited to his residence a large number of the most eminent men in Europe for the purpose of meeting Mr. Muybridge, and witnessing an exhibition that should be placed before the whole Parisian public."—Le Globe, Paris.
32. Pigeons Flying.
"The art critic and the connoisseur will find a study of Mr. Muybridge's work of inestimable value in aiding them to criticize intelligently."—Pennsylvanian, Philadelphia.
"The applause which greeted these wonderful pictures from the brilliant company was hearty in the extreme; and all predicted a new era was open to art, and new resources made available for the use of artists."—Galignani's Messenger, Paris.
"Of immense interest and value."—Lippincott's Magazine, Philadelphia.
34. Grecian Dancing Girls.
"The Zoopraxiscope is the latest, most unique, and instructive form of amusement possible."—Commercial Gazette, Cincinnati.
"His work at once attracted the attention of the world."—Scientific American, New York.
"Of much interest and value, as well as a source of great amusement."—Observer, London.
"The realism of the motions of the various animals was intense, and the audience was very enthusiastic."—Boston Post.
39. Horse Trotting (fast).
"The Lecturer proceeded to show enlarged photographs of various animals in motion, as the horse, dog, lion, mule, cat, etc.... These were followed by some very striking pictures of the flight of birds, which from a scientific standpoint were by far the most interesting and valuable of the photographs shown during the evening."—Lancet, London.
"Of extreme interest, not only to the artists and scientists, but to the greater part of his audience, who were neither the one or the other."—Birmingham Daily Gazette.

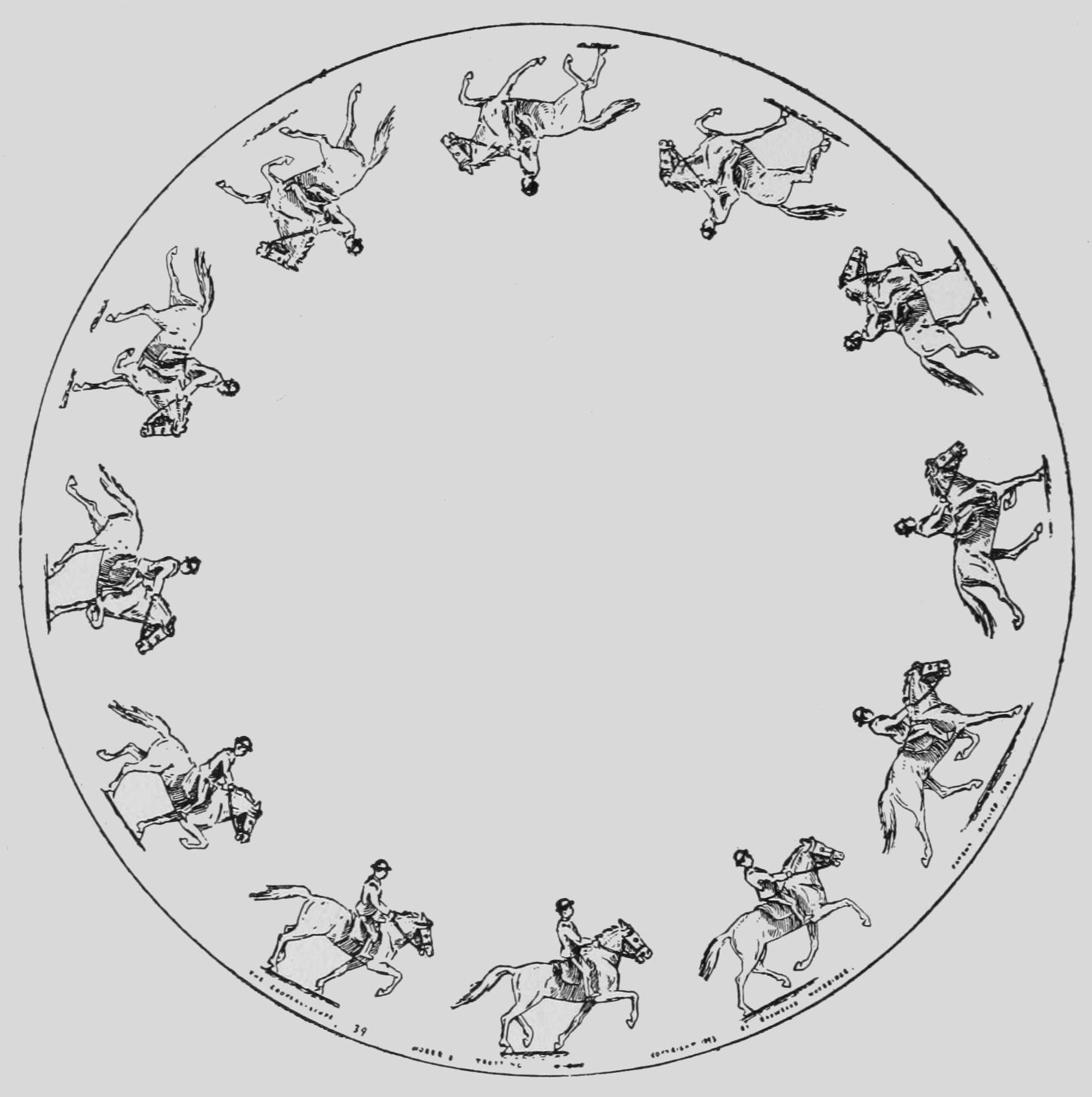

41. Horse Cantering.
"A host of well-known scientists and artists are greatly interested in this remarkable work."—Pall Mall Gazette.
"The lecture on Tuesday night more than fulfilled the expectations which the audience had formed of Mr. Muybridge's researches."—Belfast News Letter.
"Mr. Muybridge might well be proud of the reception accorded him by his distinguished audience; it would have been difficult to add to the éclat of his appearance, and his lecture was welcomed by a warmth as hearty as it was spontaneous."—The Photographic News, London.
42. Horse Galloping.
"The illustrations are truly wonderful, and the rapid changing positions were most instructive."—Nottingham Express.
"The concert room was crowded.... A vote of thanks to the Lecturer was proposed by his Grace the Archbishop."—Yorkshire Chronicle.
"A very brilliant audience was assembled at the Royal Institution.... The photographs properly studied should be most valuable in affording truer and more exact data for the painter to base his work upon...."—The Builder, London.
43. Horse Jumping.
"A very important subject to all those interested in art."—Belfast News Letter.
"It is now nine years since the photographs of Mr. Eadweard Muybridge surprised the world by challenging all received conceptions of animal motion."—Century Magazine, New York.
"The interest excited by the novelty, both of the demonstrations and the results, was so great, that Mr. Muybridge has been invited by the Photographic Society of Ireland to repeat them to-night in a public lecture."—The Freeman's Journal, Dublin.
44. Horse Hauling.
"The audience filled the large hall, and by their frequent and hearty applause, expressed their appreciation of the lecture."—Irish Times, Dublin.
"A very large audience again assembled in the Town Hall last evening, on the occasion of the second Lecture by Mr. Muybridge. The Mayor, who presided, referred to the first Lecture as perhaps the most unique ever delivered in Birmingham."—Birmingham Daily Gazette.
"The attendance was exceedingly large, and the Lecture and admirable illustrations were loudly applauded."—The Irish Times, Dublin.
45. Columbian Exposition Horse Race,
Galloping.
"There was a very large attendance, and seldom have we seen so much genuine admiration and enthusiasm displayed as were evoked by Mr. Muybridge's illustrations, which were really wonderful."—The Daily Express, Dublin.
"There was a crowded audience, and the Lecture, which was listened to with the greatest interest, was warmly applauded."—The Freeman's Journal, Dublin.
"No description can do justice to the extent and variety of the subjects presented in this thorough study of animal movements."—Ledger, Philadelphia.
46. Columbian Exposition Horse Race,
Trotting.
"Wonderful and interesting demonstration; its influence will become more and more potent and universal as the years go on."—Argus, Albany.
"Will necessarily revolutionize the treatment of the action of the horse in painting and sculpture. For the physiological study of animal movements these pictures are a veritable treasure."—Landwirthschaftliche-Zeitung, Vienna.
"I am lost with admiration of these photographs of Mr. Muybridge."—Professor Marey, in La Nature, Paris.
47. Columbian Exposition Speedway.
"Interesting and instructive to all."—New York Herald.
"Highly interesting and valuable for every lover of horses."—Illustrirte Zeitung, Berlin.
"We cannot more fittingly conclude our review than by repeating our recommendation of the work to all artistic and scientific bodies."—The Nation, New York.
"So perfect was the synthesis that a dog in the lecture room barked and endeavored to chase the phantom horses as they galloped across the screen."—Berkeley Weekly News.

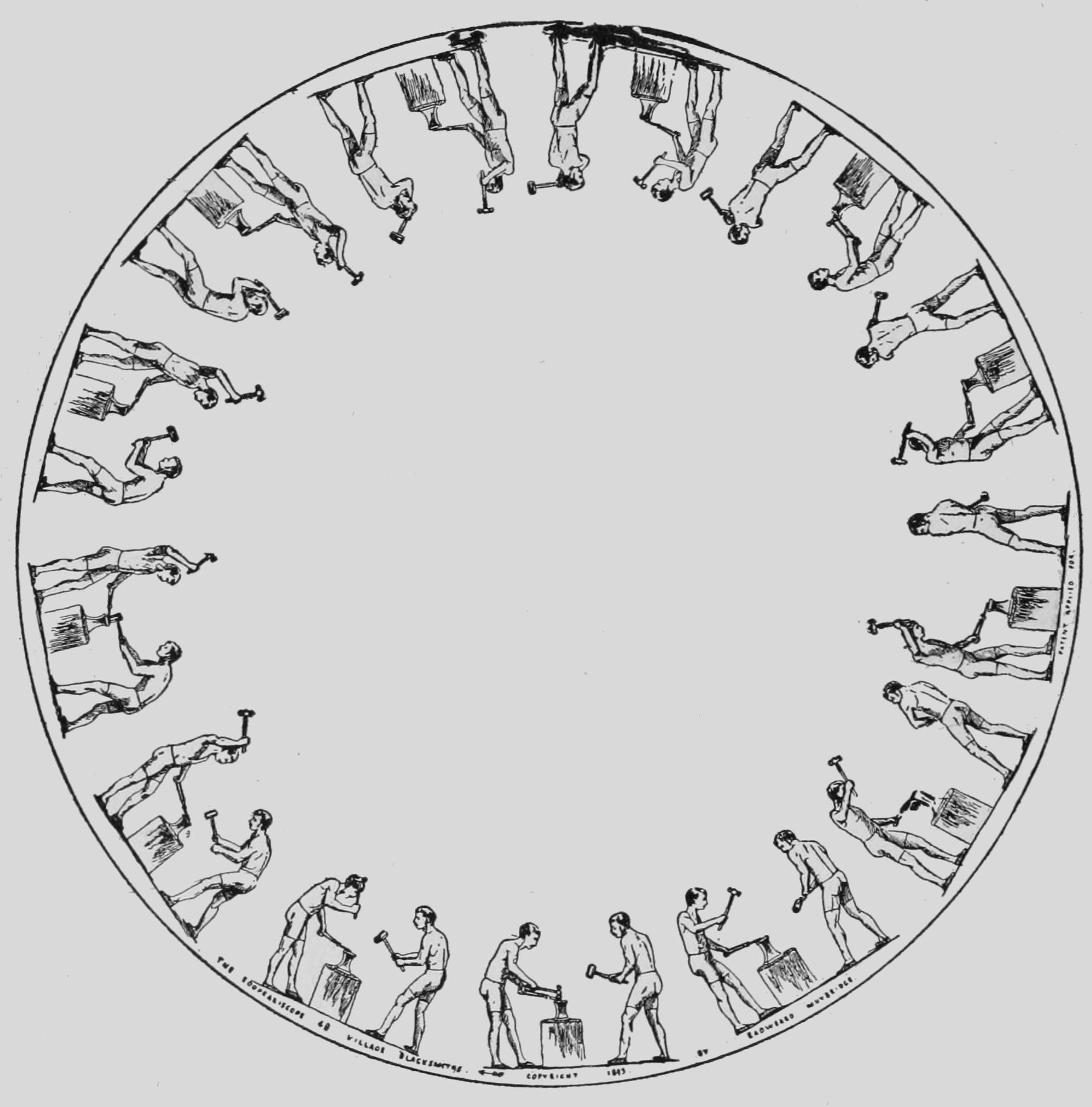

48. Village Blacksmiths.
"Noted artists, such as Menzel, Knaus, Begas; eminent scientists, such as von Helmholtz, Siemens and Förster and even the imperturbable field-marshal, Count von Moltke, were enthusiastic in their applause."—Illustrirte Zeitung.
"A very large number could not obtain admission, so great was the desire to hear the lecture.... A wonderful surprise even to the careful observer of Nature."—Die Press, Vienna.
"The lecture was received with stormy applause."—Berliner Post, Berlin.
"The lecture was given in a popular manner, with scientific accuracy and artistic taste.... The room was filled to the last corner; nearly all the Royal Family and the Ministers were present."—Münchener Neueste Nachrichten, Munich.
49. A Fan Flirtation.
"After attending Mr. Muybridge's demonstrations, we felt no surprise at his having been received so enthusiastically in Paris."—Berliner Tageblatt, Berlin.
"The lectures of Mr. Muybridge are unquestionably the most intensely interesting we ever listened to. No one in Berlin should fail to attend them."—Norddeutsch Allgem Zeitung, Berlin.
"Some lectures are too technical for the general public. Here is one in which everybody is interested. The Lecture Theatre was crammed to repletion; we thought a few vacant places might have been reserved for those whose pleasant duty it is to record the brilliant success of Mr. Muybridge."—Pall Mall Budget, London.
50. Athlete, Running Long Jump.
"So great an interest did the demonstrations excite that Mr. Muybridge was unanimously requested to repeat them. Two days afterward this distinguished company, including the venerable Field-Marshal (Count von Moltke) himself, attended a repetition of the lecture."—Illustrirte Zeitung.
The results of the investigation executed for the University of Pennsylvania are
containing more than 20,000 figures of men, women, and children, animals and birds, actively engaged in walking, galloping, flying, working, jumping, fighting, dancing, playing at base-ball, cricket, and other athletic games, or other actions incidental to every-day life, which illustrate motion or the play of muscles.
These sheets of illustrations are conventionally called "plates."
and illustrates the successive phases of a single action, photographed with automatic electro-photographic apparatus at regulated and accurately recorded intervals of time, consecutively from one point of view; or, consecutively AND synchronously from two, or from three points of view.
A series of twelve consecutive exposures, from each of the three points of view, are represented by an outline tracing on a small scale of plate 579, a complete stride of a horse walking; the intervals of exposures are recorded as being one hundred and twenty-six one-thousandths of a second.
REDUCED OUTLINE TRACING OF PLATE 579.—"ANIMAL LOCOMOTION."
REDUCED TRACING OF SOME PHASES FROM PLATE 758.
REDUCED TRACINGS OF PLATE 347.
When one of the series of foreshortenings is made at a right angle with the lateral series the arrangement of the phases is usually thus:
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | Laterals. |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | Rear Foreshortenings from points of view on the same vertical line, at an angle of 90 deg. from the Laterals. |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | Front Foreshortenings from points of view on the same horizontal plane, at suitable angles from the Laterals. |
The plates are not photographs in the common acceptation of the word, but are printed in Permanent Ink, from gelatinised copper-plates, by the New York Photo-Gravure Company, on thick linen plate-paper.
The size of the paper is 45 × 60 centimetres—(19 × 24 inches), and the printed surface varies from 15 × 45 to 20 × 30 centimetres—(6 × 18 to 9 × 12 inches).
The number of figures on each plate varies from 12 to 36.
To publish so great a number of plates as one undivided work was considered unnecessary, for each subject tells its own story; and inexpedient, for it would defeat the object which the University had in view, and limit its acquisition to wealthy individuals, large Libraries, or Institutions where it would be beyond the reach of many who might desire to study it.
It has, therefore, been decided to issue a series of One Hundred Plates, which number, for the purposes of publication, will be considered as a "COPY" of the work. These one hundred plates will probably meet the requirements of the greater number of the subscribers.
In accordance with this view is re-issued the following prospectus.
|
One Hundred Dollars For the United States, or Twenty Guineas For Great Britain; |
The Plates are enclosed in a strong, canvas-lined, full American-Russia Leather Portfolio.
Additional Plates in any required number will be supplied to the subscriber at the same proportionate rate; these, however, must be ordered at the same time as the subscription Plates.
It was considered inadvisable to make an arbitrary selection of the one hundred Plates offered to subscribers, and with the object of meeting, as far as possible, their diverse requirements, they are invited to make their own selection, either from the subjoined list of subjects, or from a detailed catalogue, which will be forwarded free of expense to every subscriber.
The following are the numbers of Plates published of each class of subjects, from which the subscriber's selection can be made:—
| Class. | Plates Published. | ||
| 1. | Men,om draped | 6 | |
| 2. | Ci"hllren. pelvis cloth | 72 | |
| 3. | Ci"hllren. nude | 133 | |
| 4. | Women, draped | 60 | |
| 5. | Chil"lren. transparent drapery and semi-nude | 63 | |
| 6. | Chil"lren. nude | 180 | |
| 7. | Children, draped | 1 | |
| 8. | Chil"lren. nude | 15 | |
| 9. | Movements of a man's hand | 5 | |
| 10. | Abnormal movements, men and women, nude and semi-nude |
27 | |
| 11. | Horses walking, trotting, galloping, jumping, &c. | 95 | |
| 12. | Mules, oxen, dogs, cats, goats, and other domestic animals |
40 | |
| 13. | Lions, elephants, buffaloes, camels, deer, and other wild animals |
57 | |
| 14. | Pigeons, vultures, ostriches, eagles, cranes and other birds |
27 | |
| Total number of Plates Containing more than 20,000 Figures. |
781 | ||
Should the selection be made from the Catalogue, it will be advisable to give the Author permission to change any one of the selected Plates for any other illustrating the same action, if, in his judgment, the substituted Plate illustrates that action with a better model, or in a more perfect manner than the one selected.
With regard to the selection of Plates, however, it has been found by experience that unless any special subject or plate is required it will be more satisfactory to the subscriber if he gives the Author GENERAL INSTRUCTIONS as to the CLASS of subjects desired and to leave the SPECIFIC selection to him.
Many of the large Libraries and Art or Science Institutions in America and in Europe have subscribed for, and have now in their possession, a complete series of the seven hundred and eighty-one Plates, the subscription price for which is
in the United States,
in Great Britain for the complete series, in eight full American-Russia leather portfolios, or if bound in eleven volumes, each plate hinged, full American-Russia leather,
in the United States,
in Great Britain; or its equivalent for any city in Central or Western Europe.
Subscribers who wish to make use of these Plates for the promotion or diffusion of knowledge, or for artistic or scientific purposes, will be afforded facilities for acquiring working copies by special arrangement with the Author.
The investigations of the Author are so well known; and so generally recognized as affording the only basis of truthful interpretation or accurate criticism of Animal Movement, that it is perhaps scarcely necessary to quote from the many elaborate reviews of "Animal Locomotion," which have been published in the American, English, French, and German Scientific, Artistic, and other Journals. A few extracts therefrom are however given in Appendix A.
For the value of the present work to the general student of Nature and the lover of Art, no less than to the Artist and the Archæologist, the Physiologist and the Anatomist, it is with much pride and gratitude that he refers to the annexed list of some of his subscribers.
The general or departmental Libraries of the following
|
Amsterdam Andrews, St. Basel Berlin Bern Bologna Bonn Breslau Bruxelles Edinburgh Erlangen | Freiburg Genève Genova Glasgow Göttingen Griefswald Hallé Heidelberg Innsbrück Jena Kiel | Königsberg Leiden Leipzig Liège Louvain München Napoli Oxford Padova Pisa | Prag Roma Rostock Strassburg Torino Tübingen Utrecht Wien Würzberg Zürich |
|
Amsterdam Antwerpen Berlin Bern Birmingham Bologna Breslau Bruxelles | Budapest Dresden Düsseldorf Firenze Frankfurt Genova Gent Leipzig | Liège London Manchester Milano München Napoli Paris Praha | Roma (de France) Sheffield Torino Venezia Wien Zürich |
| Architectural Institute, München Herkomer School of Art, Bushey | |||
| Amsterdam | Berlin | Budapest |
|
Dresden Griefswald Heidelberg | Königsberg Leipzig Prag | Rostock Strassburg Wien | Würzburg Zürich |
|
Berlin Dublin | Edinburgh Kensington | Paris | Wien |
|
Amsterdam Breslau | Budapest Frankfurt | Nürnberg | Zürich |
|
The Royal Library, Windsor Castle. Imperial Library, Berlin. | |
| Birmingham, Free Public Edinburgh, Advocates' Glasgow, Mitchell Free Liverpool, Free Public | London, British Museum Manchester, Free Public Nottingham, Free Public Paris, National Library |
|
Bern Breslau Freiburg Hallé | Innsbrück Kiel Königsberg Leipzig | München Pisa Prag Rostock | Tübingen Würzburg Zürich |
| Edinburgh | London |
|
Basel Berlin Bern Bologna Bonn Breslau Bruxelles Erlangen | Freiburg Genova Göttingen Griefswald Hallé Heidelberg Innsbrück Jena | Kiel Königsberg Leipzig Louvain München Napoli Prag Rostock | Strassburg Torino Tübingen Wien Würzburg Zürich |
| Alfort | Bern | Berlin | Dresden | London |
| Dresden | Firenze |
|
Amsterdam Bruxelles Freiburg | Kiel Leiden | Liège Napoli | Paris Rostock |
|
Basel Bologna Bruxelles | Genève Heidelberg Padova | Prag Roma | Rostock Utrecht |
| Berlin | Firenze | Wien | Zürich |
|
Charterhouse Clifton | Dublin (Trin.) Eton | Owens Wellington |
| Berlin | Dresden |
|
Düsseldorf, Malkesten Glasgow, Western | London, Athenæum Rome, Internazionale |
|
Agricultural High School of Berlin Faculty of Medicine of Paris Faculty of Physicians and Surgeons of Glasgow Psychological Institute of Leipzig Royal College of Physicians, Edinburgh Royal Institution, Edinburgh Royal Dublin Society Royal Society of London |
|
Bureau of Education Bureau of Engraving Bureau of Ethnology Department of War Library of Congress | National Museum Patent Office Smithsonian Institution Surgeon General's Office. |
|
Baltimore, Maryland Institute. Boston, Museum of Fine Arts. Chicago, Art Institute. Cincinnati, Art Museum. Milwaukee, School of Design. Minneapolis, School of Design. New Bedford, Swain School. New York, Cooper Union. New York, Metropolitan Museum of Art. New York, National Academy of Design. Philadelphia, Academy of Fine Arts. Philadelphia, School of Industrial Art. Philadelphia, School of Design for Women. St. Louis, Museum of Fine Arts. Washington, Corcoran Gallery of Art. |
|
Academy of Natural Sciences, Philadelphia. American Institute, New York. American Philosophical Society, Philadelphia. College of Physicians, Philadelphia. Essex Institute, Salem. Franklin Institute, Philadelphia. Museum of Comparative Zoölogy, Cambridge. Museum of Natural History, New York. Peabody Museum of Yale College. |
|
Brown Columbia Cornell Harvard | Johns Hopkins Kansas Lehigh Minnesota | Nebraska New York Pennsylvania Princeton | Vassar Vermont Wellesley Yale |
|
Baltimore—Peabody Boston—Athenæum Boston—Public Brooklyn—L. I. Historical Brooklyn Library Chicago—Historical Chicago—Public Cincinnati—Public Denver—Mercantile Harlem Library Massachusetts—State | Minneapolis—Public New Bedford—Public New York—Mercantile New York—State Pennsylvania—State Philadelphia Library St. Paul—Public San Francisco—Public Springfield (Mass.)—Public Wisconsin—State Historical Worcester (Mass.)—Public |
It is impossible within the limits of this appendix to record the names of the many well-known Dilettanti, Art Connoisseurs, Manufacturers, etc., who have acquired copies of Animal Locomotion, and it is difficult, without unjust discrimination, to select a few from among the many Eminent Men whose names and works are known all over the world and who are subscribers. Among those, however, who have honored the Author by placing their names on his subscription book—all academical and university distinctions being omitted—are the following:
|
Alma-Tadema Armitage Becker Begas Bonnat Boughton Bouguereau Bridgman Burnham Carolus-Duran Cavelier Conti, Tito Dalou von Defregger Detaille Dubois Eisenmenger Ende Faed | Falguière Fildes Fremiet Frith Garnier Gérôme Gilbert Gordigiani Gow Herkomer Hunt, Holman von Kaulbach Knaus Knight Kopf Leighton, Sir F. von Lenbach von Löfftz Marks | du Maurier Meissonier von Menzel Millais, Sir J.E. Morot Munkacsy Orchardson Ouless Parsons Passini Poynter Puvis, de Ch Richardson Richmond Rivière-Briton Robert-Fleury Rodin Roll Roth | Rümann Schilling Siemering St. Gaudens Story Thornycroft Tiffany Vibert Villefroy Vinea Wagner Ward Watts Weeks Wells von Werner Whistler Zügel. |
|
von Berlepsch Bullen von Duhn Ewald Falke Furness, H. H. | von Kekule Klein Muntz Overbeck Pietsch Preuner | Pulszky Ruskin di Sambuy, Conte Smith, Gen. Sir R.M. Treu Wolff, Albert. |
|
Acland, Sir H. W. Agassiz, A. Barrier du Bois Reymond Bowditch Bowman, Sir W. Braune, W. Brown-Sequard Burdon-Sanderson Cleland Darwin, F. Exner, S. Fick Flower Foster Galton, F. Gill Goode, Brown Hasse | Haughton Heidenhain Hering Humphry Huxley Jensink von Kölliker von Kries Lankester Leidy Lubbock, Sir J. Ludwig Mantegazza Marey Marshall Meyer Milne-Edwards Mivart Moleschott | Mosso Munk Müller, Max Owen, Sir R. Pasteur Pepper W. Pettigrew Rabl Romanes Rückert Schiff Schütz Virchow, R. von Voit Wear-Mitchell Wood Wundt von Zittell. |
|
Abney Blake Blazerna Bramwell, Sir F. Bunsen Ditscheiner | Edison Glaisher von Helmholtz Huggins Langley Mach | Matthiessen Quincke Spottiswoode Thomson, Sir W. Vogel Weber. |
|
Field Marshal Count von Moltke General U. S. Grant General W. T. Sherman General P. H. Sheridan General R. B. Hayes. |
A series of Fifty Engravings, each of which illustrates from 12 to 15 consecutive phases of some complete movement, photographed from life.
The successive phases of each action are arranged in a circle NINE INCHES IN DIAMETER; for reduced copies of some of which see appendix A.
Printed on six-ply Bristol-board and enclosed in
size 10×12 inches; price, Five Dollars in the United States; or One Guinea in Great Britain.
Sent free of postage upon receipt of price, to any country within the Universal Postal Union.
EADWEARD MUYBRIDGE,
University of Pennsylvania,
Philadelphia, U.S.A.
Or, at 10 Henrietta Street,
Covent Garden, London.
To convert the circles of figures into a
ZOOPRAXISCOPE,
cut out the disc, and, radiating from the centre thereof, about midway from the margin, cut or stamp thirteen equidistant perforations; each an inch long, and about the sixteenth of an inch wide.
Pin the centre of the disc to a handle and revolve it in the direction of the arrow, at a distance of about twenty-four inches, in front of a mirror.
By looking through the upper series of perforations at the reflection of the lower series of figures, a semblance of the original movements of life will be seen.
The figures may be appropriately colored, and the back of the cardboard disc should be painted a dark color, or covered with a piece of dark surfaced paper before cutting the perforations.
Illustrated with twelve consecutive phases—occurring during a single stride—of each of the six regular progressive movements of the horse, traced from the results of an investigation made by the Author for the University of Pennsylvania.
12 mo. bound in cloth. Price in the United States, One Dollar; in Great Britain Four Shillings and Three Pence.
Sent upon receipt of price, free of postage to any country within the Universal Postal Union.
EADWEARD MUYBRIDGE,
University of Pennsylvania,
Philadelphia, U. S. A.
Or 10 Henrietta Street,
Covent Garden, London.
End of Project Gutenberg's Descriptive Zoopraxography, by Eadweard Muybridge
*** END OF THIS PROJECT GUTENBERG EBOOK DESCRIPTIVE ZOOPRAXOGRAPHY ***
***** This file should be named 40215-h.htm or 40215-h.zip *****
This and all associated files of various formats will be found in:
http://www.gutenberg.org/4/0/2/1/40215/
Produced by Mark C. Orton, Keith Edkins and the Online
Distributed Proofreading Team at http://www.pgdp.net (This
file was produced from images generously made available
by The Internet Archive)
Updated editions will replace the previous one--the old editions
will be renamed.
Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties. Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark. Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission. If you
do not charge anything for copies of this eBook, complying with the
rules is very easy. You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research. They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks. Redistribution is
subject to the trademark license, especially commercial
redistribution.
*** START: FULL LICENSE ***
THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK
To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.
Section 1. General Terms of Use and Redistributing Project Gutenberg-tm
electronic works
1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.
1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works. See paragraph 1.E below.
1.C. The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works. Nearly all the individual works in the
collection are in the public domain in the United States. If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed. Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work. You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.
1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are in
a constant state of change. If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work. The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.
1.E. Unless you have removed all references to Project Gutenberg:
1.E.1. The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:
This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever. You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org
1.E.2. If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges. If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.
1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder. Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.
1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.
1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.
1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form. However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form. Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.
1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.
1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that
- You pay a royalty fee of 20% of the gross profits you derive from
the use of Project Gutenberg-tm works calculated using the method
you already use to calculate your applicable taxes. The fee is
owed to the owner of the Project Gutenberg-tm trademark, but he
has agreed to donate royalties under this paragraph to the
Project Gutenberg Literary Archive Foundation. Royalty payments
must be paid within 60 days following each date on which you
prepare (or are legally required to prepare) your periodic tax
returns. Royalty payments should be clearly marked as such and
sent to the Project Gutenberg Literary Archive Foundation at the
address specified in Section 4, "Information about donations to
the Project Gutenberg Literary Archive Foundation."
- You provide a full refund of any money paid by a user who notifies
you in writing (or by e-mail) within 30 days of receipt that s/he
does not agree to the terms of the full Project Gutenberg-tm
License. You must require such a user to return or
destroy all copies of the works possessed in a physical medium
and discontinue all use of and all access to other copies of
Project Gutenberg-tm works.
- You provide, in accordance with paragraph 1.F.3, a full refund of any
money paid for a work or a replacement copy, if a defect in the
electronic work is discovered and reported to you within 90 days
of receipt of the work.
- You comply with all other terms of this agreement for free
distribution of Project Gutenberg-tm works.
1.E.9. If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark. Contact the
Foundation as set forth in Section 3 below.
1.F.
1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection. Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.
1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.
1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium with
your written explanation. The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund. If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund. If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.
1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.
1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law. The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.
1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.
Section 2. Information about the Mission of Project Gutenberg-tm
Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers. It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.
Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation information page at www.gutenberg.org
Section 3. Information about the Project Gutenberg Literary Archive
Foundation
The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.
The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations. Its business office is located at 809
North 1500 West, Salt Lake City, UT 84116, (801) 596-1887. Email
contact links and up to date contact information can be found at the
Foundation's web site and official page at www.gutenberg.org/contact
For additional contact information:
Dr. Gregory B. Newby
Chief Executive and Director
[email protected]
Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation
Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.
The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To
SEND DONATIONS or determine the status of compliance for any
particular state visit www.gutenberg.org/donate
While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.
International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.
Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: www.gutenberg.org/donate
Section 5. General Information About Project Gutenberg-tm electronic
works.
Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone. For forty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.
Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included. Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.
Most people start at our Web site which has the main PG search facility:
www.gutenberg.org
This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
