University of Kansas Publications

Museum of Natural History

bar
Volume 20, No. 1, pp. 1-45, 22 figs.

bar   February 20, 1970   bar





A Taxonomic Revision
of the Leptodactylid Frog Genus
Syrrhophus Cope




BY


JOHN D. LYNCH












University of Kansas
Lawrence
1970



[Pg 2]

University of Kansas Publications, Museum of Natural History

Editors of this number:
Frank B. Cross, Philip S. Humphrey, William E. Duellman




Volume 20, No. 1, pp. 1-45, 22 figs.
Published February 20, 1970







University of Kansas
Lawrence, Kansas





PRINTED BY
THE UNIVERSITY OF KANSAS PRINTING SERVICE
LAWRENCE, KANSAS
1970




[Pg 3]

A Taxonomic Revision of the Leptodactylid Frog
Genus Syrrhophus Cope
BY
JOHN D. LYNCH

Introduction

Cope (1878) proposed the genus Syrrhophus for a medium-sized leptodactylid frog from central Texas; in the ensuing 75 years the genus was expanded to include a heterogeneous group of frogs ranging from Texas to Peru. Taylor (1952) and Firschein (1954) limited the genus to several species of frogs occurring in Guatemala, México, and Texas. Lynch (1968) provided a definition of the previously loosely-defined genus.

With the exception of Taylor (1952), who treated the Costa Rican species, none of these authors dealt with the present status of the nineteen species erroneously assigned to Syrrhophus. These species are listed in Tables 1 and 2 with the name currently applied. Some of them are new combinations and their justifications will be published elsewhere. Gorham (1966) is the most recent author to include South American species in the genus Syrrhophus.

Smith and Taylor (1948) recognized two species groups of the genus in México, an eastern and a western group (here termed complexes for purposes of discussion), separated on the basis of the number of palmar (metacarpal) tubercles (three palmar tubercles in the members of the eastern complex and two in those of the western complex). Duellman (1958) reviewed the species of the genus occurring in western México and concluded that there were five species (two polytypic). Dixon and Webb (1966) described an additional species from Jalisco, México. The distributions of some species have been extended, but otherwise the western complex of species remains unchanged since Duellman's review.

Smith and Taylor (1948) recognized seven species of the genus in eastern México. Firschein revised the eastern complex (as then understood), and in so doing added one new species and treated Syrrhophus verruculatus as a nomen dubium. Dixon (1957) redefined the related genus Tomodactylus and transferred T. macrotympanum Taylor to the genus Syrrhophus. Neill (1965) described a new subspecies of S. leprus from British Honduras. Two species (S. gaigeae and S. marnockii) were recognized in Texas until Milstead, Mecham, and McClintock (1950) synonymized S. gaigeae [Pg 4] with S. marnockii. Thus, at present, nine species (one polytypic) are recognized on the eastern slopes and lowlands from central Texas to British Honduras. These are currently placed on one species group equivalent to the western complex reviewed by Duellman (1958).


Table 1—Species Described as Members of the Genus Syrrhophus
but Now Placed in Other Genera.
Trivial name and author     Current combination
areolatus Boulenger, 1898   Eleutherodactylus areolatus
calcaratus Andersson, 1945   Eleutherodactylus anderssoni
caryophyllaceus Barbour, 1928   Eleutherodactylus caryophyllaceus
coeruleus Andersson, 1945   Eleutherodactylus coeruleus
ineptus Barbour, 1928   Eleutherodactylus diastema
juninensis Shreve, 1938   Eupsophus juninensis
lutosus Barbour and Dunn, 1921   Eleutherodactylus lutosus
molinoi Barbour, 1928   Eleutherodactylus molinoi
montium Shreve, 1938   Niceforonia montia
mystaceus Barbour, 1922   Eleutherodactylus rhodopis
obesus Barbour, 1928   Eleutherodactylus punctariolus
omiltemanus Gunther, 1900   Eleutherodactylus omiltemanus[1]
pardalis Barbour, 1928   Eleutherodactylus pardalis

[1] New combination.


Table 2—Species Incorrectly Regarded as Members of the Genus Syrrhophus
but Described as Members of Other Genera.
Trivial name, original generic assignment, and author   Current combination
chalceus (Phyllobates) Peters, 1873   Eleutherodactylus chalceus
festae (Paludicola) Peracca, 1904   Niceforonia festae
hylaeformis (Phyllobates) Cope, 1875   Eleutherodactylus hylaeformis
palmatus (Phyllobates) Werner, 1899   Colostethus palmatus
ridens (Phyllobates) Cope, 1866   Eleutherodactylus ridens
simonsii (Paludicola) Boulenger, 1900   Niceforonia simonsii


Table 3—Nominal Species of Syrrhophus (sensu strictu)
and the Name Used Herein.
Original combination   Current combination
campi, Syrrhophus   cystignathoides campi
cholorum, Syrrhophus leprus   leprus
cystigathoides, Phyllobates   cystignathoides cystignathoides
dennisi, Syrrhophus   dennisi new species
gaigeae, Syrrhophus   guttilatus
guttilatus, Malachylodes   guttilatus
interorbitalis, Syrrhophus   interorbitalis
latodactylus, Syrrhophus   longipes
leprus, Syrrhophus   leprus
longipes, Batrachyla   longipes
macrotympanum, Tomodactylus   verrucipes
marnockii, Syrrhophus   marnockii
modestus, Syrrhophus   modestus
nebulosus, Syrrhophus   pipilans nebulosus
nivocolimae, Syrrhophus   nivocolimae
pallidus, Syrrhophus modestus   pallidus
petrophilus, Syrrhophus   guttilatus
pipilans, Syrrhophus   pipilans pipilans
rubrimaculatus, Syrrhophus   rubrimaculatus
smithi, Syrrhophus   guttilatus
teretistes, Syrrhophus   teretistes
verrucipes, Syrrhophus   verrucipes
verruculatus, Phyllobates   Nomen dubium


[Pg 5] In the course of preparing an account of the species of Eleutherodactylus occurring in México and northern Central America, it became necessary to reëxamine the status of the genus Syrrhophus and its nominal species. It soon became evident that there were more names than species, that some previously regarded species were geographic variants, and that the eastern and western groups (complexes here) were artificial divisions of the genus. I conclude that there are seven species (one polytypic) of Syrrhophus in eastern México, Texas, and El Petén of Guatemala, and seven species (one polytypic) in western México. The current status of each of the 23 names correctly assigned to the genus is presented in Table 3.

The fourteen species recognized by me are placed in five species groups. Two of these groups are presently placed in the western complex (modestus and pipilans groups) and three in the eastern complex (leprus, longipes and marnockii groups). The two complexes do not correspond exactly with the eastern and western groups of Smith and Taylor (1948), Firschein (1954), and Duellman (1958) since S. rubrimaculatus is now associated with the eastern leprus group.

The definitions and contents of the five species groups are as follows:

leprus group: digital pads not or only slightly expanded, rounded in outline; first finger longer or shorter than second; snout acuminate or subacuminate, not rounded; outer metatarsal tubercle conical; digits lacking distinct lateral fringes.
content: cystignathoides, leprus and rubrimaculatus.
longipes group: digital pads widely expanded, triangular in outline; first finger shorter than second; snout acuminate; outer metatarsal tubercle not conical; digits bearing lateral fringes.
content: dennisi and longipes.
marnockii group: digital pads expanded, rounded to truncate in outline; first finger equal in length to second or slightly shorter; snout rounded; outer metatarsal tubercle not conical; digits lacking lateral fringes; generally stout-bodied frogs.
content: guttilatus, marnockii, and verrucipes.
modestus group: digital pads expanded, truncate in outline; first and second fingers subequal in length, first usually slightly shorter than second; snout subacuminate; inner metatarsal tubercle twice as large (or larger) as outer metatarsal tubercle; digits bearing poorly-defined lateral fringes.
content: interorbitalis, modestus, nivocolimae, pallidus, and teretistes.

[Pg 6]

pipilans group: digital pads not or only slightly expanded, truncate in outline; first finger equal in length to second; snout subacuminate; metatarsal tubercles subequal in size; digits lacking lateral fringes.
content: pipilans.

Acknowledgments.—For loan of specimens, I am indebted to Richard J. Baldauf, Texas A & M University (TCWC); W. Frank Blair, University of Texas (TNHC); Charles M. Bogert and Richard G. Zweifel, American Museum of Natural History (AMNH); James E. Böhlke and Edmond V. Malnate, Academy of Natural Sciences of Philadelphia (ANSP); Robert F. Inger and Hymen Marx, Field Museum of Natural History (FMNH); Ernest A. Liner (EAL); Michael Ovchynnyk, Michigan State University collection (MSU); James A. Peters, United States National Museum (USNM); Douglas A. Rossman, Louisiana State University Museum of Zoology (LSUMZ); Hobart M. Smith, University of Illinois Museum of Natural History (UIMNH); Charles F. Walker, University of Michigan Museum of Zoology (UMMZ); and John W. Wright, Los Angeles County Museum (LACM). Specimens in the collection at the University of Kansas Museum of Natural History are identified as KU. The abbreviations EHT-HMS refer to the Edward H. Taylor-Hobart M. Smith collection and FAS to the Frederick A. Shannon collection. The type-specimens from these collections are now in the Field Museum of Natural History and the University of Illinois Museum of Natural History.

I have profited from discussions concerning this problem with several persons, most notably William E. Duellman, Hobart M. Smith, Edward H. Taylor and Charles F. Walker. Nevertheless, the ideas and conclusions presented here should not be construed as necessarily reflecting their opinions.

David M. Dennis executed all of the figures, and my wife, Marsha, typed the manuscript.

Materials and Methods.—In the course of this study, 1003 specimens of the genus were examined. The holotypes of 21 of the 23 nominal species are extant; I have examined 19 of these. Nine measurements were taken, and five ratios computed for each of 338 specimens. Females are available for all species but one; thus, measurements were taken on individuals of both sexes.


Analysis of Characters

Size and proportions.—Frogs of this genus range in size from 16 to 40 mm. in snout-vent length. Five species are relatively small: S. cystignathoides, modestus, nivocolimae, pallidus and rubrimaculatus; one, S. longipes, is relatively large, and the remaining eight species are intermediate in size (22-30 mm.).

Males are generally smaller than females and have proportionately longer heads and usually larger tympani. No significant differences were found among proportions, except that S. longipes has a larger tympanum/eye ratio than any other species. Frogs in the Syrrhophus marnockii group tend to have shorter shanks and feet, thereby giving those species a more stocky appearance. However, the differences are not significant.

A summary of the data on size and proportions for the frogs of the genus Syrrhophus is given in Tables 4, 5, and 6.

[Pg 7] Hands and Feet.—Taylor and Smith (1945), Smith and Taylor (1948), Firschein (1954) and Duellman (1958) discussed the value of the palmar tubercles in identifying frogs of this genus. The eastern complex in general has a well-developed outer palmar tubercle (Fig. 1) in distinction to the western complex in which the outer palmar tubercle is reduced or absent (Fig. 2). Dixon and Webb (1966) imply that the outer palmar tubercle is rarely absent but is usually smaller than the first supernumerary tubercle of the fourth finger. My study of the western species demonstrates that the outer palmar tubercle is indeed usually present and smaller than the first supernumerary tubercle.

Differences in interpretation of the terms "unexpanded" and "narrow," as well as differences in techniques of preservation, have led to confusion of the reported digital shapes in various species. Constant specific differences are evident in the hands (Fig. 1). Except in the cases of excessive uptake of fluids, all species have a terminal transverse groove at the tip of each digit. Taylor (1940b) stated that S. smithi lacked grooves, but examination of the holotype reveals faint grooves at the tops of the digits. Syrrhophus guttilatus, leprus, pipilans, and verrucipes lack lateral fringes on the fingers. Lateral fringes are well developed in the longipes and modestus groups but poorly defined or absent in the other members of the genus. The digital pads of the frogs of the longipes group are much broader than those of the other species and are narrowest in the frogs of the leprus group. Supernumerary tubercles are present on the palmar surfaces of all species of the genus.


Table 4—Size and Proportions in the Frogs of the Syrrhophus leprus Group.
Species Sex N Snout-vent
length
(SVL)
Tibia
length/
SVL
Head
width/
SVL
Tympanum/
Eye
Eyelid/
Interorbital
cystignathoides campi 33 16.3-23.5 41.3-49.6 34.0-40.1 43.7-66.5 43.2-89.6
      (45.8) (37.0) (56.2) (61.5)
  12 16.0-25.8 41.5-51.0 33.0-38.0 42.8-60.0 48.2-69.2
      (45.8) (35.0) (51.2) (60.1)
c. cystignathoides 15 16.8-22.1 45.1-50.4 33.2-40.7 44.3-68.7 44.6-65.4
      (47.3) (37.8) (54.8) (60.0)
  6 19.6-24.2 46.4-50.0 34.1-38.1 43.3-56.5 53.2-65.4
      (47.6) (36.2) (46.9) (59.2)
leprus 14 20.6-26.4 42.3-52.3 35.0-40.3 47.5-62.5 58.2-72.5
      (46.8) (37.4) (56.5) (67.3)
  15 22.1-29.2 43.4-53.3 32.6-38.9 38.6-57.9 50.2-86.9
      (47.1) (35.8) (47.1) (68.1)
rubrimaculatus 12 18.2-23.5 40.4-46.2 31.8-35.5 35.5-46.5 65.1-78.5
        (43.4) (33.8) (41.7) (71.7)


[Pg 8] Table 5—Size and Proportions in the Frogs of the Syrrhophus longipes and S. marnockii Groups.
Species Sex N Snout-vent
length
(SVL)
Tibia
length/
SVL
Head
width/
SVL
Tympanum/
Eye
Eyelid/
Interorbital
dennisi 16 22.8-28.4 43.9-49.7 35.3-41.2 53.9-64.2 55.3-74.0
        (47.4) (38.8) (58.9) (65.1)
  10 25.9-32.0 46.3-50.8 35.6-40.3 50.6-58.7 58.1-70.9
        (48.2) (37.7) (54.9) (63.6)
longipes 22 22.1-33.2 45.8-51.7 38.7-44.4 61.1-87.2 61.5-83.0
      (48.4) (41.8) (72.0) (72.0)
  19 26.8-39.6 44.3-51.0 36.3-40.8 49.5-72.1 55.3-85.9
        (47.2) (39.1) (59.5) (67.9)
guttilatus 19 20.6-29.0 41.2-48.1 36.9-44.9 55.1-75.7 53.3-79.5
        (44.5) (40.6) (64.1) (66.0)
   5 25.7-31.0 41.4-46.8 35.9-42.3 47.6-61.7 62.3-79.8
        (43.6) (38.5) (54.0) (72.9)
marnockii 14 18.4-28.9 42.3-47.2 36.1-43.0 47.2-68.3 51.6-74.4
        (44.1) (39.6) (61.2) (66.3)
  29 20.4-35.4 38.7-46.4 35.9-41.3 45.8-73.3 52.1-70.5
        (42.7) (38.2) (60.3) (60.7)
verrucipes 29 17.5-29.2 42.7-49.5 36.2-42.4 56.1-82.2 56.8-82.8
        (46.3) (39.1) (67.8) (70.4)
   6 26.5-31.7 42.4-47.7 36.0-38.1 45.8-57.8 61.0-77.9
        (44.6) (37.0) (53.9) (69.0)


Table 6—Size and Proportions in the Frogs of the Syrrhophus pipilans and S. modestus Groups.
Species Sex N Snout-vent
length
(SVL)
Tibia
length/
SVL
Head
width/
SVL
Tympanum/
Eye
Eyelid/
Interorbital
pipilans nebulosus 17 22.9-28.5 38.1-42.0 34.4-37.2 36.6-47.8 56.1-82.4
  (40.0) (35.4) (43.6) (68.2)
   3 21.1-22.7 42.1-44.5 33.2-35.8 36.6-47.6 64.3-65.4
pipilans pipilans 18 22.6-27.8 37.9-44.0 32.2-36.5 38.0-54.0 56.1-79.5
        (41.4) (33.0) (46.2) (67.3)
   1 29.4 38.4 32.5 44.6 55.0
modestus  8 15.8-20.1 38.5-42.6 32.1-38.1 26.8-39.3 57.0-86.9
        (40.6) (34.2) (31.5) (69.1)
   1 18.5 44.2 36.0 24.0 52.1
pallidus  6 17.9-19.3 41.0-44.9 32.6-36.2 27.0-35.6 59.4-67.7
        (43.4) (35.2) (30.9) (65.2)
teretistes 18 19.2-23.2 41.5-45.3 32.5-36.4 28.6-43.8 51.2-75.0
        (43.7) (34.0) (33.7) (62.2)
  1 24.8 41.8 30.8 37.9 60.5
nivocolimae 15 18.9-21.1 42.2-48.6 30.9-37.1 30.0-39.3 42.6-69.1
        (45.0) (33.7) (34.7) (55.0)
   1 24.1 40.9 33.5 27.6 56.5
interorbitalis  1 25.6 43.0 —— 39.4 57.6
   9 20.2-26.7 39.9-47.1 32.6-39.3 29.1-41.2 58.2-76.9
        (43.2) (35.8) (36.4) (69.2)


[Pg 9]

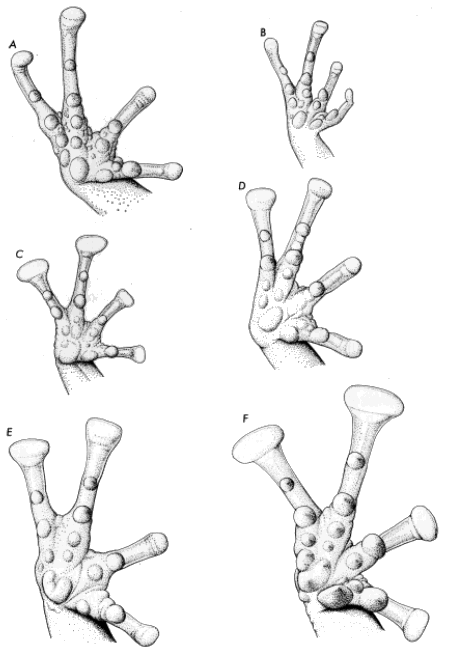

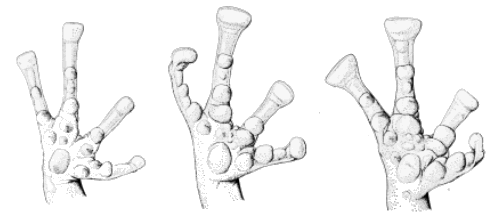

Fig. 1: Palmar views of hands of six species of the eastern complex of Syrrhophus. (A) verrucipes (UIMNH 15995), (B) rubrimaculatus (KU 58911), (C) dennisi sp. nov. (holotype, UMMZ 101121), (D) guttilatus (UIMNH 55520), (E) marnockii (TCWC 4782), and (F) longipes (TCWC 12179). All ×6.5.

[Pg 10]

Fig. 2: Palmar views of hands of two species of the western complex of Syrrhophus. pipilans (left, KU 58908, ×6) and teretistes (center, KU 75269, and right, KU 75263, respectively, ×9).

In S. cystignathoides and leprus, the first finger is longer than the second, and the first two fingers are equal in length in guttilatus and marnockii. In the other species the first finger is shorter than the second.

Supernumerary tubercles are well developed on the plantar surfaces in all species, except S. guttilatus, in which they are poorly defined (Fig. 3). The relative sizes of the metatarsal tubercles has been used in the classification of the species and species groups of Syrrhophus. The metatarsal tubercles are similar in all species of the eastern complex (including rubrimaculatus); the outer tubercle is always about one-half the size of the ovoid inner metatarsal tubercle. In the leprus group the outer tubercle is conical and compressed. The metatarsal tubercles of pipilans are about the same size, or the outer is slightly smaller than the inner. In the modestus group the outer metatarsal tubercle is about one-third the size of the inner.

All species, except guttilatus, have well-defined to poorly defined lateral fringes on the toes. All species have expanded toe pads. The fifth toe is usually shorter than the third, but the second is equal in length to the fifth in some specimens of S. cystignathoides and S. marnockii. Syrrhophus nivocolimae is the only species with tubercles along the outer edge of the tarsus; this is merely a reflection of the highly tuberculate nature of the skin in this species.

Skin texture.—The skin of the dorsum is smooth or very weakly pustular in all species of the genus except nivocolimae and verrucipes. The dorsal surfaces of nivocolimae are warty; in verrucipes the skin is pustular. The skin of the venter is areolate in cystignathoides [Pg 11] cystignathoides, dennisi and verrucipes but is smooth in all other species of the genus.

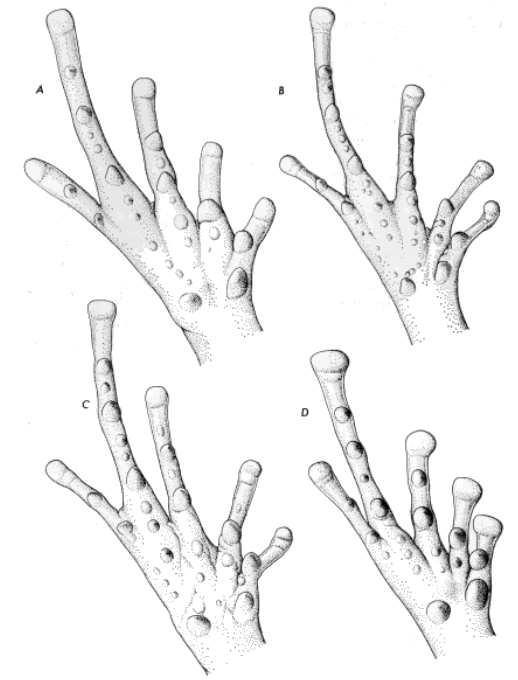

Fig. 3: Plantar views of feet of four species of the eastern complex of Syrrhophus. (A) guttilatus (UIMNH 55519, ×6), (B) leprus (UIMNH 42726, ×6), (C) verrucipes (UIMNH 15995, ×6), and (D) longipes (TCWC 12179, ×4.6).

Color pattern.—As is evident in the diagnoses, the color patterns of given populations have been regarded as useful in separating the [Pg 12] species and subspecies. Duellman (1958) suggested that the coloration, with the exception of modestus, was a dark ground color with pale markings. It is a moot point whether the frogs have light spots on a dark background or have a light background with an extensive reticulate dark pattern. The venters are gray or white, and the vocal sac is nearly black in some species. Interorbital dark bars or triangles are absent in only two species of the eastern complex, cystignathoides campi and marnockii; the latter lacks a supratympanic stripe, which is present in the other members of the eastern complex. Syrrhophus interorbitalis and nivocolimae have light interorbital bars; these bars occur in only one other population of the genus (S. c. cystignathoides). Bars on the thighs are ill defined or absent in the members of the marnockii and part of the modestus groups. The color in life is noted in the species accounts.

Voice.—The voices of all Syrrhophus can be described as a single short chirp or peep; without audiospectrographic analyses the significance of the differences between a chirp, peep, or short whistle cannot be appreciated. Martin (1958) and Wright and Wright (1949) reported multi-noted calls, and one collector of S. verrucipes noted the frog "trilled."

Fouquette (1960) presented analyses of two species (marnockii and pipilans nebulosus). The voices were very similar; both frogs were reported to "trill" and "chirp."


Systematic Account

The genus Syrrhophus has been defined (Lynch, 1968) and limited to the group of species occurring in Guatemala, México and the United States. The closest relatives of Syrrhophus are the frogs of the genus Tomodactylus (Dixon, 1957; Firschein, 1954). Lynch (1968) implied there were no osteological bases for the separation of Eleutherodactylus, Syrrhophus, and Tomodactylus. At that time, I believed such to be the case and derived Syrrhophus and Tomodactylus from the rhodopis complex of Eleutherodactylus, with which they share terrestrial habits and relatively short limbs. In the rhodopis complex there is a tendency for the loss of the outer palmar tubercle, a not uncommon condition in Syrrhophus and Tomodactylus.

However, the skulls of Syrrhophus and Tomodactylus show departures from the pattern observed in the Middle American Eleutherodactylus, as well as many of those species in western South America. Baldauf and Tanzer (1965) reported that the frontoparietals [Pg 13] and prootics were fused in Syrrhophus marnockii and that the prootics and exoccipitals appeared to be one bone (otoccipital). The otoccipital is not uncommon in eleutherodactyline frogs, but the fusion of the frontoparietals with the prootics (regardless of the fusion of the latter with the exoccipital) is uncommon in the family. I have found the frontoparietal-prootic fusion only in Syrrhophus (all species), Tomodactylus (all species), and Eleutherodactylus (West Indies species). None of the Middle American Eleutherodactylus has the two bones fused. Examination of the character is difficult in dried skeletal preparations. Cleared and stained or macerated preparations are satisfactory for checking this character.

Thus, in addition to the presence of numerous plantar supernumerary tubercles in the frogs of the genera Syrrhophus and Tomodactylus, these two genera can be separated from other Middle American eleutherodactylines by the fusion of the frontoparietals and prootics. This character not only further strengthens the argument that the two genera are closely related but poses a problem of zoogeographic analysis of the distribution of the character, which will be discussed fully elsewhere.


Key to the Species of the Frog Genus Syrrhophus
 1.   Three large, well-developed palmar tubercles 2
    Two large palmar tubercles; outer (third) palmar tubercle reduced in size or absent 9
 2.   Digital pads more than twice (usually three or more) times width of digit 3
    Digital pads less than twice width of digit 4
 3.   Males having vocal slits; dorsum vermiculate; diameter of tympanum in males about one-half diameter of eye S. dennisi
    Males lacking vocal slits; dorsum flecked, spotted, or blotched; diameter of tympanum in male about three-fourths that of eye S. longipes
 4.   First finger longer than second 5
    First finger shorter than or equal to second 7
 5.   Venter smooth; dorsum spotted or vermiculate S. leprus
    Venter areolate, or if smooth, dorsum flecked and interorbital bar lacking  6
 6.   Venter areolate; interorbital bar present; ground color yellowish S. cystignathoides cystignathoides
    Venter smooth; interorbital bar absent; ground color brown S. cystignathoides campi
 7.   First finger shorter than second; digital tips only slightly dilated; green in life with darker green spots S. verrucipes
    First finger equal to second; digital tips slightly to moderately expanded  8
 8.   Dorsum vermiculate; interorbital bar present; ground color cream to brown in life [Pg 14] S. guttilatus
    Dorsum punctate or flecked; interorbital bar absent; ground color green in life S. marnockii
 9.   Dorsum dark with pale (red in life) spots; digital pads not expanded S. rubrimaculatus
    Dorsum pale with dark markings and digital pads slightly to widely expanded 10
10.   Digital tips not widely expanded; tympanum well-defined; outer metatarsal tubercle more than one-half size of inner 11
    Digital tips widely expanded, truncate in outline; tympanum poorly defined; outer metatarsal tubercle less than one-half size of inner 12
11.   Dorsum dark brown with large light spots or blotches; tympanum/eye ratio usually greater than 43 percent S. pipilans pipilans
    Dorsum dark brown with small light spots; tympanum/eye ratio less than 48 percent S. pipilans nebulosus
12.   Light interorbital bar present 13
    Light interorbital bar absent 14
13.   Adults small, less than 22 mm. snout-vent length with a broad mid-dorsal stripe; dark bands on shank narrower than light interspaces S. nivocolimae
    Adults larger, more than 22 mm. snout-vent length; dorsum vermiculate; dark bands on shank broader than light interspaces S. interorbitalis
14.   Dorsum spotted with discrete black spots; pattern definite S. modestus
    Dorsum reticulate or vermiculate, pattern poorly defined 15
15.   Adults small, less than 21 mm. snout-vent length; upper arm not banded S. pallidus
    Adults larger, usually greater than 21 mm. snout-vent length; upper arm banded S. teretistes


Species Accounts

The following accounts do not include complete descriptions of each taxon, because a more than adequate number of descriptions is available in the recent (1940-1966) literature. An abbreviated synonymy, in which are listed all combinations and emendations of names and significant contributions to our knowledge of the taxon, is given for each. For each species and subspecies the following are given: descriptive diagnosis, statement of range, remarks on taxonomy, list of specimens examined, illustration of color pattern, and distribution map.


Syrrhophus cystignathoides (Cope)
Phyllobates cystignathoides Cope, 1877:89-90 [Syntypes.—Originally USNM 32402-32409, (32405 now in MCZ) from Potrero, near Córdoba, Veracruz, México, Francis Sumichrast collector.]

[Pg 15]

Diagnosis.—Adults small, males 16.0 to 23.5 mm. in snout-vent length, females 16.0-25.8 mm. in snout-vent length; vocal slits present in males; finger tips slightly expanded; first finger longer than second; outer metatarsal tubercle one-half size of inner, conical, compressed; skin of dorsum weakly pustular, that of venter smooth to areolate; tympanum 44 to 69 per cent diameter of eye (mean 55.5 per cent); ground color yellow to brown in life with brown to black fleckings on dorsum and flanks; limbs banded; interorbital bar present or not.

Remarks.—Two geographic races (subspecies) are herein recognized; previously these were held by various authors to be species (campi and cystignathoides). Intergradation occurs in southern Tamaulipas and eastern San Luis Potosí, México. The two subspecies can be distinguished on the basis of color pattern and the condition of the skin of the venter.

Distribution.—Low to moderate elevations from the Río Grande embayment to central Veracruz, México (Fig. 5).


Syrrhophus cystignathoides campi Stejneger, New combination
Syrrhophus campi Stejneger, 1915:131-32. [Holotype.—USNM 52290, from Brownsville, Cameron Co., Texas; R. D. Camp collector, March 31, 1915]. Smith and Taylor, 1948:52. Martin, 1958:50.

Diagnosis.—Venter smooth; usually no interorbital light and dark bars present; ground color brown in life (Fig. 4a).

Remarks.—Martin (1958) was the first author to point out that S. campi was probably a subspecies of the more southern S. cystignathoides. Various references in the literature might lead one to believe that the two were sympatric over much of northeastern México; this error was created by the use of a single character (condition of the skin of the venter) to characterize the two populations. Specimens from southern Texas have a smooth venter, lack interorbital bars and have, in general, a brown ground color, whereas specimens from central Veracruz have an areolate venter, interorbital light and dark bars and a yellow ground color. In southern Tamaulipas and eastern San Luis Potosí, these characters vary discordantly, thereby strongly suggesting that the two populations intergrade. Both populations agree in other morphological characters; therefore, they are here treated as geographic variants.

Etymology.—Named for the collector of the type specimens, Mr. R. D. Camp of Brownsville, Texas.

Distribution.—Lower Río Grande embayment in Texas to central Nuevo León and Tamaulipas, México. Intergrades are known from southern Tamaulipas and adjacent San Luis Potosí, México (Fig. 5).

Specimens examined.—(113) TEXAS, Cameron Co.: MCZ 10277-85, 10286 (10); Brownsville, AMNH 3215, 3218-20, 3221 (3), 5376, 62117, FMNH 105336, KU 8135-39, MCZ 3738-42, 3743 (10), TCWC 5908, 7139, TNHC 92-94, 20909, UMMZ 51760, 54031 (5), USNM 52290 (holotype); 22 mi. SE Brownsville, TNMC 14223; 8 mi. SW Brownsville, UMMZ 101127 (3); Harlingen, AMNH 62118, UMMZ 105200-205, 105206 (5), 105207 (4). Hidalgo Co.: Bentsen-Río Grande State Park, UMMZ 114378; 6 mi. S McAllen, TNHC 7136-39; Santa Ana Refuge, TCWC 13495-96; Weslaco, TCWC 17658-60.

MEXICO, Nuevo León: Salto Cola de Caballo, AMNH 57953-54, FMNH 30644-45, 37169-70; Monterrey, UIMNH 13324; 40 km. SE Monterrey, UIMNH 3686. Tamaulipas: 80 km. Matamoros, FMNH 27150 (13).

[Pg 16]

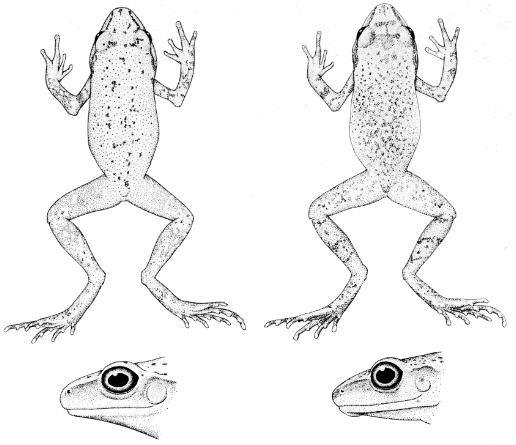

Fig. 4: Syrrhophus cystignathoides campi (left, TCWC 13490) and S. c. cystignathoides (right, KU 105500). Dorsal views ×2, sides of heads ×3.

Intergrades [S. c. cystignathoides × S. c. campi (88)] MÉXICO, San Luis Potosí: 5 km. E Ciudad del Maiz, UMMZ 106435; 16 km. W Naranjo, FMNH 104584; Salto de Agua, 34 km. WSW Antigua Morelos, TCWC 6980. Tamaulipas: 5 km. W Acuña, 1060 m., UMMZ 101172, 101173 (16), 101174-76, 101177 (6); 14.5 km. NNW Chamal, 430 m., UMMZ 111337 (2); 20 km. NNW Chamal, 700 m., UMMZ 111338 (11); 8 km. N Gómez Farías, 450 m., UMMZ 101165; 8 km. NE Gómez Farías, Pano Ayuctle, UMMZ 102264, 102924 (6); 8 km. NW Gómez Farías, 1060 m., LSUMZ 11084, UMMZ 101199, 102928 (5), 102929-32, 110124 (3); Río Guayala, near Magiscatzin, MCZ 24138-42, 85071-81, UMMZ 88242 (2); Magiscatzin, TCWC 6981; Las Yucas, north of Aldama, MCZ 29665-68; 16 km. NE Zamorina, UMMZ 101124.


Syrrhophus cystignathoides cystignathoides (Cope), New combination
Phyllobates cystignathoides Cope, 1877:89-90 [Syntypes.—USNM 32402-32409, from Potrero, near Córdoba, Veracruz, México, collected by Francis Sumichrast]. Boulenger, 1882:196.
Syrrhophus cystignathoides: Cope, 1879:268. Kellogg, 1932: 126-27. Taylor and Smith, 1945: 582-83. Smith and Taylor, 1948:50. Martin, 1958:49.
Syrrhaphus cystignathoides: Günther, 1900:218.
Syrraphus cystignathoides: Díaz de León, 1904:10.
Syrrhopus cystignathoides: Barbour and Loveridge, 1946-170[** 1946:170].

[Pg 17]

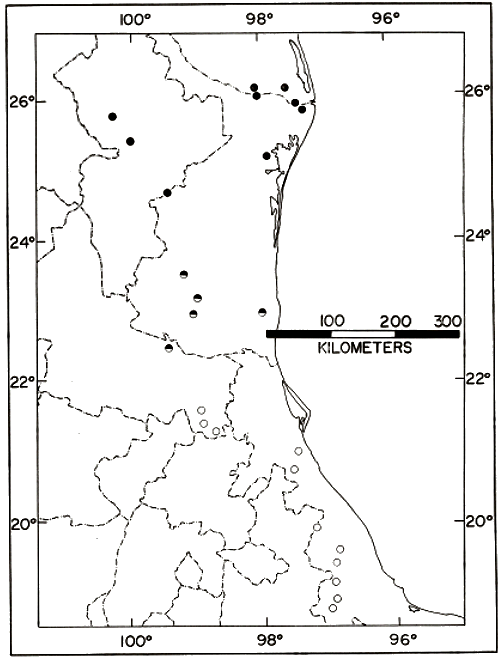

Fig. 5: Distribution of Syrrhophus cystignathoides campi (solid symbols) and the nominate subspecies (open symbols).

Diagnosis.—Venter areolate; interorbital light and dark bars present; ground color yellow to brownish-yellow in life (Fig. 4b).

Remarks.—Firschein (1954) briefly considered the status of Peters' (1871) Phyllobates verruculatus and noted that if it was a Syrrhophus it would probably be referrable to S. cystignathoides. Peters' (1871) original description corresponds well with S. cystignathoides, and the type-locality ("Huanusco" = Huatusco) is within the range of that species. Firschein (1954) expressed [Pg 18] doubt that verruculatus was a Syrrhophus, because Peters placed it in another genus. However, Peters described verruculatus a decade before Cope diagnosed the genus Syrrhophus. Most frogs now called Syrrhophus, plus a number of lower Central American frogs now placed in a variety of genera were placed in Phyllobates by Boulenger, Cope, and Peters.

The types of Phyllobates verruculatus were destroyed during World War II (Günther Peters, in litt.); the specimens subsequently assigned to the taxon by Kellogg (1932) are Syrrhophus cystignathoides. Because the type specimens are lost and because the name antedates the more established name, cystignathoides, I favor retaining Phyllobates verruculatus Peters as a nomen dubium.

Smith and Taylor (1948) reported S. verruculatus from Tianguistengo, Hidalgo, México. These specimens are examples of verrucipes. Smith (1947) reported a specimen of verruculatus from San Lorenzo, Veracruz. Firschein (1954) referred it to cystignathoides, and Duellman (1960) concluded that both authors were in error and that the specimen (USNM 123530) was a leprus.

Etymology.—The trivial name is the diminutive of Cystignathus, a once-used generic name for several leptodactylid frogs.

Distribution.—Low and moderate elevations in the foothills along the Sierra Madre Oriental from eastern San Luis Potosí to Central Veracruz, México (Fig. 5).

Specimens examined.—(130), MÉXICO, Puebla: Necaxa, UMMZ 69519-20. San Luis Potosí: 5 km. W Aguismón, LSUMZ 4962-63; along Río Axtla, road to Xilitla, UMMZ 105500; Tamazunchale, UIMNH 3199; 6.5 km. N Tamazunchale, UMMZ 104039; 8 km. N Tamazunchale, UMMZ 119490. Veracruz: Coatepec, 1210 m., FMNH 704966-67; 11 km. SE Coatepec, 850 m., FMNH 70468-70; below Córdoba, FMNH 104588, UIMNH 13321; Cuautlapam, 1000 m., FMNH 106477-80, KU 100364, UIMNH 58200-03, UMMZ 105392; Fortín de las Flores, UIMNH 13322, 13339; 1.6 km. N Fortín de las Flores, UIMNH 42799-808, UMMZ 105389; 3.2 km. N Fortín de las Flores, UIMNH 26633-35; 4.8 km. N Fortín de las Flores, UIMNH 71967-68; 3.2 km. W Fortín de las Flores (Barranca Metlac), 910 m., UIMNH 49294-95, UMMZ 115444-46, 118221, 119893 (2); Huatusco, KU 100363; Jalapa, 1400 m., FMNH 70440, 70443-51, 70454-65; 16 km. NE Jalapa, 1300 m., FMNH 70452-53; 8 km. E Jalapa, UIMNH 13338; 9.5 km. S Jalapa, UMMZ 122083 (2); Mirador, KU 23967; Paraja Nuevo, El Suchil, UMMZ 85490 (7), 85491 (2), 90315; La Passa, UIMNH 49293, 49297; 1 km. E Plan del Río, 240 m., UMMZ 102067 (2); Potrero Viejo, FMNH 104583, 104586, 105326-27, KU 26789, 100357-62, UIMNH 13323, 13340-43; USNM 32402 (lectotype), 32403-04, 32406-09; 9.6 km. S Santa Rosa, TCWC 12785; 24 km. NE Tezuitlán (Puebla), UMMZ 105388; Teocelo, FMNH 70437-38, KU 26080, 26790; 3.2 km. N Teocelo, FMNH 70439, 70441-42; 9.6 km. NW Tihuatlán, UIMNH 3684-85; 15 km. ENE Tlacotepec, KU 23966; 26 km. NW Tuxpan, UMMZ 126419.


Syrrhophus leprus Cope
Syrrhophus leprus Cope, 1879:268-69 [Holotype.—USNM 10040, from Santa Efigena, Oaxaca, México, Francis Sumichrast collector]. Kellogg, 1932:124-5, 128. Taylor and Smith, 1945:582. Smith and Taylor, 1948:50-51. Duellman, 1958:8, pl. 1, Fig. 2; 1960:56-57. Gorham, 1966:165.
Syrrhaphus leprus: Günther, 1900:217.
Syrrhophus leprus leprus: Neill, 1965:85-86.
Syrrhophus leprus cholorum Neill, 1965:85-86 [Holotype.—Wilfred T. Neill collection 1525, from 3.9 mi. N San Antonio, Toledo District, British Honduras, collected October 28, 1959, by R. A. Allen, T. C. Allen, and W. T. Neill].

[Pg 19]Diagnosis.—Medium-sized frogs, males 20.5-26.5 mm. in snout-vent, females 22.0-29.3 mm. in snout-vent length; vocal slits present in males; tips of fingers dilated slightly; first finger longer than second; inner metatarsal tubercle twice size of small, conical outer metatarsal tubercle; skin of dorsum pustular, that of venter smooth; snout subacuminate; diameter of tympanum 47.5-62.5 per cent of eye in males, 38.6-57.9 per cent in females; dorsum yellowish-green with chocolate brown blotches or spots forming reticulations in most specimens; venter white to gray; flanks brown, spotted with white or not; limbs banded; interorbital bar obscured by dorsal pattern.

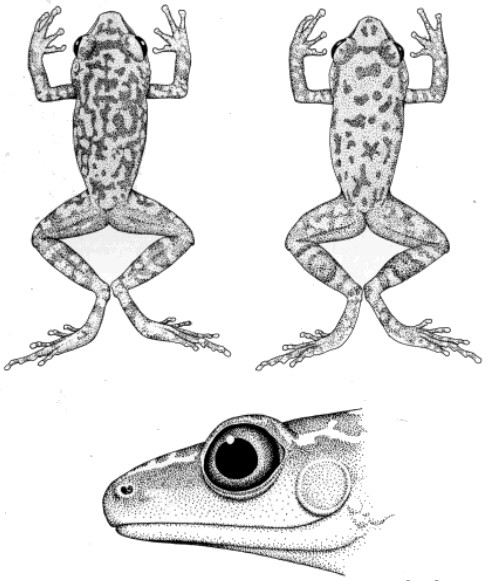

Fig. 6: Dorsal views of Syrrhophus leprus showing variation in dorsal pattern (left, UMMZ 121244, ×2; right, KU 26106, ×1.7). Side of head (UIMNH 42726, ×7).

[Pg 20]

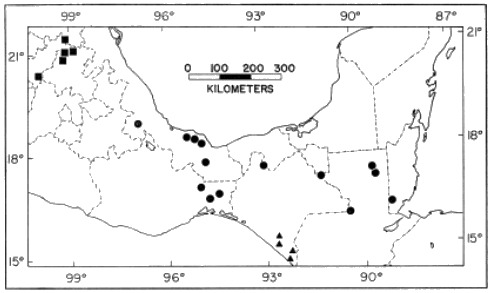

Fig. 7: Distribution of three species of eastern complex Syrrhophus: leprus (circles), rubrimaculatus (triangles), and verrucipes (squares).

Remarks.—My distribution map (Fig. 7) differs somewhat from that of Duellman (1958), who was unaware of specimens reported by Taylor and Smith (1945) from central Veracruz, México.

Duellman (1958, 1960) regarded S. leprus as having a gray venter. Neill (1965) characterized his new subspecies on the basis of white venter and spots on the dorsum. Some specimens from throughout the range have only small round spots, instead of vermiculations (Fig. 6). The gray ventral coloration is largely restricted to the population in Los Tuxtlas, Veracruz, but only about 80 per cent of the specimens from the Los Tuxtlas have gray venters, whereas specimens from Guatemala, Oaxaca, Tabasco, and central Veracruz, México, have white venters (rarely gray). Since the specimens from British Honduras are not distinct from specimens throughout most of the range, there is no reason to recognize them as a subspecies.

Etymology.—Greek, lepra, leprosy, in reference to the mottled color pattern.

Distribution.—Discontinuous; central Veracruz to British Honduras to low elevations in the foothills of the Sierra Madre Oriental, Los Tuxtlas, Sierra Madre de Chiapas (Isthmus of Tehuantepec (Fig. 7)).

Specimens examined.—(84). GUATEMALA, Alta Verapaz: Chinajá, KU 55961-62. El Petén: 15 km. NW Chinajá, KU 55963; Piedras Negras, USNM 114085-92; Tikal, UMMZ 117035; Uaxactún, AMNH 55121-22.

MÉXICO, Oaxaca: Cerro San Pedro del Isthmo, UIMNH 35510; Finca La Gloria, USNM 114093; 30.5 km. N Matías Romero, UIMNH 39459, 71969; Santa Efigenia, USNM 10040 (holotype). Tabasco: Teapa, UMMZ 113799-800; 13.5 km. W Teapa, UMMZ 120253. Veracruz: 27.5 km. N Acayucan, UIMNH 42726; Atoyac, UIMNH 13331, 49296; 3.2 km. N Catemaco, UIMNH 71976-77; Coyame, UIMNH 38995, 38998, 40342; Dos Amates, TCWC 21211; Fortín de Las Flores, FMNH 113751, 113753; Paraja Nuevo, El Suchil, UMMZ 90315; Potrero Viejo, FMNH 113743-50, 126114-18, KU 26104-06, UIMNH 13332-37, UMMZ 88837; San Andrés Tuxtla, UIMNH 27123-31, 28611, 71975, UMMZ 115450 (5); San Lorenzo, USNM 123530; 4.5 km. NW Santiago Tuxtla, JDL 992 (skeleton), UIMNH 27122; 32 km. S Sayula, EAL 1696; Tepalapan, 1.6 [Pg 21] km. S Catemaco, UMMZ 118222 (2); Volcán San Martín, south slope, UMMZ 118223; Volcán San Martín, Rancho El Tular, UIMNH 35399-400, 40340-41.


Syrrhophus rubrimaculatus Taylor and Smith
Syrrhophus rubrimaculatus Taylor and Smith, 1945:583-85 [Holotype.—USNM 114070, from La Esperanza, near Escuintla, Chiapas, México, collected May 13, 1940, by H. M. and R. Smith]. Duellman, 1958:1-4, 7, 12, 14. Gorham, 1966:167.
Syrrhophus rubrimaculata: Smith and Taylor, 1948:48-49.

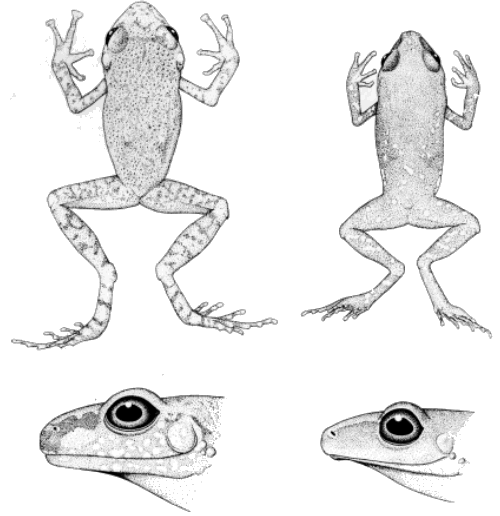

Fig. 8: Syrrhophus rubrimaculatus (upper right, KU 58911, ×1.6; lower right, KU 58910, ×4) and S. verrucipes (upper left, UIMNH 15995, ×1.6; lower left, UIMNH 15989, ×3.7).

Diagnosis.—Small frogs, males 18.2-23.5 mm. snout-vent, females 19.0-22.5 mm. snout-vent length (small sample); vocal slits in males; digital tips scarcely expanded (Fig. 1); first finger shorter than second; outer palmar tubercle reduced in size; inner metatarsal tubercle elongate, twice the size of small, conical outer metatarsal tubercle; diameter of tympanum 35.5-46.5 per cent that of [Pg 22] eye in both sexes; dorsum brown with small pale spots (red in life); venter gray.

Remarks.—Previous authors who treated Syrrhophus placed this species in the western complex, because it occurs on the Pacific versant and has a reduced outer palmar tubercle. Duellman (1958) placed rubrimaculatus apart from the other western species, because of its relatively unexpanded digital tips and coloration. The digital tips are like those in leprus, which rubrimaculatus resembles. Except for the reduction of the outer palmar tubercle, rubrimaculatus could be a member of the leprus group.

Syrrhophus rubrimaculatus is probably best treated as a Pacific derivative of the leprus group, even though the palmar tubercles do not agree. The removal of rubrimaculatus from the western complex results in a more homogeneous remainder and does not greatly increase the heterogeneity of the eastern complex.

Etymology.—Latin, meaning spotted with red; in reference to the colors in life.

Distribution.—Low to moderate elevations on the Pacific versant of southeastern Chiapas, México (Fig. 7); probably extending into adjacent Guatemala.

Specimens examined.—(48) MÉXICO, Chiapas: Escuintla, UMMZ 88283; 6 km. NE Escuintla, UMMZ 87876-80; La Esperanza, UIMNH 13285, UMMZ 88496-97, USNM 114070 (holotype), 114054-69, 114072; Monte Cristo, UMMZ 88353; 1.3 km. N Puerto Madero, KU 58910-11; Finca San Jerónimo, 600-650 m., UIMNH 55299-312, 55313-16 (cleared and stained).


Syrrhophus guttilatus (Cope)
Malachylodes guttilatus Cope, 1879:264 [Holotype.—USNM 9888, from Guanajuato, Guanajuato, México; collected in 1877 by Alfredo Duges].
Syrrhopus guttulatus: Boulenger, 1888:204-06.
Syrrhaphus guttulatus: Günther, 1900:317.
Syrraphus guttulatus: Díaz de León, 1904:11.
Syrrhophus guttilatus: Nieden, 1923:399-400. Kellogg, 1932:125, 127-28. Smith and Taylor, 1948:49, 51. Firschein, 1954:52-54. Gorham, 1966:164.
Syrrhophus smithi Taylor, 1940b:43-45, pl. 1 [Holotype.—USNM 108594, from 15 mi. SW Galeana, Nuevo León, México, 1575 m.; collected on October 13, 1939, by Hobart M. Smith]. Smith and Taylor, 1948:49, 51. Firschein, 1954:54-55. Martin, 1958:50. Gorham, 1966:167.
Syrrhophus gaigeae Schmidt and Smith, 1944:80 [Holotype.—FMNH 27361, from the Basin, Chisos Mountains, Brewster Co., Texas; collected on July 24, 1937, by Walter L. Necker].
Syrrhophus petrophilus Firschein, 1954:50-52 [Holotype.—UIMNH 7807, from 5 km. SW San Luis Potosí, San Luis Potosí, México; collected on July 18, 1949, by David Langebartel]. Gorham, 1966:166.
Syrrhophus marnocki: Milstead, Mecham, and McClintock, 1950:548 (in part).

Diagnosis.—Medium-sized frogs, males 20.6-29.0 mm. snout-vent, females 25.7-31.0 mm. snout-vent length; vocal slits in males; digital tips slightly expanded (Fig. 1); first and second fingers equal; skin of dorsum smooth to moderately pustular, that of venter smooth; snout blunt; diameter of tympanum 55.1-75.7 per cent that of eye in males, 47.6-61.7 in females; dorsum and flanks cream to gray with light brown to black flecking and vermiculations; thighs usually not banded; interorbital bar present (Fig. 8).


[Pg 23]

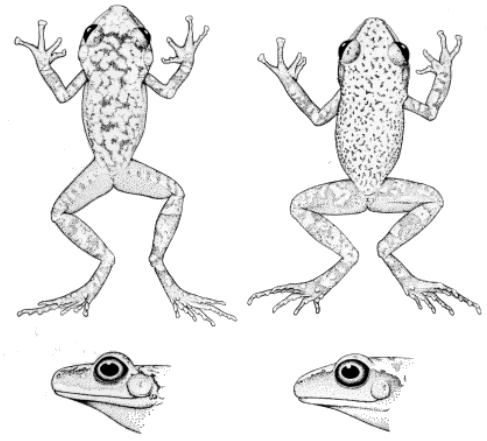

Fig. 9: Syrrhophus guttilatus (upper left, UIMNH 55519, ×1.4; lower left, UIMNH 55519, ×2.3) and S. marnockii (upper right, TCWC 9317, ×1.4; lower right, TCWC 13510, ×2.1).

Remarks.—Cope (1879) distinguished Malachylodes from Syrrhophus on the basis of the presence of a frontoparietal fontanelle in the holotype of guttilatus. The holotype is a juvenile female and as is the case in the juveniles of nearly all leptodactylids, a frontoparietal fontanelle is present. Firschein (1954) used the presence of the fontanelle to distinguish guttilatus from his petrophilus.

As is clearly evident from the length of the synonymy, I consider a number of currently used names to be synonymous with guttilatus. I have seen the holotypes of all four names and am unable to recognize more than a single species. The holotype of petrophilus is a male, whereas that of smithi is a female. The supposed differences are a reflection of sexual dimorphism in the size of the eye (Table 5). The two holotypes, as well as those of gaigeae and Malachylodes guttilatus agree in color pattern.

Schmidt and Smith (1944) named Syrrhophus gaigeae from the Chisos Mountains of the Big Bend region of Texas and compared it only with S. marnockii. Milstead, Mecham and McClintock (1950) synonymized gaigeae and marnockii because they were unable to verify the characters Wright and Wright (1949) used to separate them. Specimens from the Big Bend region differ from those of the Edward and Stockton Plateaus in having a vermiculate [Pg 24] pattern, an interorbital bar, and a supratympanic stripe. In these respects they agree with specimens from northern México. Based on limited observations, the Mexican population is yellowish to brownish in life whereas the central Texas population is green in life. Lacking evidence of genetic exchange, the two are held to be specifically distinct.

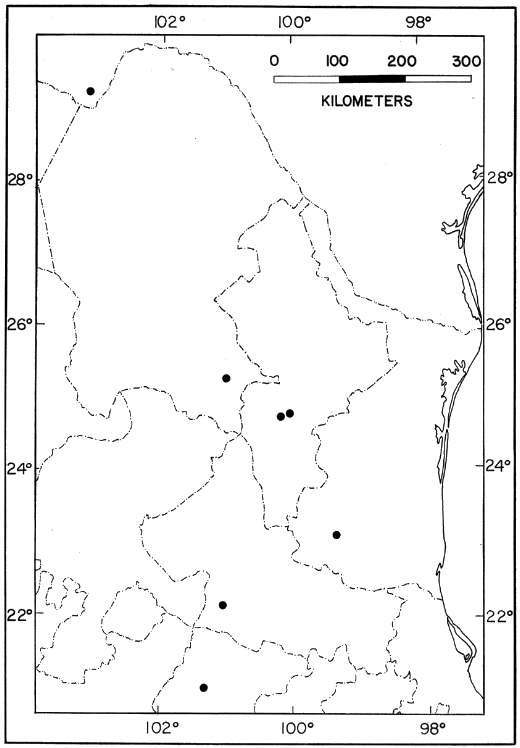

Fig. 10: Distribution of Syrrhophus guttilatus.

[Pg 25] Nearly every specimen examined was infested with chiggers of the genus Hannemania. The greatest concentrations are on the venter, in the groin, and on the thighs. Many specimens have chiggers on the digits and tarsi. The same, or a related, chigger was found on many specimens of Syrrhophus marnockii and a few S. verrucipes, but on no other species of the genus. Mr. Willy Wrenn told me that he has seen heavy infestations of Hannemania on Syrrhophus pallidus. Infestation by Hannemania probably reflects similar ecologies rather than close relationships.

Etymology.—Latin, guttula, meaning spotting or flecking, in reference to the color pattern.

Distribution.—Moderate to intermediate elevations (600 to 2000 m.) along the Sierra Madre Oriental from the Big Bend Region of Texas to Guanajuato, México (Fig. 10).

Specimens examined.—(32) TEXAS, Brewster Co.: Juniper Canyon, Chisos Mts., FMNH 27361 (holotype of S. gaigeae), 27360, 27362-63, MCZ 15346, 27801, UMMZ 66080, 66082, 66085-91, USNM 76876; Upper Green Gulch, TCWC 15943.

MÉXICO: Coahuila: 8 km. S Saltillo, UIMNH 55518-21. Guanajuato: Guanajuato, USNM 9888 (holotype of Malachulodes guttilatus); 8 km. E Guanajuato, AMNH 73425; Cerro Cubilete, AMNH 73424. Nuevo León: 3 km. S Galeana, JDL 1215 (skeleton), UIMNH 58204; 24 km. SW Galeana. 1575 m., USNM 108594 (holotype of Syrrhophus smithi). San Luis Potosí: 5 km. SW San Luis Potosí, UIMNH 7807 (holotype of S. petrophilus). Tamaulipas: 1.6 km. NW La Joya de Salas, 1530 m., UMMZ 110736 (4).


Syrrhophus marnockii Cope
Syrrhophus marnockii Cope, 1878:253 [Syntypes.—ANSP 10765-68, from "near San Antonio," Bexar Co., Texas; collected by G. W. Marnock].
Syrrhophus marnocki: Yarrow, 1882:24, 193. Milstead, Mecham, and McClintock, 1950:550.

Diagnosis.—Medium-sized frogs, males 18.4-28.9 mm. snout-vent, females 20.4-35.4 mm. snout-vent length; vocal slits in males; digital tips widened (Fig. 1); first and second fingers equal; skin of dorsum smooth to weakly pustular, that of venter smooth; snout blunt, rounded; diameter of tympanum 47.2-68.3 per cent that of eye in males, 45.8-73.3 in females; dorsum tan to light brown in preservative with rusty-brown flecks, venter white; ground color green in life; thighs banded; interorbital bar absent.

Remarks.—Specimens from the southern edge of the Edwards Plateau and the eastern edge of the Stockton Plateau have larger flecks on the back that tend to form a vermiculate pattern like that of S. guttilatus. The vermiculation is never well developed (see plate 38 in Conant, 1958). Most of the specimens from the Edwards Plateau have a punctate pattern (Fig. 9).

Fossils are known from the Sangamon interglacial deposits in Foard and Knox Counties, Texas (Lynch, 1964; Tihen, 1960).

Etymology.—A patronym for the collector of the type specimens.

Distribution.—The Edwards Plateau and the extreme eastern edge of the Stockton Plateau in Texas (Fig. 11). The fossil records lie some 200 miles to the north. Two specimens (FMNH 103216-17) from Brownsville, Cameron Co., Texas, were formerly in the EHT-HMS collection (nos. 31348-49). Data given in Taylor's field catalogue (housed in the Division of Reptiles, Field Museum) are "Brownsville, A. J. Kirn collector, April 15, 1934." Until verification [Pg 26] by recently collected material is available, this record must be disregarded.

Specimens examined.—(103) TEXAS, Bandera Co.: 10 mi. SW Medina, TCWC 13508-10; 8 mi. W Medina, KU 60243; 13 mi. W Medina, KU 60242, TCWC 13506-07. Bexar Co.: UIMNH 34694; Classen ranch, near San Antonio. UMMZ 98891; Helotes, EAL 1560, MCZ 11837 (2), UMMZ 64045, USNM 13635; 2 mi. N Helotes, TCWC 9234-35; 3.5 mi. N Helotes, LSUMZ 10363; 8 mi. N Helotes, TCWC 1549, 4364; San Antonio, FMNH 15553-56, TCWC 13497-99. Blanco Co.: 8 mi. NE Blanco, TCWC 4782. Comal Co.: New Braunfels, TCWC 13500-05; 5 mi. NE New Braunfels, UMMZ 71016 (10). Hays Co.: San Marcos, AMNH 22661-64, 32700, FMNH 15245-46, 26250, 26253-57, 37617, 37665, MCZ 15649-50, 23268-69; 6 mi. SW San Marcos, TCWC 5070-71, 7140, 9232-33, 9236, 9316-17, 9320. Kendall Co.: 11 mi. E Boerne, AMNH 54660-61, 54662 (2); 10 mi. W Boerne, KU 18441; Kendalia, UIMNH 21434. Kerr Co.: Kerr W. M. Area, TCWC 15859; 40 mi. NW Kerrville, TCWC 6555. Medina Co.: UIMNH 13287-88; 12 mi. N Castroville, UIMNH 21423; 14 mi. N Castroville, UIMNH 21424-25; 16 mi. N Castroville, UIMNH 21421-22; 17 mi. N Castroville, UIMNH 21428-29; 18 mi. N Castroville, UIMNH 21426-27, 21430-33; 6.5 mi. NW Rio Medina, KU 18440. Real Co.: Rio Frio, FMNH 55156-57. Travis Co.: Austin, AMNH 44221-22; Mount Bonnell, 5 mi. S Austin, UMMZ 101453 (10). Uvalde Co.: 13 mi. from Uvalde, UIMNH 62322. Val-Verde Co.: 40 mi. N Del Rio, JDL 214 (skeleton).

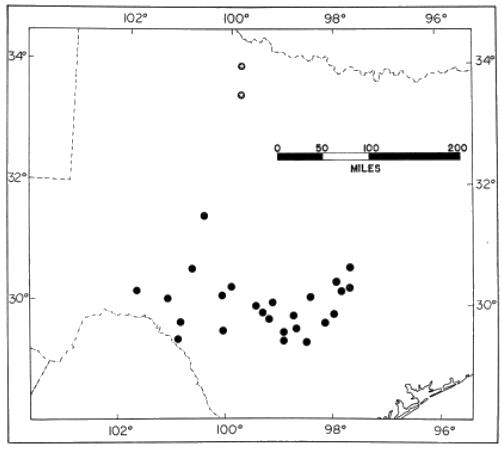

Fig. 11: Distribution of Syrrhophus marnockii (circles). Starred localities are late Pleistocene records.

[Pg 27]

Syrrhophus verrucipes Cope
Syrrhophus verrucipes Cope, 1885:383 [Holotype.—ANSP 11325, from near Zacualtipán, Hidalgo, México (1800 feet lower in a rocky gorge of a stream near its junction with the Río San Miguel), collected by Dr. Santiago Bernard]. Kellogg, 1932:126-29. Smith and Taylor, 1948:52-53. Firschein, 1954:55-57. Gorham, 1966:167.
Syrrhaphus verrucipes: Günther, 1900:216-17.
Tomodactylus macrotympanum Taylor, 1940e:496-99, pl. 55, figs. 2a-b. [Holotype.—FMNH 100049 (formerly EHT-HMS 6838), from La Placita, 8 km. S Jacala, Hidalgo, México, 1850 m.; collected on July 2, 1936, by Edward H. Taylor]. Smith and Taylor, 1948:47-48.
Syrrhophus macrotympanum: Dixon, 1957:384. Gorham, 1966:165.

Diagnosis.—Medium-sized frogs, males 17.5-26.1 mm. snout-vent, females 28.0-31.7 mm. snout-vent length; vocal slits in males; digital tips slightly expanded; first finger shorter than second; skin of dorsum pustular, that of venter areolate; snout elongate, subacuminate; diameter of tympanum 56.1-76.7 per cent that of eye in males, 54.3-56.8 in females; in preservative, dorsum reddish brown with numerous small black or dark brown spots (Fig. 8); venter white to cream; in life dorsum green with darker green spots, belly white; iris gold above, bronze below.

Remarks.—Cope's (1885) original description was not sufficiently clear to enable subsequent authors to recognize this species. Taylor (1940e) described it as a Tomodactylus, but Dixon (1957) pointed out that T. macrotympanum differed from the other species of the genus in having a poorly developed lumbo-inguinal (inguinal) gland, and placed the species in the genus Syrrhophus. Comparison of the holotypes of S. verrucipes and T. macrotympanum leaves no doubt in my mind that a single species is involved. This same species was reported by Smith and Taylor (1948) as S. verruculatus.

Syrrhophus verrucipes bears resemblance to members of both the leprus and marnockii groups. In snout shape it is closer to the leprus group, whereas in digital pad, the shape of the general body form, and contiguity of habitat it is most similar to the marnockii group (S. guttilatus).

Etymology.—Latin, meaning warty foot, probably in reference to the numerous plantar supernumerary tubercles.

Distribution.—Moderate elevations in southeastern San Luis Potosí, Queretaro, and northwestern Hidalgo, México (Fig. 7).

Specimens examined—(43) MÉXICO, Hidalgo: Jacala, UMMZ 106434; 9.6 km. NE Jacala, Puerto de la Zorra, 1820 m., KU 60240-41, TCWC 11090, 11147; 8 km. S Jacala, La Placita, 1850 m., FMNH 100049 (holotype of Tomodactylus macrotympanum), 100791-803, 105334-35, 114287, UIMNH 15989-92, 15995-96, UMMZ 117252, USNM 137202; Tianguistengo, FMNH 113705-09, UIMNH 13328-30; near Zacualtipán, ANSP 11325 (holotype of Syrrhophus verrucipes). Queretaro: 3.5 km. S San Juan del Río, EAL 1343. San Luis Potosí: 9.6 km. W Ahuacatlán, LSUMZ 4968-70.


Syrrhophus dennisi new species
Syrrhophus latodactylus: Martin, 1958:49 (in part).

Holotype.—UMMZ 101121, adult male from a cave near El Pachón, 8 km. N Antiguo Morelos, Tamaulipas, México, 250 m., collected on March 13, 1949, by Paul S. Martin.

[Pg 28] Paratopotypes.—(26). UMMZ 101122 (10), 101123 (2), 101126, 126993 (12).

Diagnosis.—Medium-sized frogs, males 22.8-28.4 mm. snout-vent, females 25.9-32.0 mm. snout-vent; vocal slits in males; digital tips greatly expanded, more than twice width of digit; first finger shorter than second; skin of dorsum shagreened to pustular, that of venter weakly to moderately areolate; toes webbed basally; dorsum light brown to tan with brown vermiculations; venter white; diameter of tympanum 53.9 to 64.2 per cent that of eye in males, 50.6 to 58.7 per cent in females.

Description and variation.—(Fig. 12). Head wider than body; head as wide or wider than long in males, sometimes longer than wide in females; snout acuminate in dorsal view, elongate and rounded in lateral profile; canthus rostralis rounded but distinct; loreal region slightly concave, sloping abruptly to lip; lips not flared; eyelid about two-thirds interorbital distance; length of eye less than distance between eye and nostril; diameter of tympanum 53.9 to 64.2 per cent that of eye in males, 50.6 to 58.7 per cent in females; tympanum round and distinct in both sexes; supratympanic fold moderately distinct; choanae within border of jaws, completely visible from directly below, rounded to slightly oval; dentigerous processes of prevomers and teeth absent; tongue free for posterior one-half, generally oval in outline; vocal slits present in males.

Many scattered pustules on dorsum; flanks areolate; skin of venter areolate or not (variability may be due to differences in preservation); ventral disc distinct on chest and lower abdomen; inguinal gland present or not, when present varying from very large and distinct to poorly defined; axillary gland absent.

First finger shorter than second; all fingers bearing truncate tips with pads, each pad having a terminal groove; fingers fringed; fingers three and four having dilated pads two to three times width of digit; subarticular tubercles large, conical, rounded, simple; supernumerary tubercles numerous on thenar surface, none on digits; three palmar tubercles, outer slightly smaller than largest supernumerary tubercles; row of tubercles on outer edge of forearm variable, weak to very distinct; tips of toes wider than digits, rounded to truncate at tips, each pad having terminal groove; toes having lateral fringes, bases of toes united by web, web not extending to basal subarticular tubercle; subarticular tubercles smaller than those of hand, round, conical, simple; supernumerary tubercles numerous on plantar surfaces, extending between metatarsal tubercles, present on toes between basal two subarticular tubercles in some specimens; outer metatarsal tubercle round, conical, one-half as large as ovoid, non-compressed inner metatarsal tubercle; tarsal tubercles or folds absent.

Ground color pale reddish-brown to tan dorsally, creamy on flanks; dorsal pattern consisting of reddish-brown to brown vermiculations extending onto flanks; distinct interorbital light bar present; loreal region darker than snout, reddish-brown compared to tan or pale reddish-brown; arms colored like dorsum; thighs banded, unicolor brown on posterior surfaces; shanks and tarsi banded; venter white to cream punctated with brown in some specimens.

The variation in proportions is summarized in Table 5.

Remarks.—Martin (1958) expressed some doubt that this series of 26 specimens was identical with "S. latodactylus." My study indicates that the specimens from El Pachón represent a distinctive but allied species. Males of the two species can be readily separated by the relative sizes of the tympani, presence or absence of vocal slits, and color pattern. Females of the two species can be separated by color pattern. Within the type-series, the pattern varies from weakly to strongly vermiculate but is always recognizable as vermiculate rather than spotted as in S. longipes (= S. latodactylus of Taylor and Martin).


[Pg 29]

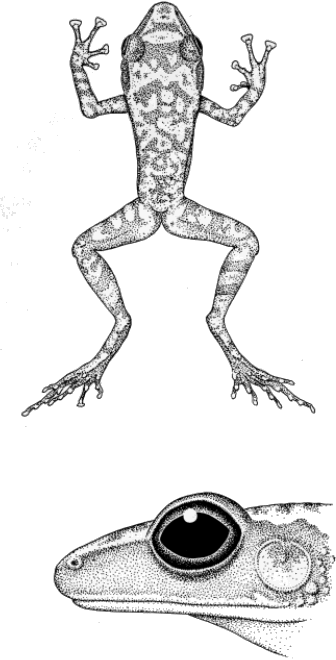

Fig. 12: Syrrhophus dennisi sp. nov., holotype, UMMZ 101121 (dorsum ×1.8, side of head ×6.1).

[Pg 30] Etymology.—The specific name is a patronym for David M. Dennis, whose drawings greatly enhance the worth of this paper.

Distribution.—Known only from the type series.


Syrrhophus longipes (Baird), New combination
Batrachyla longipes Baird, 1859:35, pl. 37, fig. 1-3 [Holotype.—apparently USNM 3237 (cited as 3207 by Cope, 1887:16), now lost, from 40 Leagues from (probably north) México City; collected by John Potts]. Kellogg, 1932:107.
Epirhexis longipes: Cope, 1866:96.
Eleutherodactylus longipes: Kellogg, 1932:107 (part). Smith and Taylor, 1948:61. Lynch, 1963:580-581. Gorham, 1966:82.
Syrrhophus latodactylus Taylor, 1940d:396-401, pl. 43, figs. A-F, text fig. 7 [Holotype.—FMNH 100063 (formerly EHT-HMS 6807), from Huasteca Canyon, 15 km. W Monterrey, Nuevo León, México, 680 m.; collected on June 20, 1936, by Edward H. Taylor]. Smith and Taylor, 1948:50-52. Martin, 1958:48-50. Gorham, 1966:165.

Diagnosis.—Large frogs, males 22.1-33.2 mm. snout-vent, females 26.8-39.6 mm. snout-vent length; vocal slits lacking in males; digital tips greatly expanded (more than twice the width of digit); first finger shorter than second; skin of dorsum pustular, that of venter smooth; diameter of tympanum in males 61.1-87.2 per cent that of eye, 49.5-72.1 per cent in females; dorsum tan with large or small spots and blotches; limbs banded; interorbital bar or triangle present.

Remarks.—I have applied Baird's Batrachyla longipes to the frog Taylor (1940d) called Syrrhophus latodactylus because the color pattern (Fig. 13) predominant in the southern part of the range agrees with that described (figured) for Batrachyla longipes.

The color pattern of individuals in the southern part of the range of this species consists of large spots or blotches, whereas in the northwestern part the pattern is made up of smaller spots. In the northeastern part of the range, the pattern is more reduced and tends to consist of heavy flecking. The interorbital bar is narrower in specimens from Nuevo León and Tamaulipas and is triangular in specimens from Hidalgo and Queretaro.

The status of the name Batrachyla longipes is currently that of a nomen dubium (Lynch, 1963). At that time, I was unaware of the geographic variation in color pattern in Syrrhophus latodactylus.

The exact type-locality of Batrachyla longipes is not known. If it is 40 Leagues north of México City, the locality would be in an area where the species has a blotched instead of a flecked or spotted pattern. No justifiable evidence was presented to place Batrachyla longipes in Eleutherodactylus instead of Syrrhophus. Barbour (1923) and Kellogg (1932) associated another species (E. batrachylus) with longipes. Taylor (1940a) noted this as a case of misidentification and corrected the error but left longipes in the genus Eleutherodactylus. Lynch (1963) noted several points of morphological agreement between Syrrhophus and B. longipes but did not place longipes in Syrrhophus.

Baird's (1859) figures of the holotype do not illustrate prevomerine teeth, but according to Cope (1866) they were present in the holotype. The digital [Pg 31] tips of the frog in the figure are somewhat narrower than those typically seen in S. latodactylus. If the specimen was slightly desiccated, as possibly was the case, the digits would appear narrower. There is no evidence contrary to placing Syrrhophus latodactylus in the synonymy of Batrachyla longipes.

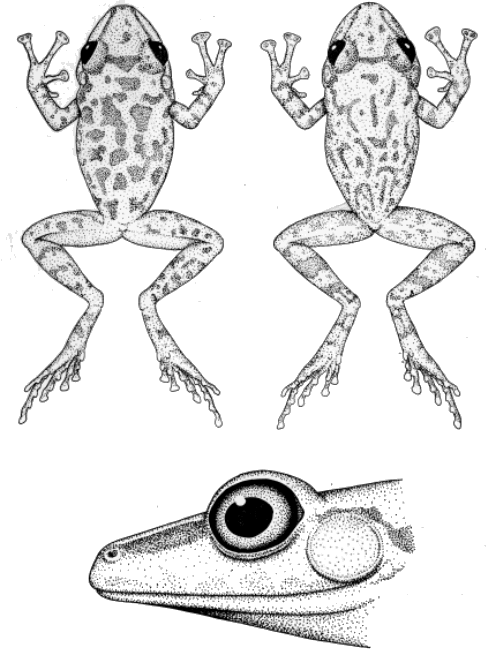

Fig. 13: Dorsal views of Syrrhophus longipes illustrating geographic variation in pattern (left, TCWC 12179, ×1.5; right, KU 92572, ×1.8); side of head (TCWC 10966, ×6).

Application of Baird's name Batrachyla longipes to the species of frog heretofore called Syrrhophus latodactylus poses one serious problem. Batrachyla [Pg 32] longipes is the type-species (by original designation) of the genus Epirhexis Cope, 1866, which has priority over Syrrhophus Cope, 1878. If Batrachyla longipes is left in the status of a nomen dubium, Epirhexis can be forgotten, for the two names are tied together. However, since it seems almost certain that Batrachyla longipes and Syrrhophus latodactylus are conspecific, the former name should not be left as a nomen dubium. Epirhexis never came into general usage (Cope cited the name four times, but no one else has used it), whereas Syrrhophus is well established in the zoological literature. It would serve only to confuse the literature to adhere strictly to the Law of Priority and replace Syrrhophus with Epirhexis. Therefore, Syrrhophus is used in this paper, even though Epirhexis has priority. A request for the suppression of Epirhexis Cope, 1866, has been submitted to the International Commission of Zoological Nomenclature (Lynch, 1967).

Etymology.—Latin, meaning long-footed; Taylor's latodactylus refers to the wide digital pads.

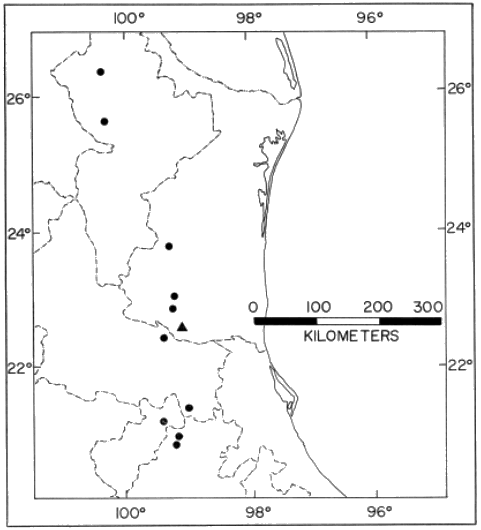

Fig. 14: Distribution of Syrrhophus dennisi (triangle) and S. longipes (circles).

[Pg 33] Distribution.—Moderate elevations (650 to 2000 meters) along the Sierra Madre Oriental from central Nuevo León to northern Hidalgo, México (Fig. 14).

Specimens examined.—(122) MÉXICO, Hidalgo: 3 km. NE Jacala, AMNH 52977; 9.6 km. NE Jacala, 1800 m., TCWC 10966-70, 12179; 8 km. S Jacala, La Placita, 1850 m., FMNH 100266-68, 103244, UIMNH 13291, 13327. Nuevo León: Salto Cola de Caballo, KU 92572; Huasteca Canyon, 15 km. W Monterrey, 680 m., FMNH 100063 (holotype of S. latodactylus), UIMNH 13290; 6.5 km. N Pablillo, EAL 1319; Sabinas Hidalgo, USNM 139728. Queretaro: Cueva de los Riscos, 8 km. SW Jalpan, KU 106300. San Luis Potosí: 13 km. E Santa Barberita, LSUMZ 2295; second camp, San Luis Potosí road, UIMNH 13326; Xilitla, Cueva sin nombre, UMMZ 125892. Tamaulipas: 4 km. W El Carrizo, 500 m., UMMZ 111343 (31); 8 km. N Chamal, Bee Cave, KU 106299; 14.5 km. NNW Chamal, 420 m., UMMZ 111339-40, 111342 (4), 111344 (11); 19 km. NNW Chamal, 700 m., UMMZ 111341 (3); El Chihue, 1880 m., UMMZ 111289 (4); 11 km. N Gómez Farías, 1060 m., UMMZ 101166; 11 km. WNW Gómez Farías, 1800 m., UMMZ 108507 (3); 8 km. NW Gómez Farías, 1060-1400 m., LSUMZ 11085, UMMZ 101167 (3), 101168 (4), 101169 (2), 101170 (3), 101171 (2), 101360-61, 102860, 102933 (4), 102934 (2), 102935-38, 102939 (2), 102940-43, 108800 (3), 110735, 111345-46.


Syrrhophus pipilans Taylor
Syrrhophus pipilans Taylor, 1940c:95-97, pl. 1 [Holotype.—FMNH 100072 (formerly EHT-HMS 6843), 14.6 km. S Mazatlán, Guerrero, México; collected on July 22, 1936, by Edward H. Taylor].

Diagnosis.—Medium sized frogs, males 22.6-28.5 mm. snout-vent, females 21.1-29.4 mm. snout-vent length; vocal slits present in males; finger tips slightly expanded, truncate in outline; inner metatarsal tubercle less than twice the size of outer; skin of dorsum smooth to shagreened, that of venter smooth; tympanum 36.5-54.0 per cent diameter of eye; dorsum dark brown with large or small light brown, orange-brown, or yellowish spots or blotches; limbs banded; interorbital bar absent.


Fig. 15: Dicegrams of ear size relative to eye diameter in the two subspecies of Syrrhophus pipilans. N = 17 in nebulosus, 18 in pipilans.

Remarks.—Two subspecies were recognized by Duellman (1958). Previously both had been treated as species. The two populations were distinguished on the basis of color pattern and the size of the tympanum. Measurements of 17 males of S. p. nebulosus from central Chiapas and 18 males of S. p. pipilans from south-central Oaxaca and Guerrero, México, demonstrates that the supposed difference in tympanum size is not significant (Fig. 15). [Pg 34] There is, however, a tendency for the western population of S. pipilans to have larger tympani. Based on the present examination of 112 specimens of this species the two populations are held to be sufficiently distinct to warrant taxonomic recognition as subspecies (Fig. 16).

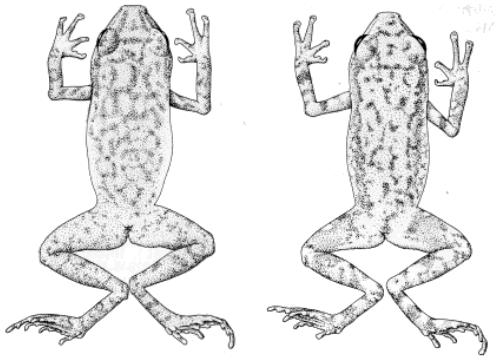

Fig. 16: Syrrhophus pipilans nebulosus (left, KU 58908) and S. p. pipilans (right, KU 86885). ×2.7.

The parotoid glands attributed to this species by Taylor (1940c:95) are merely the superficial expression of the m. depressor mandibulae and scapula. No true glands are present in the parotoid region.


Syrrhophus pipilans nebulosus Taylor
Syrrhophus nebulosus Taylor, 1943:353-55, pl. 27, figs. 3-5 [Holotype.—FMNH 100095 (formerly EHT-HMS 3774), near Tonolá, Chiapas, México; collected on August 27, 1935, by Hobart M. Smith and Edward H. Taylor]. Smith and Taylor, 1948:49, 51.
Syrrhophus pipilans nebulosus: Duellman, 1958:2-4, 9, 12, 14. Stuart, 1963:32-33. Gorham, 1966:166-67.

Diagnosis.—Diameter of tympanum 36.6-47.8 per cent that of eye; dorsum dark brown with numerous small light brown to yellowish spots.

Remarks.—The distribution of this subspecies is adequately described by Duellman (1958). Fouquette (1960) described the vocalization of this frog.

Etymology.—Latin, nebula, in reference to the clouded dorsal pattern.

Distribution.—Low to moderate elevations along the Pacific versant of Chiapas and in the Grijalva valley of Chiapas and Guatemala (Fig. 17).

Specimens examined.—(54) GUATEMALA, Huehuetenango: Jacaltenango, UMMZ 117036; 35 km. SE La Mesilla, TNHC 29652. MÉXICO, Chiapas: 11.2 km. N Arriaga, 300 m., UMMZ 125891; 11.8 km. N Arriaga, UMMZ 117279; [Pg 35] 12.8 km. N Arriaga, UMMZ 117280; 17.5 km. S Arriaga, UIMNH 57108-109; 1.5 km. S Bochil, 1250 m., KU 58898-908; Cerro Hueco, 7 km. S Tuxtla Gutierrez, UMMZ 123007; 3.2 km. S Ixtapa, UMMZ 124000; Linda Vista, ca. 2 km. NW Pueblo Nuevo Solistahuacán, KU 58897; Hda. Monserrate, 40 km. NW Arriaga, UMMZ 102258; near San Ricardo, FMNH 100720; Tapachula, FMNH 75792, 103242, 100695-96, UIMNH 13292; 56 km. E Tapanatepec, Oaxaca, TNHC 26942, Tonolá, FMNH 100095 (holotype), 100686-92, UIMNH 13293-95; Tuxtla Gutierrez, FMNH 100693-94, UIMNH 13297; 19 km. N Tuxtla Gutierrez, TNHC 25229-30; 15.5 km. NE Tuxtla Gutierrez, UMMZ 119892 (3); 19 km. NE Tuxtla Gutierrez, UMMZ 119891 (3); 8 km. NNW Tuxtla Gutierrez, KU 37809; Unión de Juarez, FMNH 105294.


Syrrhophus pipilans pipilans Taylor
?Syrrhopus verruculatus: Gadow, 1905:194.
Syrrhophus pipilans Taylor, 1940c:95-97, pl. 1 [Holotype.—FMNH 100072 (formerly EHT-HMS 6843), from 14.6 km. S Mazatlán, Guerrero, México; collected on July 22, 1936, by Edward H. Taylor]. Taylor and Smith, 1945:581-82. Smith and Taylor, 1948:49, 50-51.
Syrrhophus pipilans pipilans: Duellman, 1958:1-4, 8-9, 13-14, pl. 2, fig. 1. Gorham, 1966:166.

Diagnosis.—Diameter of tympanum 40.6-54.0 per cent that of eye; dorsum dark brown with large light spots or blotches.

Remarks.—Duellman's (1958) synopsis of this subspecies is adequate; the distribution has not been extended, but several records are now available which fill in gaps.

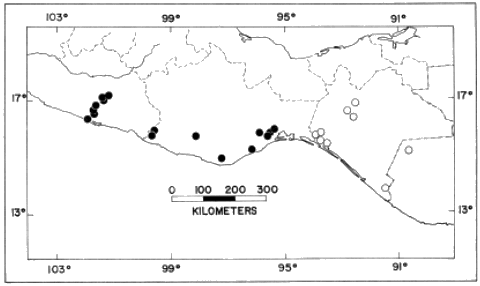

Fig. 17: Distribution of Syrrhophus pipilans: nebulosus (open circles) and pipilans (solid circles).

Gadow's (1905) record of S. verruculatus from "Buena Vista, S. Guerrero" is most likely applicable to this species. Gadow simply included the name in a list of the species he had collected during his trip in México (1902-04); no [Pg 36] further comment was made on this species although references to Syrrhopus (sic) appear in several places in the paper and would appear to apply to the species he had.

Etymology.—Latin, pipilo, chirping, peeping, in reference to the call of the male.

Distribution.—Sea level to about 1800 meters along the Pacific versant of western México from central Guerrero to the Isthmus of Tehuantepec (Fig. 17).

Specimens examined.—(62). MÉXICO, Guerrero: Acapulco, UMMZ 110125; 6.4 km. N Acapulco, FMNH 100389, 100525; Agua del Obispo, 980-1000 m., FMNH 75791, 100518-21, 100526, KU 86884-86, UIMNH 13315, UMMZ 119152, 125890 (4); 13.3 km. NW Coyuca, UIMNH 38367, 71982-83; 14.5 km. S Mazatlán, FMNH 100072 (holotype), 100408, 100511-17, UIMNH 13302-309; Tierra Colorado, 300 m., KU 67961, UIMNH 13313-14; near El Treinte, FMNH 126639; Xaltinanguis, FMNH 100522-24, 126640. Oaxaca: Cacahuatepec, UIMNH 52853; 8 km. NW Río Canoa, 53 km. ESE Cuajinicuilapa, UIMNH 52852; 6.4 km. N El Candelaria, UIMNH 9501; 11.2 km. S El Candelaria, UIMNH 9502; 17 km. NE Juchatengo, 1600 m., KU 86887; 31.5 km. N Pochutla, UMMZ 123999 (2); 32.9 km. N Pochutla, 850 m., UMMZ 123996; 37.1 km. N Pochutla, UMMZ 123998 (2); 41.4 km. N Pochutla, UMMZ 123997 (2); Cerro Quiengola, FMNH 105653; 3.8 km. N Santiago Chivela, UMMZ 115449; 14.5 km. W Tehuantepec, UMMZ 115448 (2).


Syrrhophus interorbitalis Langebartel and Shannon
Syrrhophus interorbitalis Langebartel and Shannon, 1956: 161-65, figs. 1-2 [Holotype.—UIMNH 67061 (formerly FAS 9378), 36 mi. N Mazatlán, Sinaloa, México, collected on November 17, 1955, by E. C. Bay, J. C. Schaffner, and D. A. Langebartel]. Duellman, 1958:1-4, 10, 12, 14. Gorham, 1966:164-65.
Syrrhophis interorbitalis: Campbell and Simmons, 1962:194, fig. 1.

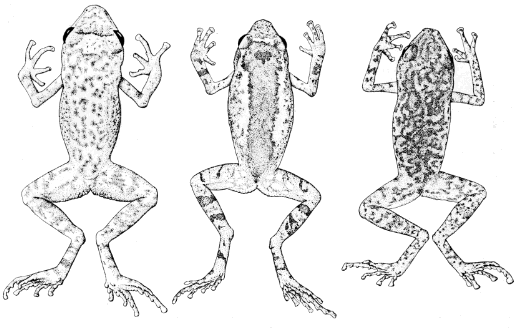

Fig. 18: Left to right. Syrrhophus interorbitalis (UIMNH 38095, ×1.5), S. nivocolimae (LACM 3203, ×1.3), and S. teretistes (KU 75263, ×1.5).

Diagnosis.—Medium sized frogs, only known male 25.6 mm. snout-vent, females 20.0-26.7 mm. snout-vent length (small sample); vocal slits in males; [Pg 37] finger tips expanded; first finger shorter than second; outer metatarsal tubercle one-third size of inner; skin of dorsum shagreened, that of venter smooth; diameter of tympanum 37.7-42.4 per cent that of eye in both sexes; pale yellow-brown ground color mottled with brown; limb bands broad, much wider than narrow light interspaces; interorbital bar very long, edged with dark brown to black (Fig. 18).

Remarks.—Duellman's (1958) measurements and proportions of S. interorbitalis were based exclusively on the type series, which is composed of only females; therefore his interorbitalis data are not comparable with the data for the other species in his table. Campbell and Simmons (1962) collected the only known male. The type series was collected beneath rocks in a stream bed; the collectors heard calling frogs in the bushes but were unable to obtain specimens (Langebartel and Shannon, 1956). Campbell and Simmons (1962) reported that their specimen had a poorly developed interorbital bar in life; in preservative the bar compares favorably with the bar in the female (Fig. 18).

Etymology.—Latin, in reference to the pale interocular band.

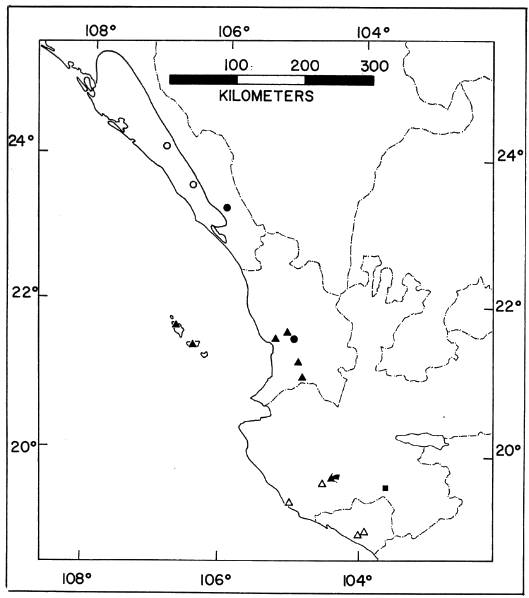

Distribution.—Pacific lowlands of Sinaloa, México (Fig. 20).

Specimens examined.—(10). MÉXICO, Sinaloa: 36 mi. N Mazatlán, UIMNH 38094-96, 67061 (holotype), 71970-74; 65 mi. N Mazatlán, LACM 13773.


Syrrhophus modestus Taylor
Syrrhophus modestus Taylor, 1942:304-06, pl. 29 [Holotype.—FMNH 100048 (formerly EHT-HMS 3756), from Hacienda Paso del Río, Colima, México; collected on July 8, 1935, by Hobart M. Smith]. Smith and Taylor, 1948:49-50.
Syrrhophus modestus modestus: Duellman, 1958:2-5, 7, 14, pl. 1, fig. 1. Gorham, 1966:166.

Diagnosis.—Small frogs, males 15.8-20.1 mm. snout-vent length, single female 18.5 mm.; vocal slits present in males; finger tips widely expanded; first finger shorter than second; inner metatarsal tubercle about three times size of outer; skin of dorsum shagreened, that of venter smooth; tympanum concealed; pale cream in preservative with dark brown spots; limbs banded; bands on forearm and thigh poorly developed or absent; interorbital bar absent.

Remarks.—The tympanum is concealed in S. modestus, S. nivocolimae, S. pallidus, S. teretistes, and to a lesser degree in S. interorbitalis. However, if the specimen is permitted to dry slightly, the annulus tympanicus becomes visible through the skin and a tympanum/eye ratio can be computed.

One of the few cases of sympatry within the genus Syrrhophus involves this species; modestus and nivocolimae are known to be sympatric at one locality in southwestern Jalisco, México.

Duellman (1958) used the trinomial for this population and named a new subspecies, pallidus, from Nayarit. I consider pallidus to be specifically distinct from modestus because there is no evidence of genetic exchange, and there is no overlap in the distinguishing morphological features. I do consider the two populations to be closely related but feel the inter-relationships between modestus, pallidus, nivocolimae, and teretistes are more complex than would be indicated by the use of trinomials. The sympatric occurrence of modestus and nivocolimae is significant; morphologically, they might otherwise be regarded as subspecies. Although allopatric, similar arguments could be advanced for [Pg 38] the morphologically similar pallidus and teretistes. The four are here afforded species rank since morphological similarity and allopatry are not sufficient grounds for the assumption of genetic exchange.

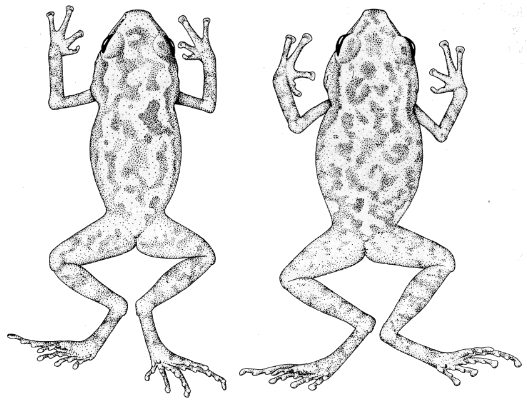

Fig. 19: Syrrhophus modestus [left, UMMZ 115447 (WED 11155)] and S. pallidus (right, UMMZ 115453). ×2.2.

Etymology.—Latin, meaning unassuming, modest, in reference to the small size of the species.

Distribution.—Low elevations (up to 700 meters) in the lowlands and foothills of Colima and southwestern Jalisco, México (Fig. 20).

Specimens examined.—(14). MÉXICO, Colima: Hda. Paso del Río, FMNH 100048 (holotype), 100167, 100299, UIMNH 13300, UMMZ 110877 (2), USNM 139729; 7.2 km. SW Tecolapa, UMMZ 115477 (4); Jalisco: 17.6 km. SW Autlan, 606 m., KU 102627; 3.2 km. N La Resolana, UMMZ 102100; Bahía Tenacatita, UMMZ 84264.


Syrrhophus nivocolimae Dixon and Webb
Syrrhophus nivocolimae Dixon and Webb, 1966:1-4, Fig. 1 [Holotype.—LACM 3200, from Nevado de Colima (6 airline miles west of Atenquique), Jalisco, México, 7800 feet; collected on July 20, 1964, by Robert G. Webb].

Diagnosis.—Small frogs, males 18.5-21.1 mm. snout-vent length, only known female 24.1 mm. snout-vent; vocal slits present in males; finger tips widely expanded; first finger shorter than second; inner metatarsal tubercle about three times size of outer; skin of dorsum warty, that of venter smooth; tympanum concealed, its diameter 30.0-39.3 per cent that of eye in males; mid-dorsal brown band from interorbital bar to anus; bands on limbs narrow, dark bands [Pg 39] less than one-half width of light bands, upper arm not banded; narrow interorbital light bar.

Remarks.—This species is closely related to S. modestus and differs in color pattern and degree of wartiness of the skin. Dixon and Webb (1966) held that nivocolimae had no close relatives, but the condition of the tympanum, size, nature of the outer palmar tubercle, relative sizes of the metatarsal tubercles, and shape and size of the digital pads all point to a close relationship between S. modestus, S. nivocolimae, and S. pallidus.


Fig. 20: Distribution of the species of the modestus group: interorbitalis (open circles), teretistes (solid circles), modestus (open triangles), pallidus (solid triangles) and nivocolimae (square). Arrow indicates locality of sympatry between modestus and nivocolimae. Solid line about the localities for interorbitalis is a range estimate based on call records and specimens examined.

Dixon and Webb (1966) reported that S. nivocolimae has a large tympanum (50.0-59.0 per cent diameter of eye). However, my examination of the type series and several other specimens from Jalisco reveals that the [Pg 40] largest tympanum/eye ratio is 39.3 per cent. Therefore, the tympanum/eye ratio in S. nivocolimae is in agreement with those for S. modestus, S. pallidus, and S. teretistes (Table 6).

Etymology.niv, Latin, and Colima (Nevado de), meaning high on the volcano, in reference to the higher distribution of this species (around 2000 meters) than other members of the group.

Distribution.—Known from southwestern Jalisco, México, at moderate to high elevations (600-2400 meters).

Specimens examined.—(48) MÉXICO, Jalisco: 17.6 km. SW Autlán, 606 m., KU 102626, 102631; 6.4 km. W Atenquique, 2060 m., KU 102628-30, 102632; 8 km. W Atenquique, 1970 m., LACM 3210-12; 9.6 km. W Atenquique, 2360 m., LACM 3200 (holotype), 3201-09; 14.5 km. W Atenquique, 2000 m., LACM 25424-36, 25439-41, 25446; 15 km. W Atenquique, LACM 37044-46, 37244-47; 16 km. W Atenquique, 2105 m., LACM 25443-45; 17 km. W Atenquique, 2180 m., LACM 25442.


Syrrhophus pallidus Duellman, New combination
Syrrhophus modestus: Davis and Dixon, 1957:146.
Syrrhophus modestus pallidus Duellman, 1958:2-3, 5-7, 14, pl. 3 [Holotype.—UMMZ 115452, from San Blas, Nayarit, México, sea level; collected on August 13, 1956, by William E. and Ann S. Duellman]. Zweifel, 1960:86-88, 91, 93-94, 118, 120-22. Gorham, 1966:166.
Syrrhophis modestus pallidus: Campbell and Simmons, 1962:194.

Diagnosis.—Small frogs, males 17.9-19.3 mm. snout-vent length; vocal slits in males; finger tips widely expanded; first finger shorter than second; inner metatarsal tubercle about three times size of outer; skin of dorsum shagreened, that of venter smooth; tympanum concealed, its diameter 27.0-35.6 per cent of eye in males; ground color cream vermiculated with brown, upper arm and thigh lacking, or with few, indistinct, bands; interorbital bar absent.

Remarks.—Considerable debate has been waged relative to the value of subspecies and to the reasons for recognizing distinct disjunct populations as species versus subspecies. Lacking evidence of genetic exchange, I prefer to retain disjunct populations that are distinctive as species.

All known specimens of pallidus can be separated from those of modestus by color pattern. The two nominal species exhibit overlap in proportions but the same can be said about nearly every species of Syrrhophus; therefore, overlap in proportions can be disregarded in assessing specific versus subspecific rank. Until contrary evidence is forthcoming, I consider the disjunct populations heretofore held to be subspecies of modestus to be specifically distinct. The specimens of the disjunct population of pallidus on the Tres Marias do not differ from the mainland population in Nayarit. This evidence, though perhaps secondary, supports my contention that two species should be recognized.

Etymology.—Latin, in reference to the pale ground color in comparison with that of S. modestus.

Distribution.—Low elevations in coastal Nayarit and on Islas Tres Marias (Fig. 20).

Specimens examined.—(12) MÉXICO, Nayarit: 18.8 mi. NW Ahuacatlán, UIMNH 7808; San Blas, UMMZ 115452 (holotype), 115453-57; 17 km. NE San Blas, 150 m., MSU 5085; 12.8 km. E San Blas, UIMNH 71979; 31 km. E San Blas, UIMNH 71978; 13.5 km. N Tepic, UIMNH 71980-81.


[Pg 41]

Syrrhophus teretistes Duellman
Syrrhophus teretistes Duellman, 1958:2-3, 10-14, pl. 2, fig. 2 [Holotype.—UMMZ 115451, from 4.8 km. NW Tepic, Nayarit, México, 840 m.; collected on August 12, 1956, by William E. Duellman]. Gorham, 1966:167.

Diagnosis.—Medium-sized frogs, males 19.2-23.2 mm. snout-vent length, single known female 24.8 mm. snout-vent; vocal slits in males; finger tips widely expanded; first finger shorter than second; inner metatarsal tubercle about three times size of outer; skin of dorsum shagreened, that of venter smooth; tympanum partially concealed, its diameter 28.6-43.8 per cent of eye in males; ground color brown vermiculated with dark brown to nearly black; upper arm and thigh banded; interorbital light bar absent.

Remarks.S. teretistes appears to be most closely related to S. pallidus; I consider it to be an upland derivative of pallidus. Morphologically, the differences between the two are few, but lacking evidence of genetic exchange they are retained as species.

Etymology.—Greek, in reference to the whistle-like nature of the call.

Distribution.—Moderate elevations (840-1200 meters) in the Sierra Occidental of Nayarit, Sinaloa, and Durango, México (Fig. 20).

Specimens examined.—(13) MÉXICO, Nayarit: 4.8 km. NW Tepic, 840 m., UMMZ 115451 (holotype). Sinaloa: Santa Lucía, 1090 m., KU 75263-72; 1 km. NE Santa Lucía, 1156 m., KU 78257; 2.2 km. NE Santa Lucía, 1156 m., KU 78258.


Discussion

There are relatively few clear-cut morphological differences among the fourteen species now assigned to Syrrhophus. The majority of the species are allopatric and differ primarily in color patterns. Sympatric occurrence serves as an indicator of specific distinctness and is one of the more practical tests of species validity when cross-breeding experiments are not possible. Two cases of sympatric occurrence are known for the species of Syrrhophus in western México: modestus and nivocolimae are sympatric in southern Jalisco and pipilans nebulosus and rubrimaculatus are sympatric in southeastern Chiapas. In eastern México, longipes and verrucipes are sympatric in southern Hidalgo, and longipes is sympatric with cystignathoides, dennisi, and guttilatus in southern Tamaulipas. Syrrhophus cystignathoides and leprus are apparently sympatric in central Veracruz.

Subspecific assignments have been made only when there is evidence of intergradation. The sympatric occurrence of morphologically similar species in this genus has led me to adopt a conservative approach to the degree of difference philosophy. I have therefore recognized all morphologically distinct allopatric populations as species.

[Pg 42]

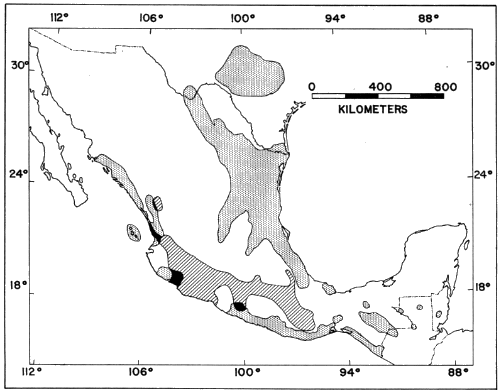

Fig. 21: Generic distributions of Syrrhophus (stipple) and Tomodactylus (hatching). Black areas are zones of intergeneric sympatry.
Fig. 22: Altitudinal distributions of Syrrhophus and Tomodactylus. Widths of the columns are proportional to the numbers of species at a given altitude; narrowest width equals one species.

Syrrhophus is closely allied to another Mexican leptodactylid genus, Tomodactylus, which was revised by Dixon (1957), who along with numerous other authors noted the close relationship between the two genera. There is an almost complete lack of sympatry between the two genera; in very few places in México do they coexist (Fig. 21). Tomodactylus has its greatest diversity in the Cordillera Volcánica and Sierra Madre del Sur, whereas Syrrhophus reaches its greatest diversity in the Sierra Madre Oriental and eastern foothills. The species of both genera are about the same size and presumably have similar requirements insofar as food, breeding sites, and habitat selection.

Four cases of intergeneric sympatry are known for the two genera: 1) the Chilpancingo region of Guerrero, 2) the lowlands of Colima and the mountains just inland in Jalisco, 3) the lowlands of central Nayarit, and 4) the Sierra Madre Occidental on the Durango-Sinaloan border. The apparent sympatry in the Chilpancingo region involves four species: S. pipilans, T. albolabris, T. dilatus, and T. nitidus. Of the four, T. dilatus appears to be completely allopatric in that it occurs at higher altitudes (above 2000 meters), whereas the other three occur below 1800 meters in the region (Davis and Dixon, 1965). In the Colima-Jalisco region, Tomodactylus tends [Pg 43] to occur higher (Dixon and Webb, 1966) than some of the Syrrhophus, but one subspecies of Tomodactylus nitidus is a lowland frog, occurring sympatrically with the lowland Syrrhophus modestus. A similar situation is observed in Nayarit; the lowland Tomodactylus occurs sympatrically with the small Syrrhophus pallidus. In both cases the Syrrhophus is smaller than the Tomodactylus.

Frogs of the genus Syrrhophus tend to occur at lower elevations than do their close relatives of the genus Tomodactylus (Fig. 22). This generalization is complicated by the occurrence in the Sierra Madre Oriental in relatively high altitude Syrrhophus (up to 2000 m.) and the occurrence in Michoacán of low altitude Tomodactylus (to sea level). There are no Tomodactylus in the Sierra Madre Oriental, whereas the genus Syrrhophus is represented in the lowlands of western México (modestus group). Syrrhophus and Tomodactylus exhibit essentially parapatric distributions. The two genera as now composed can be characterized as low to moderate elevation frogs (Syrrhophus) and moderate to intermediate elevation frogs (Tomodactylus).





Literature Cited


Baird, S. F.
1859. Reptiles of the Boundary. United States and Mexican Boundary Survey, pp. 1-35, pls. 1-41.

Barbour, T.
1923. The reappearance of Batrachyla longipes. Proc. New England Zool. Club, 8:81-83.

Barbour, T., and A. Loveridge
1946. Typical reptiles and amphibians; supplement. Bull. Mus. Comp. Zool., 96:59-214.

Boulenger, G. A.
1882. Catalogue of the Batrachia Salientia ... British Museum., 2nd ed.
1888. Note on the classification of the Ranidae. Proc. Zool. Soc. London, 1888, pt. 2:204-06.

[Pg 44]

Campbell, H. W., and R. S. Simmons
1962. Notes on some reptiles and amphibians from western Mexico. Bull. So. California Acad. Sci., 61:193-203.

Conant, R.
1958. A field guide to reptiles and amphibians. Houghton-Mifflin Co. Boston. 366 pp.

Cope, E. D.
1866. On the structures and distribution of the genera of the arciferous Anura. J. Acad. Nat. Sci. Philadelphia, n. ser., 6:67-112.
1877. Tenth contribution to the herpetology of tropical America. Proc. Amer. Philos. Soc., 17:85-98.
1878. New genus of Cystignathidae from Texas. Amer. Nat., 12:252-53.
1879. Eleventh contribution to the herpetology of tropical America. Proc. Amer. Philos. Soc., 18:261-77.
1885. A contribution to the herpetology of Mexico. Ibid., 22:379-404.

Davis, W. B., and J. R. Dixon
1957. Notes on Mexican amphibians, with description of a new Microbatrachylus. Herpetologica, 13:145-47.
1965. Amphibians of the Chilpancingo Region, Mexico. Ibid., 20:225-33.

Díaz de León, J.
1904. Indice de los Batracios que se enquentran en la Republica Méxicana. Imprenta de Ricardo Rodriquez Romo. Aguascalientes. 40 pp.

Dixon, J. R.
1957. Geographic variation and distribution of the genus Tomodactylus in Mexico. Texas J. Sci., 9:379-409.

Dixon, J. R., and R. G. Webb
1966. A new Syrrhophus from Mexico (Amphibia: Leptodactylidae). Cont. Sc., Los Angeles Co. Mus., 102:1-5.

Duellman, W. E.
1958. A review of the frogs of the genus Syrrhophus in western Mexico. Occ. Pap. Mus. Zool. Univ. Michigan, 594:1-15.
1960. A distributional study of the amphibians of the Isthmus of Tehuantepec, Mexico. Univ. Kansas Publs. Mus. Nat. Hist., 13:19-72.

Firschein, I. L.
1954. Definition of some little-understood members of the leptodactylid genus Syrrhophus, with a description of a new species. Copeia, (1):48-58.

Fouquette, M. J.
1960. Call structure in frogs of the family Leptodactylidae. Texas J. Sci., 12:201-15.

Gadow, H.
1905. The distribution of Mexican amphibians and reptiles. Proc. Zool. Soc. London, 1905, pt. 2:191-244.

Gorham, S. W.
1966. Liste der rezenten Amphibien und Reptilien.... Das Tierreich. Lief, 85:1-222.

Günther, A. C. L. G.
1885-1902. Biologia Centrali-Americana. Reptilia and Batrachia. 326 pp., 76 pls. Syrrhophus section dated 1900.

Kellogg, R.
1932. Mexican tailless amphibians in the United States National Museum. Bull. U.S. Natl. Mus., 160.

Langebartel, D. A., and F. A. Shannon
1956. A new frog (Syrrhophus) from the Sinoloan lowlands of Mexico. Herpetologica, 12:161-65.

Lynch, J. D.
1963. The status of Eleutherodactylus longipes (Baird) of Mexico (Amphibia: Leptodactylidae). Copeia, (3):580-81.
1964. Additional hylid and leptodactylid remains from the Pleistocene of Texas and Florida Herpetologica. 20:141-42.
1967. Epirhexis Cope, 1866 (Amphibia: Salientia): request for suppression under the plenary powers. I. N. (S). Bull. Zool. Nomencl., 24:313-15.

[Pg 45]

1968. Genera of leptodactylid frogs in México. Univ. Kansas Publs., Mus. Nat. Hist., 17:503-15.

Martin, P. S.
1958. A biogeography of reptiles and amphibians in the Gomez Farias region, Tamaulipas, Mexico. Misc. Publs. Mus. Zool. Univ. Michigan, 101:1-102.

Milstead, W. M., J. S. Mecham, and H. McClintock
1950. The amphibians and reptiles of the Stockton Plateau in northern Terrell County, Texas. Texas J. Sci., 2:543-62.

Neill, W. T.
1965. New and noteworthy amphibians and reptiles from British Honduras. Bull. Florida State Mus., 9:77-130.

Nieden, F.
1923. Anura I ... Das Tierreich. Lief., 46:1-584.

Peters, W.
1871. Über neue Amphibien ... des Konigl. Zoologischen Museums. Monatsb. k. k. Preuss. Akad. Wiss. Berlin, 1870:641-52.

Schmidt, K. P., and T. F. Smith
1944. Amphibians and reptiles of the Big Bend Region of Texas. Field Mus. Nat. Hist., zool. ser., 29:75-96.

Smith, H. M.
1947. Notes on Mexican amphibians and reptiles. J. Washington Acad. Sci., 37:408-12.

Smith, H. M., and E. H. Taylor
1948. An annotated checklist and key to the Amphibia of Mexico. Bull. U.S. Natl. Mus., 194:1-118.

Stejneger, L.
1915. A new species of tailless batrachian from North America. Proc. Biol. Soc. Washington, 28:131-32.

Taylor, E. H.
1940a. A new eleutherodactylid frog from Mexico. Proc. New England Zool. Club, 18:13-16.
1940b. Two new anuran amphibians from Mexico. Proc. U.S. Natl. Mus., 89:43-47, 1 pl.
1940c. A new Syrrhophus from Guerrero, Mexico. Proc. Biol. Soc. Washington, 53:95-98, 1 pl.
1940d. New species of Mexican Anura. Univ. Kansas Sci. Bull., 26:385-405.
1940e. Herpetological miscellany no. I. Ibid., 26:489-571.
1942. New Caudata and Salientia from México. Ibid., 28:295-323.
1943. Herpetological novelties from Mexico. Ibid., 29:343-61.
1952. A review of the frogs and toads of Costa Rica. Ibid., 35:577-942.

Taylor, E. H., and H. M. Smith
1945. Summary of the collections of amphibians made in Mexico under the Walter Rathbone Bacon Traveling Scholarship. Proc. U.S. Natl. Mus., 95:521-613.

Tihen, J. A.
1960. Notes on Late Cenozoic hylid and leptodactylid frogs from Kansas, Oklahoma and Texas. Southwest. Nat., 5:66-70.

Wright, A. H., and A. A. Wright
1949. Handbook of frogs and toads. 3rd ed. Comstock. 640 pp.

Yarrow, H. C.
1882. Checklist of North American Reptilia and Batrachia, with catalogue of specimens in U.S. National Museum. Bull. U.S. Natl. Mus., 24:1-249.

Zweifel, R. G.
1960. Results of the Puritan-American Museum of Natural History Expedition to Western Mexico. 9. Herpetology of the Tres Marias Islands. Bull. Amer. Mus. Nat. Hist., 119:81-128.




Transcriber's Notes

Although Syrrhophus marnocki and Syrrhophus marnockii both appear in this text, a literature search shows that both spellings have been used and the two instances where there is only one "i" at the end are in reference to priviously published names. Therefore, they were left as is. With the exception of the list below and a number of silent corrections, the text presented is that of the original printed version. The original cover was modified to include graphics from the article.

Typographical Corrections
Page   Correction
 3   otherwse => otherwise
 5   poltypic => polytypic
12   interorbtal => interorbital
14   neublosus => nebulosus
16   Cuidad => Ciudad
16   1946-170 => 1946:170
22   rubrimacultaus => rubrimaculatus
27   resemblence => resemblance







End of the Project Gutenberg EBook of A Taxonomic Revision of the
Leptodactylid Frog Genus Syrrhophus Cope, by John D. Lynch

*** END OF THIS PROJECT GUTENBERG EBOOK A TAXONOMIC REVISION OF THE ***

***** This file should be named 37809-h.htm or 37809-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/3/7/8/0/37809/

Produced by Chris Curnow, Tom Cosmas, Joseph Cooper and
the Online Distributed Proofreading Team at
http://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
http://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at http://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
http://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
[email protected].  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at http://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     [email protected]


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit http://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: http://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart is the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     http://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
