What are the requisites of a child's laboratory? What essentials must we provide if we would deliberately plan an environment to promote the developmental possibilities of play?
These questions are raised with ever-increasing insistence as the true nature of children's play and its educational significance come to be matters of more general knowledge and the selection of play equipment assumes a corresponding importance in the school and at home.
To indicate some fundamental rules for the choice of furnishings and toys and to show a variety of materials illustrating the basis of selection has been our aim in compiling the following brief catalogue. We do not assume the list to be complete, nor has it been the intention to recommend any make or pattern as being indispensable or as having an exclusive right to the field. On the contrary, it is our chief hope that the available number and variety of such materials may be increased to meet a corresponding increase of intelligent demand on the part of parents and teachers for equipment having real dignity and play value.
The materials listed were originally assembled in the Exhibit of Toys and School Equipment shown by the Bureau of Educational Experiments in the Spring and Summer of 1917, and we wish to make acknowledgment, therefore, to the many who contributed to that exhibit and by so doing to the substance of the following pages. Chief among them are Teachers College, The University of Pittsburgh, The Ethical Culture School, The Play School and other experimental schools described in our bulletins, numbers 3, 4 and 5.
The cuts have been chosen for the most part from photographs of the Play School, where conditions fairly approximate those obtainable in the home and thus offer suggestions easily translatable by parents into terms of their own home environment.
While this equipment is especially applicable to the needs of children four, five and six years old, most of it will be found well adapted to the interests of children as old as eight years, and some of it to those of younger children as well.
Bureau of Educational Experiments.
New York City, June, 1918.
Out-of-door Furnishings should be of a kind to encourage creative play as well as to give exercise.
Playground apparatus, therefore, in addition to providing for big muscle development should combine the following requisites:
Intrinsic value as a toy or plaything. "The play of children on it and with it must be spontaneous."[A-1]
Adaptability to different kinds of play and exercise. "It must appeal to the imagination of the child so strongly that new forms of use must be constantly found by the child himself in using it."[A-2]
Adaptability to individual or group use. It should lend itself to solitary play or to use by several players at once.
Additional requisites are:
Safety. Its use should be attended by a minimum of danger. Suitable design, proper proportions, sound materials and careful construction are essentials.
Durability. It must be made to withstand hard use and all kinds of weather. To demand a minimum of repair means also to afford a maximum of security.
[A-1]Dr. E. H. Arnold, "Some Inexpensive Playground Apparatus." Bul. 27, Playground Association of America.
[A-2]Dr. E. H. Arnold, "Some Inexpensive Playground Apparatus." Bul. 27, Playground Association of America.

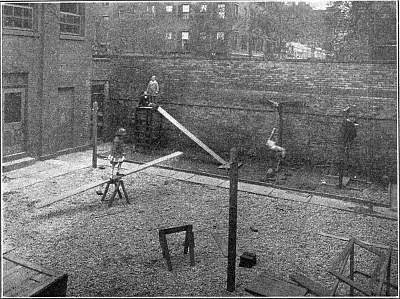

The city yard equipped to give a maximum of exercise
and creative play

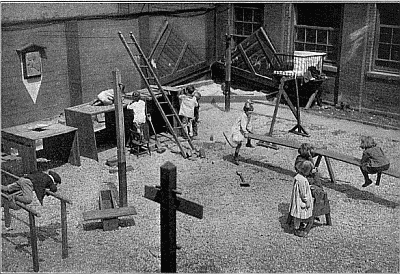

In the country, ready-to-hand resources, trees for climbing, the five-barred fence, the pasture gate, the stone wall, the wood-pile, Mother Earth to dig in, furnish ideal equipment for the muscle development of little people and of their own nature afford the essential requisites for creative and dramatic play. To their surpassing fitness for "laboratory" purposes each new generation bears testimony. If the furnishings of a deliberately planned environment are to compare with them at all they must lend themselves to the same freedom of treatment.
The apparatus shown here was made by a local carpenter, and could easily be constructed by high school pupils with the assistance of the manual training teacher.
The ground has been covered With a layer of fine screened gravel, a particularly satisfactory treatment for very little children, as it is relatively clean and dries quickly after rain. It does not lend itself to the requirements of organized games, however, and so will not answer for children who have reached that stage of play development.
A number of building bricks, wooden boxes of various sizes, pieces of board and such "odd lumber" with a few tools and out-of-door toys complete the yard's equipment.

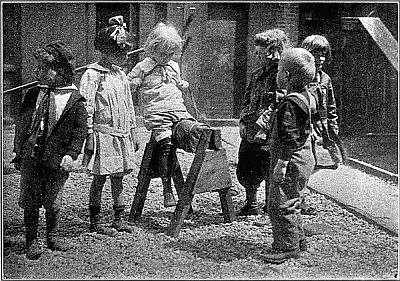

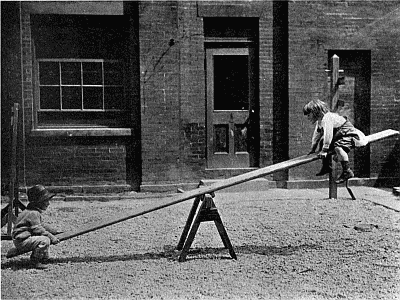

THE SEE SAW
Board--Straight grain lumber, 1-1/8" x 9" x 12'-0".
Two cleats 1¼" x 9" bolted to the under side of the board to act as a socket on the hip of the horse.
Horse--Height 25". Length 22½;". Spread of feet at ground 20". Legs built of 2" x 3" material. Hip of 2" x 3" material. Brace under hip of 7/8" material.
Note--All figures given are for outside measurements. Apparatus except see-saw board and sliding board should he painted, especially those parts which are to be put into the ground.

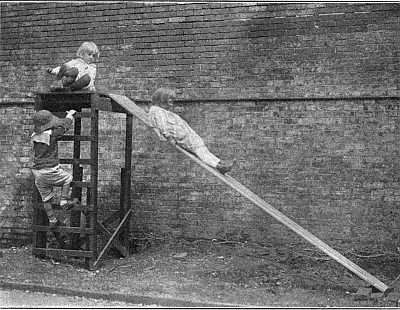

THE STAND AND SLIDE
Stand or Platform--26" wide, 30" long, 5'-4" high.
Top made of 1-3/8" tongue and groove material.
Uprights or legs of 2" x 3" material.
Cleats nailed to front legs 6¼" apart to form ladder are of 1-1/8" x 1¾;" material.
Cross bracing of 7/8" x 2¼;" material.
Apron under top made of 7/8" x 5" material nailed about 1-1/8" below to act as additional bracing and provide place of attachment for iron hooks secured to sliding board.
The stand is fastened to the ground by dogs or pieces of wood buried deep enough (about 3') to make it secure.
Slide--Straight grain piece of lumber, 1-1/8" x 12" x 12'-0".
Two hooks at upper end of sliding board are of iron, about 3/8" x 1½;", set at a proper angle to prevent board from becoming loose. Hooks are about 1¼;" long.
THE SWINGING ROPE
Upright--3" x 3" x 6'-9".
Top Piece--3" x 3" x 2'-9".
Upright and top piece are mortised or halved and bolted together.
Bracing at top (3" x 3" x 20½" at long point of mitre cuts) is nailed to top piece and upright at an angle of about 45 degrees.
Upright rests on a base measuring 3'-0". This is mortised together and braced with 2" x 3" material about 20" long, set at an angle of about 60 degrees.
Unless there are facilities for bracing at the top, as shown in the cut, the upright should be made longer and buried about 3' in the ground.
The swinging rope (¾" dia.) passes through a hole bored in the top piece and held in place by a knot. Successive knots tied 8" to 9" apart and a big knot at the bottom make swinging easier for little folks.

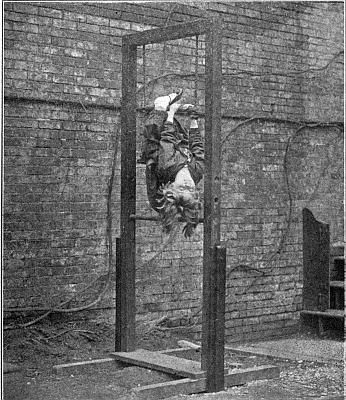

THE TRAPEZE
Two Uprights--3" x 3" x 6'-10".
Top Piece--3" x 3" x 2'-10".
Ends of top piece secured to uprights by being mortised or halved and bolted together.
Uprights rest on bases of 2" x 3" material, 3'-7" long, connected by a small platform in the form of an H.
Bases and uprights are bolted to dogs or pieces of wood 2" x 4" x 5'-8" set in the ground about 3'-0".
Adjustable bar (round) 1-3/8" dia.
3 holes bored in each upright provide for the adjustable bar. The first hole is 3'-0" above ground, the second 3'-5", the third 3'-10".
Swing bar (round), 1-3/8" dia., is 20" long. Should hang about 16" below top piece.
2 holes 5/8" dia. bored in the top piece receive a continuous rope attached to the swing bar by being knotted after passing through holes (5/8" dia.) in each end of the bar.

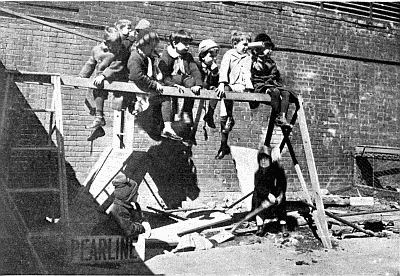

THE LADDER AND SUPPORT
Ladder--14" x 10'-2"
Sides of 1½" x ½" material
Rungs ¼" dia. set 10¼" apart
At upper ends of the sides a u-shaped cut acts as a hook for attaching the ladder to the cross bar of the support. These ends are re-inforced with iron to prevent splitting.
Support--Height 4'-6". Spread of uprights at base 4'-2".
Uprights of 1½" x 2½" material are secured to a foot (1½" x 4" x 20½") with braces (11½" x 2½" x 12") set at an angle of about 60°.
Tops of the two uprights are halved and bolted to a cross bar 1-1/8" x 2½" x 10" long.
The uprights are secured with diagonal braces 1-3/8" x 3½" x 3'-9" fastened together where they intersect.
AS DRAMATIC MATERIAL
A borrowed step ladder converts this gymnastic apparatus into an airship.
A PRACTICAL ADAPTATION

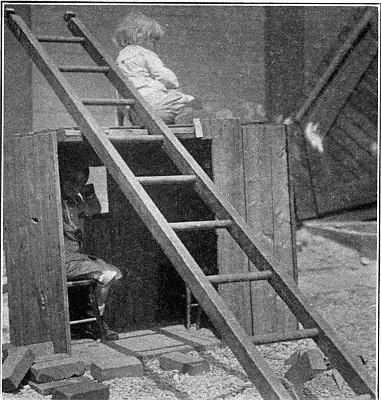

The ladder detached from the support is an invaluable adjunct to
building and other operations.

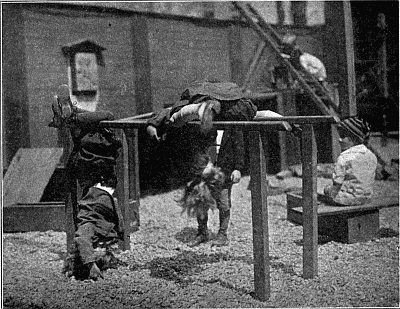

THE PARALLEL BARS
The two bars are 2" x 2¼" X 6'-10" and are set 16½" to 18½" apart. The ends are beveled and the tops rounded.
Each bar is nailed to two uprights (2" X 3" X 5'-0") set 5' apart and
extending 34" above ground. An overhang of about 6" is allowed at each
end of the bar.

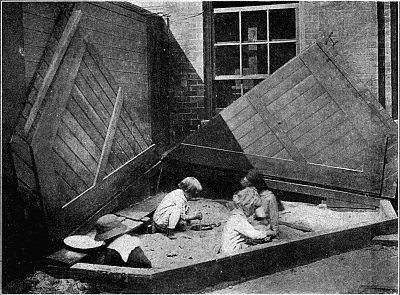

THE SAND BOX
The sloping cover to the sand box pictured here has been found to have many uses besides its obvious purpose of protection against stray animals and dirt. It is a fairly good substitute for the old-time cellar door, that most important dramatic property of a play era past or rapidly passing.

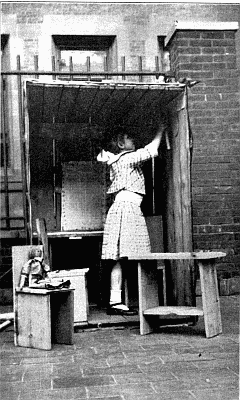

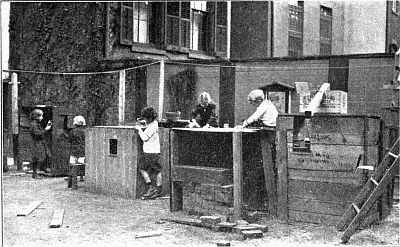

BOX VILLAGE
The child is to be pitied who has not at some time revelled in a packing-box house big enough to get into and furnished by his own efforts. But a "village" of such houses offers a greatly enlarged field of play opportunity and has been the basis of Miss Mary Rankin's experiment on the Teachers College Playground.[B]
In addition to its more obvious possibilities for constructive and manual development, Miss Rankin's experiment offers social features of unusual suggestiveness, for the village provides a civic experience fairly comprehensive and free from the artificiality that is apt to characterize attempts to introduce civic content into school and play procedure.
[B] See "Teachers College Playground," Bulletin No. 4, Bureau of Educational Experiments.
Of interest to carpenters.
A boom in real estate.
The requisites for indoor equipment are these:
A Suitable Floor--The natural place for a little child to play is the floor and it is therefore the sine qua non of the play laboratory.
Places to Keep Things--A maximum of convenience to facilitate habits of order.
Tables and Chairs--For use as occasion demands, to supplement the floor, not to take the place of it.
Blocks and Toys--For initial play material.
The Carpenter's Bench--With tools and lumber for the manufacture of supplementary toys.
A supply of Art and Craft materials--For the same purpose.

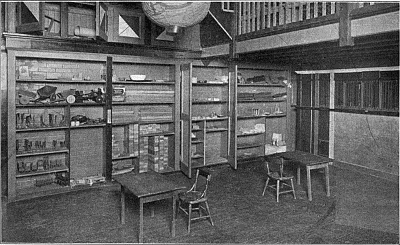

The Indoor Laboratory.
The floor should receive first consideration in planning the indoor laboratory. It should be as spacious as circumstances will permit and safe, that is to say clean and protected from draughts and dampness.
A well-kept hardwood floor is the best that can be provided. Individual light rugs or felt mats can be used for the younger children to sit on in cold weather if any doubt exists as to the adequacy of heating facilities (see cut, p. 32).
Battleship linoleum makes a good substitute for a hardwood finish. It comes in solid colors and can be kept immaculate.
Deck canvas stretched over a layer of carpet felt and painted makes a warm covering, especially well adapted to the needs of very little children, as it has some of the softness of a carpet and yet can be scrubbed and mopped.
Second only in importance is the supply of lockers, shelves, boxes and drawers for the disposal of the great number and variety of small articles that make up the "tools and appliances" of the laboratory. The cut on page 24 shows a particularly successful arrangement for facilities of this kind.
The chairs shown are the Mosher kindergarten chairs, which come in three sizes. The light tables can be folded by the children and put away in the biggest cupboard space (p. 24).
Block boxes are an essential part of the equipment. Their dimensions should be planned in relation to the unit block of the set used. Those shown are 13¾;" X 16½" X 44" (inside measurements) for use with a set having a unit 1-3/8" X 2¾" X 5½". They are on castors and can be rolled to any part of the room.
The low blackboards are 5'-5" in height and 2'-0" from the floor.
All the furnishings of the laboratory should lend themselves to use as dramatic properties when occasion demands, and a few may be kept for such purposes alone. The light screens in the right-hand corner of the room are properties of this kind and are put to an endless number of uses (see cut, p. 40).

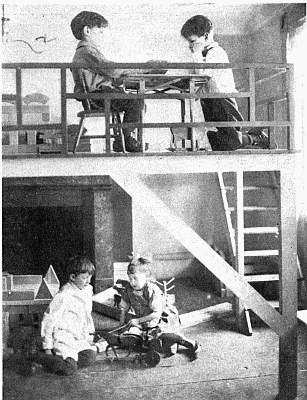

The balcony in a room with high ceiling.
The balcony and a low ceiling.
The balcony is a device to increase floor space that has been used successfully in The Play School for several years. It is very popular with the children and contributes effectively to many play schemes. The tall block construction representing an elevator shaft shown in the picture opposite would never have reached its "Singer Tower proportions" without the balcony, first to suggest the project and then to aid in its execution.
Drop shelves like those along the wall of the "gallery" (p. 22) can be used for some purposes instead of tables when space is limited.
Materials for storekeeping play fill the shelves next the fireplace, and the big crock on the hearth contains modelling clay, the raw material of such objets d'art as may be seen decorating the mantlepiece in the cut on page 20.
A place for everything.

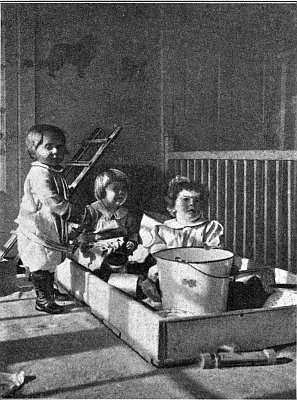

THE INDOOR SAND BOX
The indoor Sand Box pictured here was designed by Mrs. Hutchinson for use in the nursery at Stony Ford. A box of this kind is ideal for the enclosed porch or terrace and a great resource in rainy weather.
The usual kindergarten sand table cannot provide the same play opportunity that is afforded by a floor box, but it presents fewer problems to the housekeeper and is always a valuable adjunct to indoor equipment.
THE CARPENTER BENCH
The carpenter equipment must be a "sure-enough business affair," and the tools real tools--not toys.
The Sheldon bench shown here is a real bench in every particular except size. The tool list is as follows:
Manual training hammer.
18 point cross-cut saw.
9 point rip saw.
Large screw driver, wooden handle.
Small screw driver.
Nail puller.
Stanley smooth-plane, No. 3.
Bench hook.
Brace and set of twist bits.
Manual training rule.
Steel rule.
Tri square.
Utility box--with assorted nails, screws, etc.
Combination India oil stone.
Oil can.
Small hatchet.
Choice of lumber must be determined partly by the viewpoint of the adult concerned, largely by the laboratory budget, and finally by the supply locally available. Excellent results have sometimes been achieved where only boxes from the grocery and left-over pieces from the carpenter shop have been provided. Such rough lumber affords good experience in manipulation, and its use may help to establish habits of adapting materials as we find them to the purposes we have in hand. This is the natural attack of childhood, and it should be fostered, for children can lose it and come to feel that specially prepared materials are essential, and a consequent limitation to ingenuity and initiative can thus be established.
On the other hand, some projects and certain stages of experience are best served by a supply of good regulation stock. Boards of soft pine, white wood, bass wood, or cypress in thicknesses of ¼", 3/8", ½" and 7/8" are especially well adapted for children's work, and "stock strips" ¼" and ½" thick and 2" and 3" wide lend themselves to many purposes.
The proper basis of selection for toys is their efficiency as toys, that is:
They must be suggestive of play and made for play.
They should be selected in relation to each other.
They should be consistent with the environment of the child who is to use them.
They should be constructed simply so that they may serve as models for other toys to be constructed by the children.
They should suggest something besides domestic play so that the child's interest may be led to activities outside the home life.
They should be durable because they are the realities of a child's world and deserve the dignity of good workmanship.
Children re-create the world as they see it with the
equipment they have at hand
FLOOR GAMES
"There comes back to me the memory of an enormous room with its ceiling going up to heaven.... It is the floor I think of chiefly, over the oilcloth of which, assumed to be land, spread towns and villages and forts of wooden bricks ... the cracks and spaces of the floor and the bare brown "surround" were the water channels and open sea of that continent of mine....
"Justice has never been done to bricks and soldiers by those who write about toys--my bricks and my soldiers were my perpetual drama. I recall an incessant variety of interests. There was the mystery and charm of the complicated buildings one could make, with long passages and steps and windows through which one could peep into their intricacies, and by means of slips of card one could make slanting ways in them, and send marbles rolling from top to base and thence out into the hold of a waiting ship.... And there was commerce; the shops and markets and storerooms full of nasturtium seed, thrift seed, lupin beans and such-like provender from the garden; such stuff one stored in match boxes and pill boxes or packed in sacks of old glove fingers tied up with thread and sent off by wagons along the great military road to the beleaguered fortress on the Indian frontier beyond the worn places that were dismal swamps....
"I find this empire of the floor much more vivid in my memory now than many of the owners of the skirts and legs and boots that went gingerly across its territories."
H. G. Wells, "The New Machiavelli," Chapter 2.

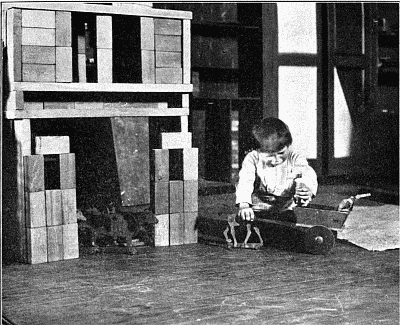

The unsocial novice
Nowhere else, perhaps, not even in his "Floor Games" and "Little Wars" has Mr. Wells, or any other author succeeded in drawing so convincing a picture of the possibilities of constructive play as is to be found in those pages, all too brief, in "The New Machiavelli" where the play laboratory at Bromstead is described. One can imagine the eager boy who played there looking back across the years strong in the conviction that it could not have been improved, and yet the picture of a child at solitary play is not, after all, the ideal picture. Our laboratory, while it must accommodate the unsocial novice and make provision for individual enterprise at all ages and stages, must he above all the place where the give and take of group play will develop along with block villages and other community life in miniature.

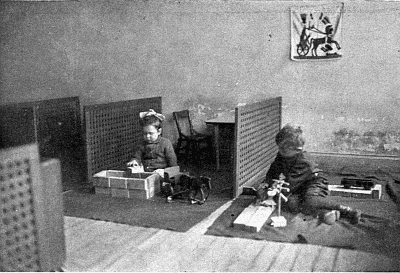

FLOOR BLOCKS
In his reminiscences of his boyhood play Mr. Wells lays emphasis on his great good fortune in possessing a special set of "bricks" made to order and therefore sufficient in number for the ambitious floor games he describes. Comparatively few adults can look back to the possession of similar play material, and so a majority cannot realize how it outweighs in value every other type of toy that can be provided.
Where the budget for equipment is limited, floor blocks can be cut by the local carpenter or, in a school, by the manual training department. The blocks in use at The Play School (see cut, p. 20) are of white wood, the unit block being 1-3/8" X 2¾" X 5½". They range in size from half units and diagonals to blocks four times the unit in length (22").

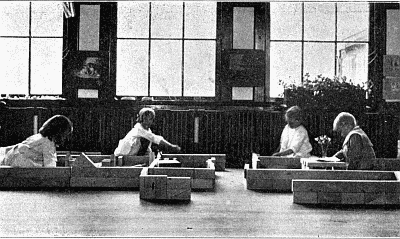

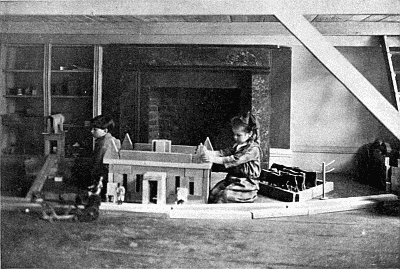

The Hill Floor Blocks at the Gregory Avenue School
At present there is but one set of blocks on the market that corresponds to the one Mr. Wells describes. These are the "Hill Floor Blocks," manufactured and sold by A. Schoenhut & Co., of Philadelphia. They are of hard maple and come in seven sizes, from 3" squares to oblongs of 24", the unit block being 6" in length. There are 680 pieces in a set. Half and quarter sets are also obtainable. They are the invention of Professor Patty Smith Hill of Teachers College, Columbia University, and are used in The Teachers College Kindergarten and in many other schools.
Useful alike to builders and cabinet makers

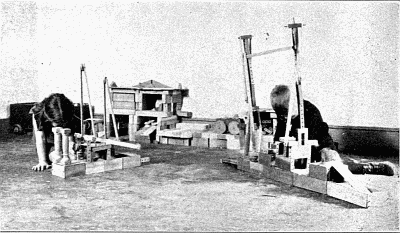

Advanced research in Peg-Lock construction
The School of Childhood at the University of Pittsburgh makes use of several varieties of blocks, some of commercial manufacture, others cut to order. The list given is as follows:[C]
A. Nest of blocks.
B. Large blocks made to order of hard maple in five sizes:
Cubes, 5" X 5".
Oblongs, 2½" X 5" X 10".
Triangular prisms made by cutting cube diagonally into two and
four parts.
Pillars made by cutting oblongs into two parts.
Plinths made by cutting oblongs into two parts.
Light weight 12" boards, 3'-0" to 7'-0" long.
C. Froebel's enlarged fifth and sixth gifts.
D. Stone Anchor blocks.
E. Architectural blocks for flat forms.
F. Peg-Lock blocks.
As children become more dexterous and more ambitious in their block construction, the Peg-Lock Blocks will be found increasingly valuable. These are a type of block unknown to Mr. Wells, but how he would have revelled in the possession of a set! They are manufactured by the Peg-Lock Block Co. of New York. Cut on a smaller scale than the other blocks described, they are equipped with holes and pegs, by which they may be securely joined. This admits of a type of construction entirely outside the possibilities of other blocks. They come in sets of varying sizes and in a great variety of shapes. The School of Childhood uses them extensively, as does The Play School.
[C] See University of Pittsburgh Bulletin, "Report of the Experimental Work in the School of Childhood."
FLOOR TOYS

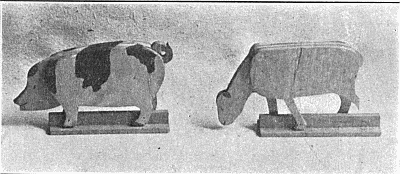

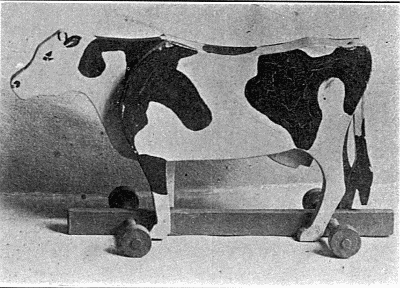

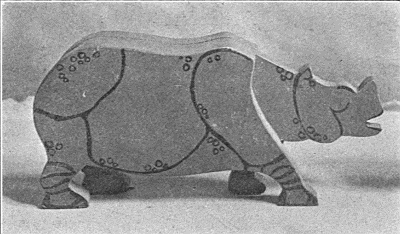

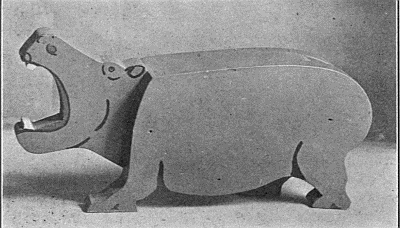

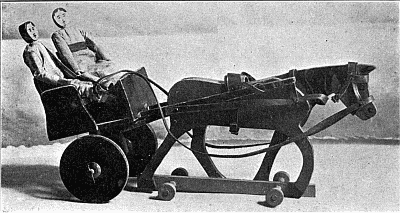

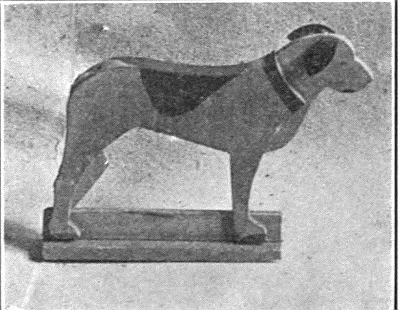

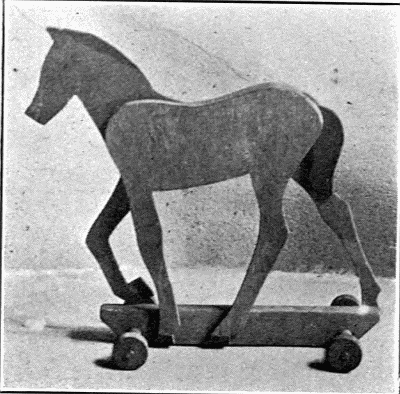

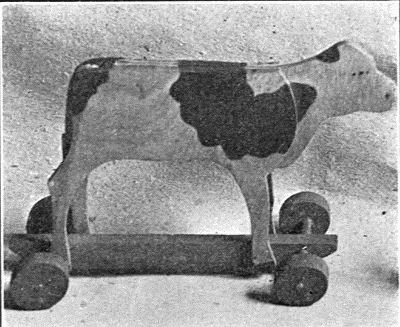

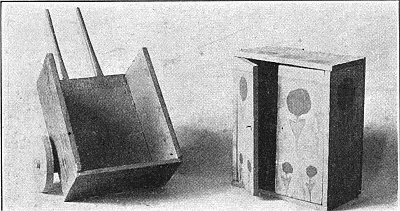

The "Do-with Toys" shown in the accompanying cuts were designed by Miss Caroline Pratt some years ago to meet the need generally felt by devotees of the play laboratory of a consistent series of toys to be used with floor blocks. For if the market of the present day can offer something more adequate in the way of blocks than was generally available in Mr. Wells' boyhood, the same is not true when it comes to facilities for peopling and stocking the resulting farms and communities that develop.
Mr. Wells tells us that for his floor games he used tin soldiers and such animals as he could get--we know the kind, the lion smaller than the lamb, and barnyard fowl doubtless overtopping the commanding officer. Such combinations have been known to children of all generations and play of the kind Mr. Wells describes goes on in spite of the inconsistency of the materials supplied.
But when we consider fostering such play, and developing its possibilities for educational ends, the question arises whether this is the best provision that can be made, or if the traditional material could be improved, just as the traditions concerning blocks are being improved.
A few pioneers have been experimenting in this field for some years past. No one of them is ready with final conclusions but among them opinion is unanimous that constructive play is stimulated by an initial supply of consistent play material calculated to suggest supplementary play material of a kind children can manufacture for themselves.
Blocks are of course the most important type of initial material to be provided; beyond this the generally accepted hypothesis is embodied in the "Do-with" series which provides, first a doll family of proportions suited to block houses, then a set of farm animals and carts, then a set of wild animals, all designed on the same size scale, of construction simple enough to be copied at the bench, and suggesting, each set after its kind, a host of supplementary toys, limited in variety and in numbers only by the experience of the child concerned and by his ability to construct them.
This working hypothesis for the selection of toys is as yet but little understood either by those who buy or those who sell play materials. The commercial dealer declares with truth that there is too little demand to justify placing such a series on the market. Not only does he refuse to make "Do-withs" but he provides no adequate substitutes. His wooden toys are merely wooden ornaments without relation to any series and without playability, immobile, reasonless, for the philosophy of the play laboratory is quite unknown to the makers of play materials, while those who buy are guided almost entirely by convention and have no better standard by which to estimate what constitutes their money's worth.
On the other hand enthusiasts raise the question, why supply any toys? Is it not better for children to make all their toys? And as Miss Pratt says, "getting ready for play is mistaken for play itself."
Too much "getting ready" kills real play, and if our purpose is to foster and enrich the actual activity, we must understand the subtle value of initial play materials, of having at hand ready for the promptings of play impulse the necessary foundation stones on which a superstructure of improvisation can be reared.

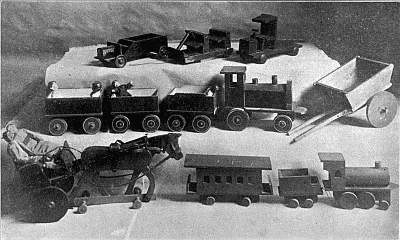

Transportation Toys

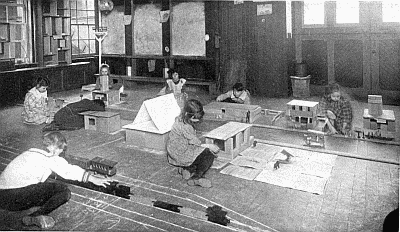

A trunk line
When by hook or crook the devotees of floor games have secured a population and live stock for their block communities, then, as Mr. Wells reminds us, comes commerce and in her wake transportation problems to tax the inventive genius of the laboratory.
Simple transportation toys are the next need, and suitable ones can generally, though not always, be obtained in the shops. A few well-chosen pieces for initial material will soon be supplemented by "Peg-lock" or bench-made contrivances.
For railroad tracks the block supply offers possibilities better adapted to the ages we are considering than any of the elaborate rail systems that are sold with the high-priced mechanical toys so fascinating to adult minds. Additional curved blocks corresponding to the unit block in width and thickness are a great boon to engineers, for what is a railroad without curves!
Transportation toys can be perfectly satisfactory when not made strictly to scale. Indeed, the exigencies of the situation generally demand that realists be satisfied with rather wide departures from the general rule. Train service, however, should accommodate at least one passenger to a car.
LARGE AND SMALL SCALE TOYS

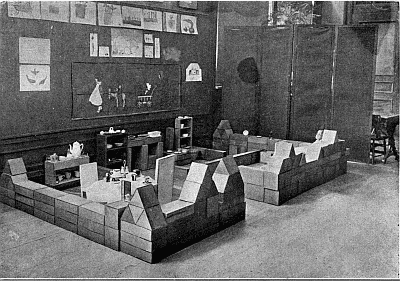

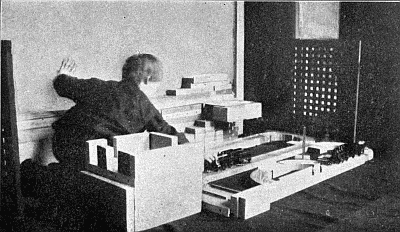

The floor scheme pictured here is a good illustration of our principles of selection applied to toys of larger scale. The dolls, the tea set, the chairs are from the toy shop. The little table in the foreground, and the bed are bench made. The bedding is of home manufacture, the jardiniere too, is of modelling clay, gaily painted with water colors. The tea table and stove are improvised from blocks as is the bath room, through the door of which a block "tub" may be seen. The screen used as a partition at the back is one of the Play School "properties" with large sheets of paper as panels. (See cut p. 20.)
There are some important differences, however, between the content of a play scheme like this and one of the kind we have been considering (see cut page 30). These result from the size and character of the initial play material, for dolls like these invite an entirely different type of treatment. One cannot build villages, or provide extensive railroad facilities for them, nor does one regard them in the impersonal way that the "Do-with" family, or Mr. Wells' soldiers, are regarded, as incidentals in a general scheme of things.
These beings hold the centre of their little stage. They call for affection and solicitude, and the kind of play into which they fit is more limited in scope, less stirring to the imagination, but more usual in the experience of children, because play material of this type is more plentifully provided than is any other and, centering attention as it does on the furnishings and utensils of the home, requires less contact with or information about, the world outside and its activities to provide the mental content for interesting play.

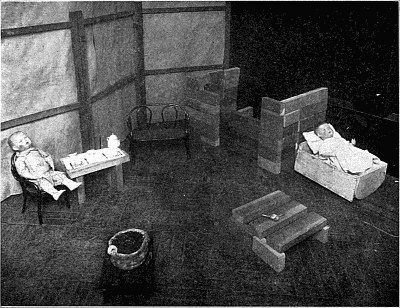

A 'Furnished Apartment' at the Ethical Culture School
In the epochs of play development interest in these larger scale toys precedes that in more complicated schemes with smaller ones. Mr. Wells' stress on the desirability of a toy soldier population really reflects an adult view. For play on the toy soldier and paper doll scale develops latest of all, and because of the opportunities it affords for schemes of correspondingly greater mental content makes special appeal to the adult imagination.
Play material smaller than the "Do-with" models and better adapted to this latest period than are either soldiers or paper dolls remains one of the unexplored possibilities for the toy trade of the future.
Supplementary
HOUSEKEEPING PLAY
Materials for housekeeping play are of two general kinds, according to size--those intended for the convenience of dolls, and those of larger scale for children's use. The larger kind should be strong enough and well enough made to permit of actual processes.
Plentiful as such materials are in the shops, it is difficult to assemble anything approaching a complete outfit on the same size scale. One may spend days in the attempt to get together one as satisfactory as that pictured here. The reason seems to be that for considerations of trade such toys are made and sold in sets of a few pieces each. If dealers would go a step further and plan their sets in series, made to scale and supplementing each other, they would better serve the requirements of play, and, it would seem, their own interests as well.
STOREKEEPING PLAY
From housekeeping play to storekeeping play is a logical step and one abounding in possibilities for leading interest beyond the horizon line of home environment.
Better than any toy equipment and within reach of every household budget is a "store" like the one pictured here where real cartons, boxes, tins and jars are used.

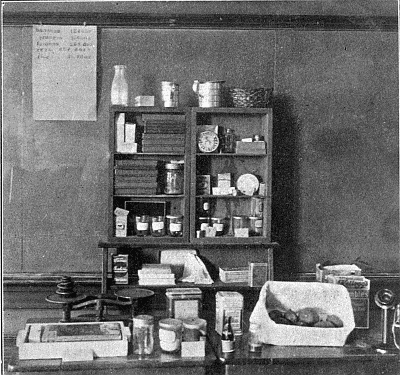

A 'Grocery Store' at the Ethical Culture School
Schools can often obtain new unfilled cartons from manufacturers. The Fels-Naphtha and National Biscuit companies are especially cordial to requests of this kind, and cartons from the latter firm are good for beginners, as prices are plainly marked and involve only dime and nickel computation. The magazine "Educational Foundations" maintains a department which collects such equipment and furnishes it to public schools on their subscribers' list.
Sample packages add to interest and a small supply of actual staples in bulk, or of sand, sawdust, chaff, etc., for weighing and measuring should be provided as well as paper, string, and paper bags of assorted sizes.
Small scales, and inexpensive sets of standard measures, dry and liquid, can be obtained of Milton Bradley and other school supply houses. A toy telephone and toy money will add "content," and for older children a "price and sign marker" (Milton Bradley) is a valuable addition.
The School of Childhood (Pittsburgh) list includes the following
miscellaneous articles for house and store play:
spoons
various sized boxes
stones
pebbles
buttons
shells
spools
bells
enlarged sticks of the kindergarten
ribbon bolts filled with sand
rice
shot
bottles, etc.
CRAFT AND COLOR MATERIALS
Materials of this kind are a valuable part of any play equipment. Of the large assortment carried by kindergarten and school supply houses the following are best adapted to the needs of the play laboratory:
Modelling Materials--Modelling clay and plasticine, far from being the same, are supplementary materials, each adapted to uses for which the other is unsuited.
Weaving Materials--Raphia, basketry reed, colored worsteds, cotton roving, jute and macramé cord can be used for many purposes.
Material for Paper Work--Heavy oak tag, manila, and bogus papers for cutting and construction come in sheets of different sizes. Colored papers, both coated (colored on one side) and engine colored (colored on both sides) are better adapted to "laboratory purposes" when obtainable in large sheets instead of the regulation kindergarten squares. Colored tissue papers, scissors and library paste are always in demand.
Color Materials--Crayons, water color paints, chalks (for blackboard use) are best adapted to the needs of play when supplied in a variety of colors and shades. For drawing and painting coarse paper should be furnished in quantity and in sheets of differing sizes.
"If children are let alone with paper and crayons they will quickly learn to use these toys quite as effectively as they do blocks and dolls."
TOYS FOR ACTIVE PLAY AND OUTDOOR TOOLS
Among the many desirable toys for active play the following deserve "honorable mention":
Express wagon
Sled
Horse reins
"Coaster" or "Scooter"
Velocipede (and other adaptations of the bicycle for beginners)
Football (small size Association ball)
Indoor baseball
Rubber balls (various sizes)
Bean bags
Steamer quoits
As in the case of the carpenter's bench it is poor economy to supply any but good tools for the yard and garden. Even the best garden sets for children are so far inferior to those made for adults as to render them unsatisfactory and expensive by comparison. It is therefore better to get light weight pieces in the smaller standard sizes and cut down long wooden handles for greater convenience. The one exception to be noted is the boy's shovel supplied by the Peter Henderson company. This is in every respect as strong and well made as the regulation sizes and a complete series to the same scale and of the same standard would meet a decided need in children's equipment where light weight is imperative and hard wear unavoidable.
In addition to the garden set of shovel, rake, hoe, trowel and wheel-barrow, a small crow-bar is useful about the yard and, in winter, a light snow shovel is an advantage.
Jean Lee Hunt.
A small permanent exhibit of the play equipment described may be seen at the Bureau of Educational Experiments, 16 West 8th Street, New York, and is occasionally loaned.
For convenience it has seemed well to divide the following list into two parts--the first devoted to the discussion of theory, the other offering concrete suggestions.
Such a division is arbitrary, of course. No better exposition of theory can be found than is contained in some of these references dealing with actual laboratory usage and furnishings. On the other hand the two books by Dr. Kilpatrick, with their illuminating analysis of didactic materials, afford many concrete suggestions, at least on the negative side.
PART I.
Chamberlin, A. E.
"The Child: A Study in the Evolution of Man," Scribner, 1917.
Chap. I, "The Meaning of the Helplessness of Infancy."
Chap. II, "The Meaning of Youth and Play."
Chap. IV, "The Periods of Childhood."
Dewey, John
"Democracy and Education," Macmillan, 1916.
Chap. XV, "Play and Work in the Curriculum."
"How We Think," D. C. Heath and Co.
Chap. XVII, "Play, Work, and Allied Forms of Activity."
Chap. XVI, "Process and Product."
"Interest and Effort in Education," Houghton Mifflin Co., 1913.
Chap. IV, "The Psychology of Occupations."
"The School and Society," University of Chicago Press, 1916.
Chap. IV, "The Psychology of Occupations."
Chap. VII, "The Development of Attention."
"Cyclopedia of Education," Edited by Paul Monroe, Macmillan Co.
Articles on "Infancy," "Play."
Dopp, Katherine E.
"The Place of Industries in Elementary Education," University of
Chicago Press, 1915.
Groos, Karl
"The Play of Man," Appleton, 1916.
Hall, G. Stanley
"Educational Problems," Appleton, 1911.
Chap. I, "The Pedagogy of the Kindergarten."
"Youth: Its Regimen and Hygiene," Appleton, 1916.
Chap. VI, "Play, Sports and Games."
Kilpatrick, William Heard
"The Montessori System Examined," Houghton Mifflin, 1914.
"Froebel's Kindergarten Principles Critically Examined,"
Macmillan, 1916.
Lee, Joseph
"Play in Education," Macmillan, 1915.
Wood, Walter
"Children's Play and Its Place in Education," Duffield, 1913.
PART II.
Arnold, Dr. E. H.
"Some Inexpensive Playground Apparatus," Bulletin No. 27, Playground
Association of America and Playground Extension
Committee of The Russell Sage Foundation.
Deming, Lucile P. and others
"Playthings," Bulletin No. I.
"The Play School," Bulletin No. III.
"The Children's School, The Teachers College Playground, The
Gregory School," Bulletin No. IV.
Bureau of Educational Experiments publications, 1917.
Chambers, Will Grant and others
"Report of the Experimental Work in the School of Childhood,"
University of Pittsburgh Bulletin, 1916.
Cook, H. Caldwell
"The Play Way," Stokes Co., 1917.
Corbin, Alice M.
"How to Equip a Playroom: the Pittsburgh Plan," Bulletin No. 118,
Playground and Recreation Association of America, 1913.
Dewey, John and Evelyn
"Schools of To-morrow," Dutton, 1915.
Chap. V, "Play."
Hall, G. Stanley
"Aspects of Child Life," Ginn, 1914.
"The Story of a Sand Pile."
Hetherington, Clark W.
"The Demonstration Play School of 1913," University of California
Bulletin, 1914.
Hill, Patty Smith and others
"Experimental Studies in Kindergarten Education," Teachers College
publications, 1915.
Johnson, George E.
"Education by Plays and Games," Ginn & Co., 1907.
Lee, Joseph
"Play for Home," Bulletin No. 102, Playground and Recreation
Association of America.
Read, Mary L.
"The Mothercraft Manual," Little, Brown & Co., 1916.
Wells, H. G.
"Floor Games," Small, Maynard & Co., 1912.
"The New Machiavelli," Duffield Co., 1910.
Chap. II, "Bromstead and My Father."
End of Project Gutenberg's A Catalogue of Play Equipment, by Jean Lee Hunt
*** END OF THIS PROJECT GUTENBERG EBOOK A CATALOGUE OF PLAY EQUIPMENT ***
***** This file should be named 28466-h.htm or 28466-h.zip *****
This and all associated files of various formats will be found in:
https://www.gutenberg.org/2/8/4/6/28466/
Produced by Bryan Ness, Woodie4 and the Online Distributed
Proofreading Team at https://www.pgdp.net (This file was
produced from images generously made available by The
Internet Archive/American Libraries.)
Updated editions will replace the previous one--the old editions
will be renamed.
Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties. Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark. Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission. If you
do not charge anything for copies of this eBook, complying with the
rules is very easy. You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research. They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks. Redistribution is
subject to the trademark license, especially commercial
redistribution.
*** START: FULL LICENSE ***
THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK
To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
https://gutenberg.org/license).
Section 1. General Terms of Use and Redistributing Project Gutenberg-tm
electronic works
1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.
1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works. See paragraph 1.E below.
1.C. The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works. Nearly all the individual works in the
collection are in the public domain in the United States. If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed. Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work. You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.
1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are in
a constant state of change. If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work. The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.
1.E. Unless you have removed all references to Project Gutenberg:
1.E.1. The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:
This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever. You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org
1.E.2. If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges. If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.
1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder. Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.
1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.
1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.
1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form. However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form. Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.
1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.
1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that
- You pay a royalty fee of 20% of the gross profits you derive from
the use of Project Gutenberg-tm works calculated using the method
you already use to calculate your applicable taxes. The fee is
owed to the owner of the Project Gutenberg-tm trademark, but he
has agreed to donate royalties under this paragraph to the
Project Gutenberg Literary Archive Foundation. Royalty payments
must be paid within 60 days following each date on which you
prepare (or are legally required to prepare) your periodic tax
returns. Royalty payments should be clearly marked as such and
sent to the Project Gutenberg Literary Archive Foundation at the
address specified in Section 4, "Information about donations to
the Project Gutenberg Literary Archive Foundation."
- You provide a full refund of any money paid by a user who notifies
you in writing (or by e-mail) within 30 days of receipt that s/he
does not agree to the terms of the full Project Gutenberg-tm
License. You must require such a user to return or
destroy all copies of the works possessed in a physical medium
and discontinue all use of and all access to other copies of
Project Gutenberg-tm works.
- You provide, in accordance with paragraph 1.F.3, a full refund of any
money paid for a work or a replacement copy, if a defect in the
electronic work is discovered and reported to you within 90 days
of receipt of the work.
- You comply with all other terms of this agreement for free
distribution of Project Gutenberg-tm works.
1.E.9. If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark. Contact the
Foundation as set forth in Section 3 below.
1.F.
1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection. Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.
1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.
1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium with
your written explanation. The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund. If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund. If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.
1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.
1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law. The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.
1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.
Section 2. Information about the Mission of Project Gutenberg-tm
Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers. It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.
Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at https://www.pglaf.org.
Section 3. Information about the Project Gutenberg Literary Archive
Foundation
The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Its 501(c)(3) letter is posted at
https://pglaf.org/fundraising. Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.
The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations. Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
[email protected]. Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at https://pglaf.org
For additional contact information:
Dr. Gregory B. Newby
Chief Executive and Director
[email protected]
Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation
Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.
The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To
SEND DONATIONS or determine the status of compliance for any
particular state visit https://pglaf.org
While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.
International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.
Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations. To donate, please visit: https://pglaf.org/donate
Section 5. General Information About Project Gutenberg-tm electronic
works.
Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone. For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.
Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included. Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.
Most people start at our Web site which has the main PG search facility:
https://www.gutenberg.org
This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
